Product Name:5V 12V 1-4CH Flip-Flop Latch Relay Module Bistable Self-locking Trigger Switch Board for Motor LED PLC


Packing list:

1 pcs 1/2/4 Channel DC 5V/12V Self-locking Relay Module

Please select the version you need





Description:

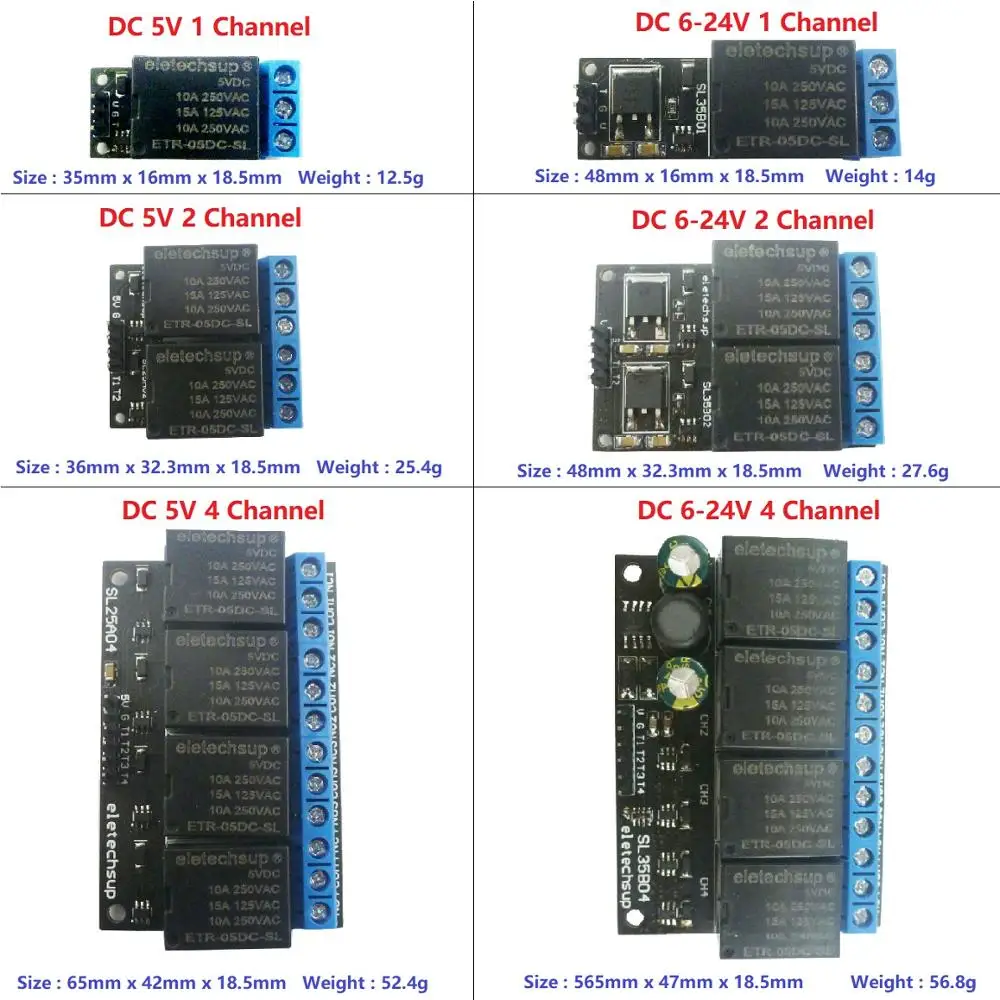

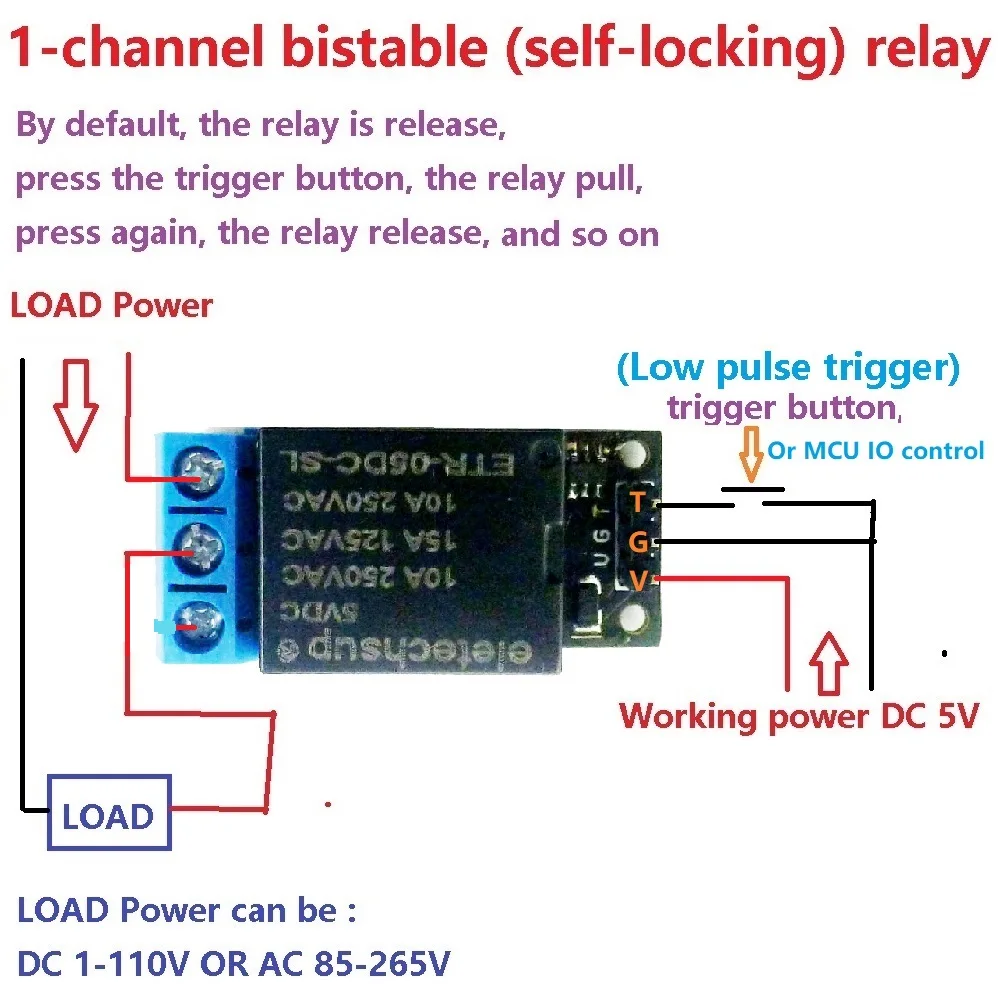

1 Channel DC 5V Self-locking Relay Module(version 1) :



Working voltage: DC 5V

Working current: 60-70MA

Standby current: 0.1mA

Load current: AC 250V / 10A, DC 30V / 10A

Trigger mode: Low pulse trigger

Size: 35mm * 16mm * 18.5mm (L * W * H), Very small size

Weight: 12.5 g

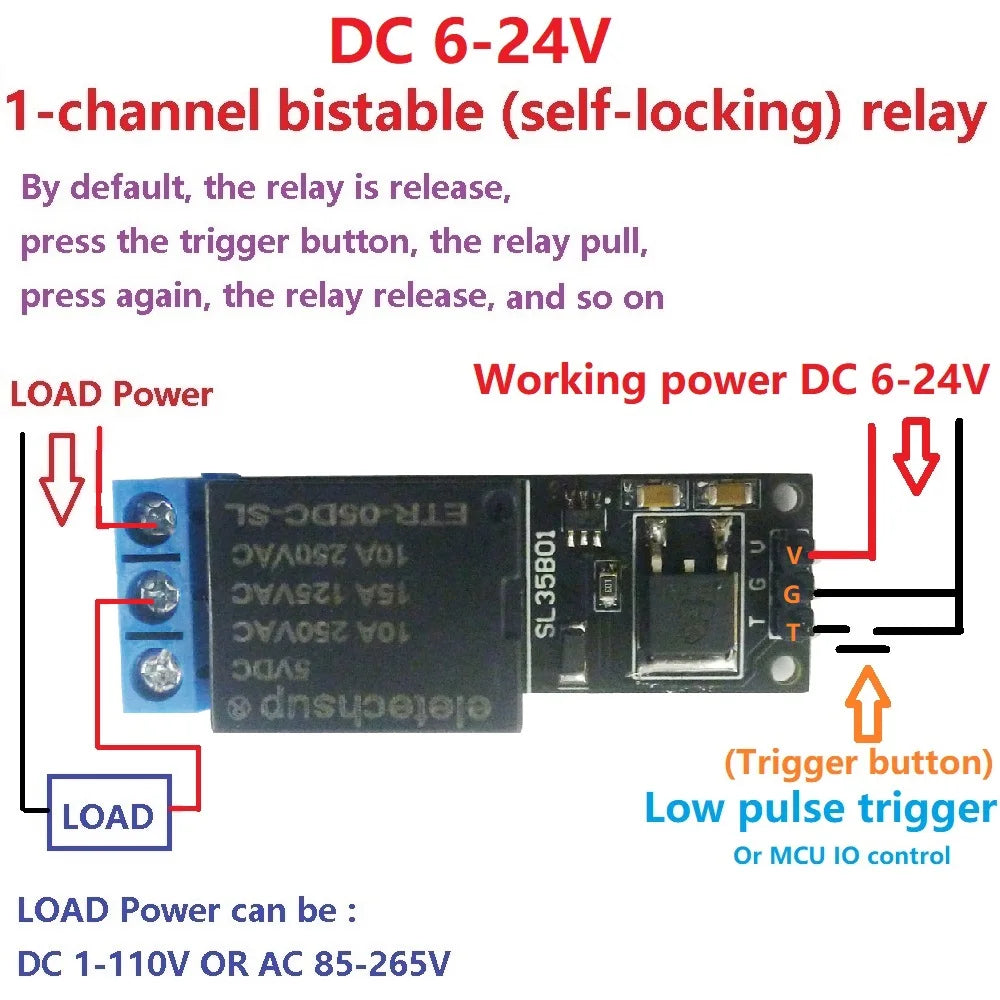

1 Channel DC 12V Self-locking Relay Module(version 2) :



Working voltage: DC 6-24V(Recommended DC 9V 12V)

Working current: 60-70MA

Standby current: 0.12mA

Load current : AC 250V/10A, DC 30V/10A

Trigger mode: Low pulse trigger

Size: 48mm * 16mm * 18.5mm (L * W * H), Very small size

Weight: 14 g









2 Channel DC 5V Self-locking Relay Module(version 3) :



Working voltage: DC 5V

Working current: 1 relay 70MA;2 relay 140MA;

Standby current: 0.2mA

Load current: AC 250V / 10A, DC 30V / 10A

Trigger mode: Low pulse trigger

Size: 36mm * 32.3mm * 18.5mm (L * W * H)

Weight: 24.5 g



2 Channel DC 12V Self-locking Relay Module(version 4) :



Working voltage: DC 6-24V(Recommended DC 9V 12V)
Working current: 1 relay 70MA;2 relay 140MA;
Standby current: 0.24mA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 32.3mm * 18.5mm (L * W * H), Very small size
Weight: 27.6 g



4 Channel DC 5V Self-locking Relay Module(version 5) :



Working voltage: DC 5V
Working current: 1 relay 70MA;2 relay 140MA;3 relay 210MA;4 relay 280MA
Standby current: 0.4mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 42mm * 18.5mm (L * W * H)
Weight: 52.4 g





4 Channel DC 12V Self-locking Relay Module(version 6) :
Working voltage: DC 6-24V(Recommended DC 9V 12V 24V)
Working current: 1 relay 37MA;2  relay 73 MA; 3  relay 1 10MA; 4  relay 146 MA
Standby current: 2mA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 47mm  * 18.5mm (L * W * H)
Weight: 56.8g

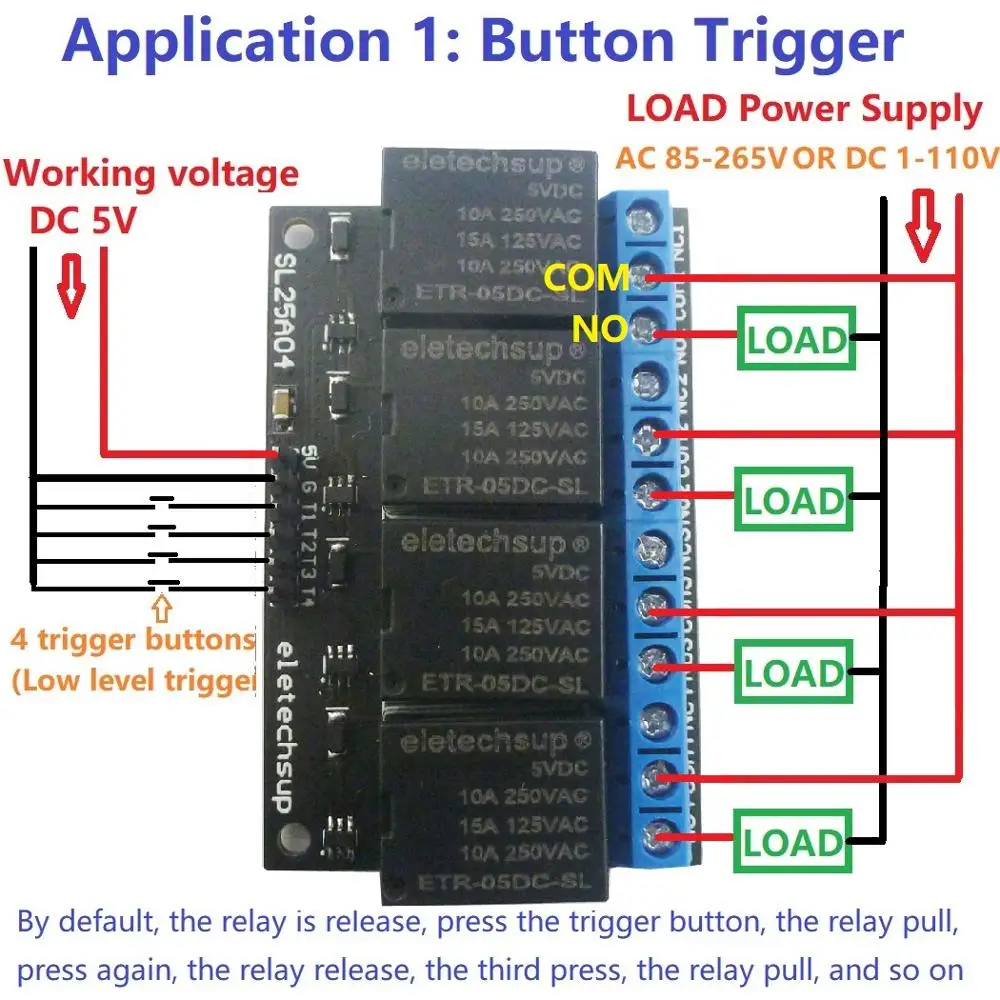

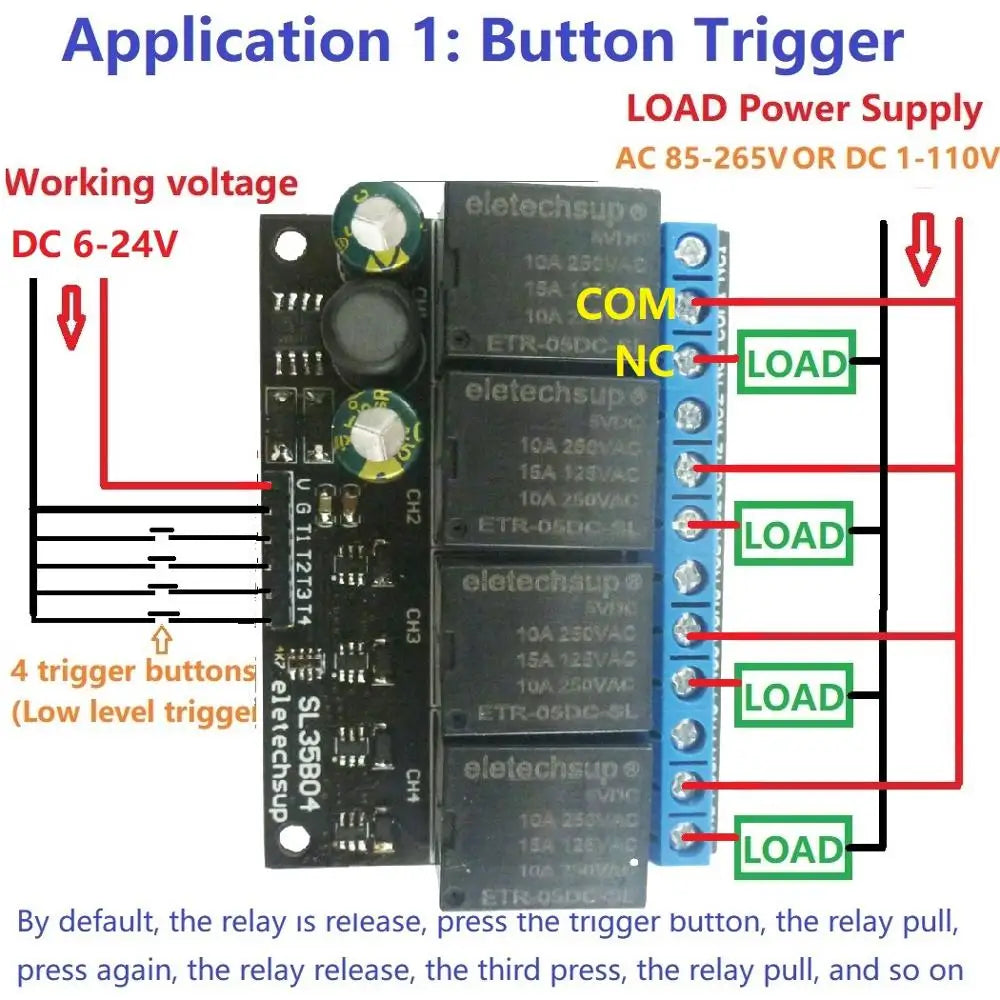

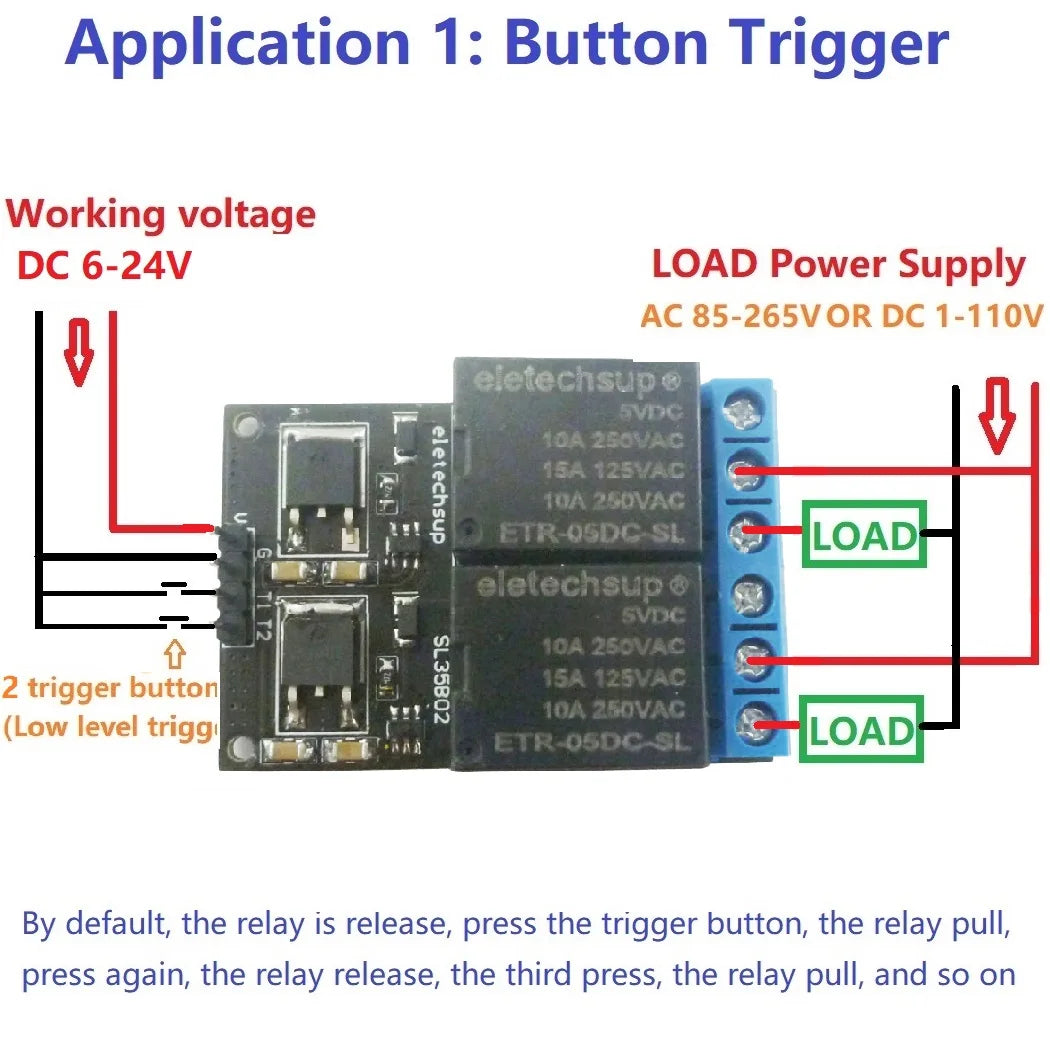

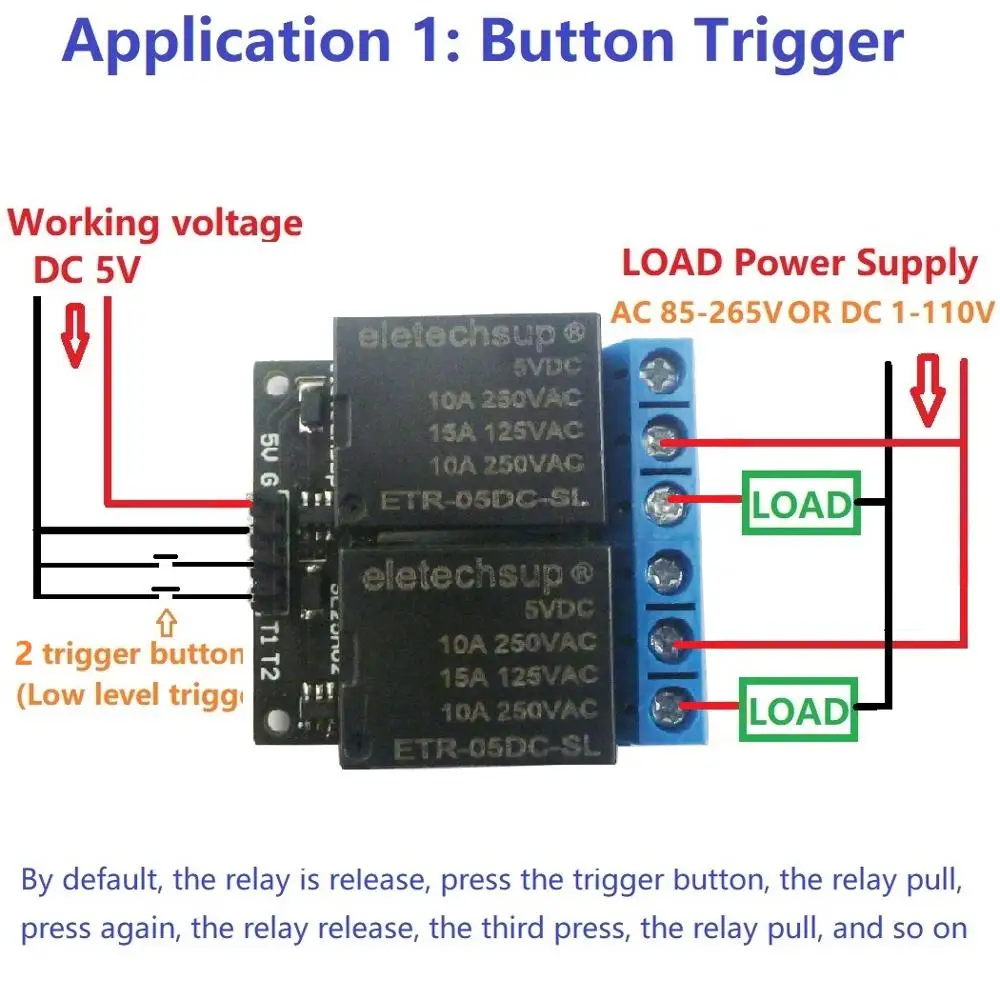

USE 1:

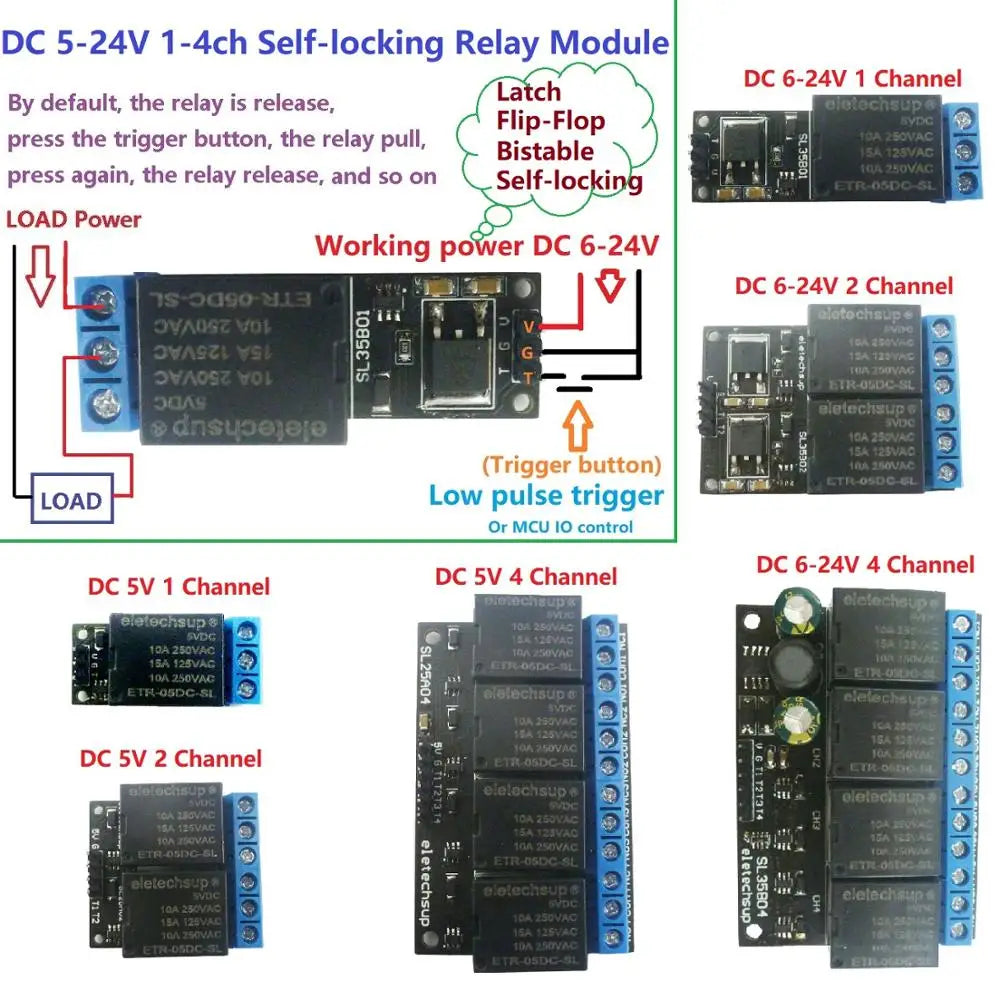

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

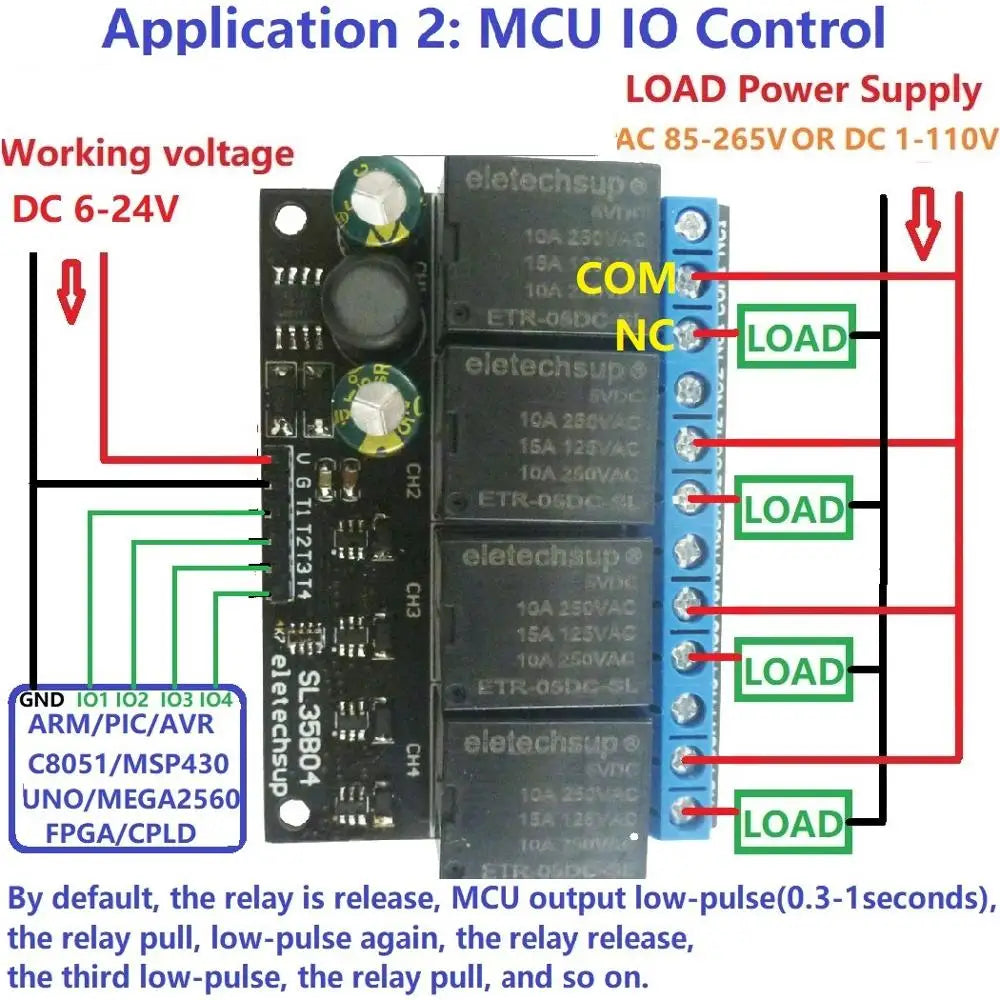

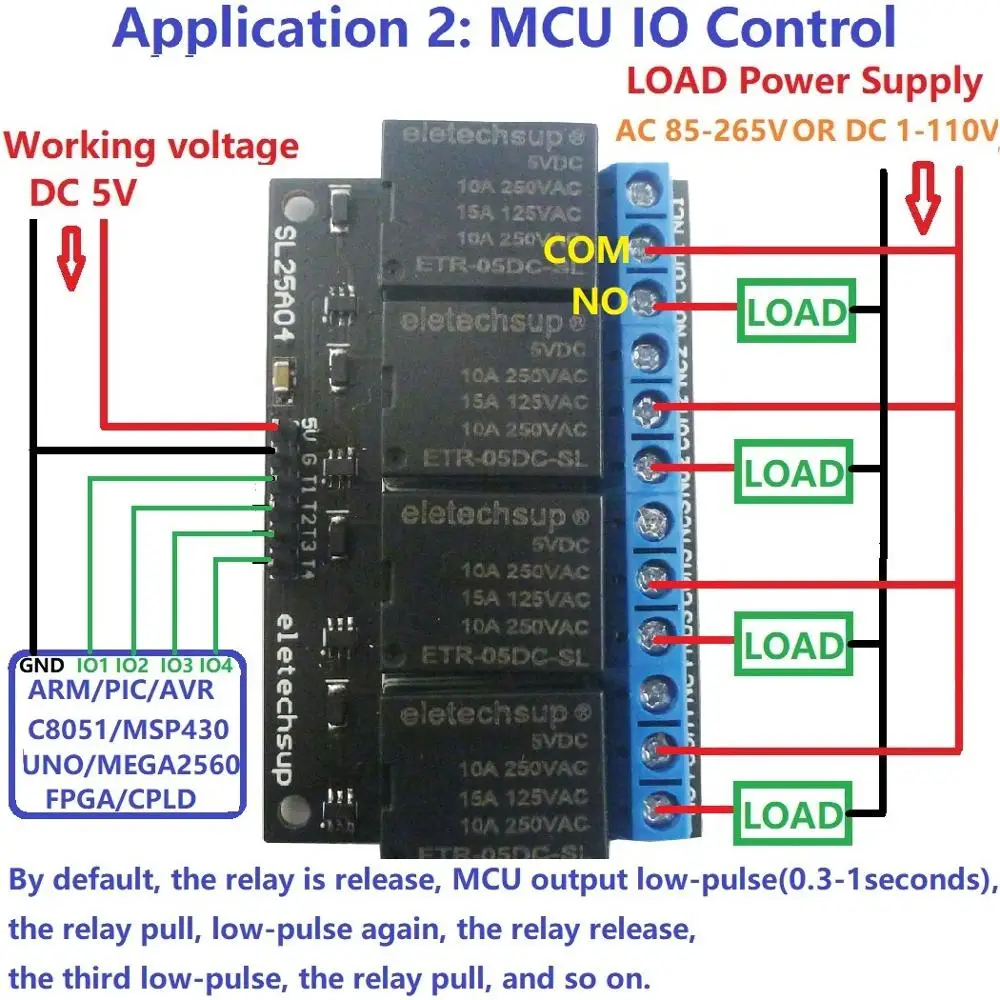

USE 2:



By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on.



Module interface:

1. VCC: positive power supply (VCC)

2. GND: negative power supply (GND)

3. T (T1/T2/T3/T4): Low pulse trigger





Relay outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface





USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on



Typical applications:

Automotive electronics
Motor/PLC/LED
Smart Home/Home automation
Emergency lighting
MCU development board
Toy car
