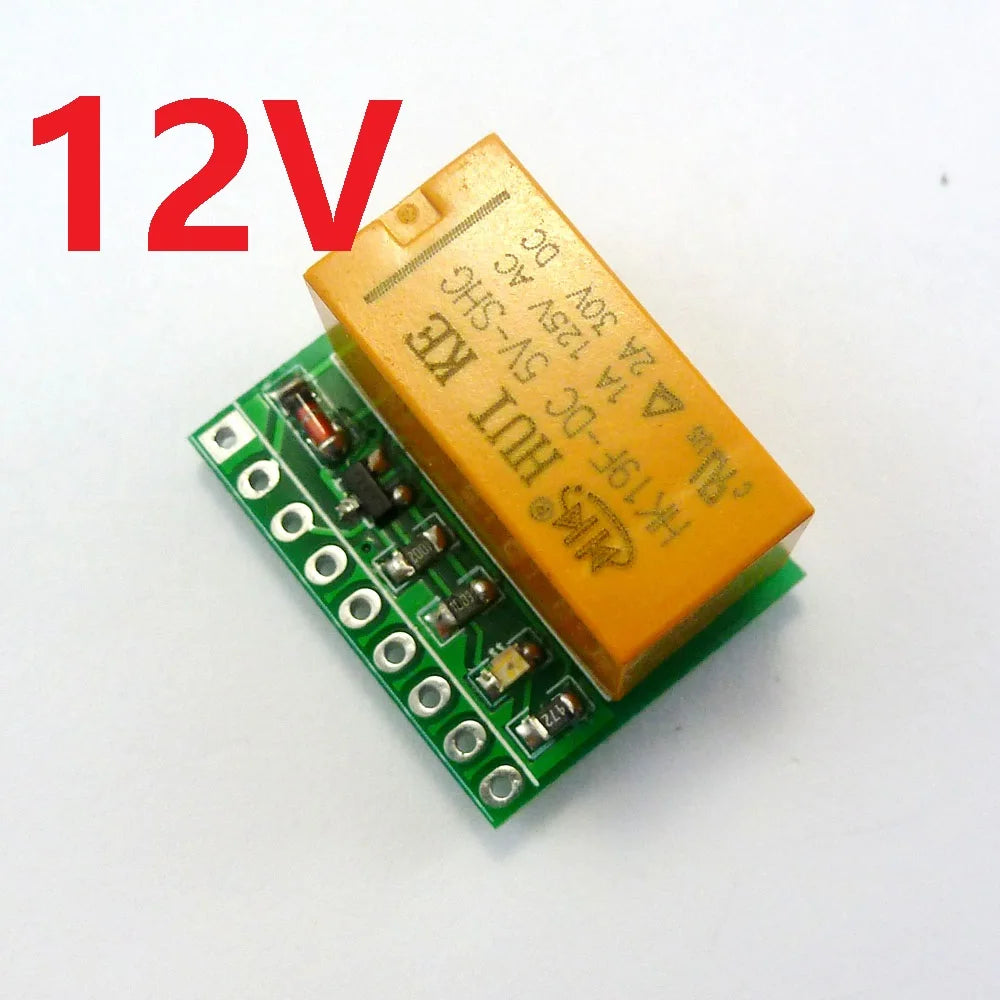

Custom OEM 4PCS DC 12V 1CH DPDT Signal Relay Module Board HK19F PCB Board for LED Motor o equipment Level polarity inversion Manufacturer
Custom OEM 4PCS DC 12V 1CH DPDT Signal Relay Module Board HK19F PCB Board for LED Motor o equipment Level polarity inversion Manufacturer
Regular price
$12.79 USD
Regular price
$12.79 USD
Sale price
$12.79 USD
Unit price
per
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
Typical applications:
Automotive electronics
o and video equipment
lithium battery 18650
Motor,Toy car, boat, model aircraft
Emergency lighting
Product Name :4PCS DC 12V 1CH DPDT Signal Relay Module Board HK19F PCB Board for LED Motor o equipment Level polarity inversion
Packing list:

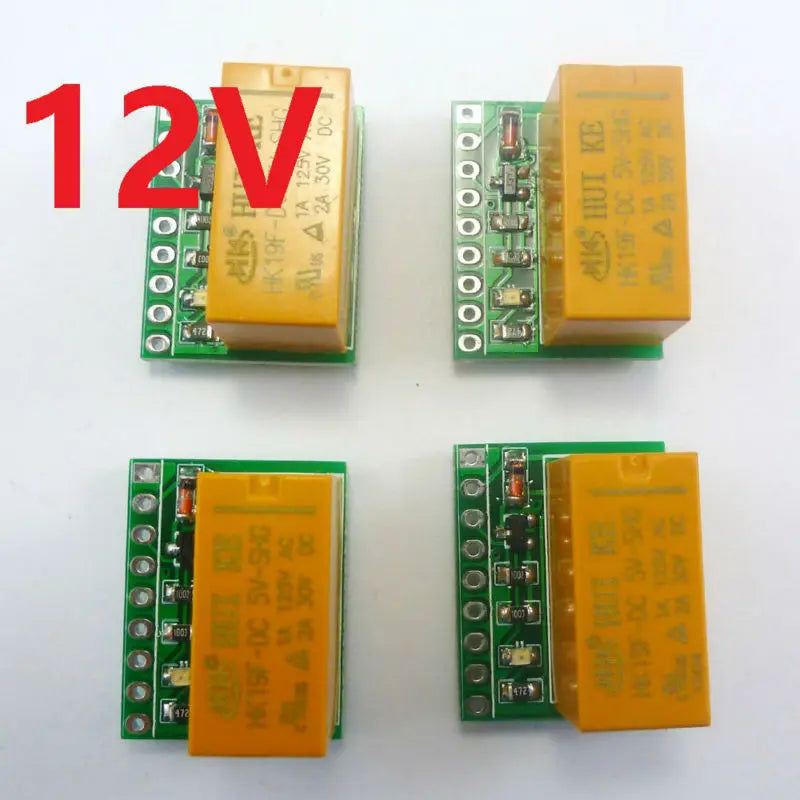

4 PCS DR21D01 one Channel DC 12V DPDT Relay Module
Description:

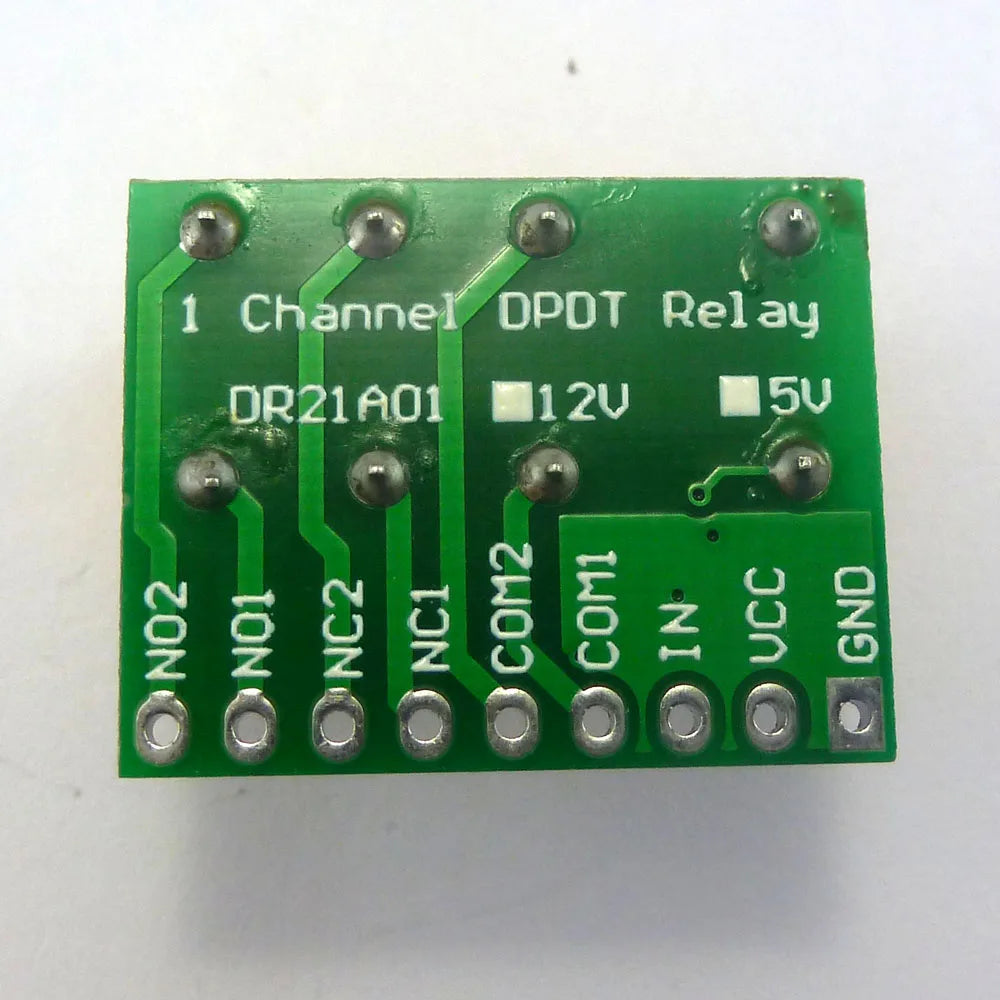

DR21D01 12VDC one Channel DPDT Relay Board
Operating Voltage : DC 12V
Operating Current(Relay ON): 16MA
Standby Current(Relay OFF) : <1MA
Input control signal voltage:
0V - 0.6V Low stage (relay is OFF),
0.6V – 2.5V (unknown state).
2.5V - 24V High state (relay is ON).
Input control signal high state current:
2.5V: 0.15mA
5V: 0.4mA
12V: 1.2mA
20V: 2mA
Relay Load : 1A 125VAC;2A 30VDC
Size : 22.86x18x14
Weight :6g

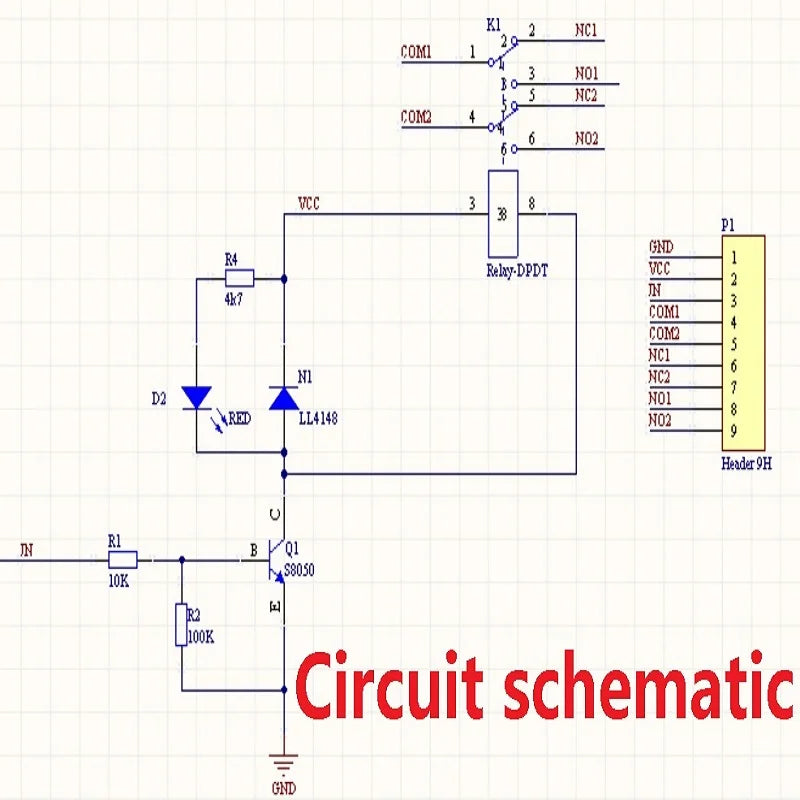

Schematic:
