Custom OEM 2X DC 6V 9V 12V 24V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for ardui Smart home L Manufacturer
Custom OEM 2X DC 6V 9V 12V 24V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for ardui Smart home L Manufacturer
Regular price
$4.19 USD
Regular price
$4.19 USD
Sale price
$4.19 USD
Unit price
per
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
Product Name : 2X DC 6V 9V 12V 24V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low pulse trigger Board for Smart home LED
Packing list:

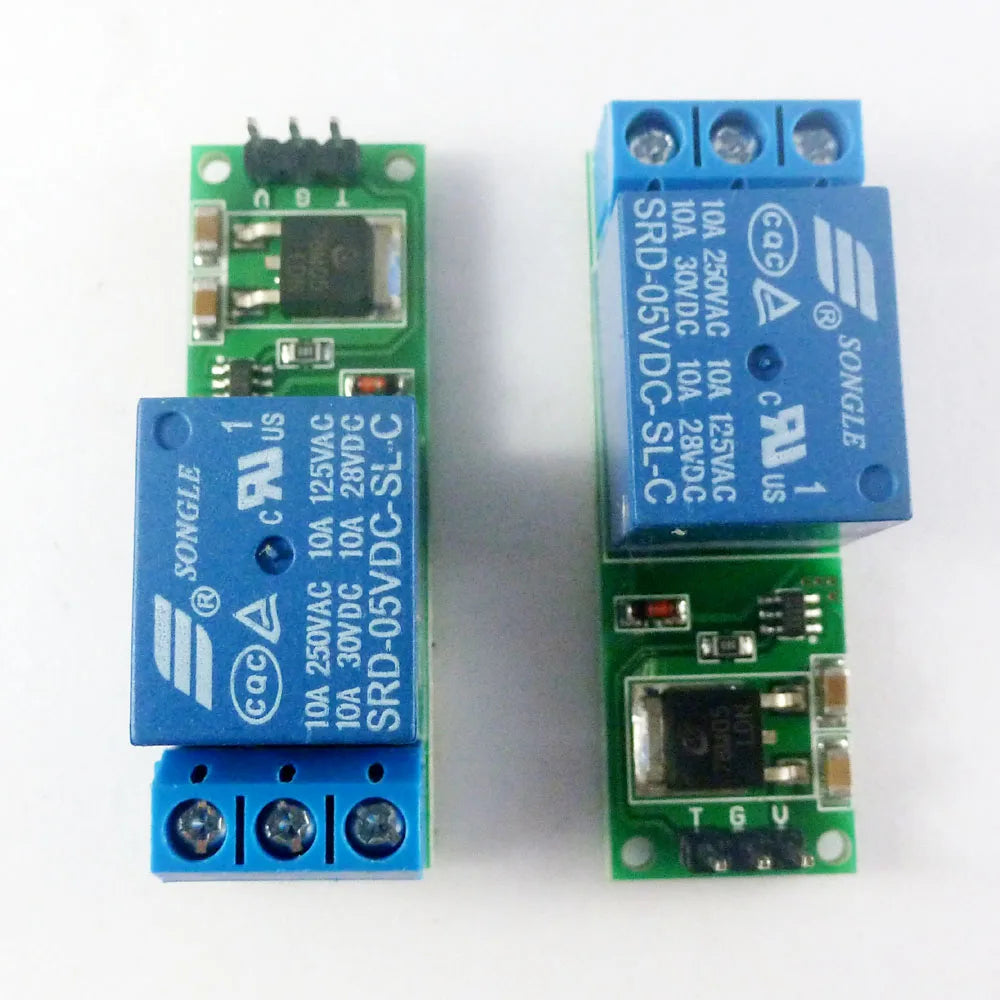

2 pcs 1 Channel DC 6V 9V 12V 24V Self-locking Relay Module
If you need 5V version, click here
Description:
Working voltage: DC 6-24V
Working current: 60-71MA
Standby current: 2UA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger

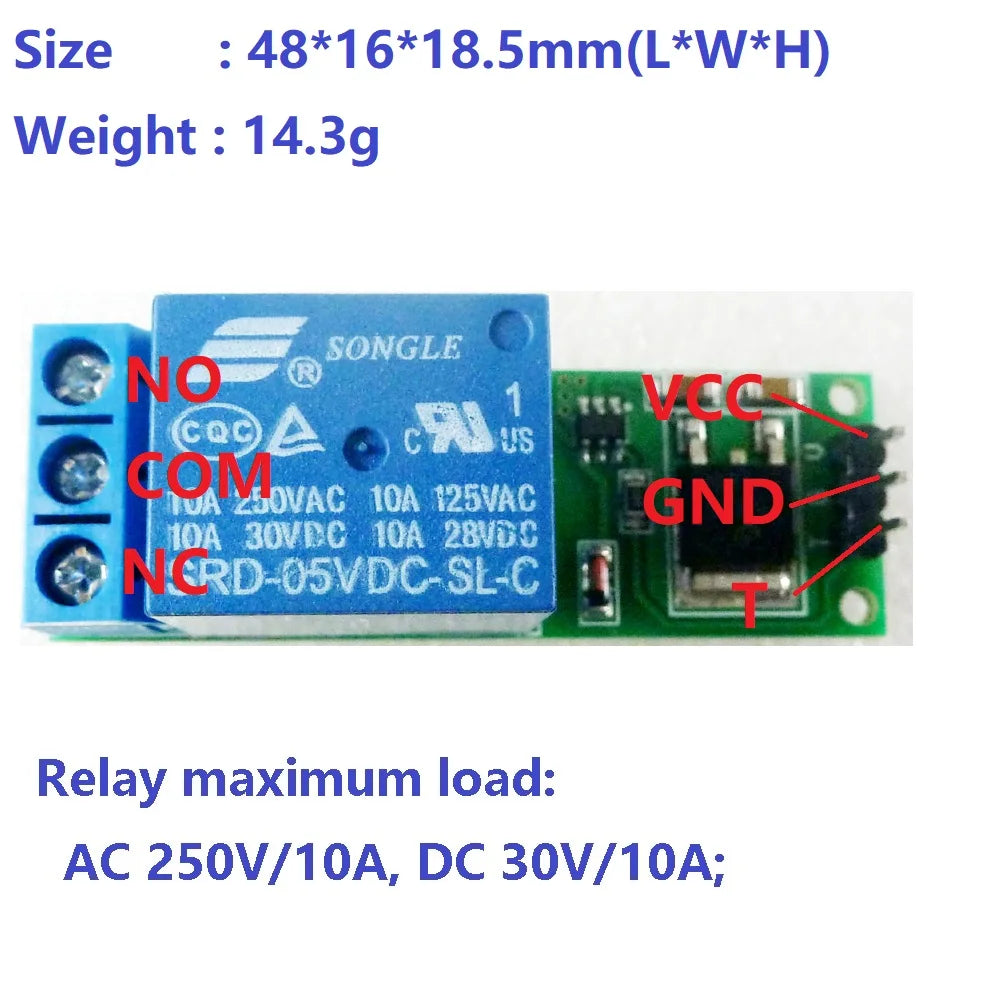

Size: 48mm * 16mm * 18.5mm (L * W * H), Very small size
Weight: 14.3 g

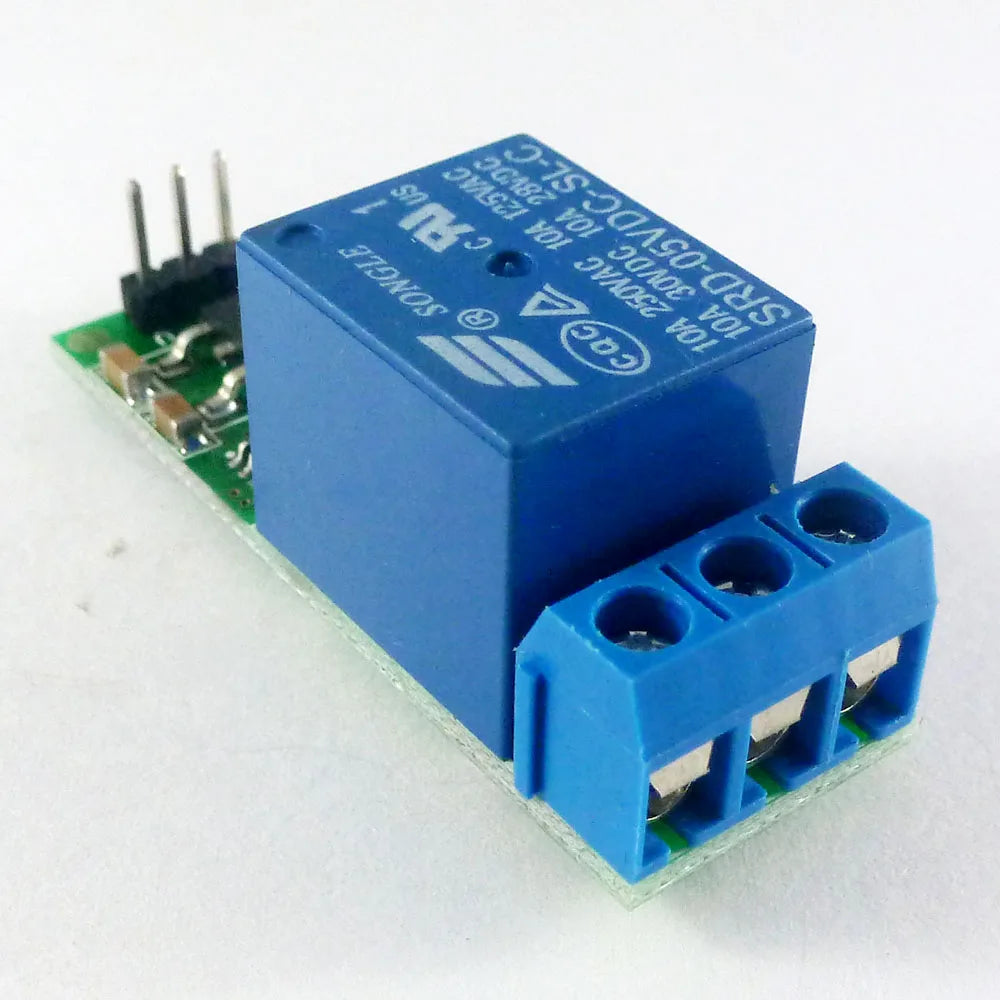

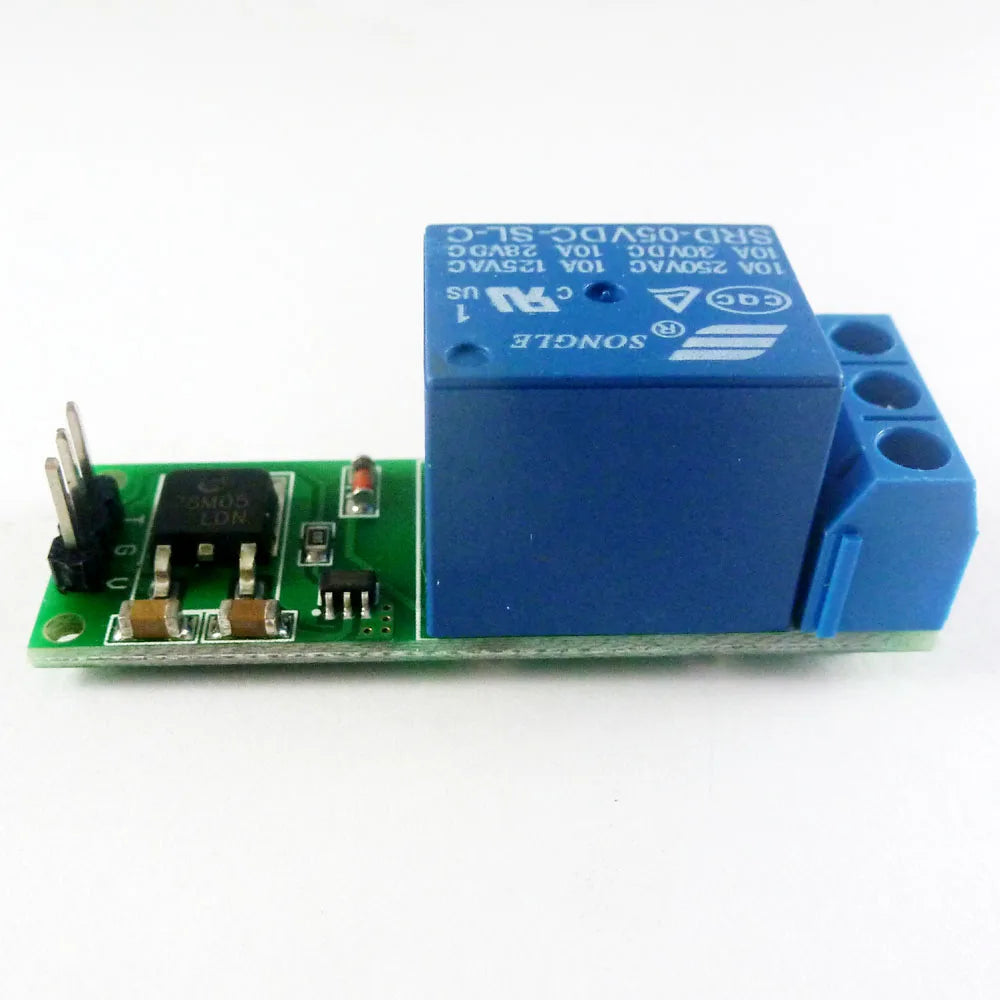

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

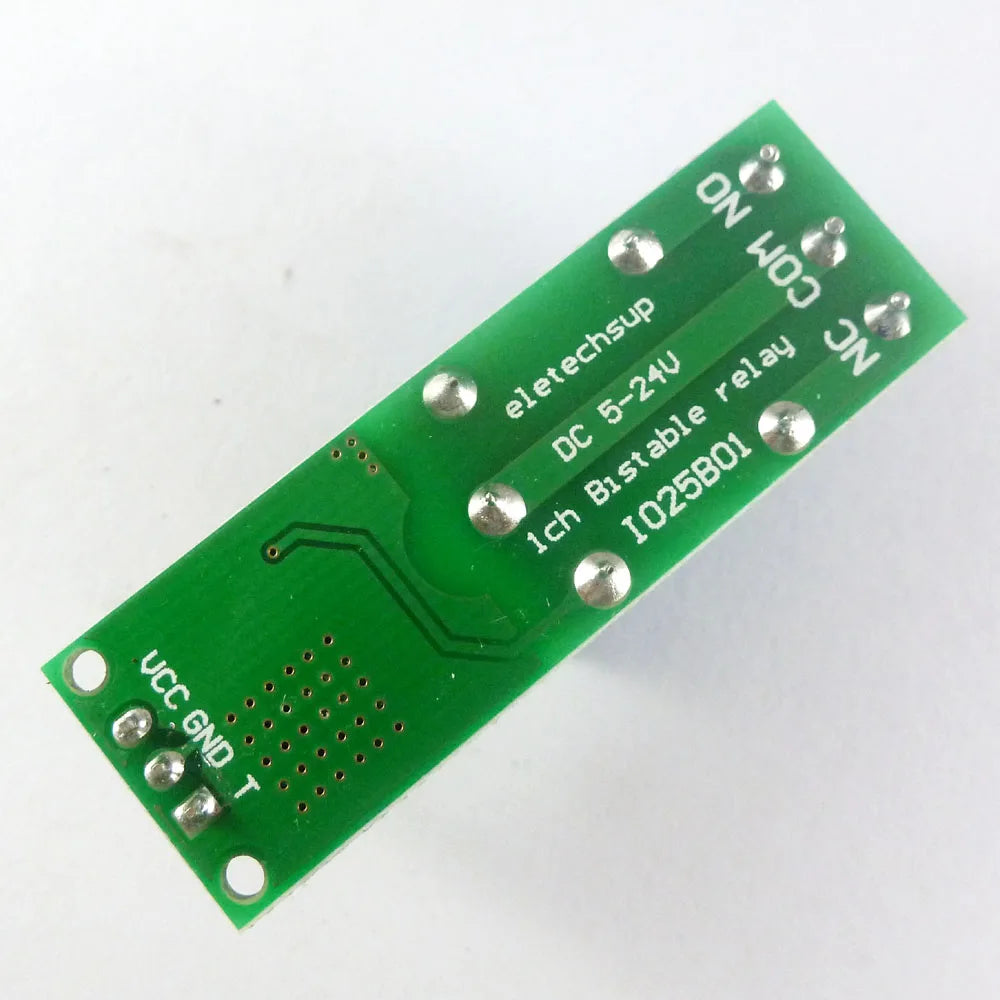

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T : Low pulse trigger
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

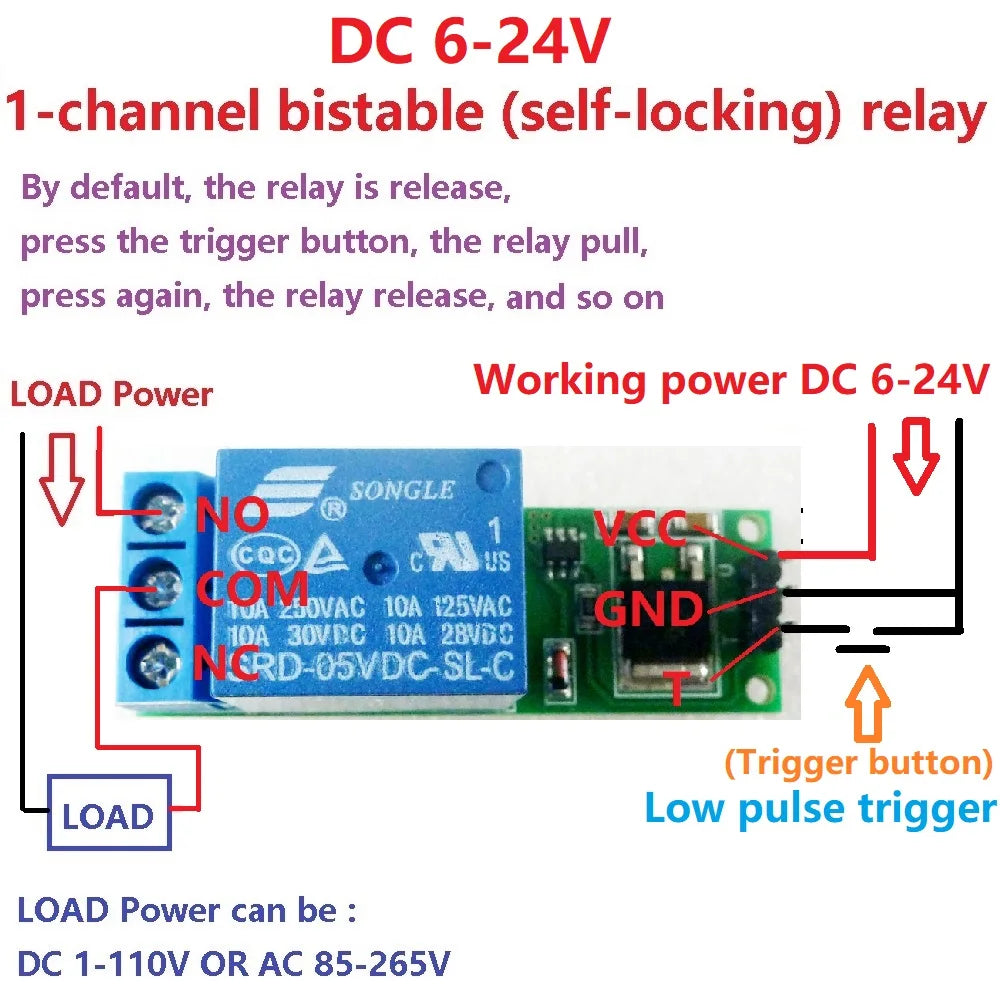

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
Typical applications:
Automotive electronics
Industrial equipment
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car
