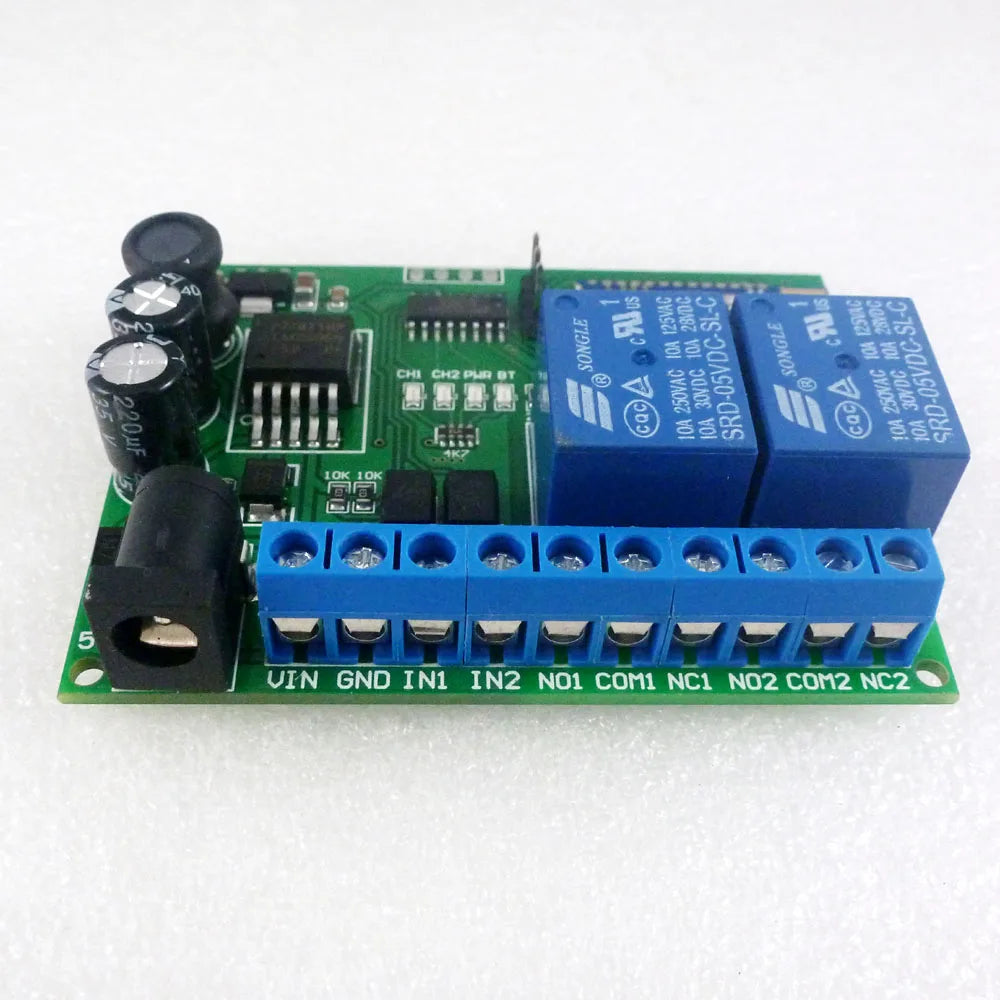

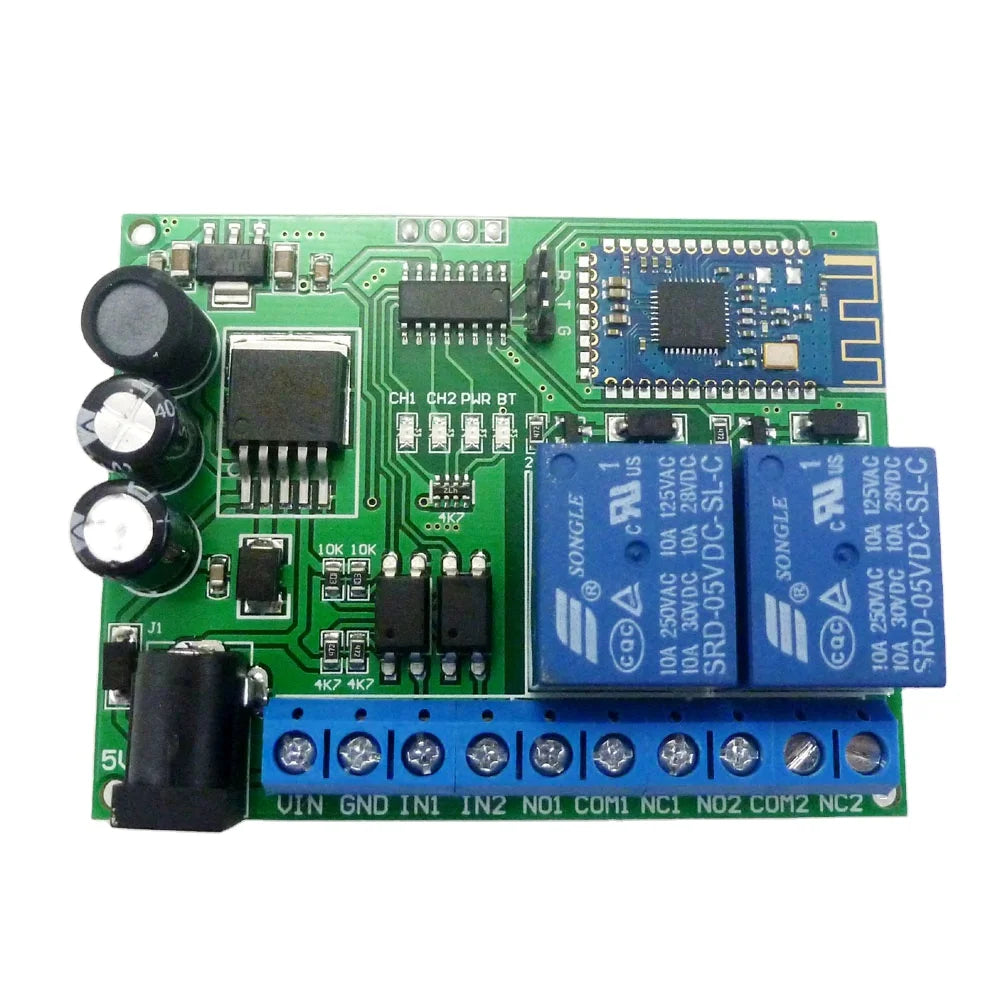

Custom OEM 2ch IOS Android Relay 2.4G RF Wireless Remote control Switch IOT Module Board Manufacturer
Custom OEM 2ch IOS Android Relay 2.4G RF Wireless Remote control Switch IOT Module Board Manufacturer
Couldn't load pickup availability
welcome OEM ,ODM,for more please contact.
2 DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, toy car and other DC 5V equipment
Description:

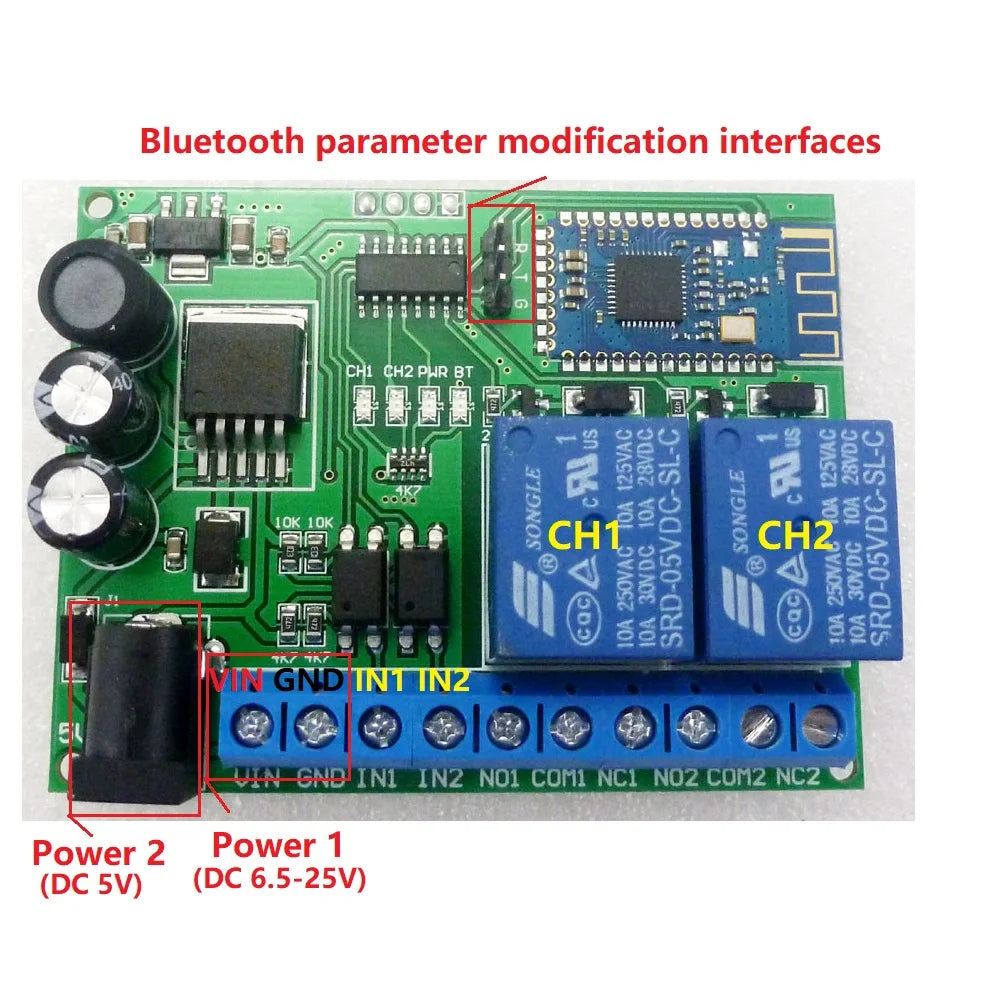

1 Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V.
2 Operating Current: Standby current (all relays closed) 13MA, 1 relay open 44MA, 2 relays open 76MA
3 protocol: Specification V4.0 BLE.
4 Based on TI CC2541 chipset, Support android 4.3 or above,phone 4s or above (IOS8 or above) mobile control
5 2.4GHz-2.48GHz unlicensed ISM band.

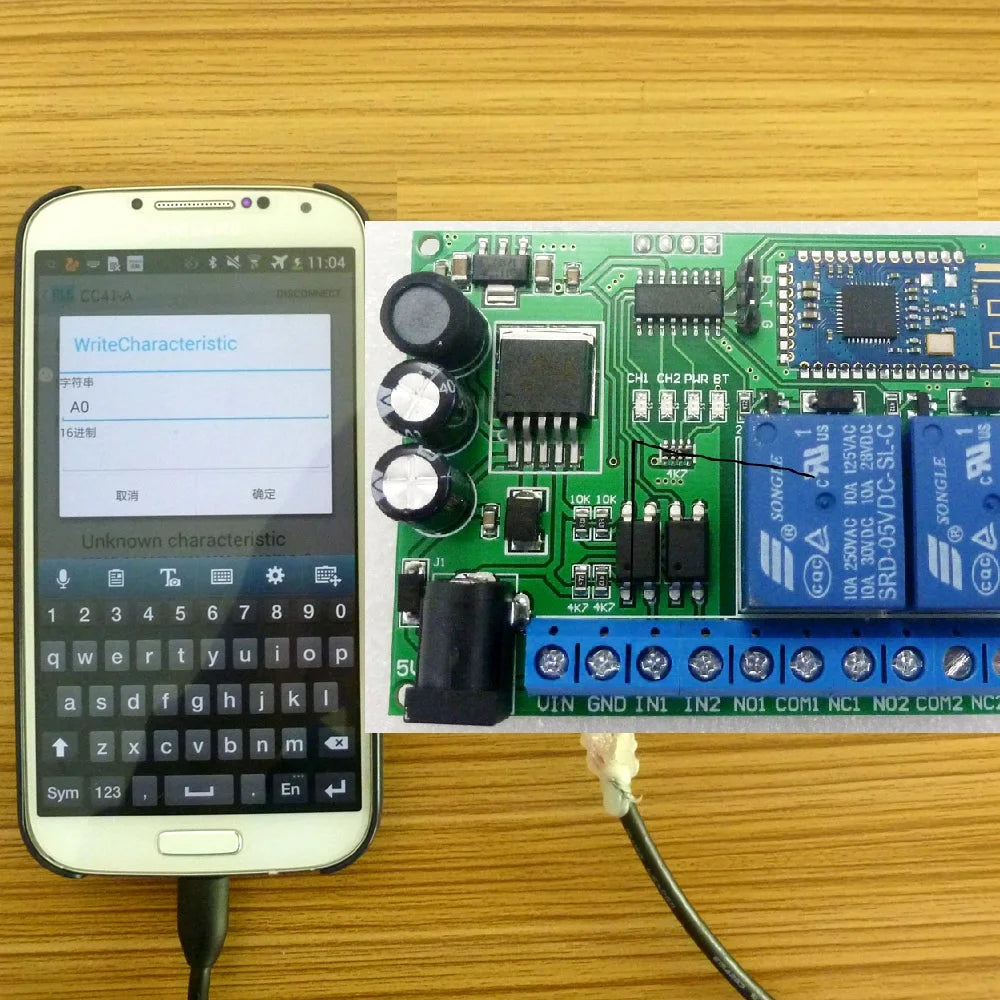

6 send commands via Android/IOS APP control relay turned on and off (we provide APP, you can also use your own APP to control relays, sending commands to control). It can also be triggered by an external pulse signal.
7 "Momentary" "Self-locking" "Interlock" "open" "close" 5 Commands
8 External trigger input, opto-isolated switch, low pulse inputs.
9 size 70*54*19mm
10 Weight : 46g
NOTE:
