Custom NUCLEO-F411RE development board STM32F411RET6 Manufacturer

The STM32 Nucleo-64 development board provides users with an affordable and flexible way to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features offered by STM32 microcontrollers. For compatible boards, external SMPS can significantly reduce power consumption in run mode.

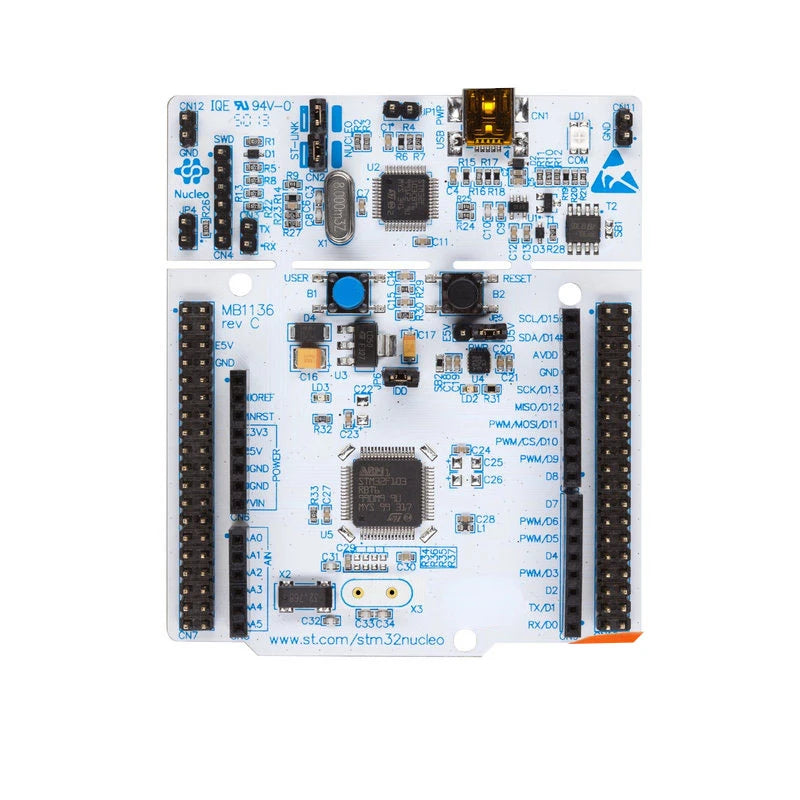

Nucleo F4 Motherboard Photos

ARDUINO® Uno V3 connectivity support and ST morpho headers easily extend the capabilities of the STM32 Nucleo open development platform, and a variety of dedicated shields are available.

The STM32 Nucleo-64 board integrates the ST-LINK debugger/programmer, so no separate probes are required.

The STM32 Nucleo-64 development board comes with the STM32 comprehensive free software library and examples provided by the STM32Cube MCU software package.


Main features

STM32 microcontroller in LQFP64 package

Shares 1 user LED with ARDUIN0

1 user and 1 reset button

32.768 kHz crystal oscillator

Board connectors: ARDUINO® Uno V3 expansion connector ST morpho expansion pin header for full access to all STM32 I/O

Flexible power options: ST-LINK, USB VBUS or external power

Onboard ST-LINK debugger/programmer with USB re-enumeration: mass storage, virtual COM port and debug port

The STM32Cube MCU software package provides comprehensive free software libraries and examples

Support for multiple integrated development environments (IDEs) including IAR Embedded Workbench®, MDK-ARM and STM32CubeIDE

Board-Specific Features

External SMPS generates Vcore logic power

24MHz HSE

Board Connector: Micro-AB or Mini-AB USB connector for ST-LINK MIPI debug connector

Arm® Mbed Enabled™ Compliant
