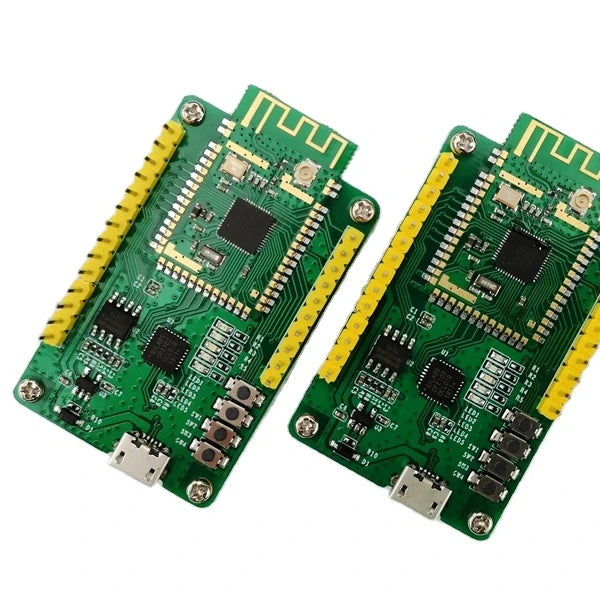

Custom Custom nRF52832/nRF52840 Mini development board BLE5/BLE4.2 support MicroPython Manufacturer



Features:

Using the industry's first M4 core BT SOC, 512K FLASH, 64K RAM, with NFC function

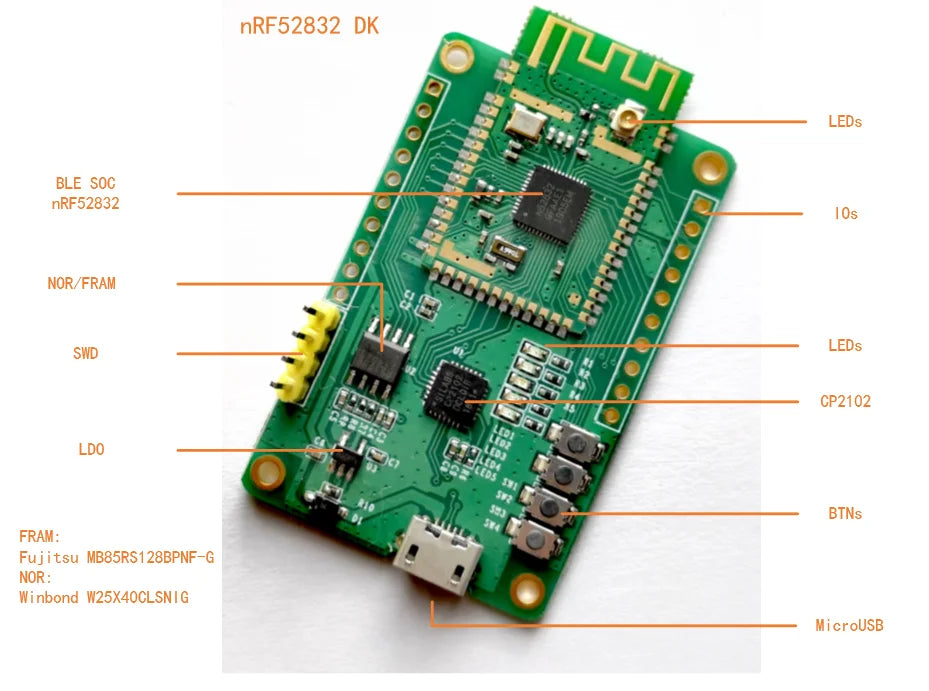

CP2102 serial chip integrated on the board
All use Murata inductance and capacitance elements, the antenna is specially designed, and the high frequency performance is superior
Small size, size 3.3x5.1 cm, easy to carry
Onboard nRF52832 chip debug port, power port, 16 GPIO
High-performance PCB antenna/external NFC antenna interface
External BT antenna interface, can be connected with high-gain glue stick/FPC antenna
Support BT 5 MESH networking



feature of product:

4 GPIO control LED
1 way power indicator LED
4-way button GPIO control
Compatible with some functions of Nordic original factory
Can be used as Sniffer or Dongle
Perfect support for original factory routines
Small size, copper pillars can be fixed at four corners
Support lithium battery power supply
2.4G frequency offset calibration
50 ohm impedance

Product Usage:

BLE4.0/4.2/5 learn to debug
Ultra-low power test
BT Sniffer Dongle module
MESH network node



Shipping list:

1x motherboard + 1x module
1xMicroUSB cable
4x copper column+4x screw

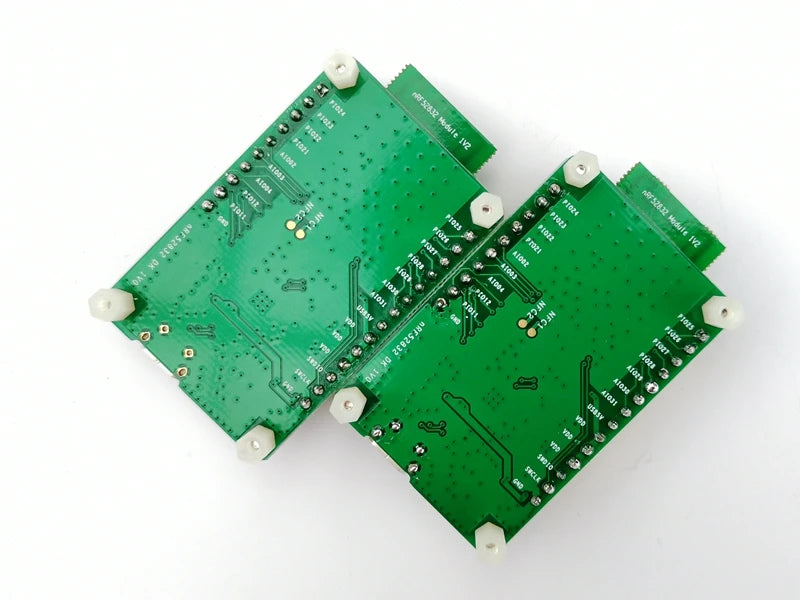

Layout on the back and lead out IO:
