Custom NRF52832 Bluetooth Module BLE 4.2 Low Power Bluetooth External Antenna IPEX Support Multi-Protocol
Custom NRF52832 Bluetooth Module BLE 4.2 Low Power Bluetooth External Antenna IPEX Support Multi-Protocol
Regular price
$4.70 USD
Regular price
$4.70 USD
Sale price
$4.70 USD
Unit price
per
Couldn't load pickup availability
Module Introduction:

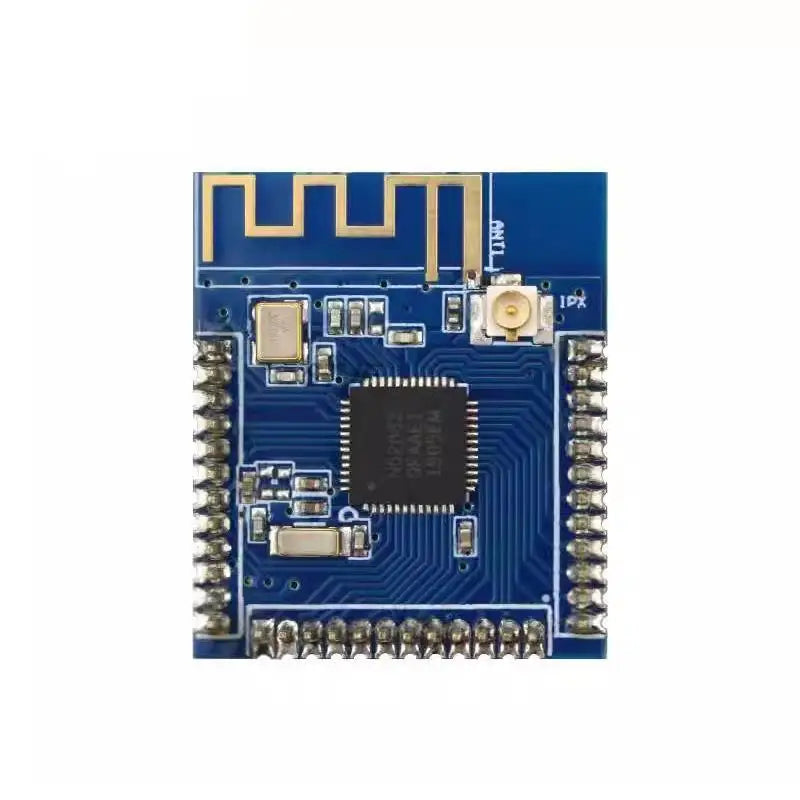

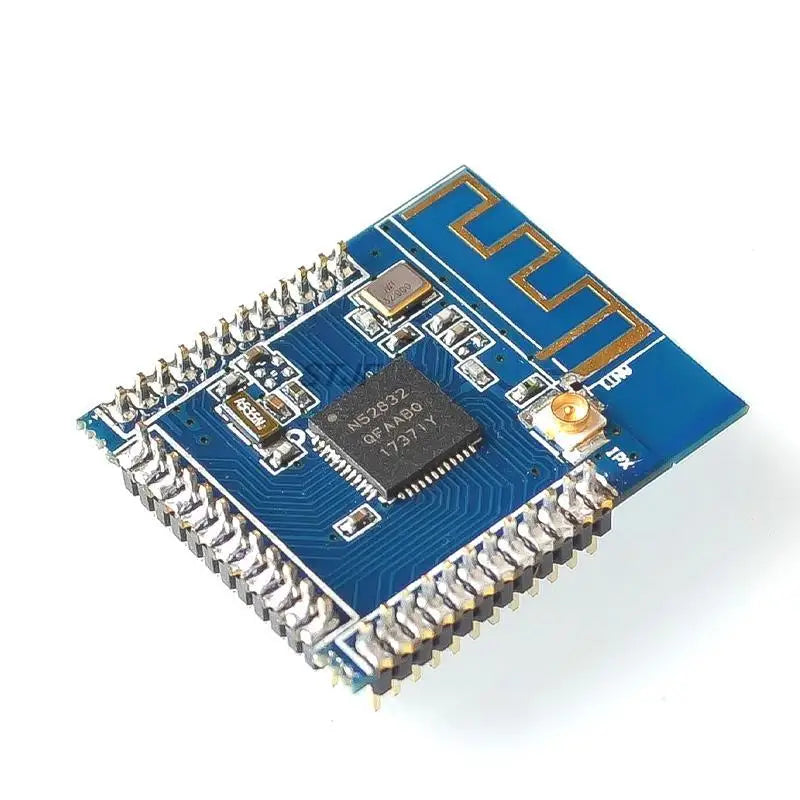

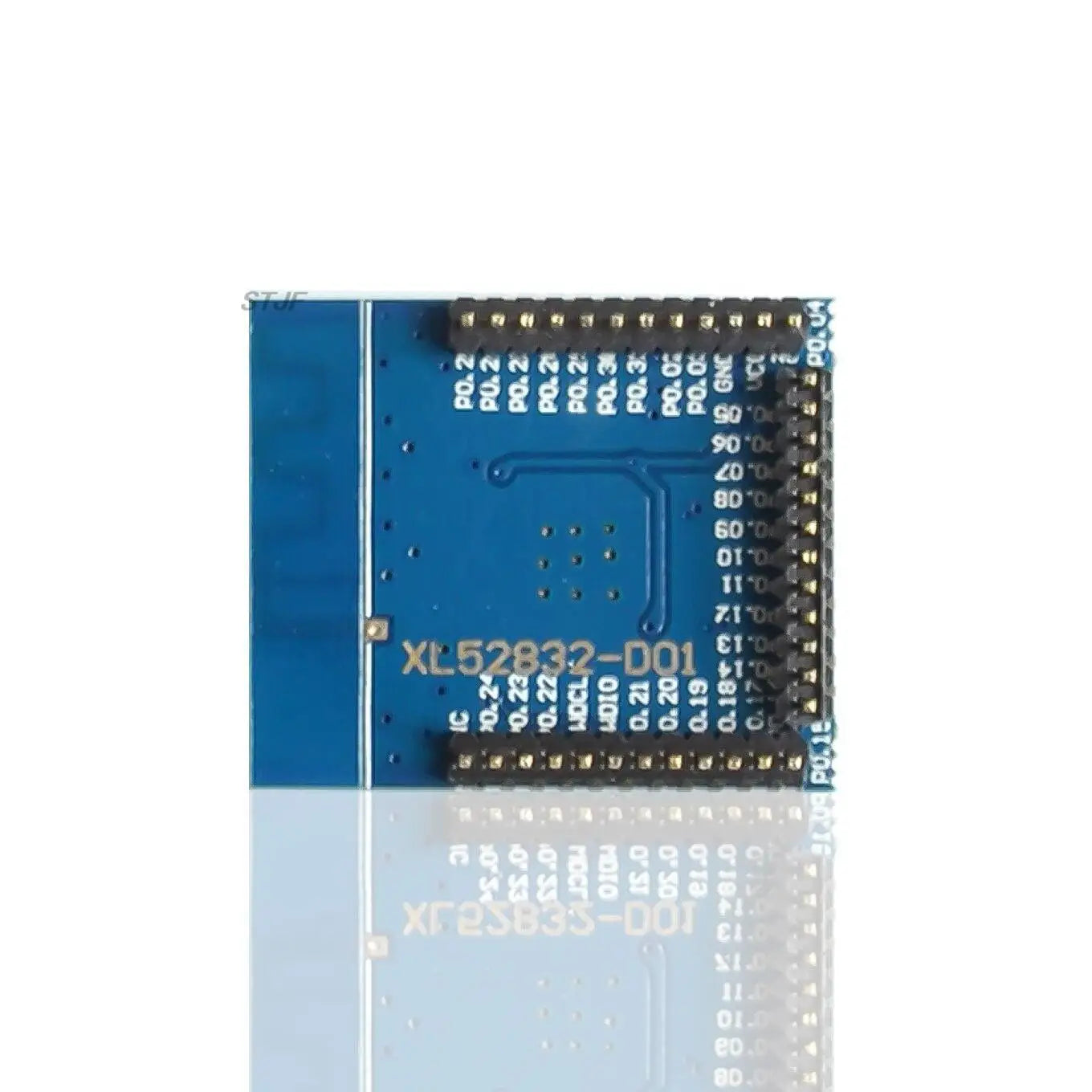

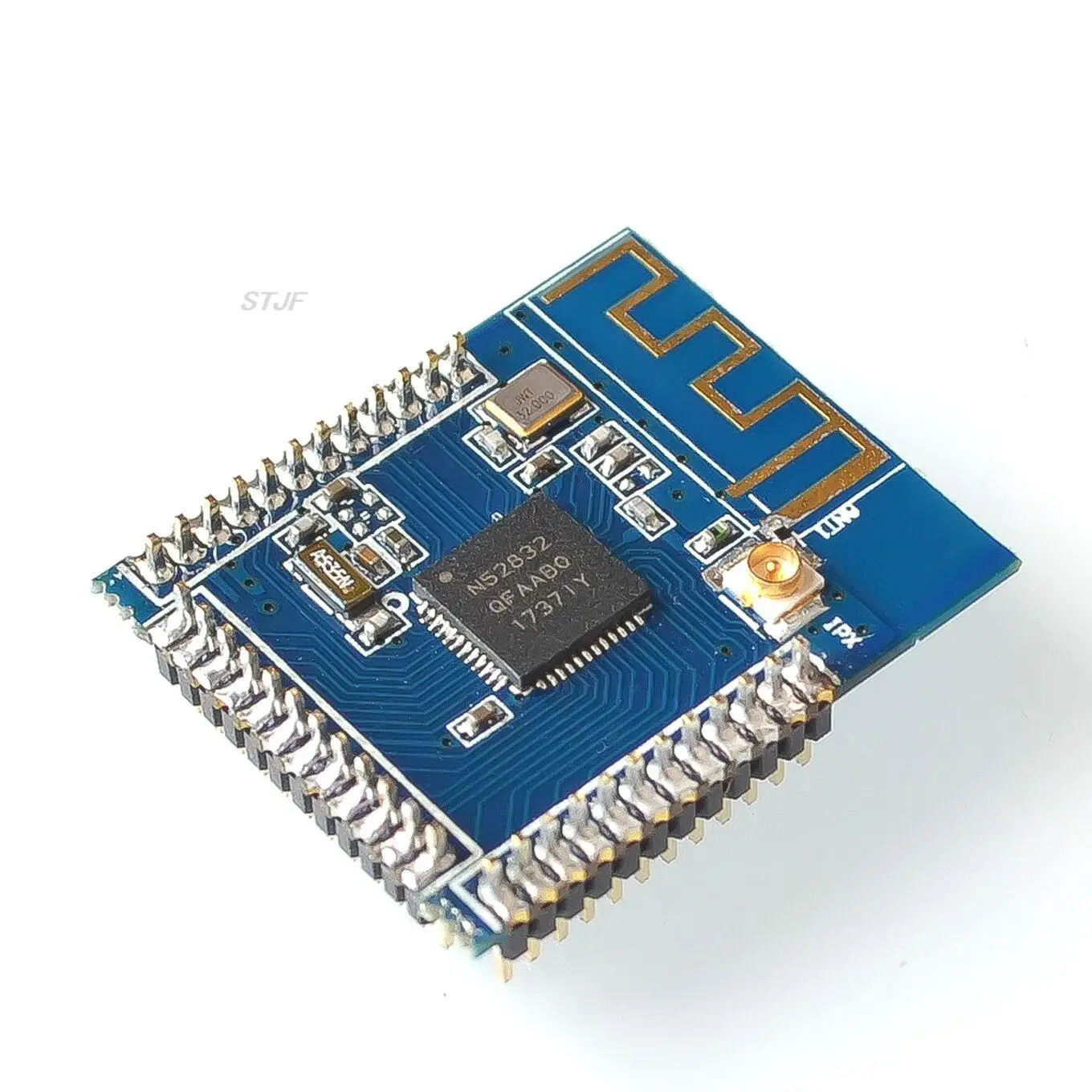

- XL52832-D01 Sampling NORDIC latest generation Bluetooth 4.2 chip NRF52832 design and manufacture, the module comes with onboard antenna and supports external IPEX antenna interface,
- Therefore, the IO chip leads. A new generation of XL52832 joined a lot of new features. Such as the Cortex-M4F core, it has more powerful computing power and floating-point arithmetic.
- nrf52832 can support multiple protocols, Bluetooth Smart (Low Energy), ANT / ANT + and proprietary 2.4GHz multiple protocols, so you can connect nRF51, nRF24AP and nRF24L like products.
Product Information:
- Frequency range: 2360-2483MHZ
- Output power: 4dBm
- Receiver sensitivity: -96 dBm Bluetooth
- Modulation method: GFSK
- Kernel: Cortex-M4F

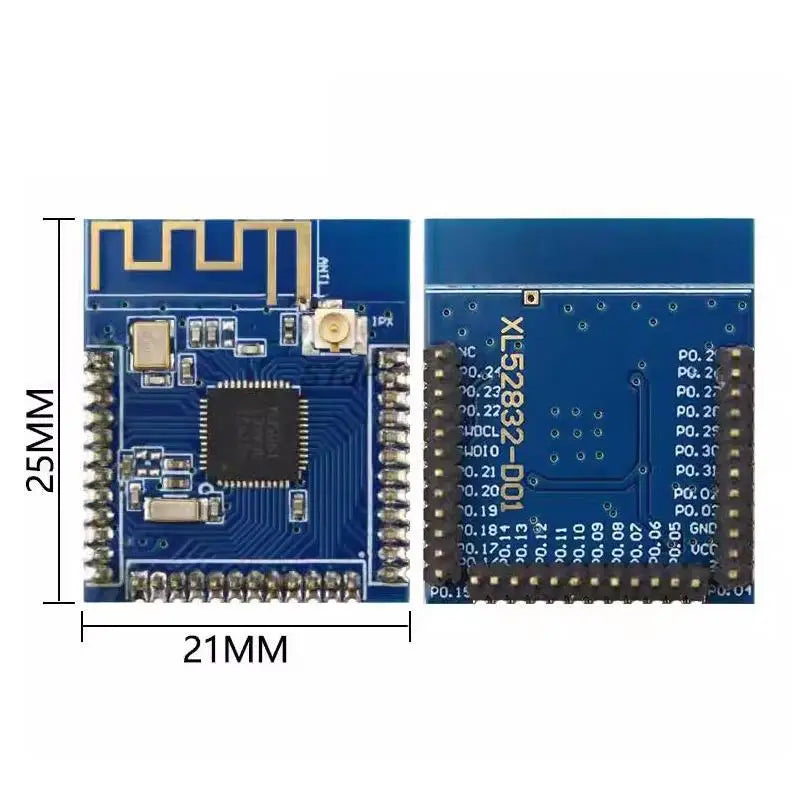

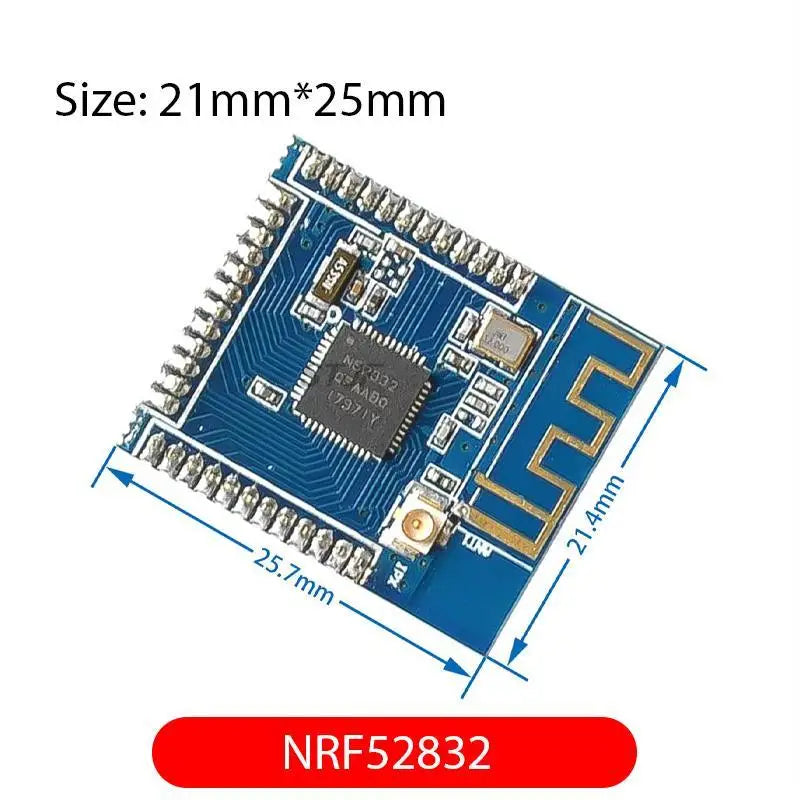

- Module Size: 21 * 25mm Interface spacing 1.27mm
- Emission current: 5.3mA@OdBm
- Receiving current: 5.3mA@1MBPS
- Deep sleep: 0.4uA
- RAM / FLASH: 64k / 512k
