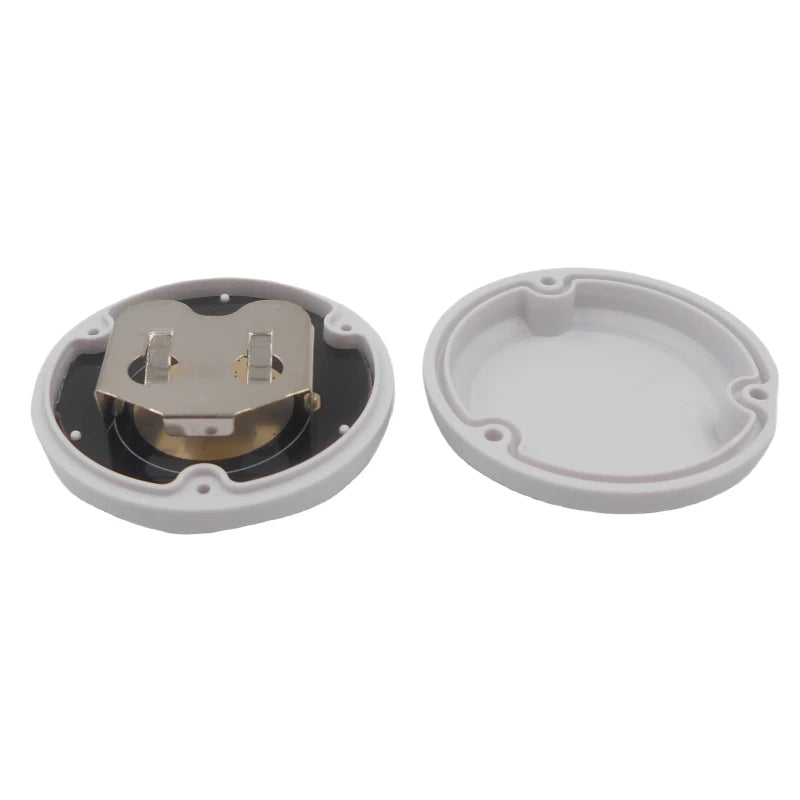

Custom NRF51822 Bluetooth Beacon iBeacon Low Power Module Shopping Cart Indoor Positioning PCB Antenna Loss Prevention Device

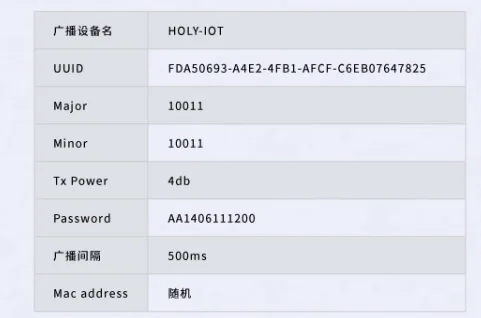

Firmware parameters (default)

Product model: A-1-15044

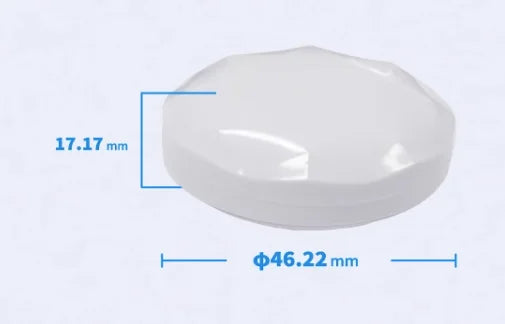

Product size: 46.22 * 17,17mm

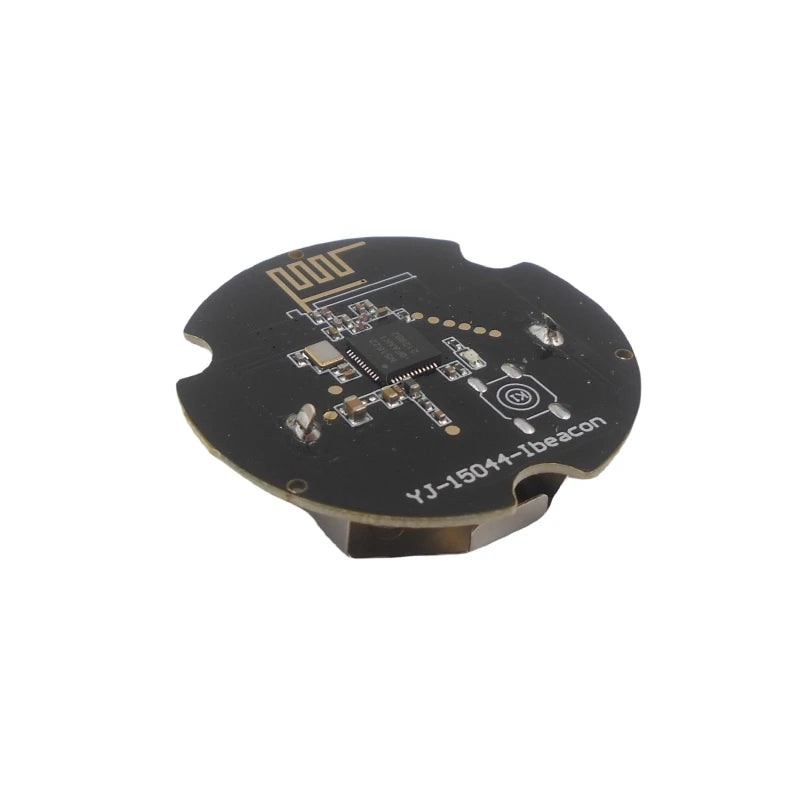

Main chip: Nordic nRF51822

Bluetooth version: V4.2

Antenna type: PCB antenna

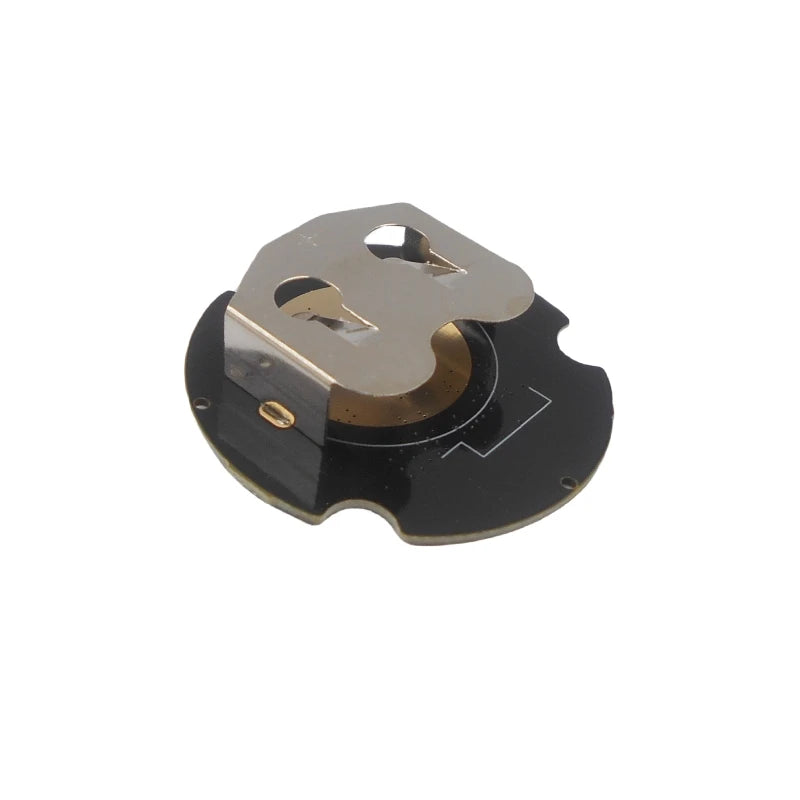

Battery model: CR2477 (default battery not included)

Battery capacity: 1000mAh

Product weight: Module+shell (excluding battery): 15g

Working time: 2-4 months

Working temperature: 0-85 ℃

Transmission distance: 0-50M

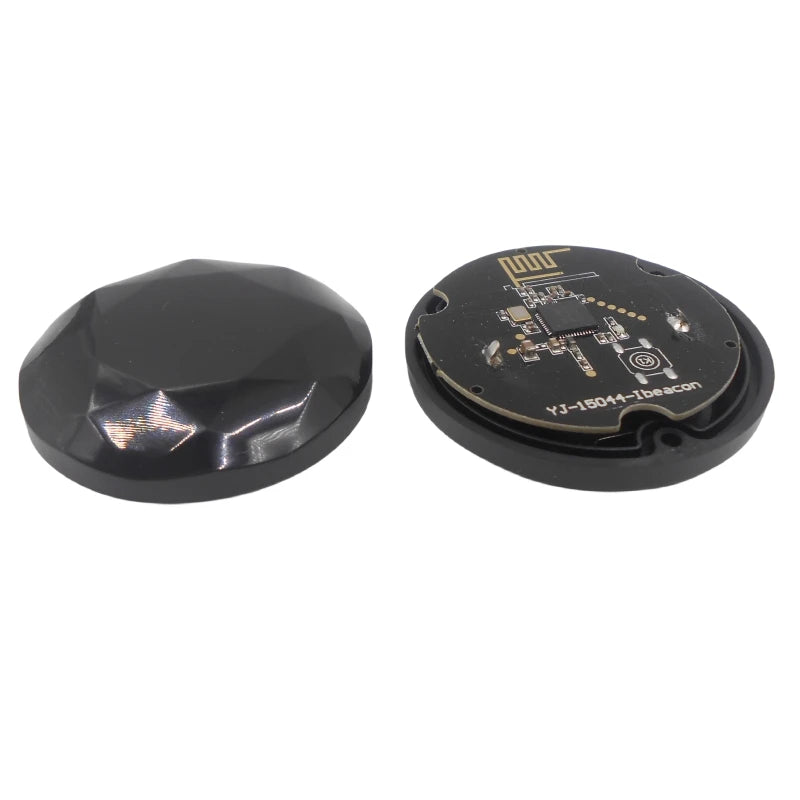

Shell material: ABS

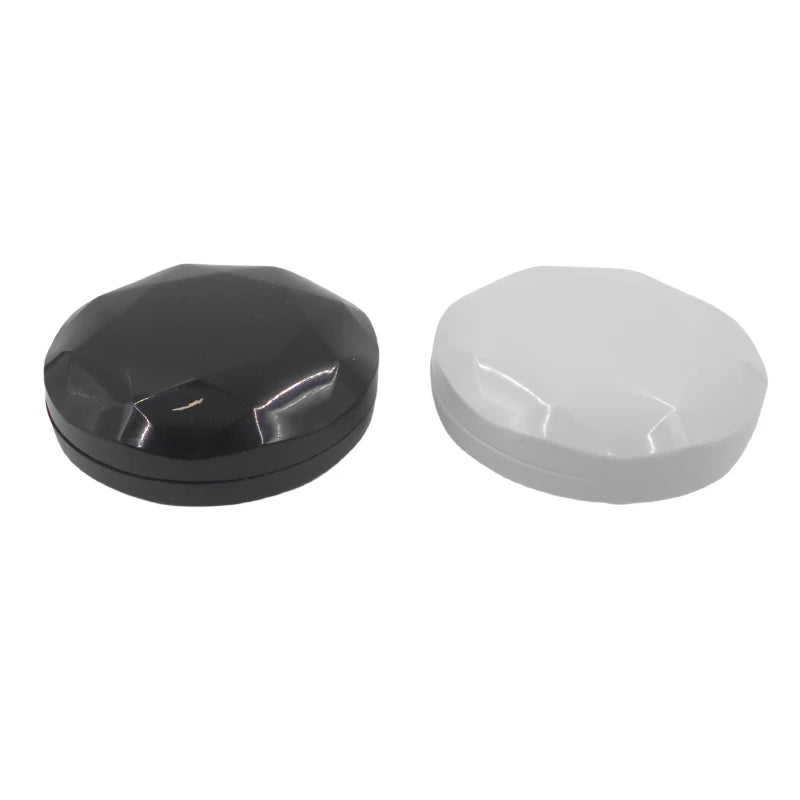

Shell color: white/black

Key: None

Supporting systems: IOS/Android/PC gateway

Application scenarios: indoor positioning/check-in/marketing, promotion/anti loss device

"Holyiot-beacon" operation instructions

1. Android: Search for "Holyiot beacon" in the app store to download or collect the app installation package from customer service.

OS: Search for "Holyiot beach" in the app store to download and install it.

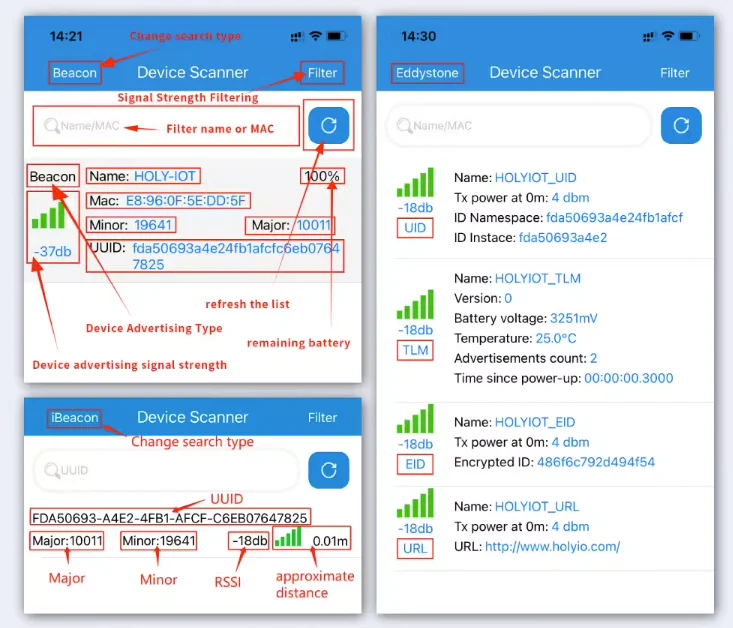

2. After entering the app, the interface is shown in the following figure. You can search for devices based on different types: beacon/ibeacon/addystone;

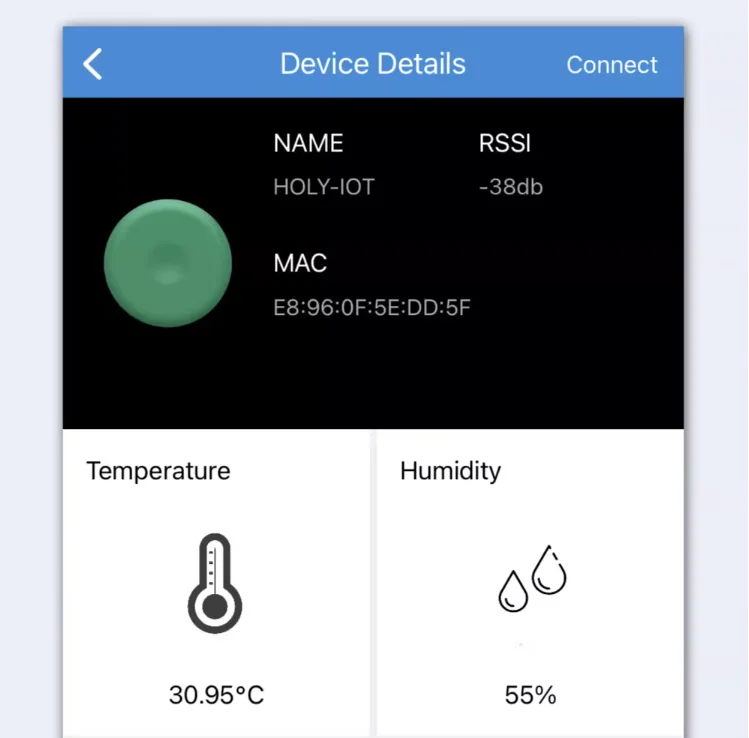

3. Connect the device to obtain more information about the beacon

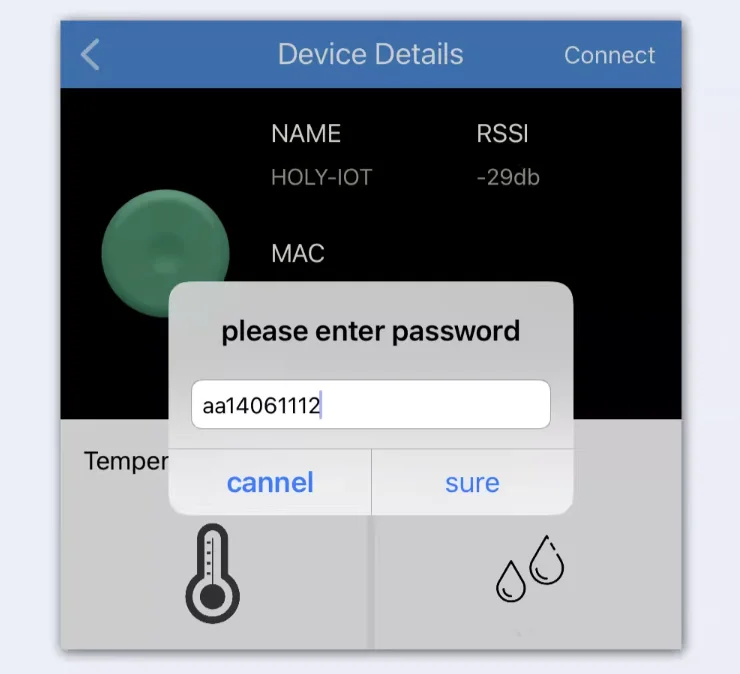

4. Click "Connect" to connect to the device, enter the password (default aa14061112)

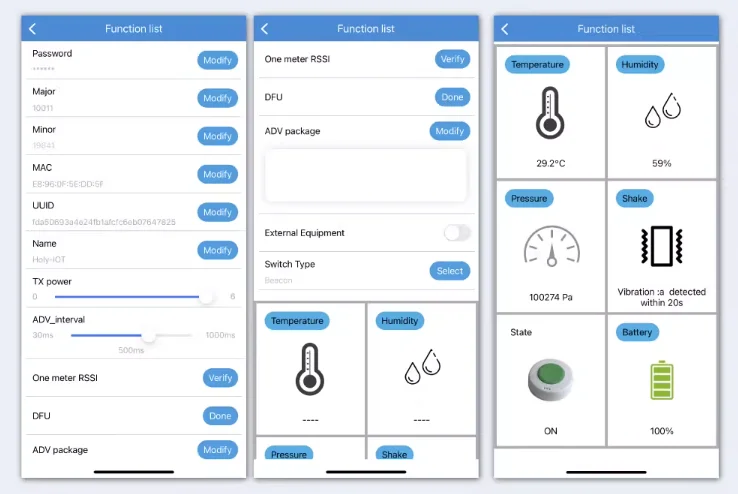

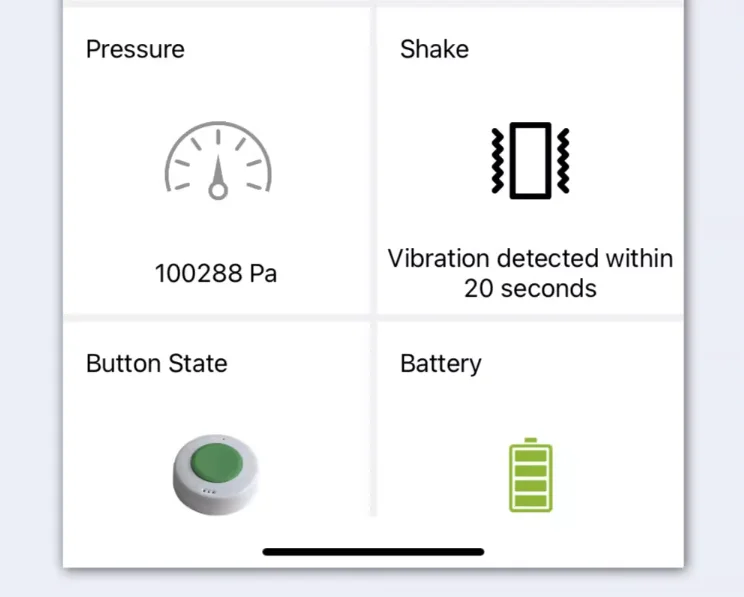

5. You can see more details and configure parameters

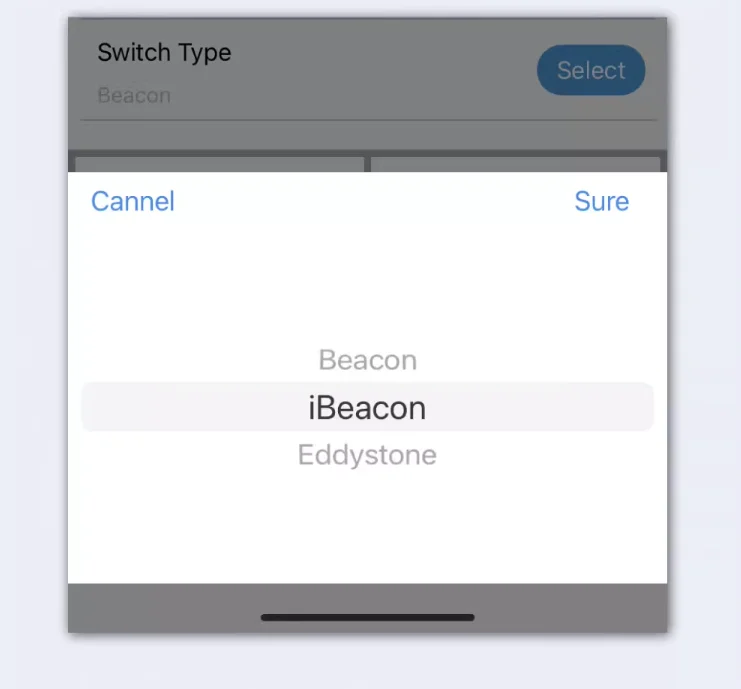

6. Change the device's beacon/beacon/addystone mode.
