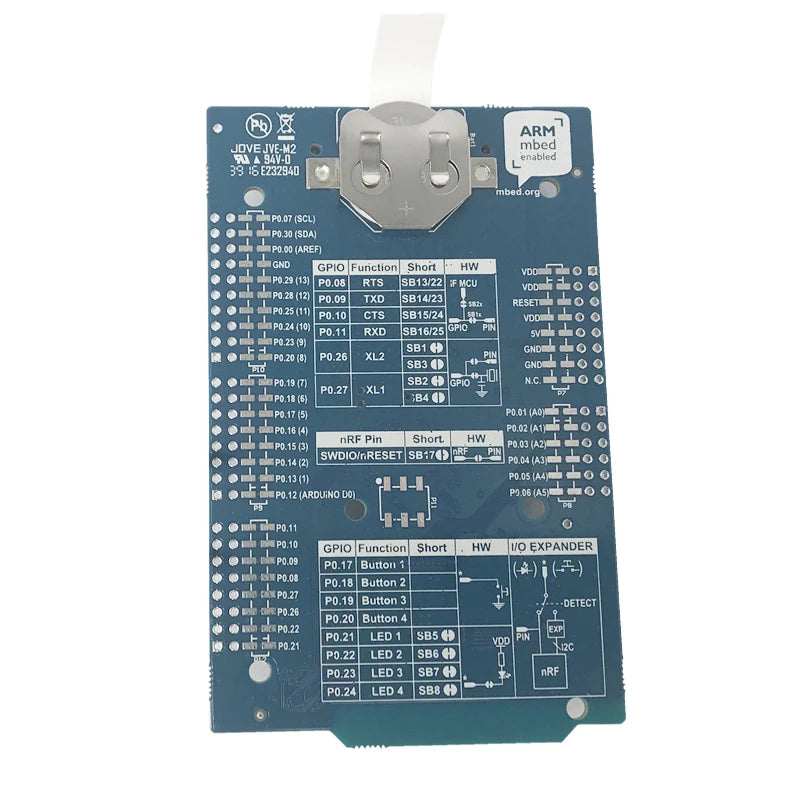

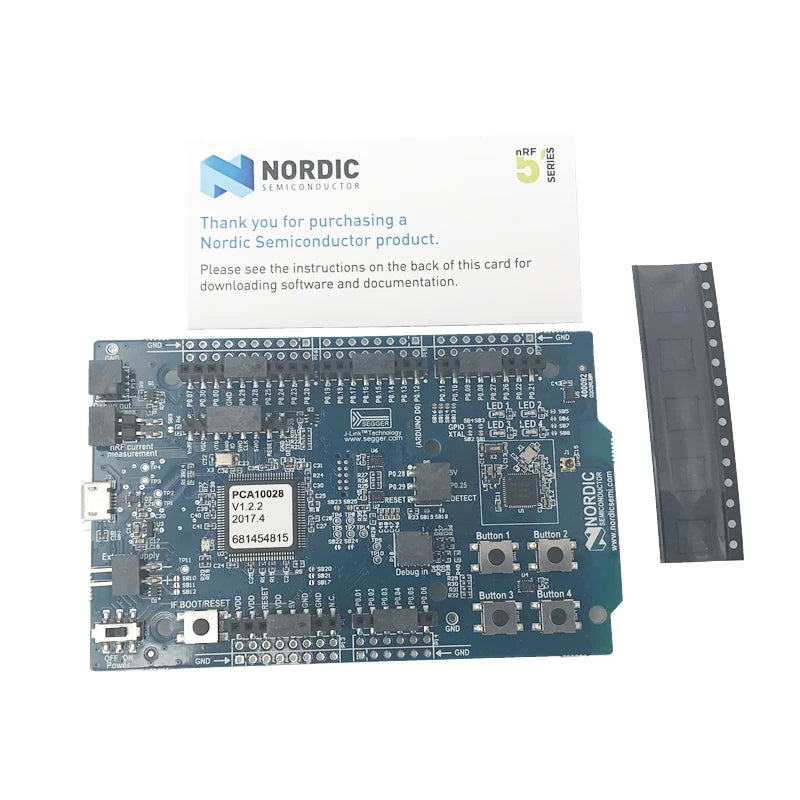

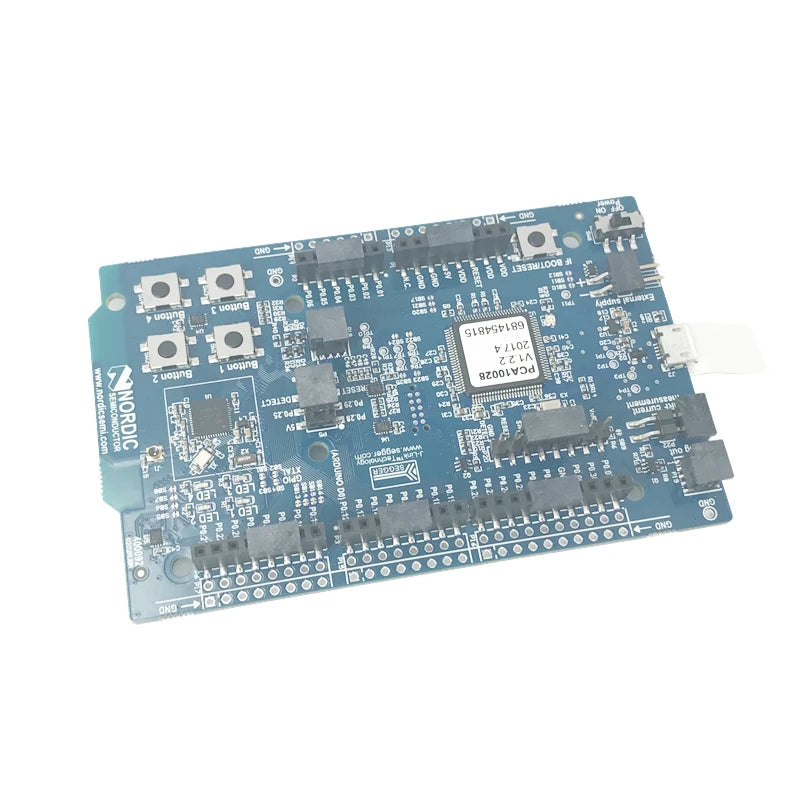

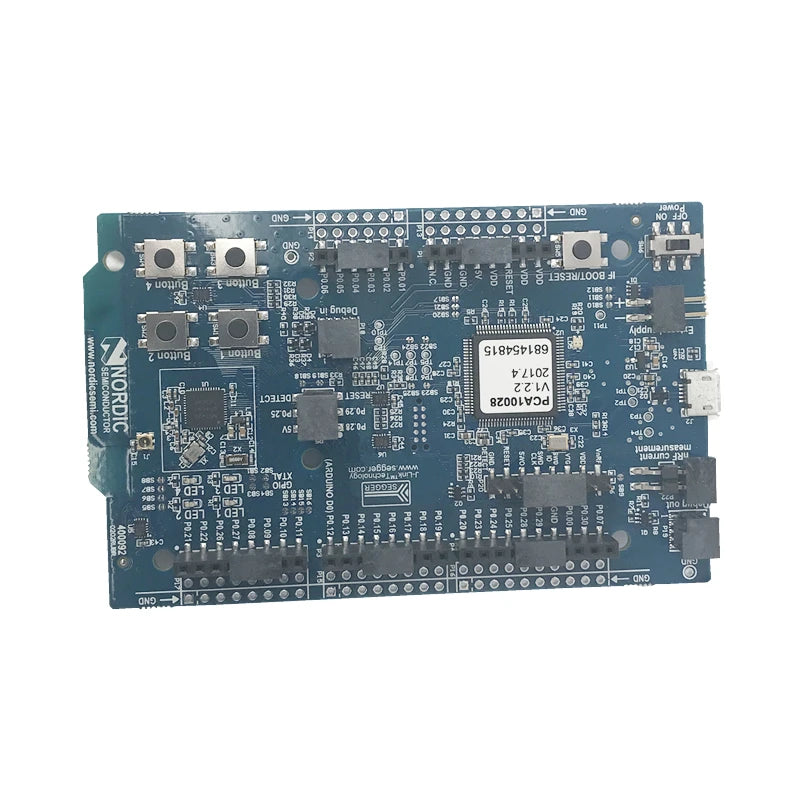

Custom nRF51-DK development board Dev Kit for nRF51422/51822 series products Nordic BT pca10028 rev1.1.0 Manufacturer

Nordic Semiconductor nRF51822

BT low energy and 2.4GHz wireless SoC

Nordic Semiconductor nRF51822 with 2.4GHz BT low energy wireless SoC provides a multi-protocol SoC for BT low energy and 2.4GHz ultra-low power wireless applications. Nordic Semiconductor nRF51822 BT low energy and 2.4GHz wireless SoC with a 32 of ARM®Cortex ™ M0 CPU with 256KB Flash and 16KB RAM. Embedded 2.4GHz Transceiver 2.4GHz BT low power consumption and operation, which in the 2.4GHz model is compatible with the air nRF24L products from Nordic Semiconductor. A wide variety of analog and digital peripherals can not interact through a programmable peripheral interface (PPI) system CPU intervention. Flexible 31-pin GPIO mapping scheme allows I / O like serial interface, PWM, and quadrature demodulator mapped to any device pin requirements determined by the PCB. This makes the position of the pin and functionally related complete design flexibility. It supports S110 BT low energy protocol stack and 2.4GHz protocol stacks, including Gazell, either free of charge nRF518 Software Development Kit. NRF51822 require a single power supply, provides users with an on-chip linear regulator provides power range of 1.8-3.6V, direct mode and on-chip 1.8V - buck converter in the power range gives options of 2.1-3.6V.





Feature

2.4GHz multi-protocol radio

32-bit ARM Cortex M0 Processor

256kB Flash / RAM 16kB of

Software stack can be downloaded as

Pin-compatible with other devices nRF51xxx

Independent of the protocol stack Application Development

Comprehensive series on the air nRF24L compatible

Programmable output power to + 4dBm -20dBm

RSSI

Use the FIFO memory mapping EasyDMA

Dynamic air load length of up to 256 bytes

Flexible, configurable 31 GPIO pins

Programmable Peripheral Interface - PPI

Simple ON / OFF global power mode

Complete digital interfaces include : SPI / 2 wire / UART

10 ADC

128 AES ECB / CCM / AAR coprocessor

Quadrature demodulator

Cost external 16MHz crystal oscillator of ± 40ppm

Low-power 16MHz crystal and RC oscillator

Ultra-low power 32kHz crystal and RC oscillator

Wide supply voltage range (1.8V to 3.6V)

The on-chip / buck converter

Single power management all peripherals

Package options : 48-pin QFN 6 × 6

Application

BT Intelligent Application

Phone Accessories

Computer Peripherals

For television, set-top boxes and media systems CE remote control

Proximity and safety warning labels

Sports- and fitness sensors

Health and lifestyle sensor

Computer game controllers

Toys and video games

Domestic / industrial control and data acquisition

Smart RFID tags to track and social interaction

Audience response system

Smart Appliances
