Custom NEWEST 5.8GHz microwave motion sensor with antenna and robust performance intelligent algorithm pir motion sensor Manufacturer



 product description
MW058A-Y1818-XX is a 5.8GHz microwave sensor product with high integration, high intelligent algorithm, small size, and high-performance receiver.
The transmitting antenna not only has good directivity and sensing angle, but also can adjust the coverage area through software settings according to different application scenarios.
The algorithm can filter out the interference of the harsh environment with high reliability; it is widely used in products such as induction lighting, automatic security, automatic induction doors, automatic induction advertising screens, etc.
For scene applications such as smart buildings, parking lots, bathrooms, warehouses, etc.
Strong anti-interference
The product has built-in phase-locked loop and is equipped with same-frequency detection algorithm, anti-interference
Strong, can support densely distributed use such as parking lots, warehouses, etc.
Scenes
Multiple output methods
Support original signal and high and low level output, original data can be communicated
The cross-platform SDK uses serial communication to capture
Adjustable induction parameters
Sensing settings such as distance and sensitivity can be adjusted, and the farthest support 15
Meter detection distance
Compliance with certification
Comply with CE, FCC certification test standards
MW058A-Y1818-XX
Product Features
High-performance antenna
The well-designed 1 transmitter 1 receiver antenna can achieve small size and maintain
Wide sensing range of 170° azimuth
Wide input voltage
7~15V voltage input, which can meet the connection requirements of different systems
Rich interface
Reserve photosensitive, IO interface, support UART port communication, can
Flexible application
(Note: XX depends on the customer's project)
Application scenarios
Smart lighting, security detection, motion detection

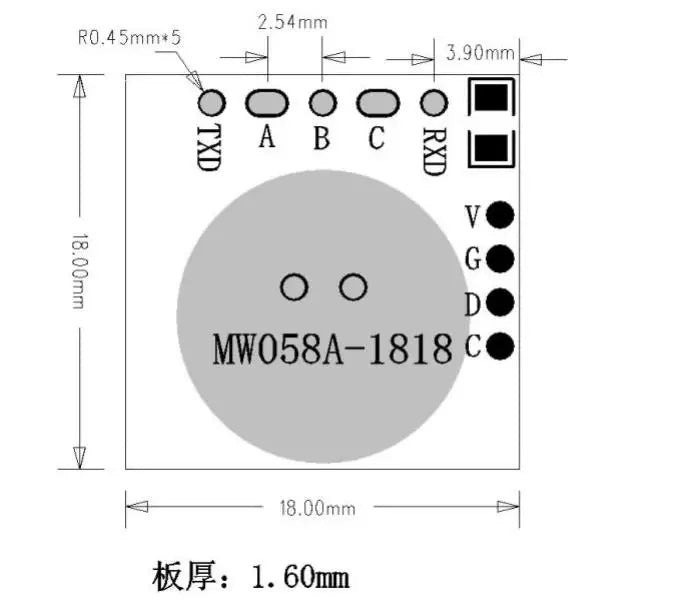

Product Size
Interface definition


OUT typical output waveform





• Installation guide
The product antenna should be aimed at the target sensing area so that it can work normally;
The sensor direction of the module avoids metal shielding, which will affect the sensing range and distance;
• Electrostatic discharge warning
ESD may damage the integrated circuit. It is recommended to take appropriate precautions for all integrated circuits. Failure to follow the correct handling and installation procedures may
Will cause damage. The range of ESD damage can range from slight performance degradation to complete equipment failure. Precision integrated circuits may be more susceptible to damage,
Because small parameter changes may cause the device to not meet its published specifications.
