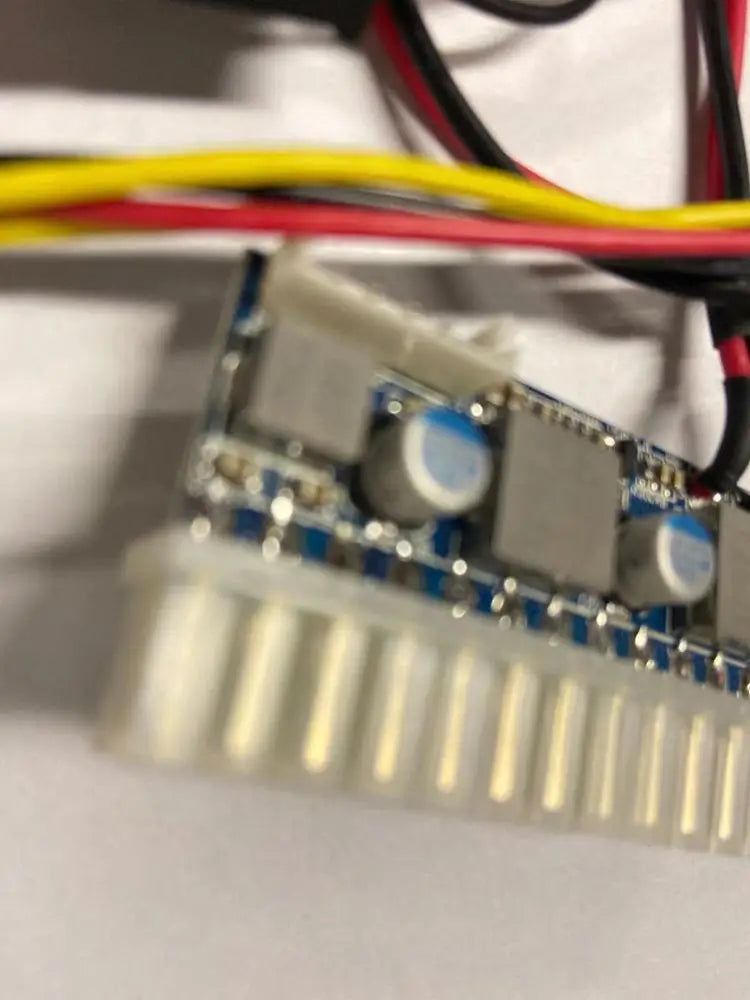

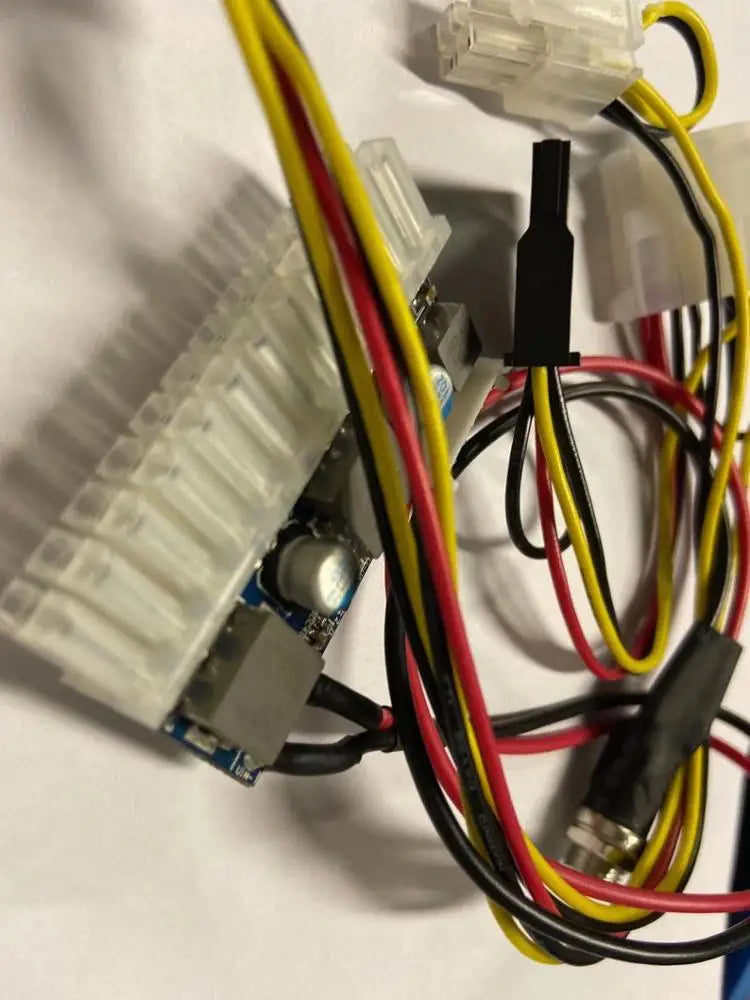

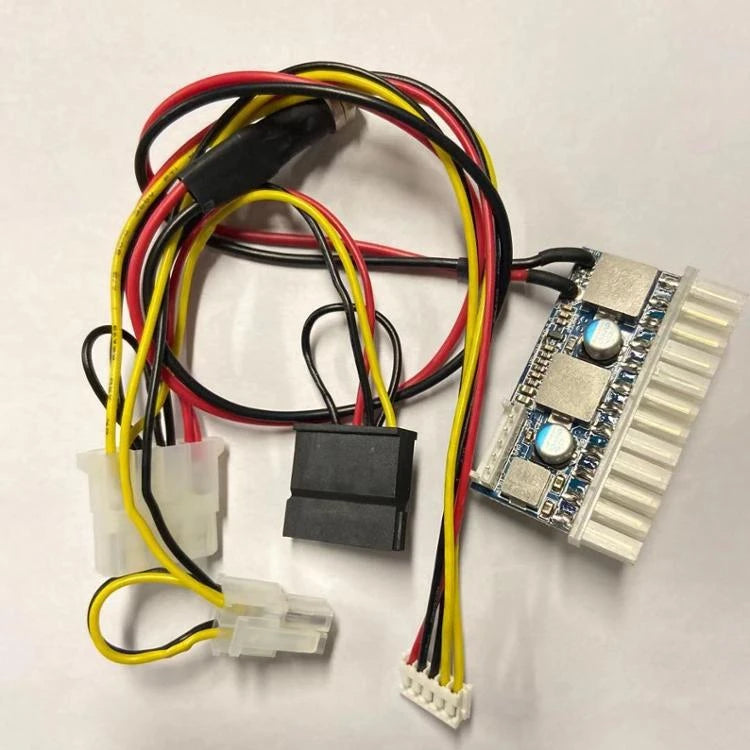

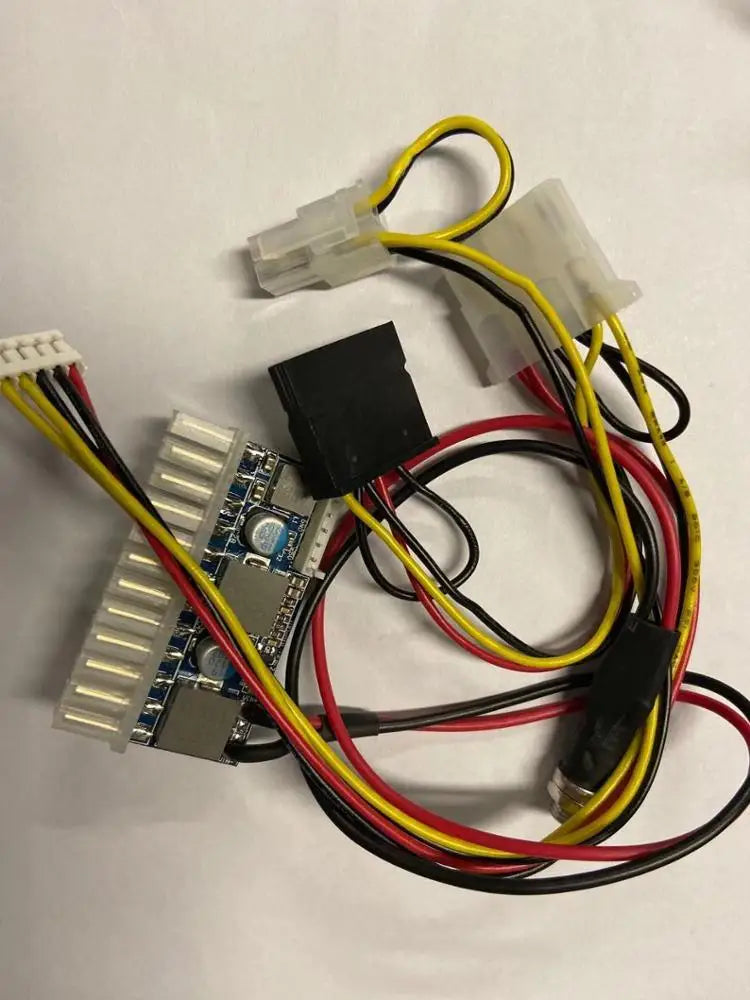

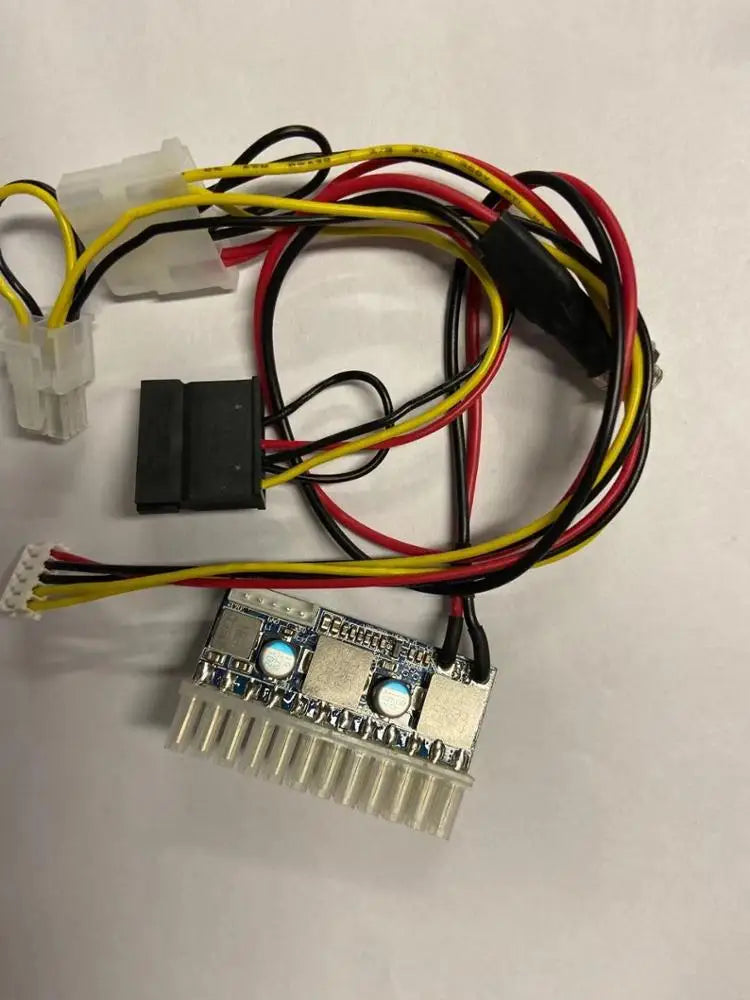

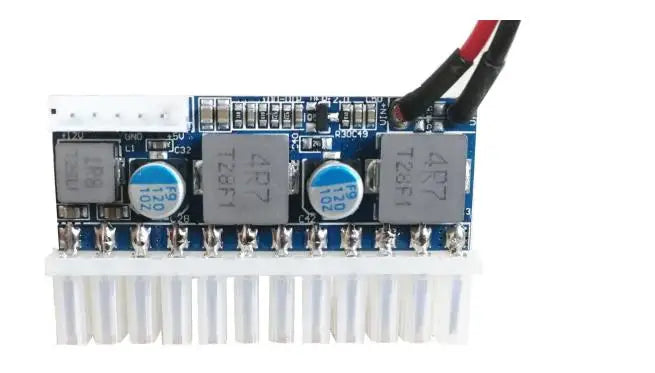

Custom New High Quality ATX Power Supply module V2.0 LT-DC160WIDDDIP support custom PCI-E 6PIN Manufacturer

Custom New High Quality ATX Power Supply module V2.0 LT-DC160WIDDDIP support custom PCI-E 6PIN Manufacturer

Regular price $18.00 USD
Regular price $18.00 USD Sale price $18.00 USD
Sale Sold out

Item specifics

Model Number:

160W Power Supply Module 24pin mini-ITX DC ATX power supply module







3-6.Dimensions:



51mm(L)*12.5mm(W)*30.5mm(H)



3-7.Pcb size & Material:



Pcb size: 50mm*20mm*1.6mm Pcb material:FR-4

Pcb layer:4 3-8.Weight:

The converter weight:about     44 grams.





4>.Electrical characteristic



4-1.Scope



This specification define the performances and characteristics of a     84 watts,

5 output level DC to DCconverter for use in ITX computer system product . This DC output +5VSB is controlled by the DC input, but the other DC output is controlled by the “ PS-ON# “ signal and DC input.

4-2.Input & Output characteristic: 4-2-1.Input characteristic

Parameter

Minimum

Nominal

Maximum

Unit



Input voltage

+11.4

+12

+12.6

Vdc



Input current

8

7.6

7.2

A



Ripple & Noise



120mV

120 mV

Mvp-p



Input OVP

13.2

13.8

14.4

Vdc



Input UVP

--

--

--

--





4-2-2.Output characteristic



MODEL



Vout



Min (V)



Max(V)



min(A)



Max(A)

Ripple (mV)

cabble color



SCP







iDDDIP

+12V

11.40

12.60

0

3

200MAX

yellow

Down





+5V

4.75

5.25

0

5

100MAX

rea

Down





-12V

-10.80

-13.20

0

0.01

240MAX

blue

NON





+3.3V

3.14

3.47

0

5

50MAX

orange

Down





+5VSB

4.75

5.25

0

1

100MAX

purple

Down
