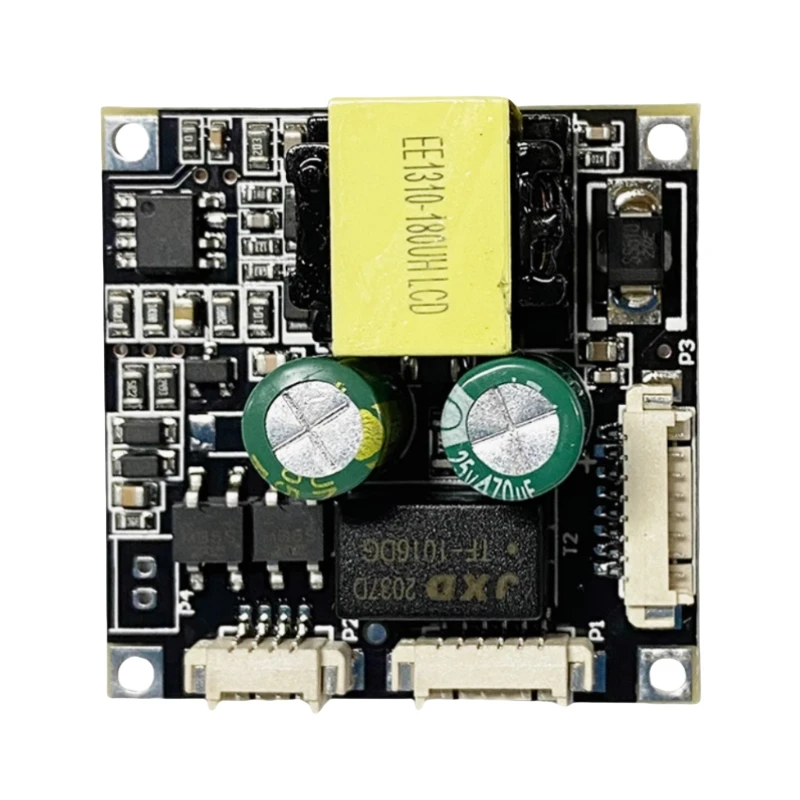

Custom Network POE48V module, monitoring camera module, built-in separation board power supply IEEE80244-57V to 12V

Product Description:

1. Isolated PD module, safe, output can be shared with ground.

2. High efficiency, strong anti-interference ability, and low radiation.

4. It has 2 5KV wave protection.

Main parameter table:

Chip solution: HD7800 (Huahong Semiconductor)

Supporting standard: IEEE 802 3af

Network medium: 10/100BASE-TX: Category 5 and above unshielded twisted pair cable

Basic function: Compatible with plug and play power receiving devices that comply with the IEEE802.3af standard,

PoE Power Supply Protocol: IEEE802.3af

PoE transmission core: 1/2-, 3/6+wire pairs, 4/5+, 7/8- wire pairs

PoE power transmission distance:<250 meters

Input voltage: DC: 44-57V

Output voltage: DC: 12V/+0.3V

Output current: 1.1A

Output power: 13W

Ripple and noise:<150mV

Working environment: Working temperature: -10 ° C to 55 ° C

Size: 38 * 38MM

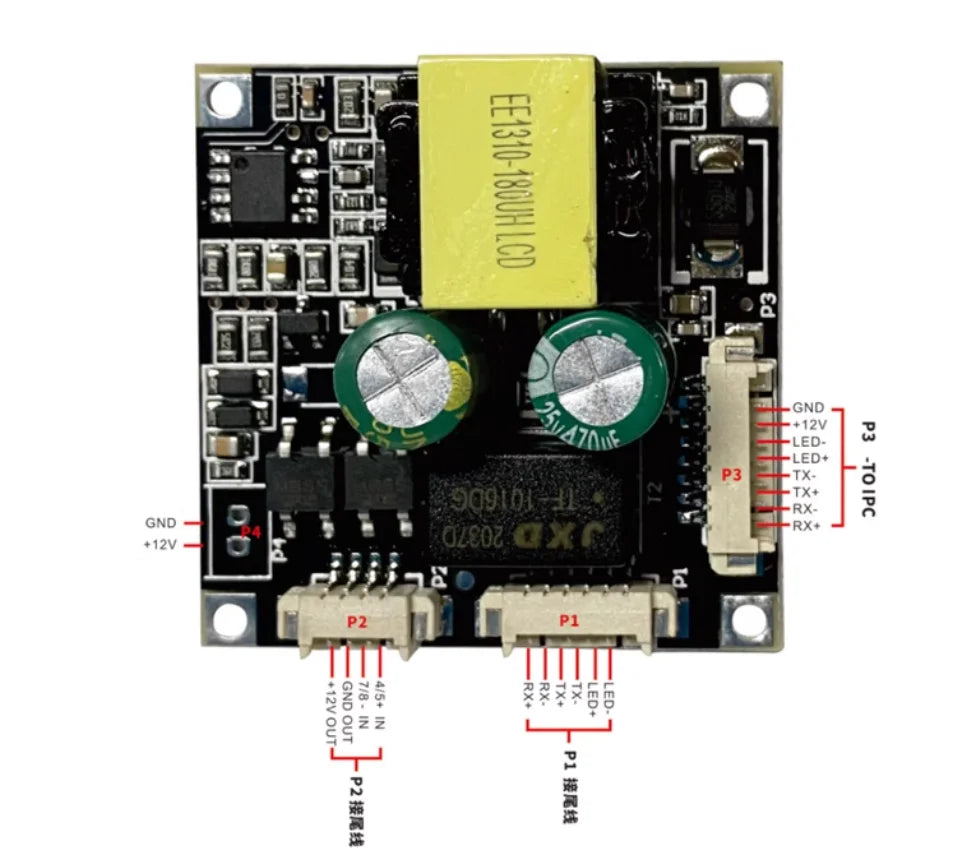

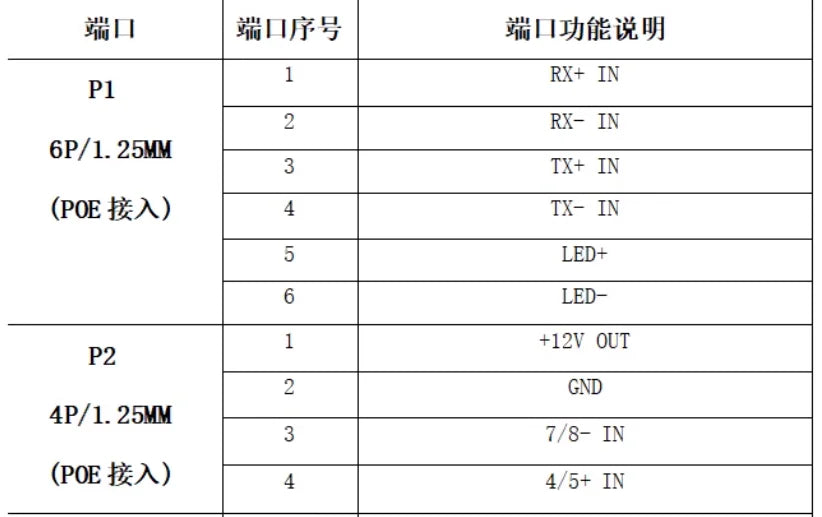

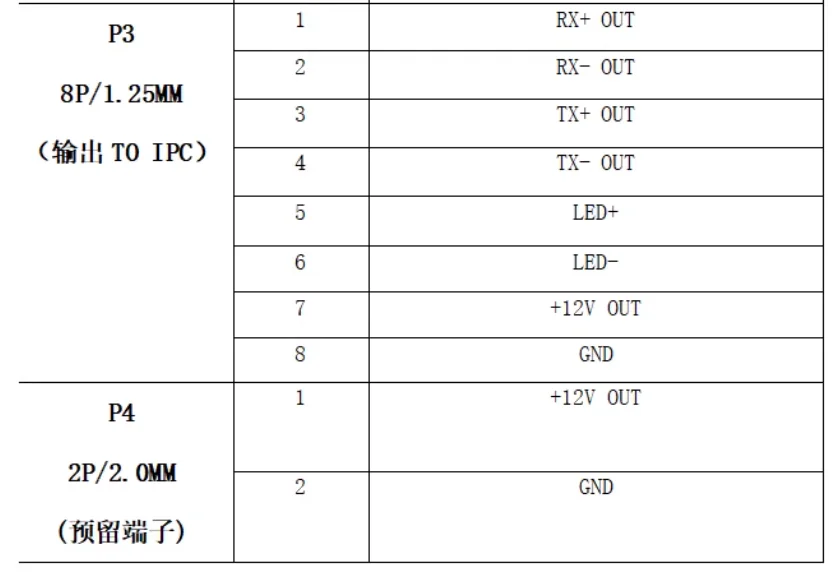

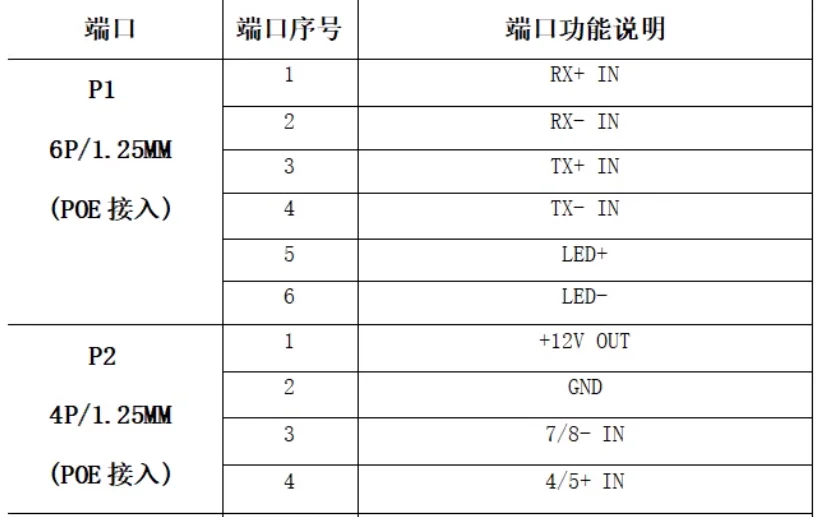

Interface definition:
