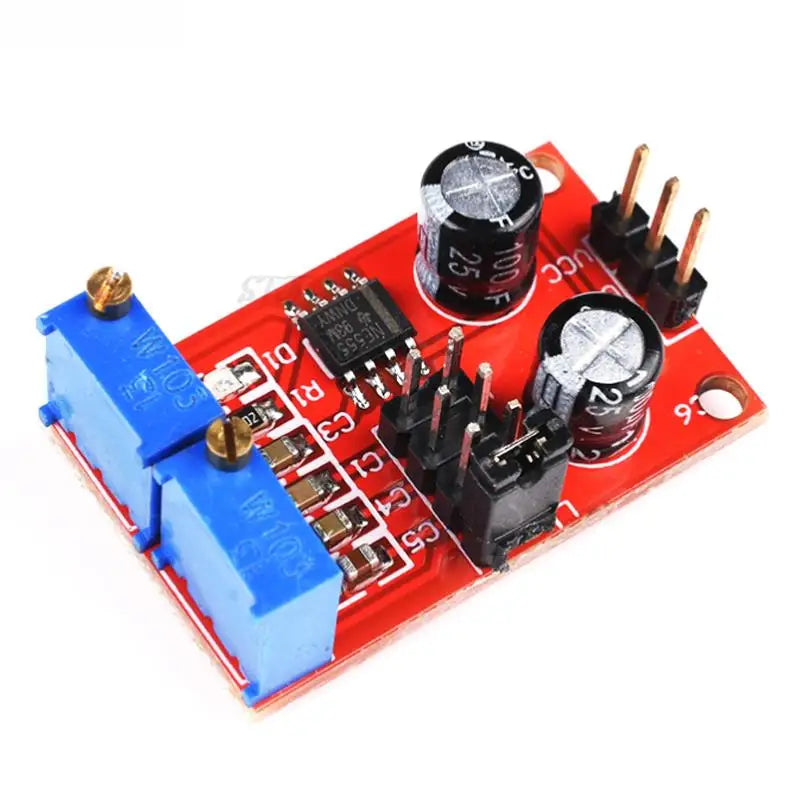

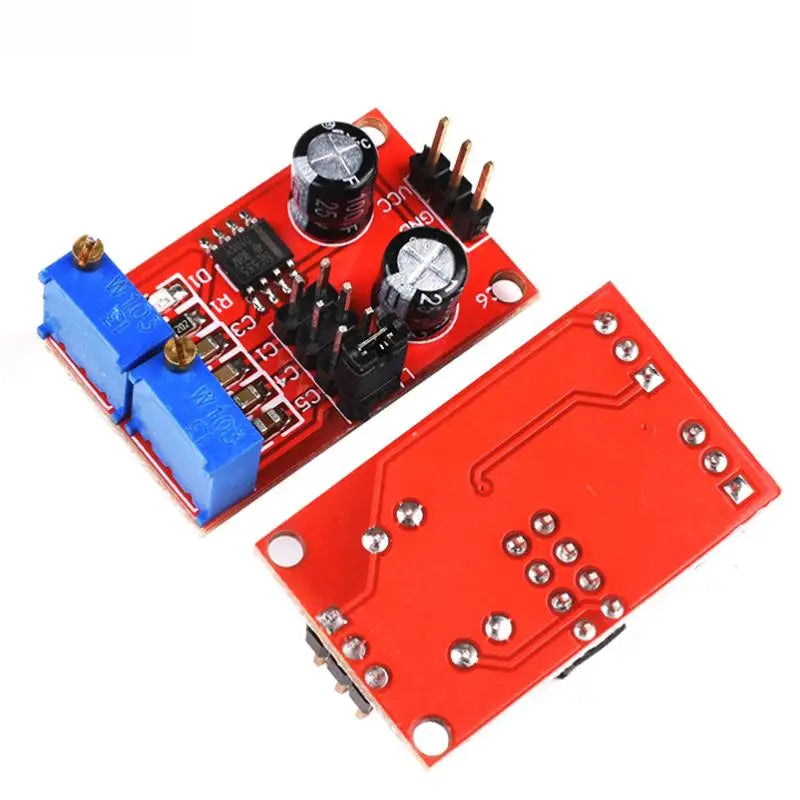

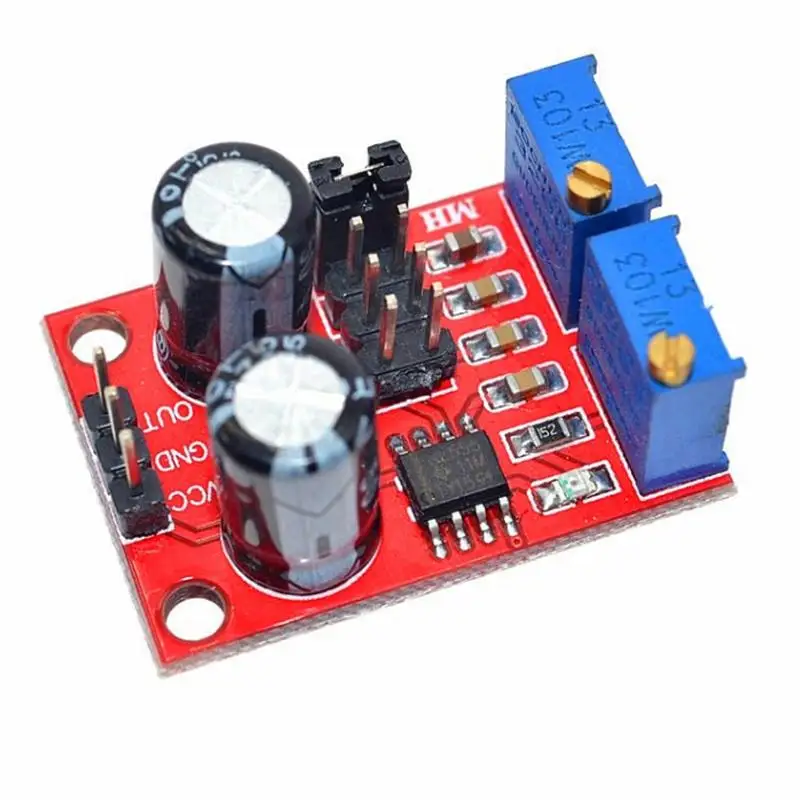

Custom NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal-Generator

Custom NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal-Generator

$0.82 USD
$6.82 USD $0.82 USD
Sale Sold out
Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.



Features:

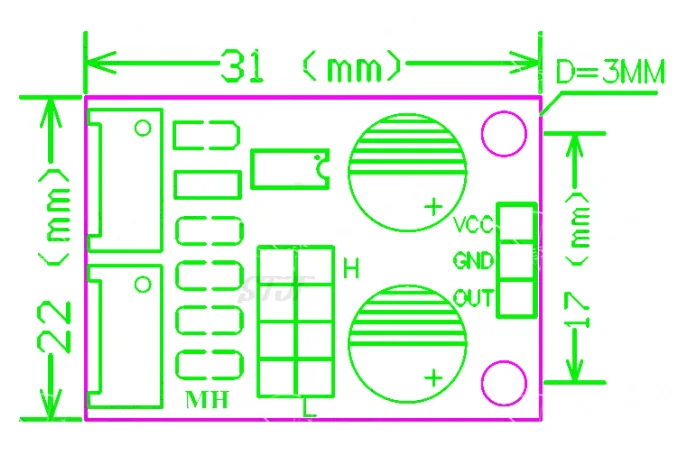

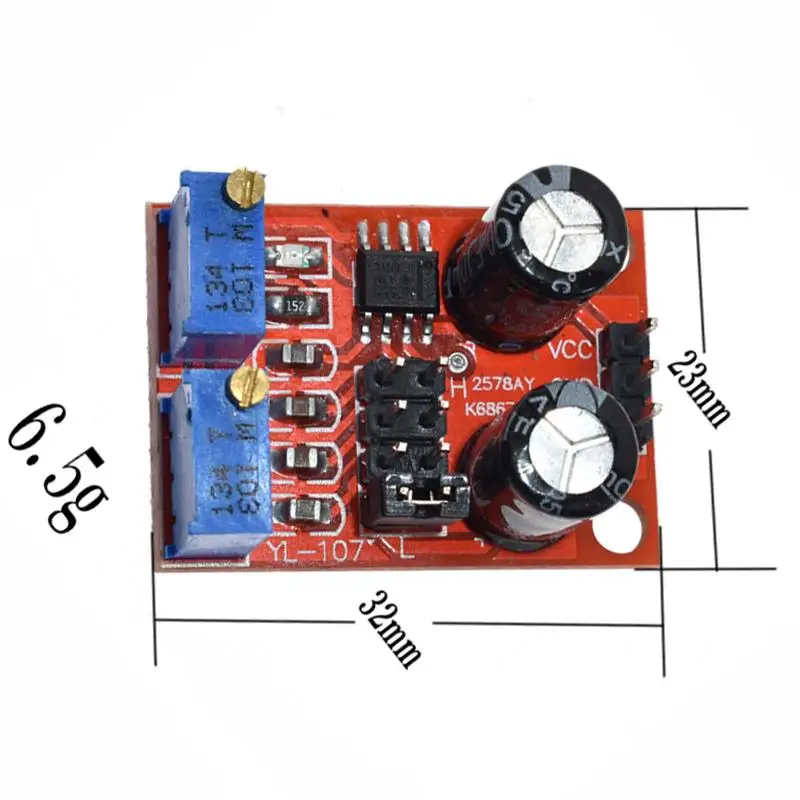

  • Size: 31mm * 22mm;
  • Main chip: NE555;
  • Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
  • Input current: >=100MA
  • Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
  • Maximum output current: >=15MA (5V power supply, V-PP greater than 50%),
>=35MA (12V power supply, V-PP greater than 50%)
  • Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);

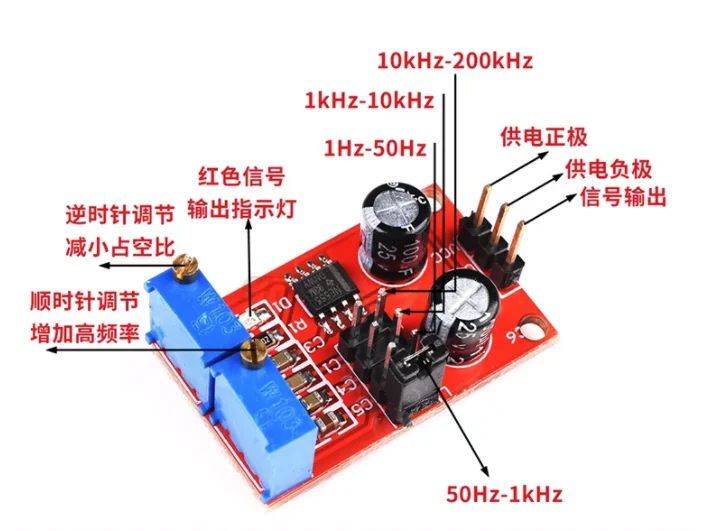

  • The output requency range is selectable:
  • LF file: 1Hz ~ 50Hz
  • IF file: 50Hz ~ 1kHz
  • High-frequency file: 1KHz ~ 10kHz
  • HF file: 10kHz ~ 200kHz
  • The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency;

  • The output frequency is adjustable:
  • Period T = 0.7 (RA +2 RB) C
  • RA, RB is 0-10K adjustable;
  • Low profile when C = 0.001UF;
  • IF stalls C = 0.1UF;
  • High-frequency file C = 1UF;
  • HF stalls C = 100UF;
  • so buyers can calculate the frequency of the waveform.
Application:
  • As a square wave signal generator,generates a square wave signal used for experimental development.
  • Used to drive a stepper motor for generating a square wave drive signal.
  • Generate adjustable pulse for MCU.
  • Generate adjustable pulse,to control circuitry associated.
Package including:
1pcs/lot NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
