Lonten Tech

Custom Naspi Gemini Dual 2.5 "Sata Hdd/Ssd Nas Case Kit Met Pwm Fan, Raid, veilig Shutdown & Auto Power Op Voor Raspberry Pi 4 Manufacturer

Custom Naspi Gemini Dual 2.5 "Sata Hdd/Ssd Nas Case Kit Met Pwm Fan, Raid, veilig Shutdown & Auto Power Op Voor Raspberry Pi 4 Manufacturer

Regular price $75.99 USD
Regular price $75.99 USD Sale price $75.99 USD
Sale Sold out
Specification

Note:

  • The Raspberry Pi board, 2.5" SATA SSDs/HDDs, power adapter are all not included in the packing list.

  • Metal casing will cause the loss of 2.4G wifi signal, we only recommend you to use Ethernet or 5G WiFi.

  • Power NASPi Gemini via USB-C or DC jack of X882 shield, DO NOT power via USB-C of Raspberry Pi 4, or you can't use the AUTO ON & Safe shutdown function.

  • Support Max 7mm thickness heatsinks on Raspberry Pi 4 as we use 11mm height spacers for the fan with bracket installation on Pi4.

  • Support Max 16mm thickness 2.5" SATA HDD/SSD installation. Recommend to use HDDs.

  • Insert the SD card into Raspberry Pi 4 first before NASPi-Gemini installation start.

  • New SSD/HDD must be formatted before use. Older SSD drives with less efficient flash media may not perform as well as newer drives.

[User Manual]

  • WiKi: https://wiki.geekworm.com/NASPi_Gemini

  • Installation Video: https://youtu.be/7FzZeoTBQiI

  • RAID Setting: https://wiki.geekworm.com/NASPi_Gemini#Raid_Setting

[Overview]

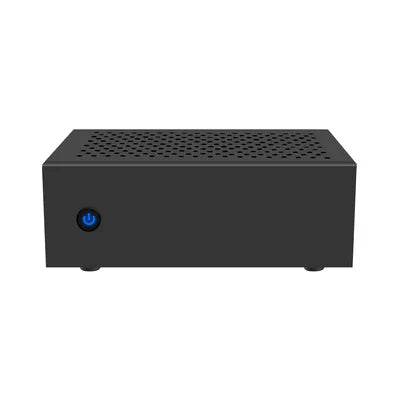

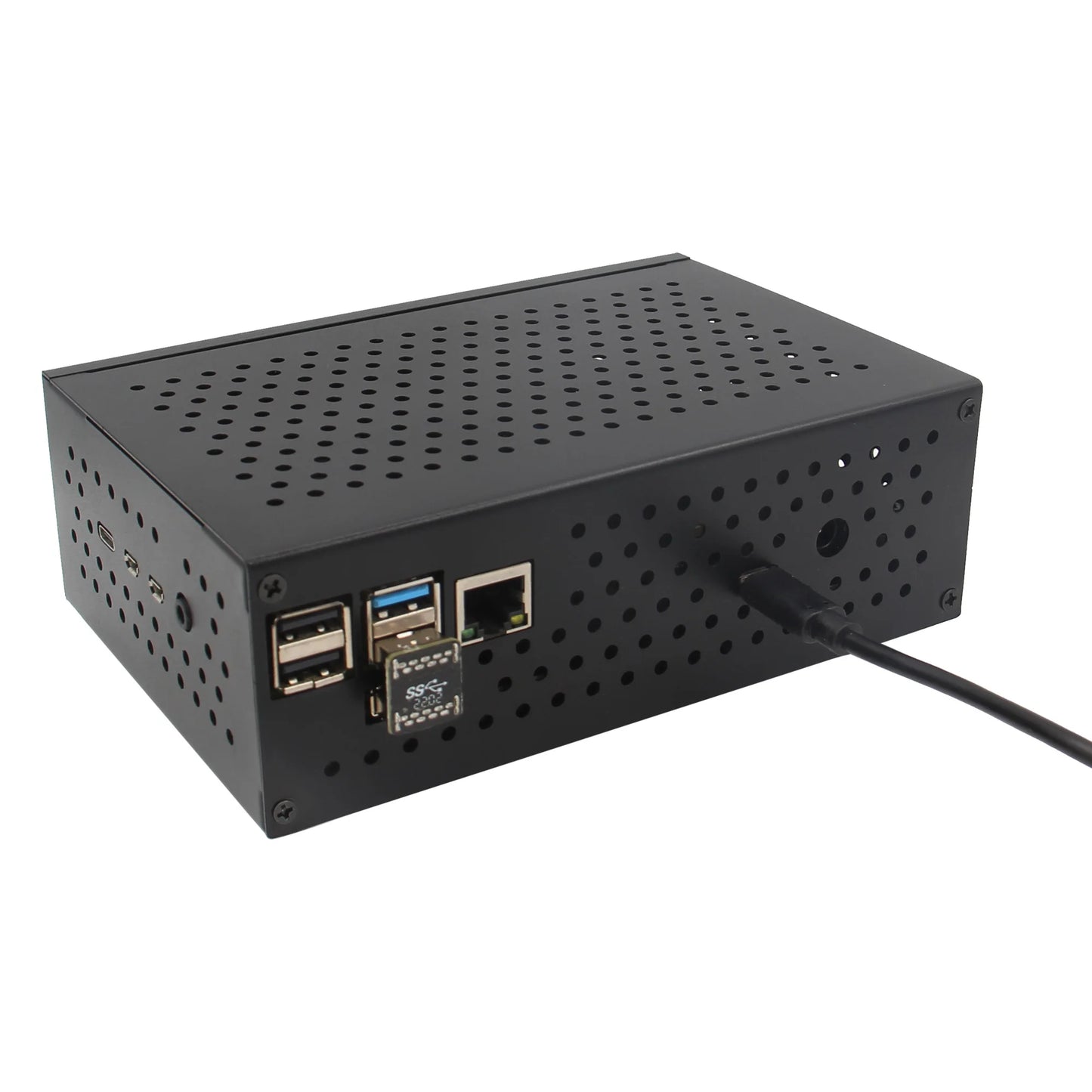

Geekworm NASPi-Gemini is an ultra-compact dual 2.5 inch SATA HDD/SSD NAS storage kit for Raspberry Pi 4 8GB/4GB/2GB.



NASPi-Gemini with RAID, PWM fan, safe shutdown and auto power on function, it allows 2 pcs 2.5" HDDs/SSDs to working at the same time with your Raspberry Pi 4. Also support use with one single 2.5" SATA HDD/SSD.

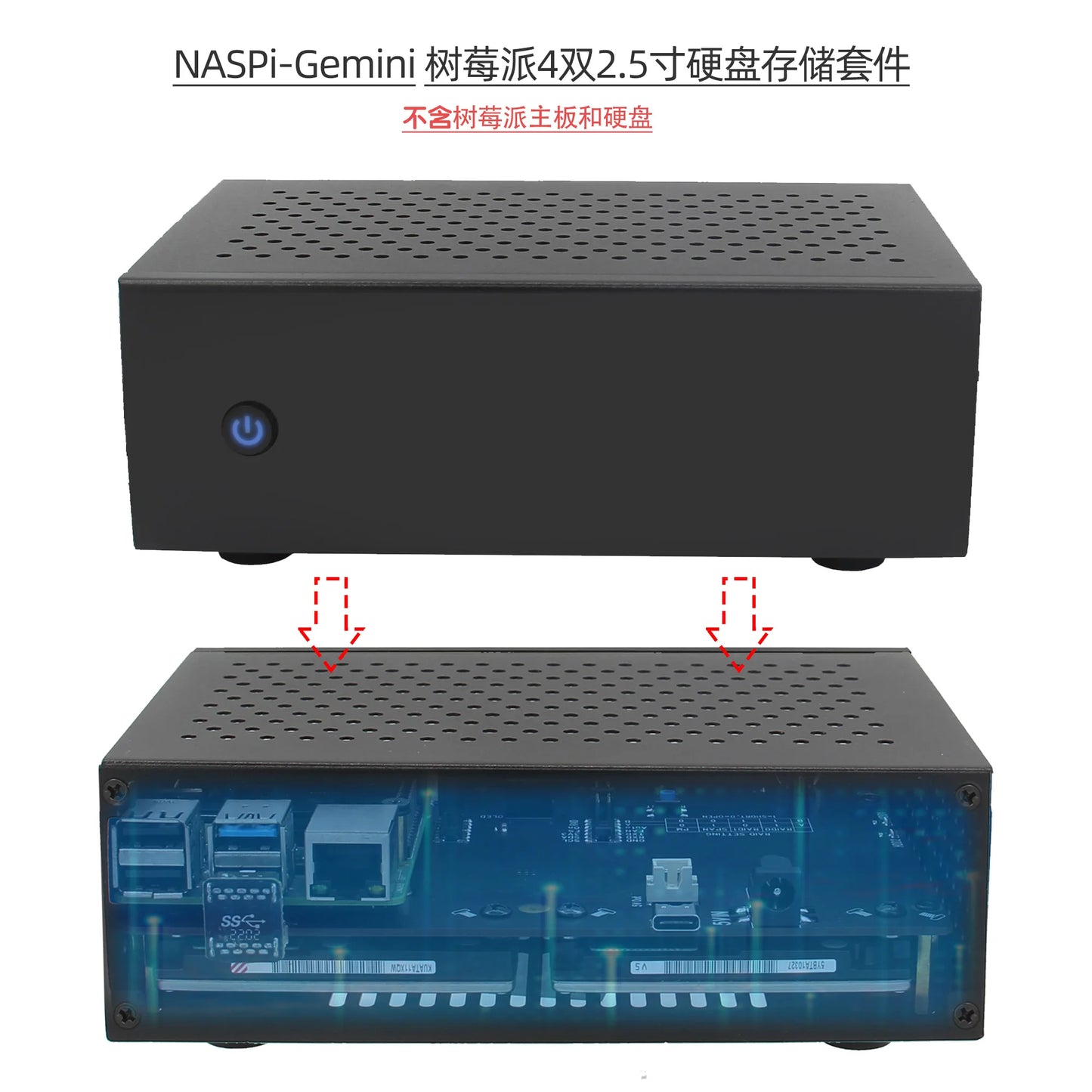

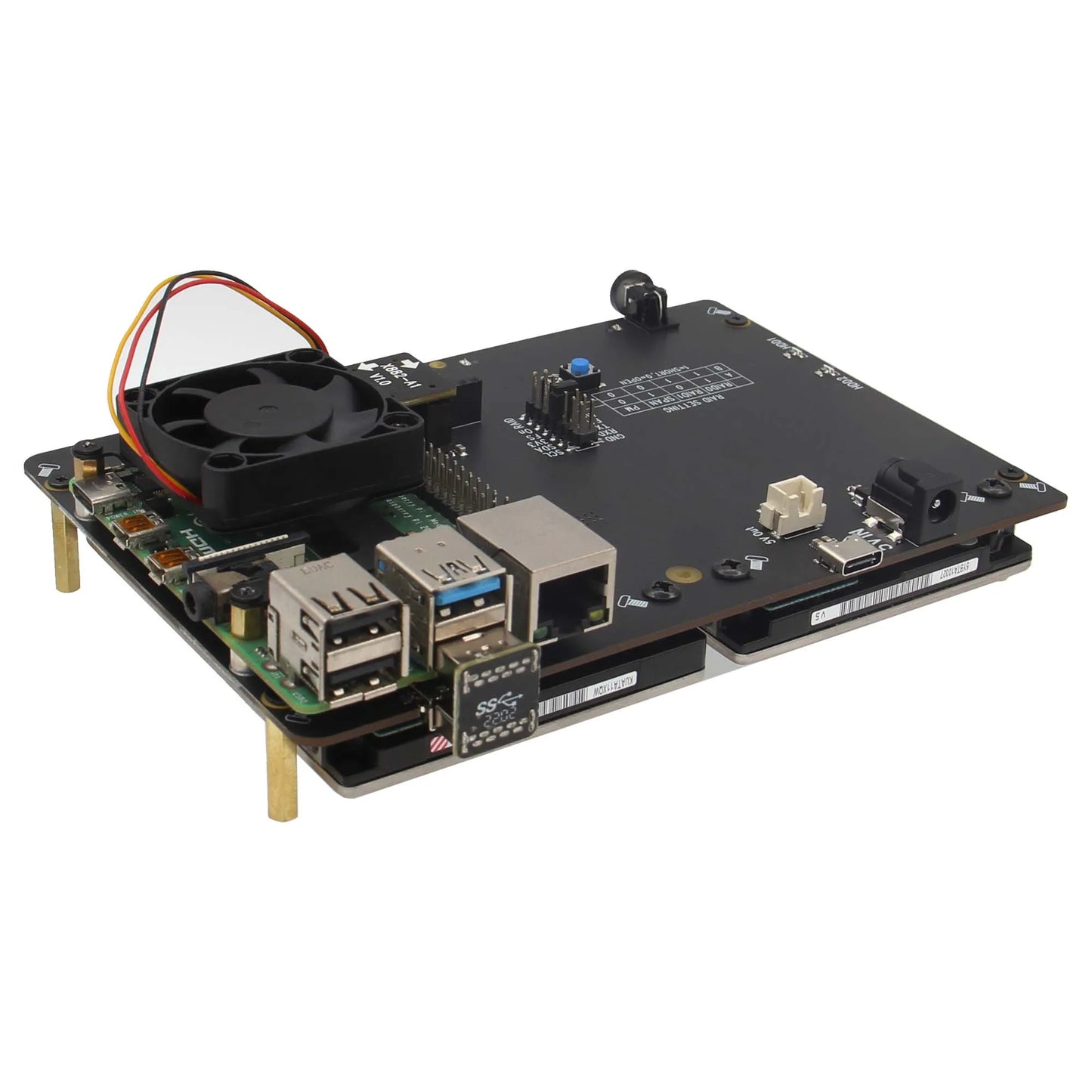

NASPi-Gemini is composed of 3 parts: X882 dual 2.5" SATA HDD/SSD shieldNASPi-Gemini metal case and cooling solution X823-A3(3Pin 4010 PWM fan with metal bracket). To get better heat dissipation of NASPi-Gemini, it also support install max 7mm thickness heatsink above Pi4.

[Operating System]

  • All Raspberry Pi operating systems

Note: If the OS such as Home Assistant does not allow the installation of external scripts, then the software safe shutdown and automatic adjust fan speed functions are not supported;

[Features]

  • Ultra-compact NAS storage solution for Raspberry Pi 4 with Dual 2.5" SATA HDD/SSD

  • Supports Dual Max 16mm thickness 2.5" SATA HDDs/SSDs working at the same time

  • Support use with one single 2.5" SATA HDD/SSD

  • Support Auto Power On function by jumper setting (Automatically turn on when power applied)

  • Integrated Software & Hardware safe shutdown function on X882

  • With on-board power button to control power on/off

  • Using PWM fan, can support automatic adjustment of speed according to CPU temperature

  • Support RAIDModes by jumper setting

  • UASP supported only, do not support TRIM

  • LED blue indicator (HDD1,HDD2) indicates each drive status

  • Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying

[Koeling Oplossing]

  • Met behulp van PWM koelventilator, kan automatische aanpassing van snelheid volgens CPU temperatuur, shell script is vereist.

  • Ondersteuning Max 7mm dikte heatsinks installatie op Raspberry Pi 4 als we gebruik 11mm hoogte spacers voor de ventilator met beugel installatie op Pi4.

[Voeding Eis]

  • Via USB-C poort van X882, 5Vdc +/-5% , ≥ 4A

  • Via DC5521 Jack van X882, 5Vdc +/-5% , ≥ 4A (DC5525 Jack is compatibel met DC5521, ook ondersteuning 5V PSU met DC5525 Jack)

Opmerking over PSU:

  • Pls gebruik hoge kwaliteit power adapter, of niet herkennen de HDD/SSD. Sinds NASPi-Gemini kan installeren twee stuks 2.5 inch harde schijven, het moet een hoge-kwaliteit voeding om genoeg stroom.



[Paklijst]

Bundel 1:NASPi-Gemini

  • 1 x X882 V1.3 Dual 2.5 ''SATA HDD Shield

  • 1 x NASPi-Gemini Metal Case

  • 1 x 3pin 4010 PWM ventilator met metalen beugel

  • 1 x schroeven pack accessoires

Bundel 2:NASPi-Gemini+PSU-US Plug

  • 1 x X882 V1.3 Dual 2.5 ''SATA HDD Shield

  • 1 x NASPi-Gemini Metal Case

  • 1 x 3pin 4010 PWM ventilator met metalen beugel

  • 1 x schroeven pack accessoires

  • 1 x USB-C 5V 4A power adapter met AMERIKAANSE plug

Bundel 3:NASPi-Gemini+PSU-EU Plug

  • 1 x X882 V1.3 Dual 2.5 ''SATA HDD Shield

  • 1 x NASPi-Gemini Metal Case

  • 1 x 3pin 4010 PWM ventilator met metalen beugel

  • 1 x schroeven pack accessoires

  • 1 x USB-C 5V 4A power adapter met EU plug

 Welcome Customize Order!
