NanoPi DUO2 512M Allwinner H3 Cortex-A7 WiFi Blth module UbuntuCore light-weight IoT applications
Introduction
-
-

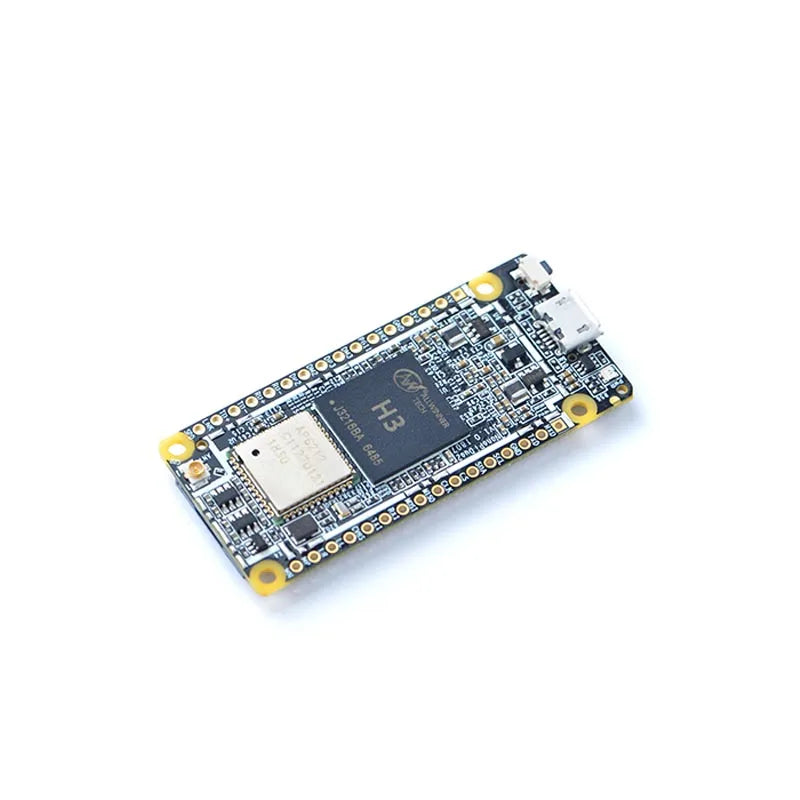

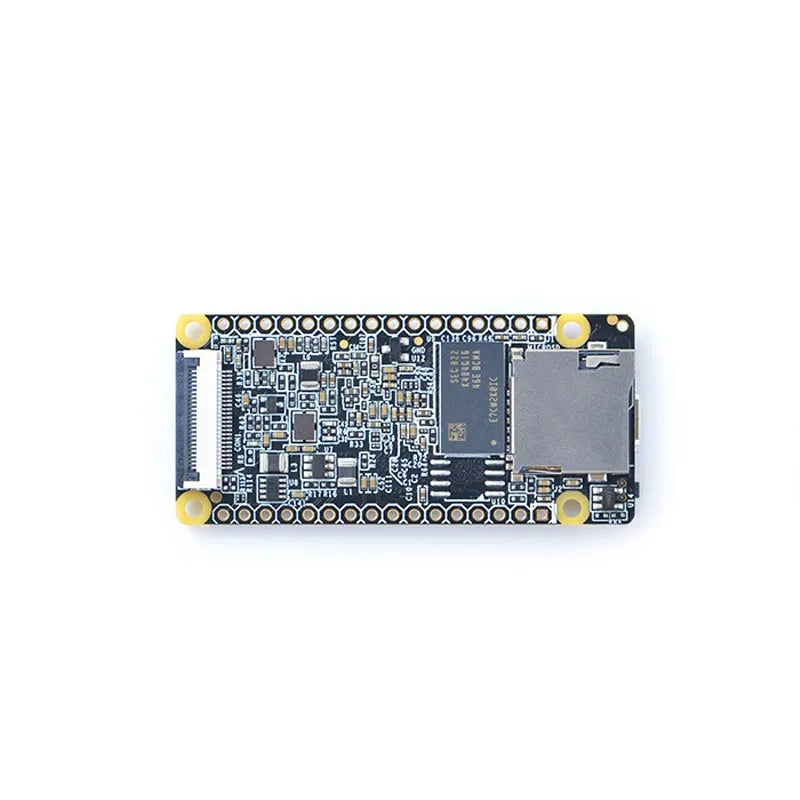

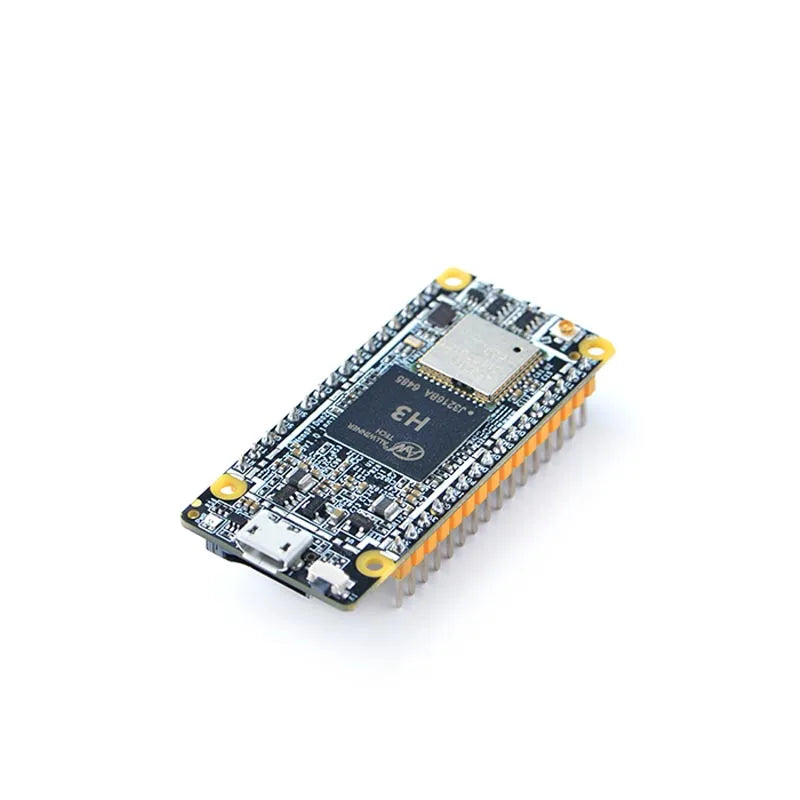

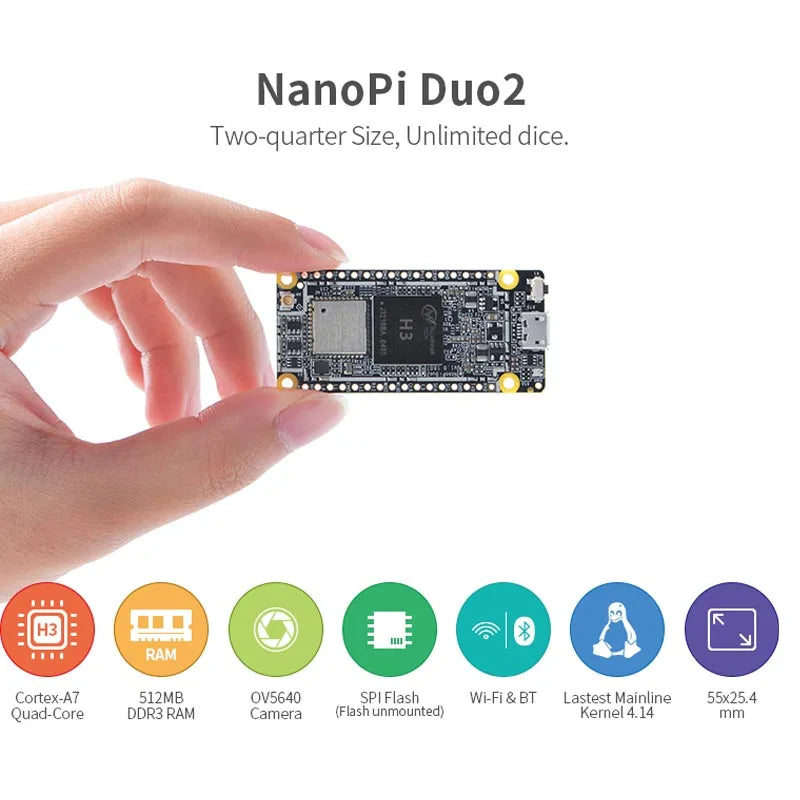

The NanoPi Duo2("Duo2") is an ARM board designed and developed by FriendlyELEC for makers and hobbyists. It is only 55 x 25.4mm. It features Allwinner quad-core A7 processor H3, and has 256M/512M DDR3 RAM, onboard WiFi & blth module and an OV5640 camera interface. It works with Linux variants such as Ubuntu Core. -
-
The NanoPi Duo2 is tiny and compact with rich interfaces and ports. It takes power input from its MicroUSB port and can be booted from a Micro SD card. It works with general bread-boards. Interface pins such as USB, SPI, UART, I2C, PWM, IR, audio input & output and Fast Ethernet etc are populated. -
-
The NanoPi Duo2 supports software utilities such as WiringNP and Python etc. These are all open source. It is suited for various IoT applications.
Hardware Spec
-
-
CPU: Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz -
-
DDR3 RAM: 512M -
-
Connectivity: 10/100M Ethernet -
-
WiFi: 802.11b/g/n -
-
Blth: Blth V4.0 of 1, 2 and 3 Mbps. -
-
Camera: OV5640 -
-
Key: GPIO Key -
-
USB Host: 2.54mm pin x2, exposed in 2.54mm pitch pin header -
-
MicroSD Slot x 1 -
-
MicroUSB: OTG and power input -
-
Debug Serial Interface: exposed in 2.54mm pitch pin header -
-
Audio input/output Interface: exposed in 2.54mm pitch pin header -
-
GPIO1: 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc -
-
GPIO2: 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc -
-
PCB Dimension: 25.4 x 55mm -
-
Power Supply: DC 5V/2A -
-
Temperature measuring range: -40℃ to 80℃ -
-
OS/Software: U-boot,Linux Kernel 4.11.2 (mainline) , Ubuntu 16.04.2 LTS (Xenial) -
-
Weight: xxg(With Pin-headers) -
-
-
-

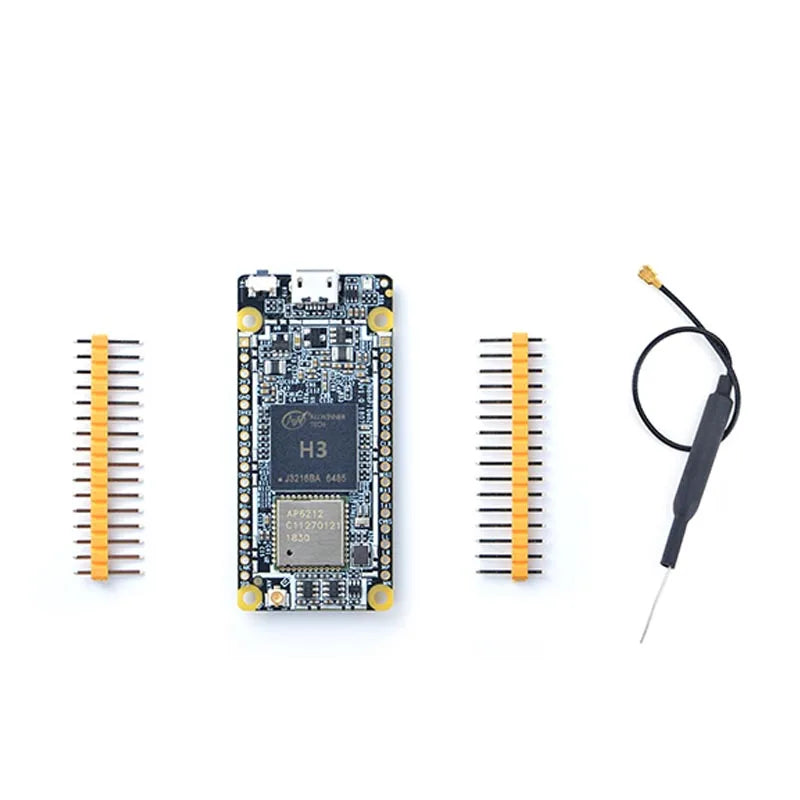

Package list: -
-
-
