NOTE:
ESP32-S3-WROOM-1-N8: 8MB Flash
ESP32-S3-WROOM-1-N8R2: 8MB Flash + 2MB PSRAM
ESP32-S3-WROOM-1-N8R8: 8MB Flash + 8MB PSRAM
Introduction

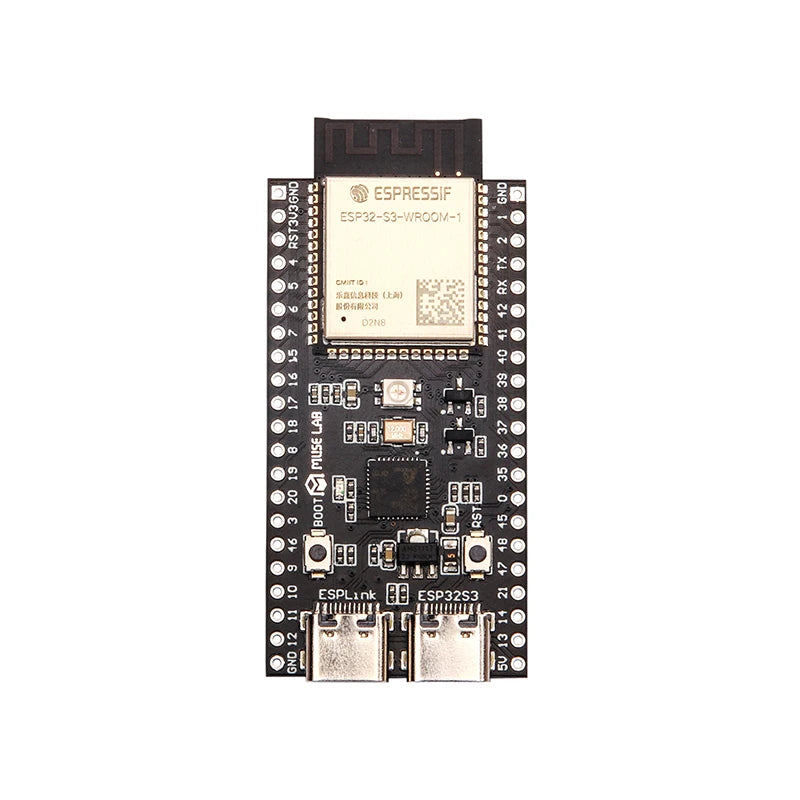

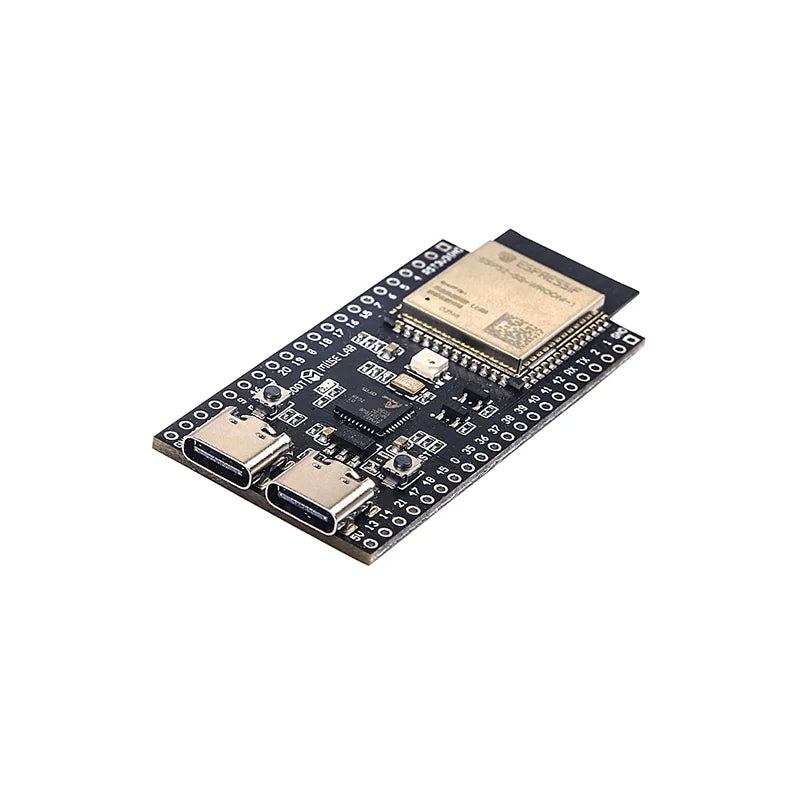

nanoESP32-S3 is a ESP32-S3 development board designed and made by Muse Lab, based on ESP32-S3-WROOM-1-N8 module manufactured by Espressif, with on-board TYPE-C and RGB LED. The on-board programmer ESPLink supports usb-to-serial (compatible with traditional use), drag-and-drop program and JTAG debug, which makes it convenient for developers to develop and test.
Specification

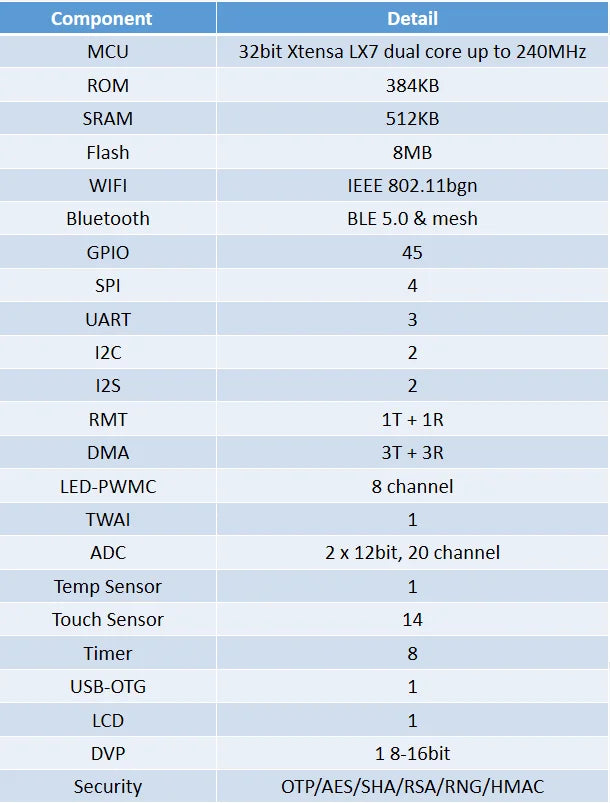

nanoESP32-S3 use the ESP32-S3-WROOM-1-N8 module manufactured by Espressif, its specification is as below,
Features
●On-board ESPLink programmer, supporting usb-to-serial (compatible with traditional use), drag-and-drop program and JTAG debug
● On-board downloading key and reset key
● On-board TYPE-C and RGB LED

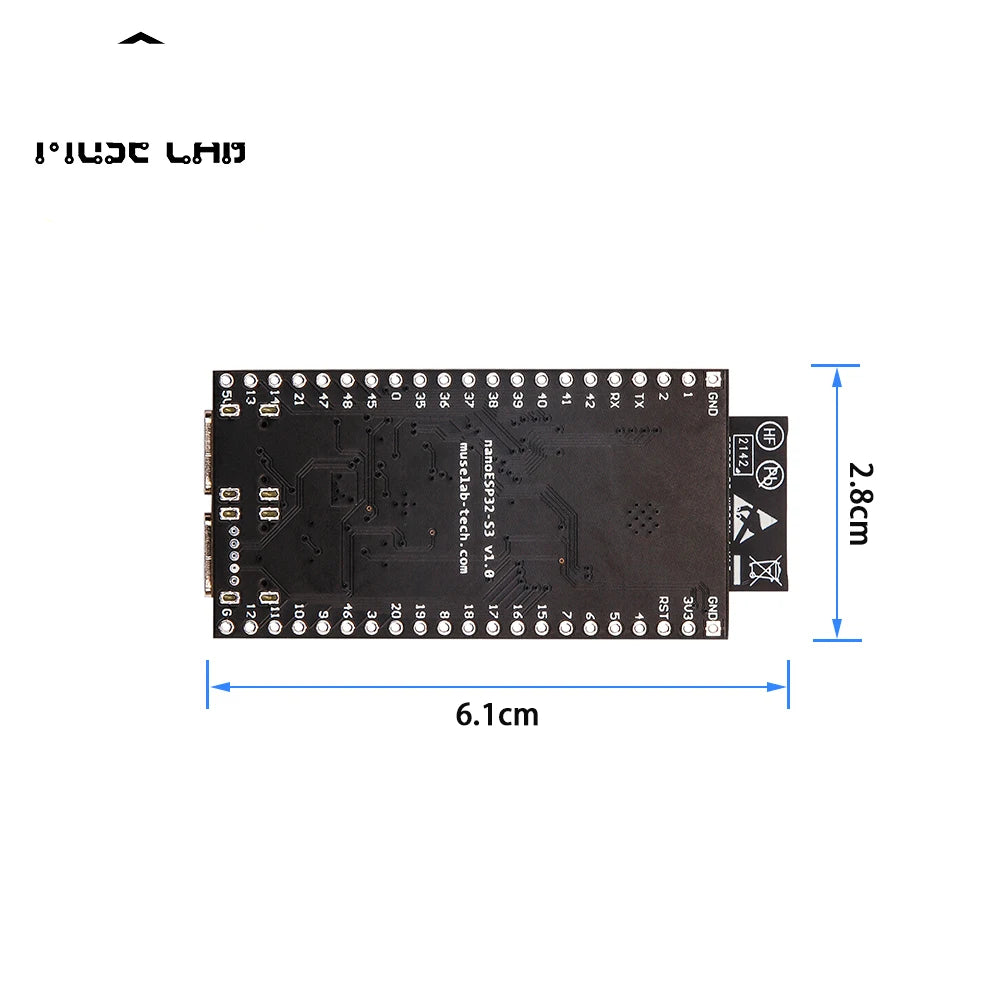

● Small Size: 6.1cm*2.8cm

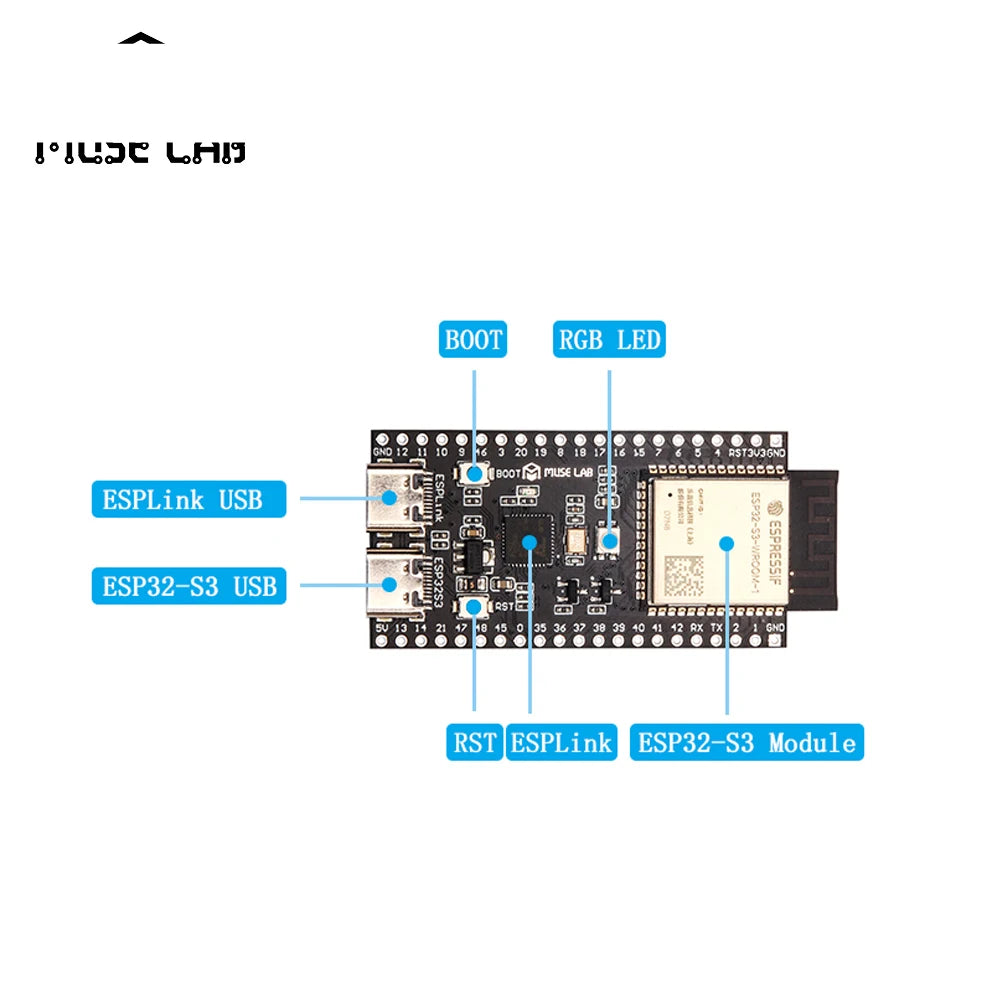

Diagram
Documentation
● nanoESP32-S3
https://github.com/wuxx/nanoESP32-S3
● esp-idf
https://github.com/espressif/esp-idf
● esp32-S3 get-started
https://docs.espressif.com/projects/esp-idf/en/latest/esp32s3/get-started/
● esp32-S3
https://www.espressif.com/zh-hans/products/socs/esp32-s3
Shipping List
● Kit1: nanoESP32-S3 Development Board * 1 + 21 Pin Header * 2
● Kit2: nanoESP32-S3 Development Board * 1 + 21 Pin Header * 2 + 1 Meter TYPE-C Cable
