Introduction

nanoESP32-C3 is a ESP32-C3 development board designed and made by Muse Lab, based on ESP32-C3 module manufactured by Expressif, with on-board TYPE-C and RGB LED. The on-board programmer ESPLink (based on DAPLink) supports usb-to-serial (compatible with traditional use), drag-and-drop programming and JTAG debug, which makes it convenient for developers to develop and test.

Specification

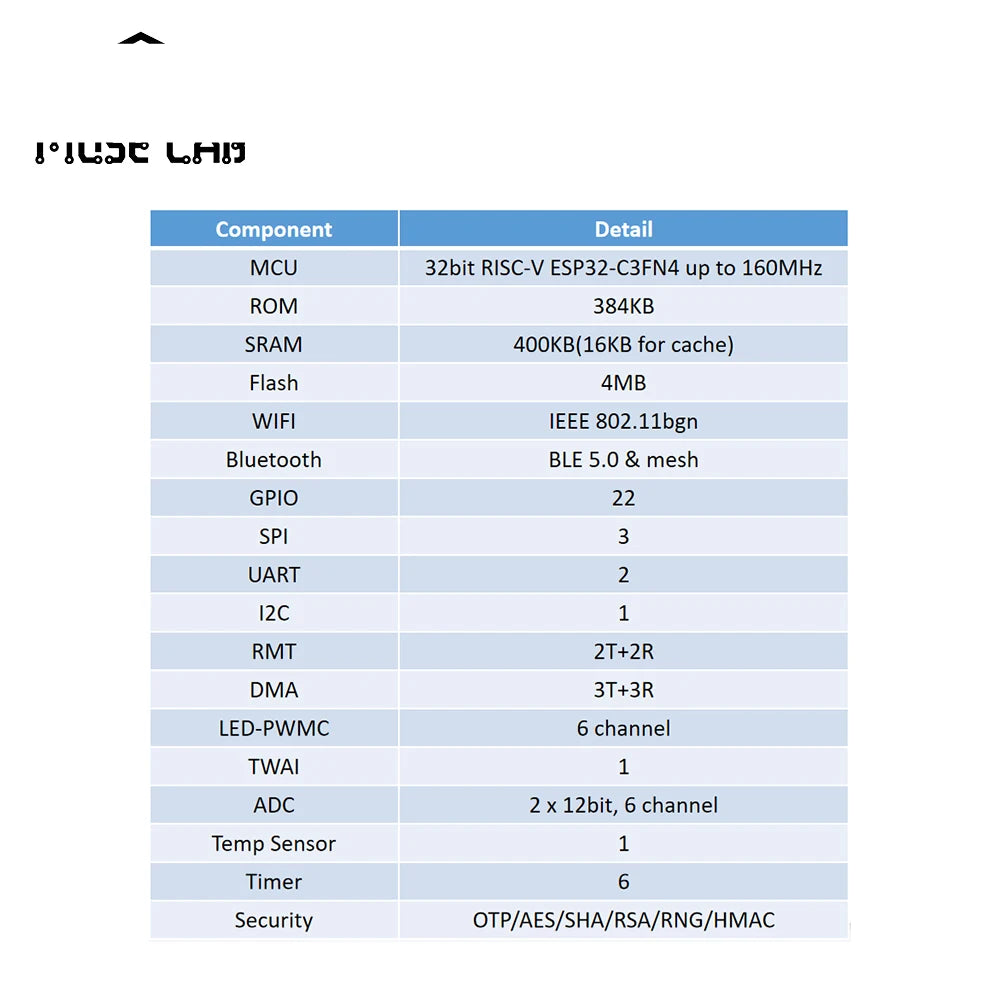

nanoESP32-C3 use the ESP32-C3-MINI-1 module manufactured by Expressif, its specification are as below,

Features

On-board ESPLink programmer, supporting usb-to-serial (compatible with traditional use), drag-and-drop programming and JTAG debug
On-board downloading key and reset key
On-board TYPE-C and RGB LED

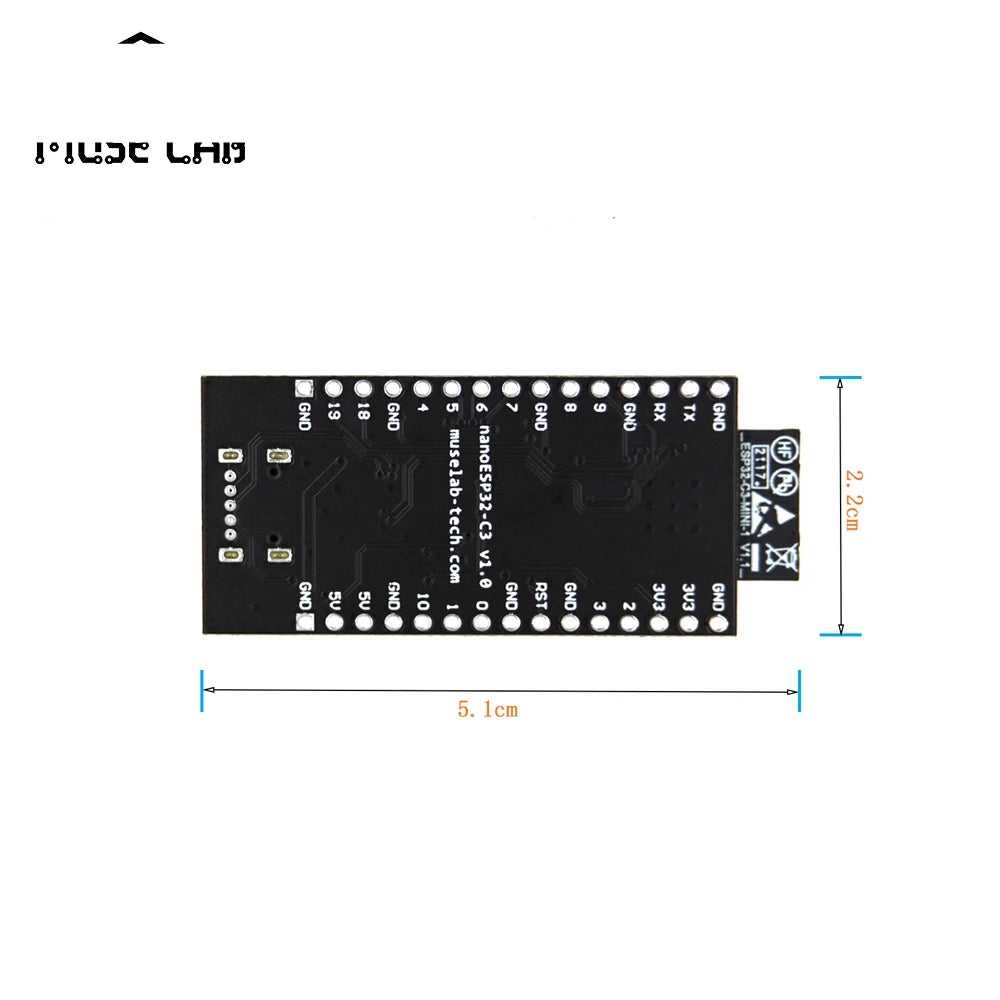

Small Size: 5.1cm*2.2cm

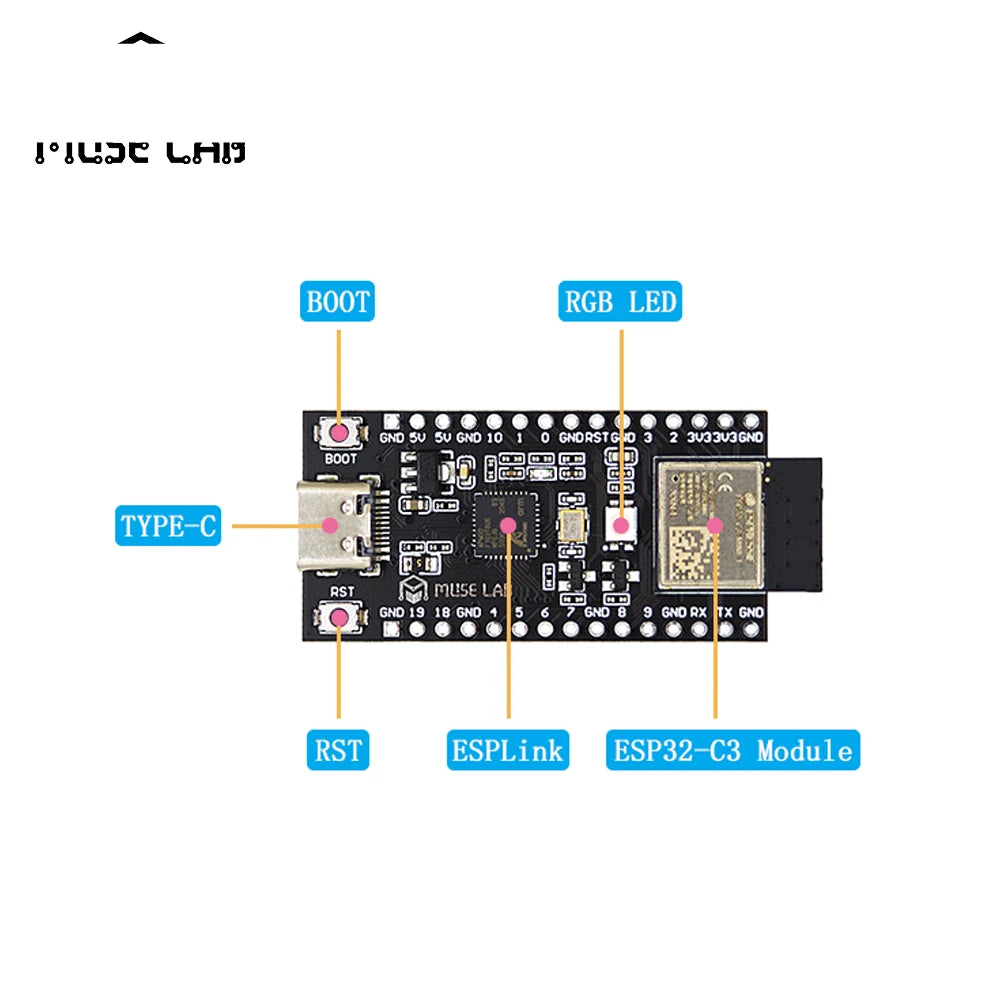

Diagram

Shipping List

Kit1: nanoESP32-C3 Development Board * 1 + 15 Pin Header * 2
Kit2: nanoESP32-C3 Development Board * 1 + 15 Pin Header * 2 + 1 Meter TYPE-C Cable
