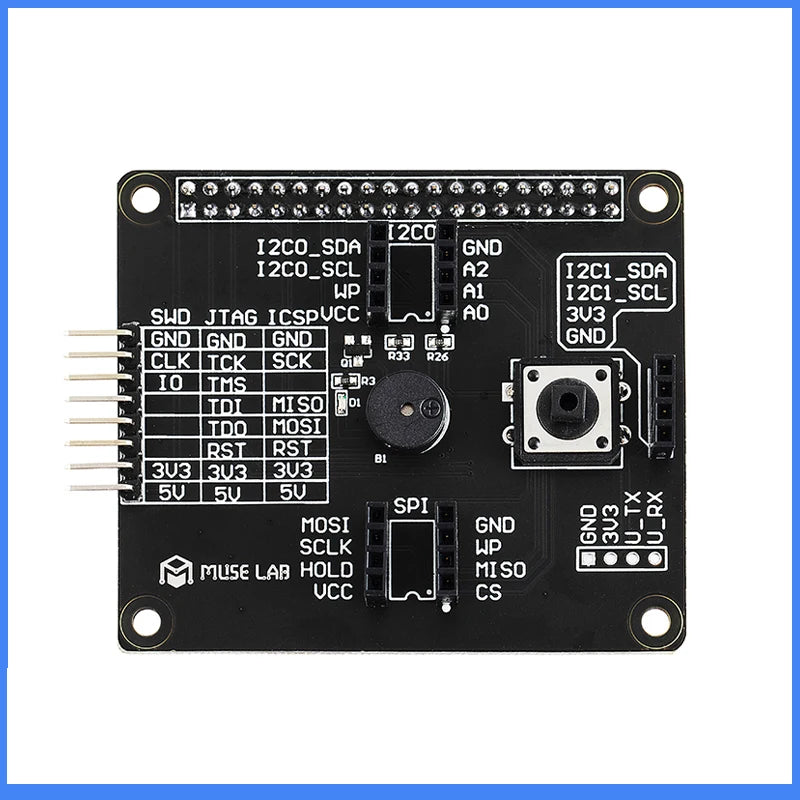

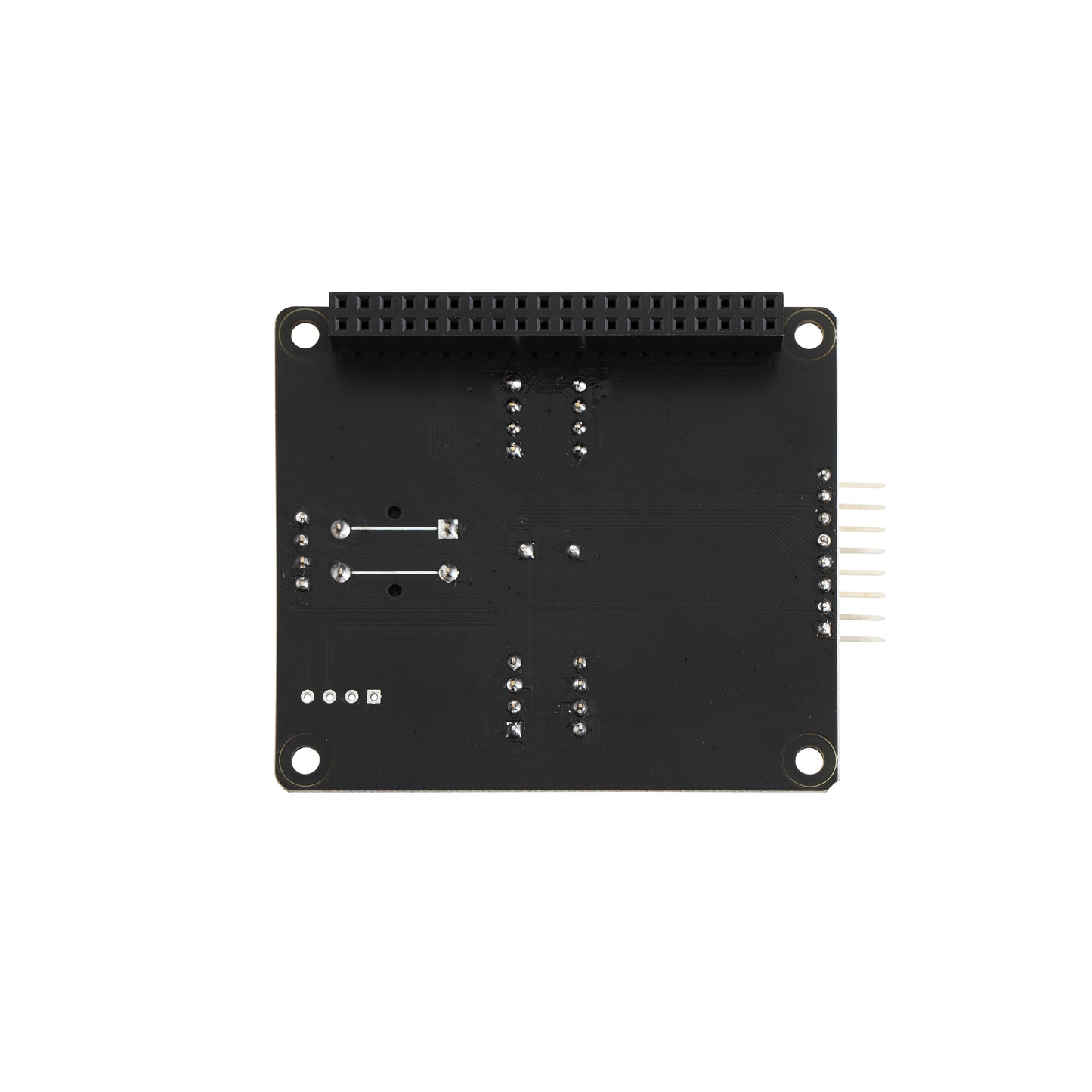

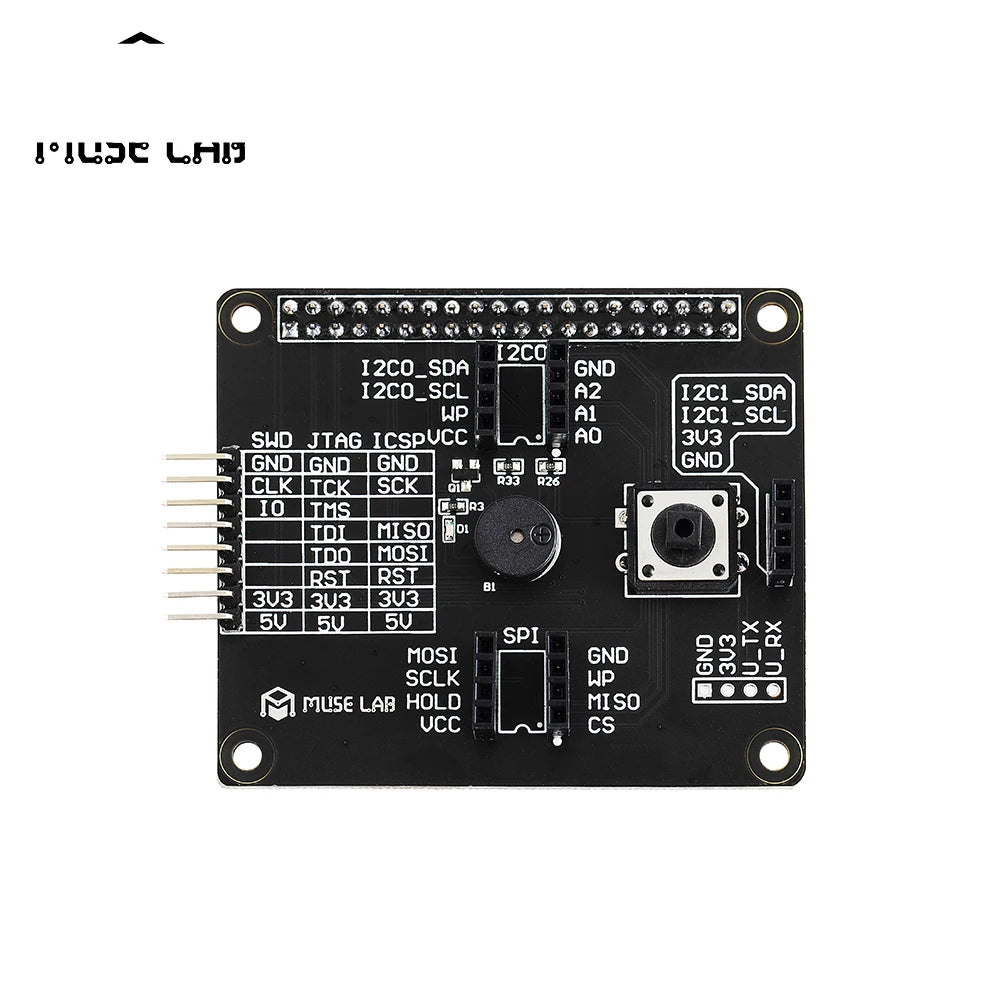

Custom Multifunctional RPI-HAT Programmer Raspberry Pi Expansion Board I2C/SPI/SWD/JTAG/ICSP Offline Programming Open Source 3B/3B+/4B Manufacturer

Introduction

With this Raspberry Pi Expansion Board, a Raspberry Pi 3B/3B+/4B can be turned to a multi-functional programmer which supports  I2C, SPI, SWD, JTAG and ICSP programming. The multi-functional programmer can program numerous microcontrollers,  such as ARDUINO, spi-flash, and i2c-eeprom.

Features

Supports I2C, SPI, SWD, JTAG and ICSP programming

Have a Botton, LED and Buzzer

Compatible with Raspberry Pi 3B/3B+/4B

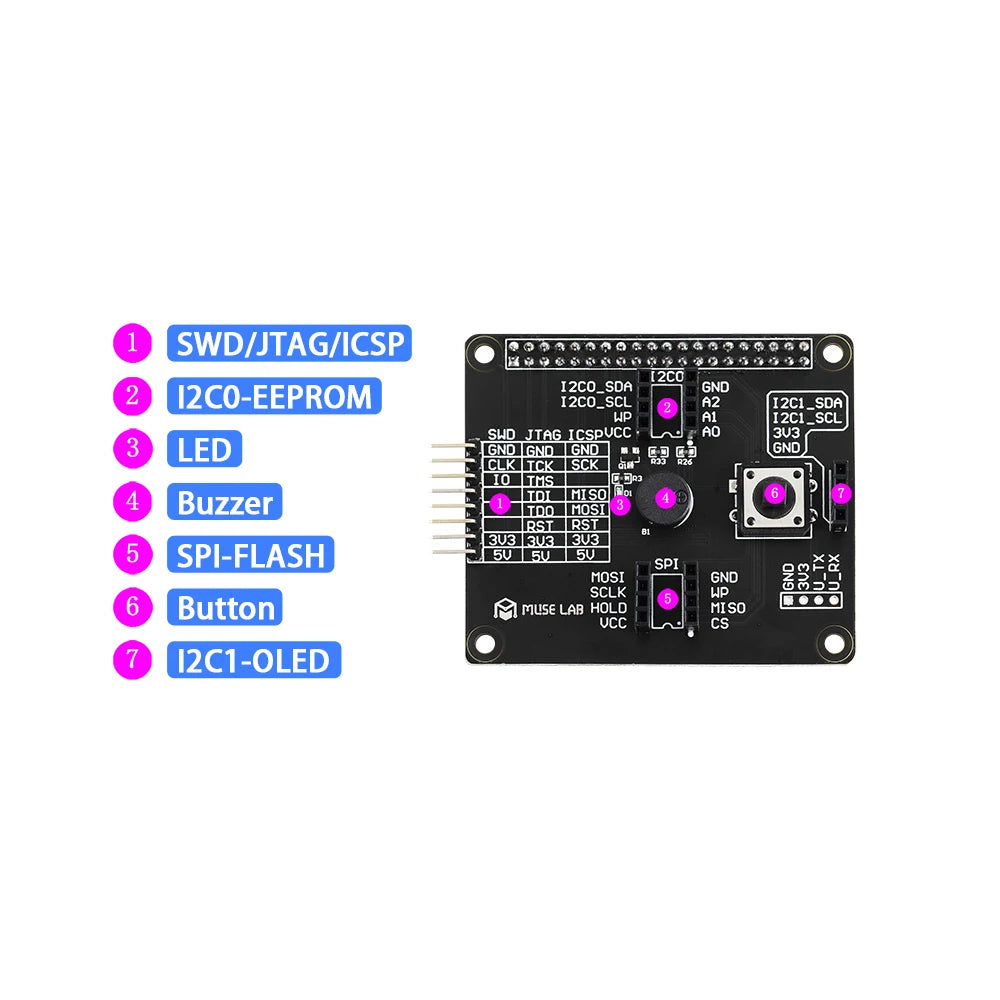

Diagram

Documentation

https://github.com/wuxx/RPI-HAT-Programmer
https://www.muselab-tech.com/geekgong-ju-ba-shu-mei-pai-bian-cheng-duo-gong-neng-diao-shi-shao-lu-qi/

Shipping List

Kit 1: Raspberry Pi Expansion Board * 1 + Screw * 8 + Gasket * 4 + Copper Pillar * 4

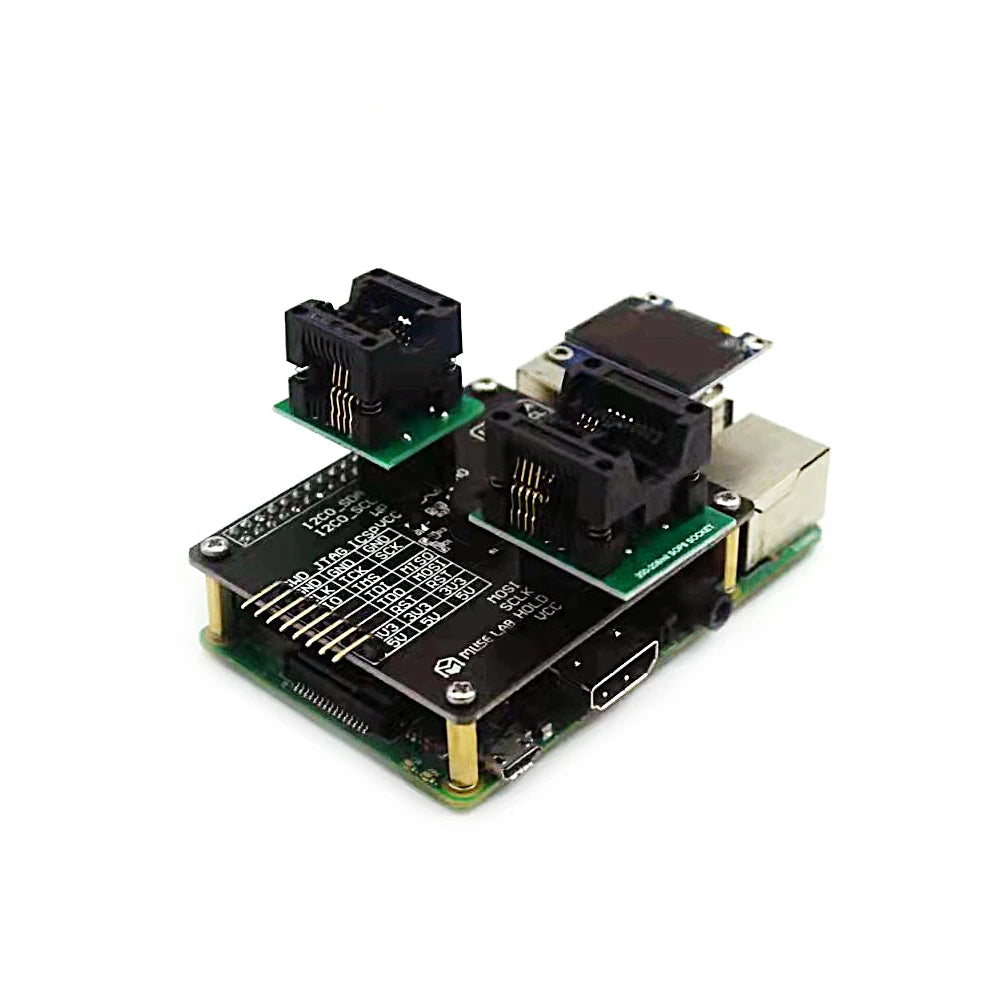

Kit 2: Raspberry Pi Expansion Board * 1 + SOP8 Wide Programming Socket + SOP8 Narrow Programming Socket + Screw * 8 + Gasket * 4 + Copper Pillar * 4

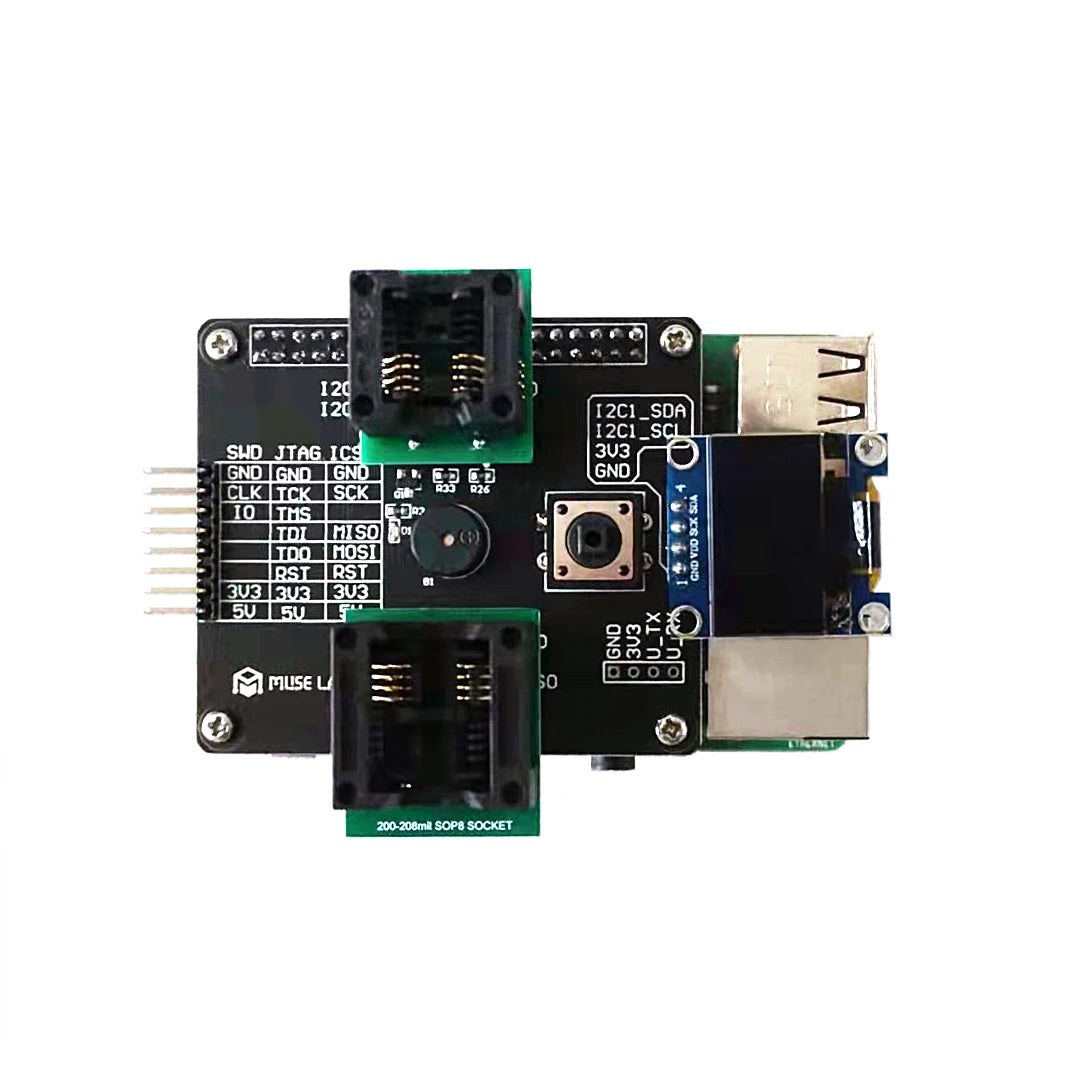

Kit 3: Raspberry Pi Expansion Board * 1 + SOP8 Wide Programming Socket + SOP8 Narrow Programming Socket + 0.96 Inch OLED + Screw * 8 + Gasket * 4 + Copper Pillar * 4

Kit 4: Raspberry Pi Expansion Board * 1 + SOP8 Wide Programming Socket + SOP8 Narrow Programming Socket + 0.96 Inch OLED + SOP8 Programming Clip + Screw * 8 + Gasket * 4 + Copper Pillar * 4
