Custom MS368V3.0 Quad Core Web Television Motherboard with Remote Control LCD Driver Board Support RJ45 DTMB Analog TelevisionManufacturer



I hope you are a professional, buy our products, we provide services, but for unprofessional people, we don't have much time to teach you step by step. Please understand.

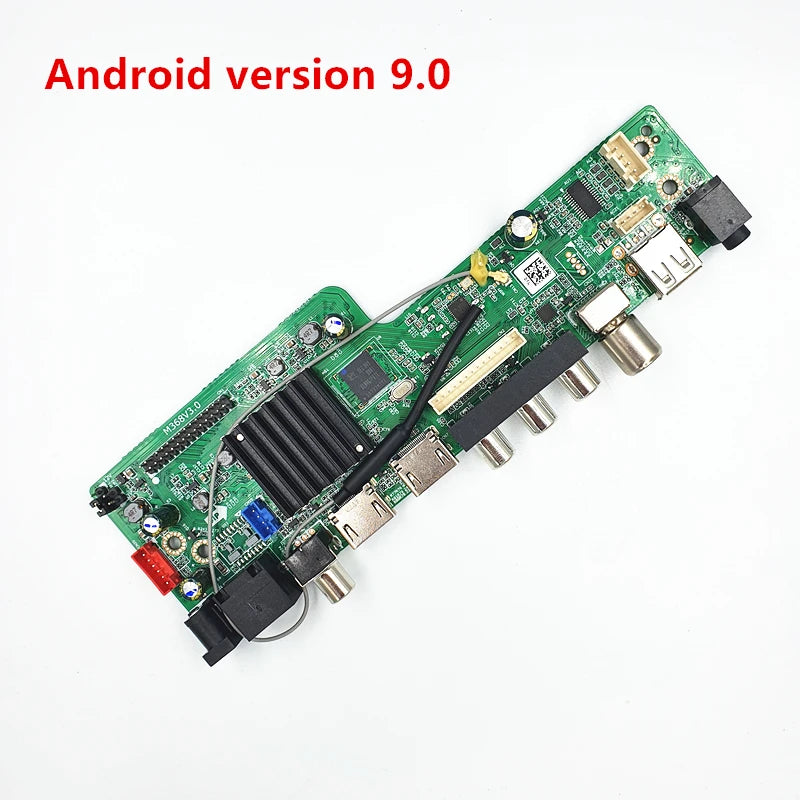

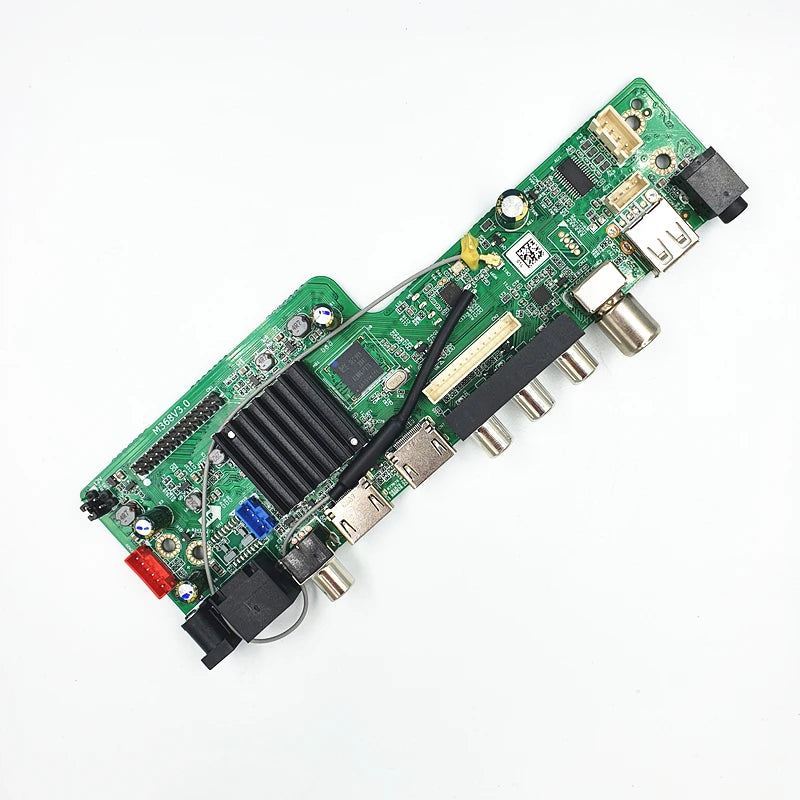

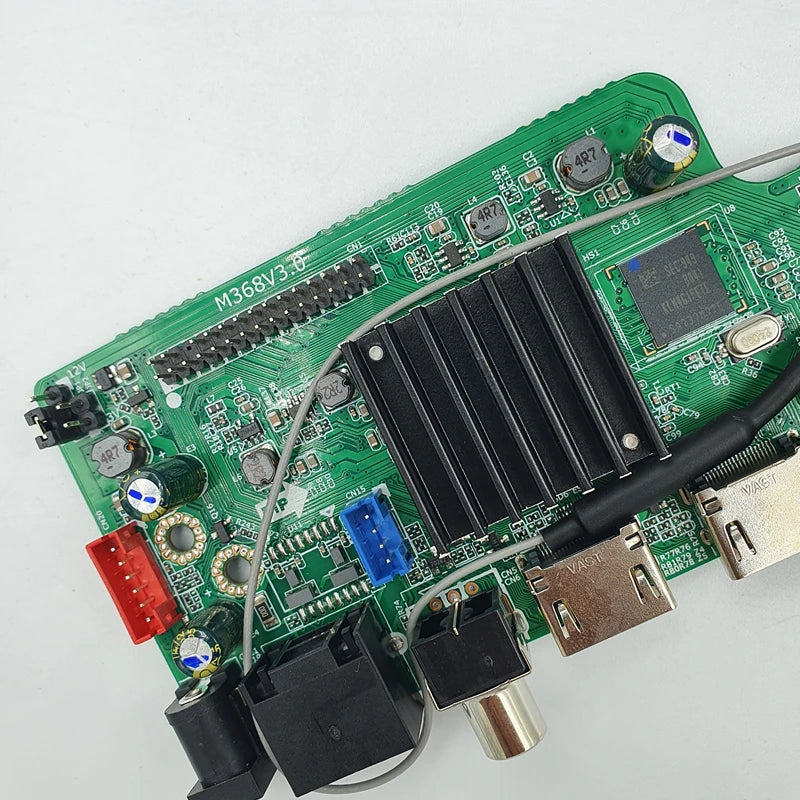

MS368V3.0 Quad Core Web Television Motherboard with Remote Control LCD Driver Board Support RJ45 DTMB Analog Television



100% brand new and high quality

Features:

M368V3.0 is a smart web television driver board, suitable for ATV. Can support full high definition LCD screen.

M368V3.0 supports WiFi, RJ45, USB 2.0, HDMI, AV and DTMB digital and analog television, as well as supports SPDIF and Earphone output.

M368V3.0 is based on the 9.0 operating system and is equipped with quad-core A53 CPU with frequency of 1.0-1.5GHz and multi-core G31 GPU.



Specification:

Product name: Web Television Driver Board

CPU: ARM Cortex-A53 quad-core

GPU: Mali G31MP2

Market area: ATV market

OSD language: Chinese, English (optional or add other languages)

Chip: MT9255

Panel type: TFT LCD with LED backlight

Interface: Support up to 8-bit dual LVDS (30PIN/2.0 jack) full high definition panel interface)

Resolution: 1920x1080 / 1366x768

Driver screen voltage: 3.3VI5V / 12V

Material: plastic

Size: app.18.8cm/7.40in

Color: As pictures shown

Quantity: 1set



Note:

No retail package.

Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

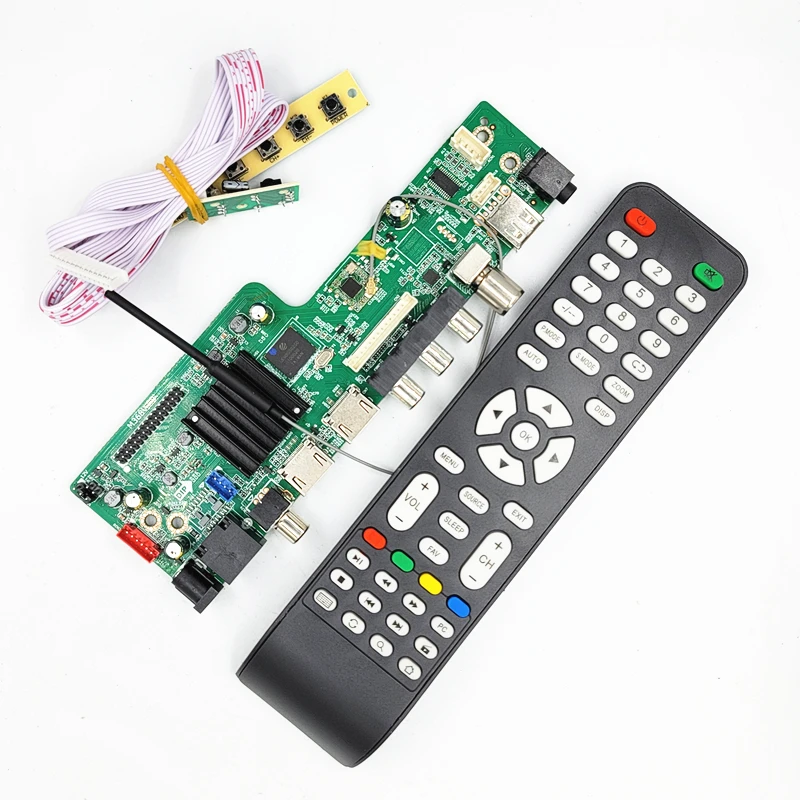

Package includes:

1 x Driver Board

1 x Remote Control(other accessories demo in the picture is not included.)

1 X KEY

1 X Wifi antenna

Dear, Hello, first of all thank you for your presence, this is the need to burn software to use, in order to normal use

The default shipping to you is 1920 * 1080p software English font

If you need other firmware, we can also provide it. If you have any questions during or before use, please contact us before purchase.

Don't apply for disputes carelessly. I hate this kind of behavior very much.

When you need firmware, please contact us, send email, we can provide it to you

If you need the firmware of the motherboard,

please send me an email lutx168@gmail.com



On classification selection



512RAM+4G   512 operation plus 4G storage



1GRAM +8G    1G operation plus   8G storage



Because the system needs to occupy memory and run, you don't have as much space as marked in the process of using. Please understand this,



Please professionals to buy, if you are not professionals, please consult in the purchase.



Please note that it does not support digital TV, it does not support DVB-T, it does not support DVB-T2



Please note that it does not support digital TV, it does not support DVB-T, it does not support DVB-T2



Please note that it does not support digital TV, it does not support DVB-T, it does not support DVB-T2



Please note that it does not support digital TV, it does not support DVB-T, it does not support DVB-T2



 Welcome Customize Order!
