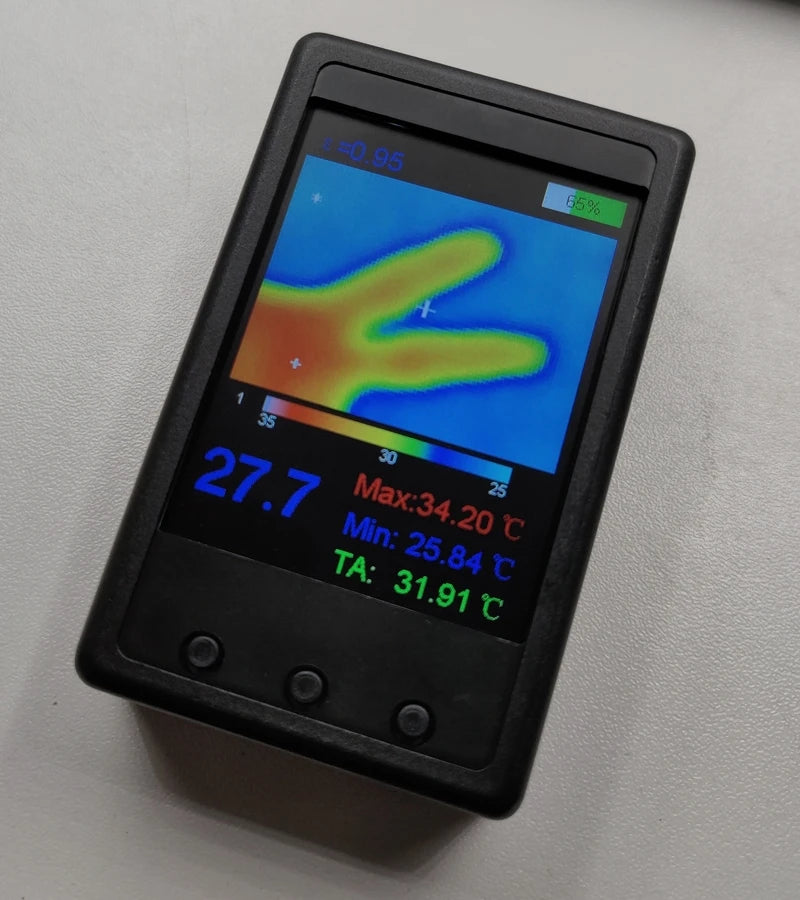

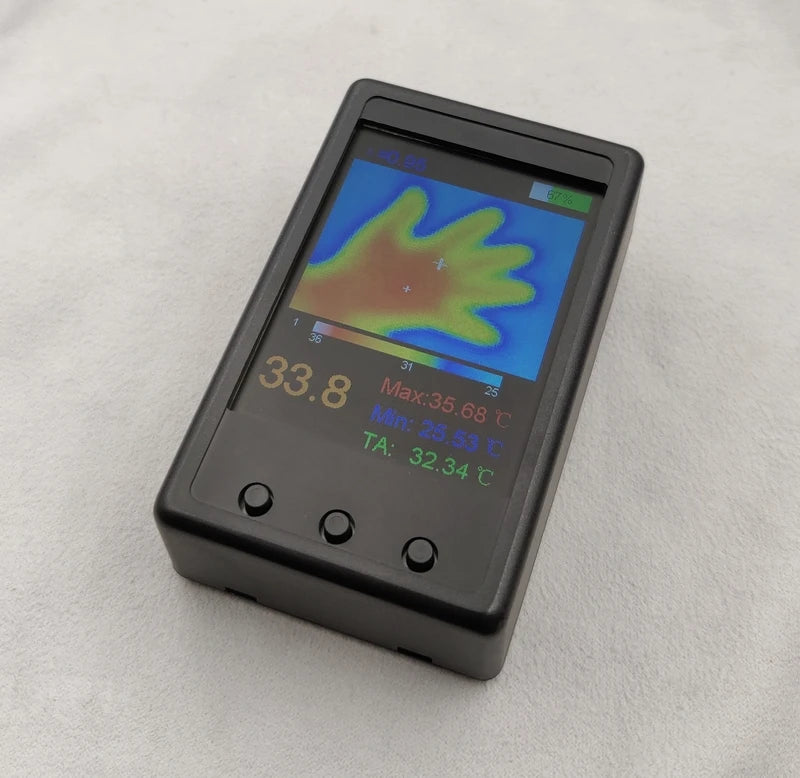

Custom MLX90640 IR 32*24 Infrared temperature measurement dot matrix sensor Thermal imager module Manufacturer

MLX90640BAA Field of view angle 110*75 degrees (large angle, suitable for short-distance measurement)

MLX90640BAB Field of view angle 55*35 degrees (small angle, suitable for long-distance measurement)

Ambient temperature -40-----85 degrees

Target temperature range -40----300 degrees



Serial output frequency supports up to 16HZ baud rate 460800

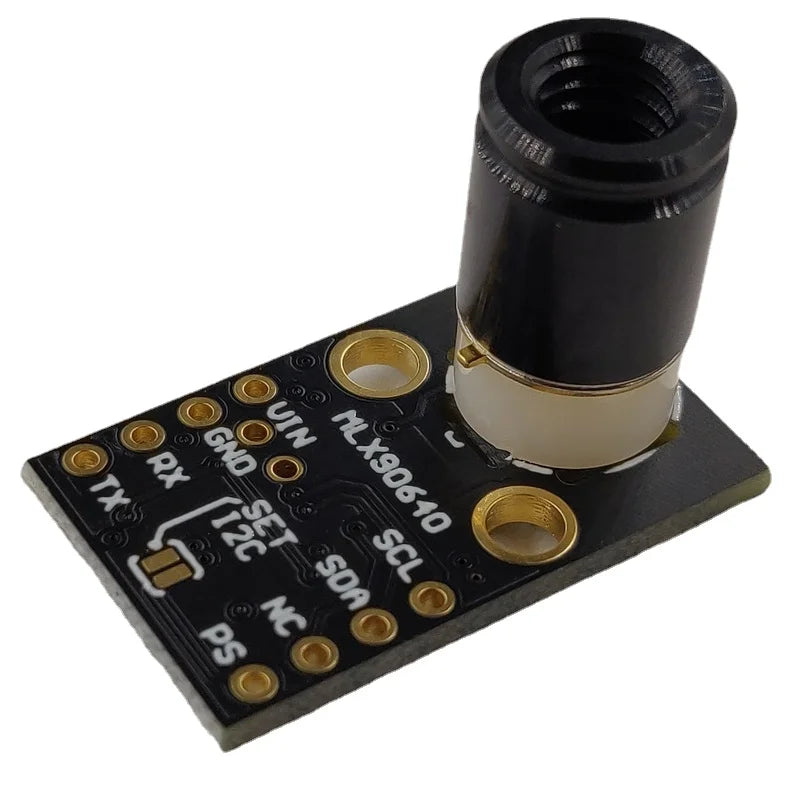

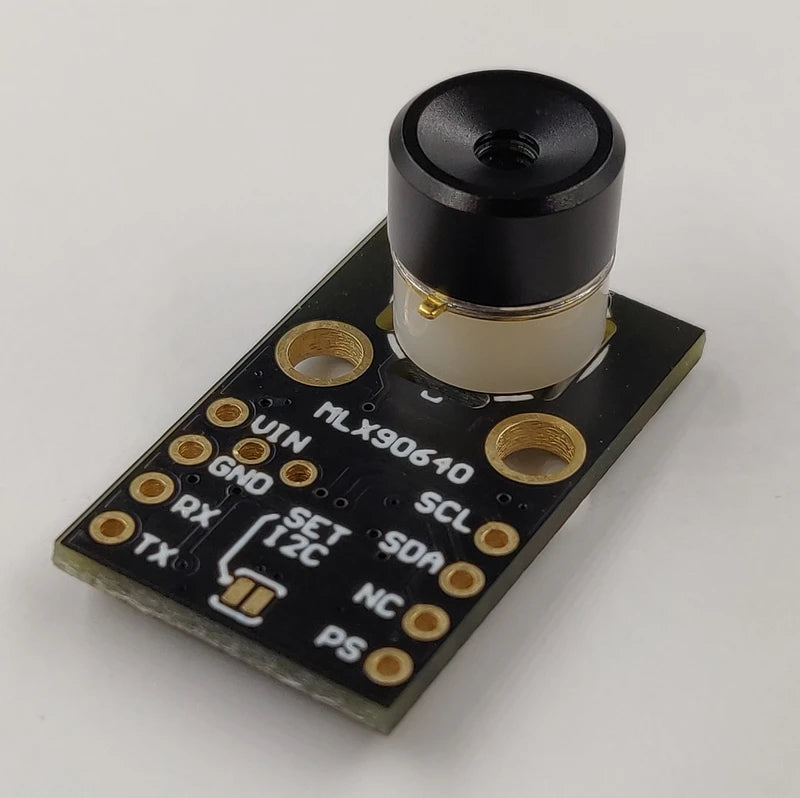

GY-MCU90640 MLX90640 BAA 32*24 Infrared temperature measurement dot matrix sensor module

Features

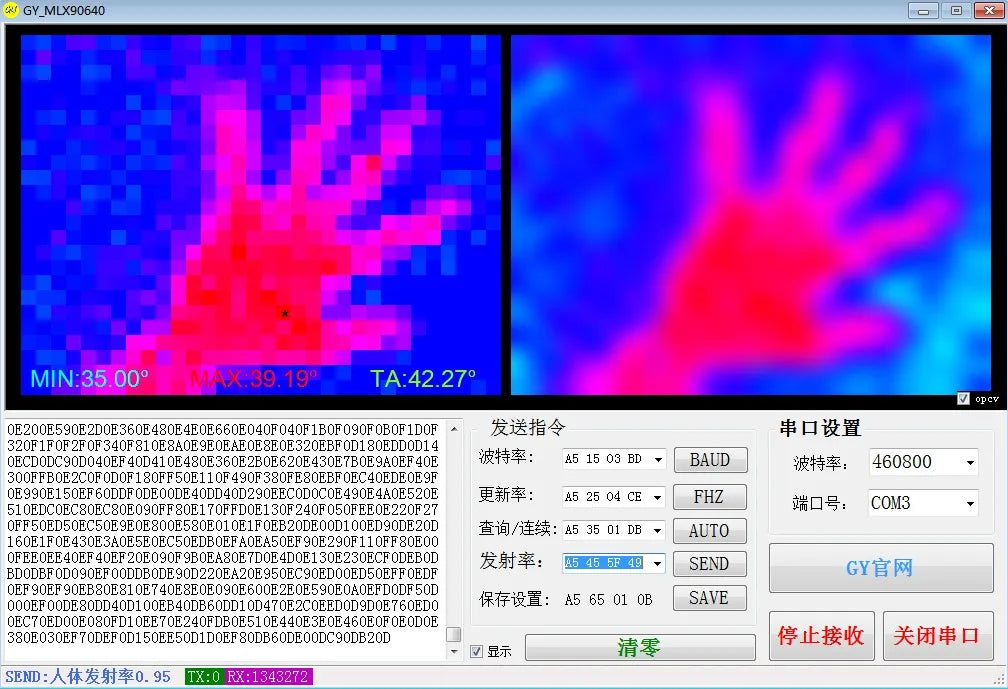

Provide upper computer software to directly display temperature imaging graphics.

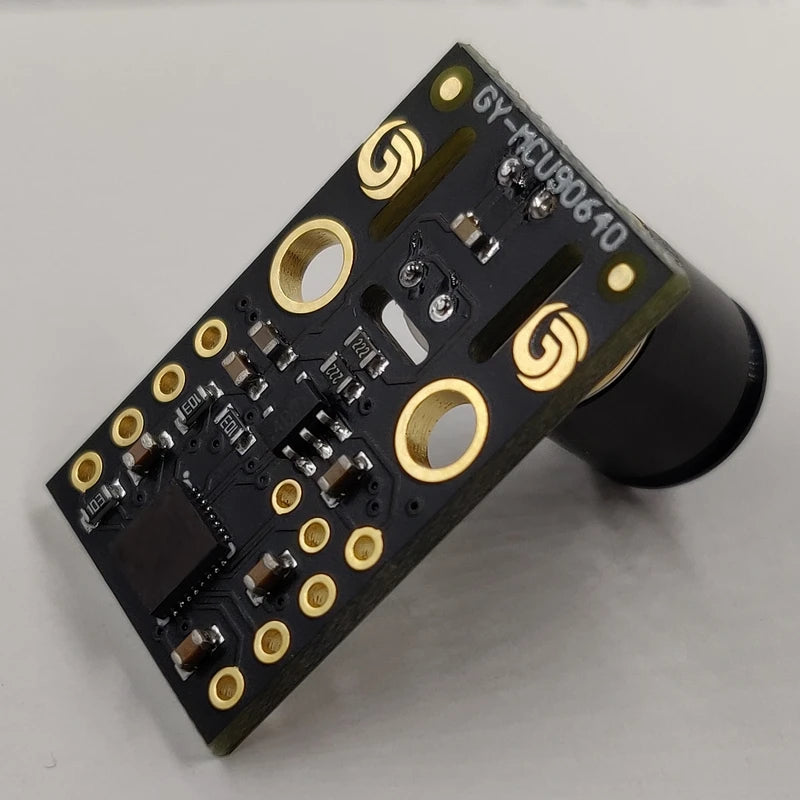

The module contains a single-chip microcomputer, the serial port directly outputs 768 temperature data, and the USB to ttl directly connects to the computer to view the data.

The original I2C interface of mlx90640 is retained, and the sensor chip can also be directly operated by an external microcontroller (PS connects to GND).
