Custom minimum system board core PCB empty board
Custom minimum system board core PCB empty board
Regular price
$0.65 USD
Regular price
$6.65 USD
Sale price
$0.65 USD
Unit price
/
per

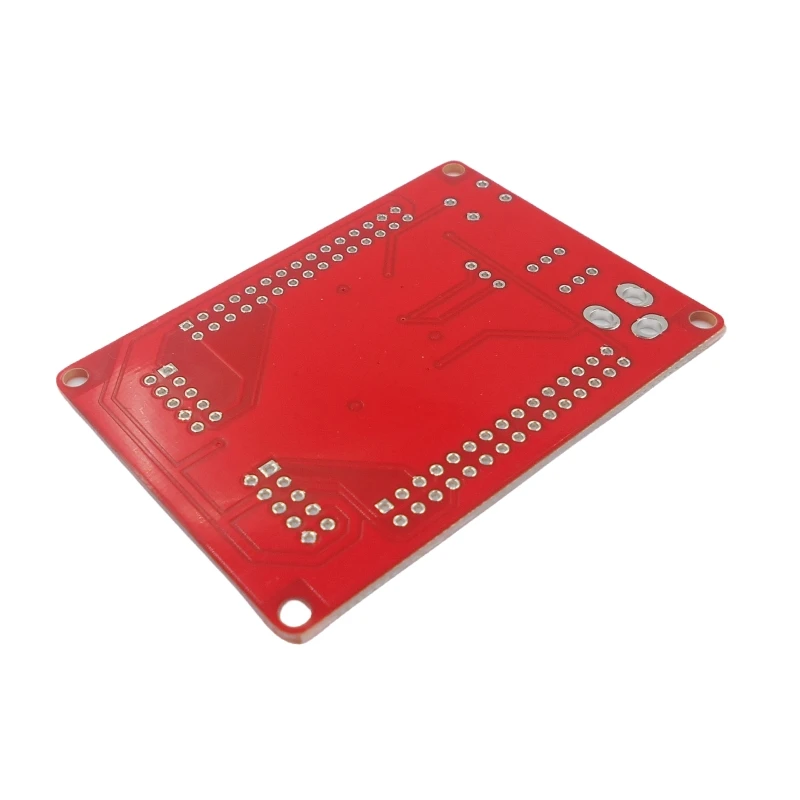

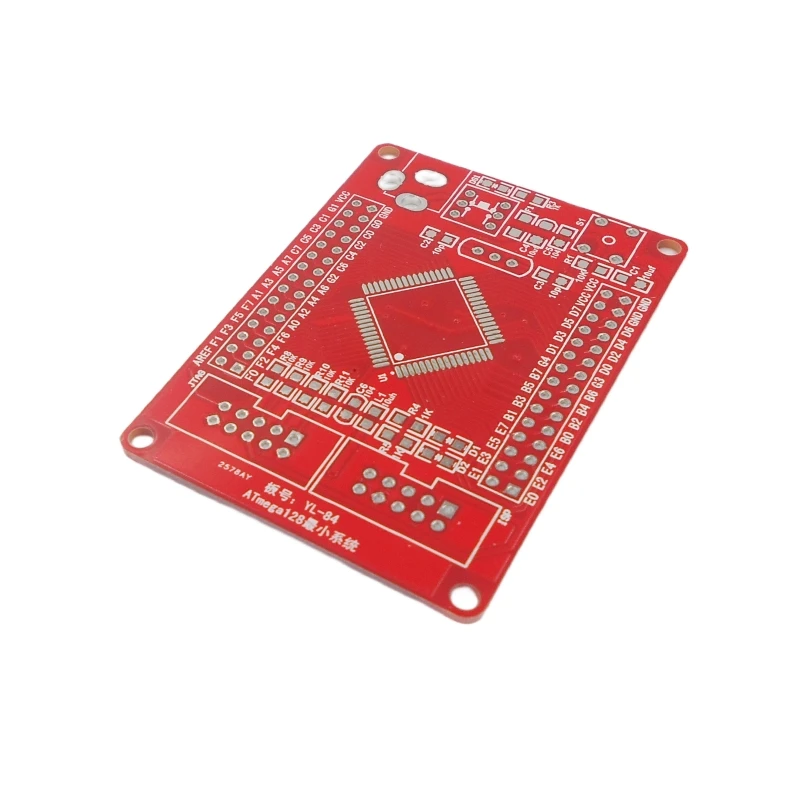

This link is to sell the same empty PCB as the picture.
If you need components and other accessories,
you can contact us for a quote and supply.
One Baby Description
1. Microcontroller chip: ATmega128A;
2. AD conversion reference voltage with added filtering inductance and capacitance;
3. Convenient replacement of external crystal oscillators;
4. All IO ports are led out and labeled;
5. Both ISP and JTAG interfaces are exported and labeled;
6. Reliable reset circuit;
7. Introduce two LEDs for simple testing;
8. Power socket or pin 5V power supply;
9. PCB board size: 6.9CMx4.9CM
9. The circuit is equipped with a self recovery fuse to effectively prevent short circuiting;
10. The factory fuse position has been set to external crystal oscillator mode, and buyers do not need to set the relevant fuse position to avoid locking the chip;
