Lonten Tech

Custom MICS-6814 Gas Sensor Carbon Monoxide CO VOC NO2 NH3 Nitrogen Oxygen Air Quality Detection Numerical Sensor Module for Arduino

Custom MICS-6814 Gas Sensor Carbon Monoxide CO VOC NO2 NH3 Nitrogen Oxygen Air Quality Detection Numerical Sensor Module for Arduino

Regular price $17.09 USD
Regular price $18.00 USD Sale price $17.09 USD
Sale Sold out
MICS-6814 MICS-6814 Air Quality Sensor Module CO VOC NH3 Nitrogen Oxygen Gas Sensor Detection Meter Board for Arduino


Specification:
The silicon gas sensor chip structure consists of a precision micromechanical diaphragm and an embedded heating resistor with the sensing layer at the top. Three separate gas sensing elements are integrated. He can detect automobile exhaust, industrial and agricultural waste gas in harsh environments.



Feture:
Module supply voltage: DC4.9V~5.1V
Working environment temperature and humidity: -30~85 degree 5~95%RH

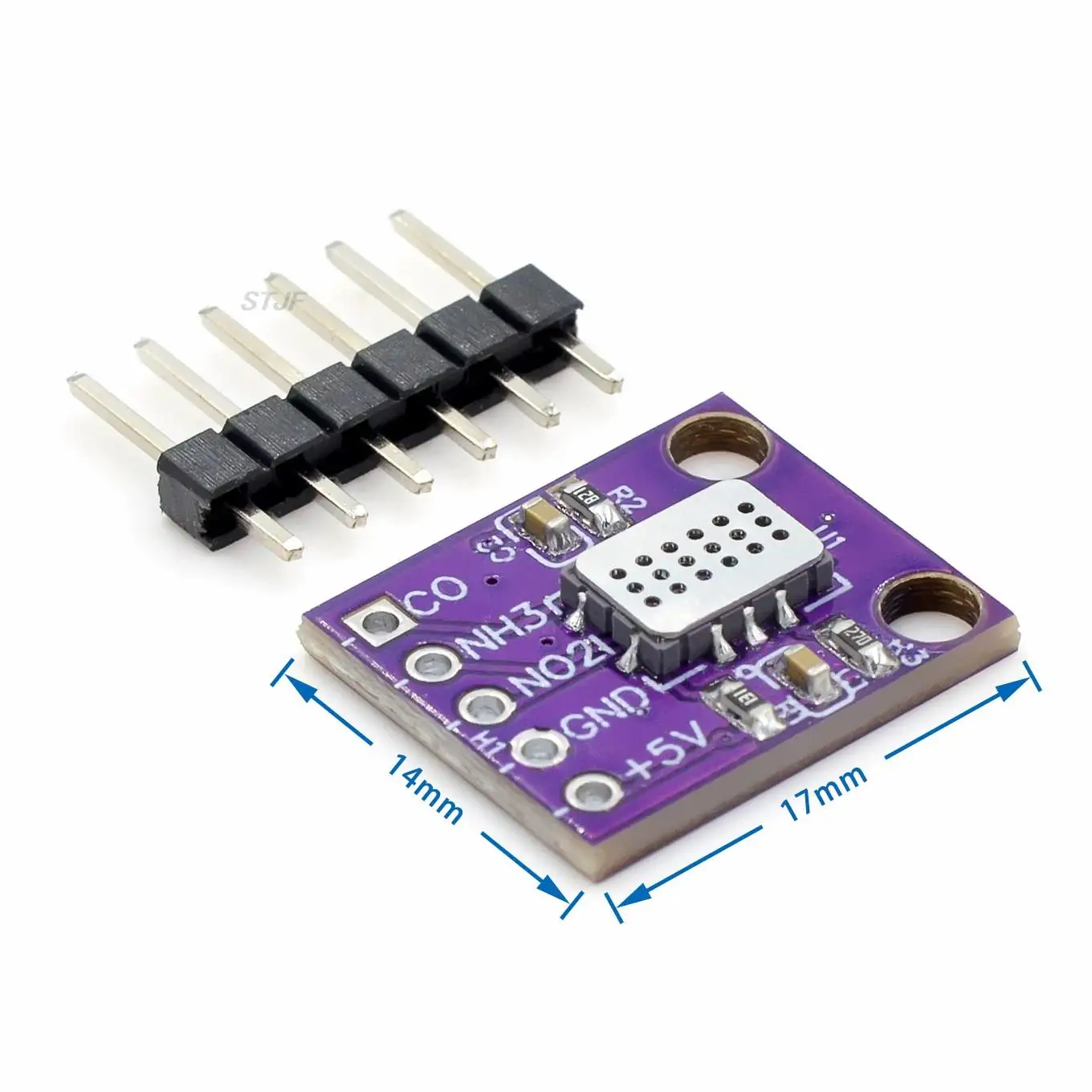

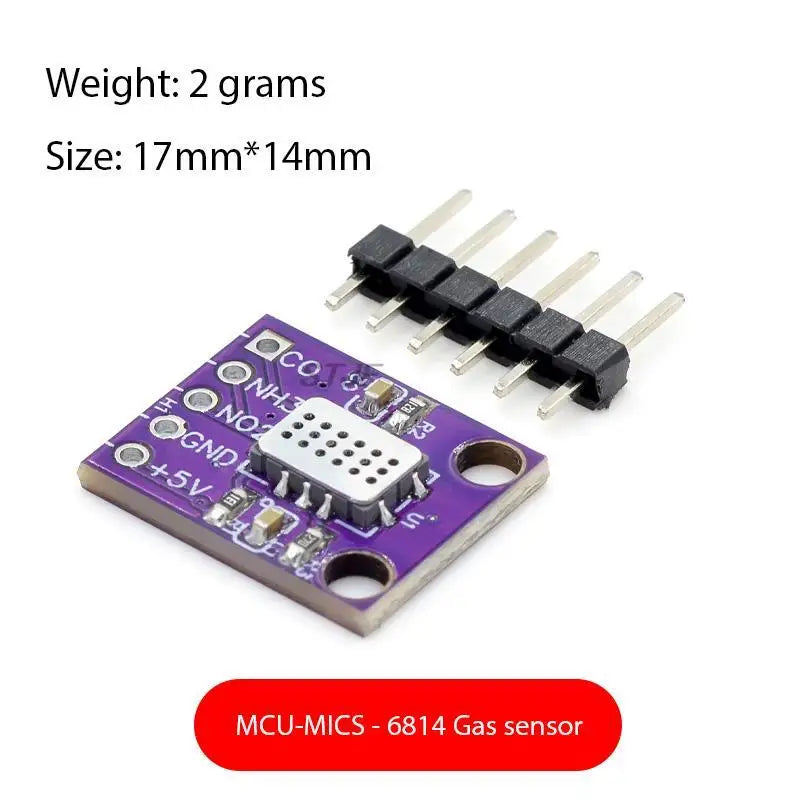

Module size: 16.9mm*14.1mm*3.2mm with two M3 mounting holes



Detectable gas range:
Carbon monoxide CO 1 – 1000ppm
Nitrogen dioxide NO2 0.05 – 10ppm
Ethanol C2H5OH 10 – 500ppm
Hydrogen H2 1 – 1000ppm
Ammonia NH3 1 – 500ppm
Methane CH4 >1000ppm
Propane C3H8 >1000ppm
Iso-butane C4H10 >1000ppm



Package:
1 x MICS-6814 Air Quality Sensor Module
