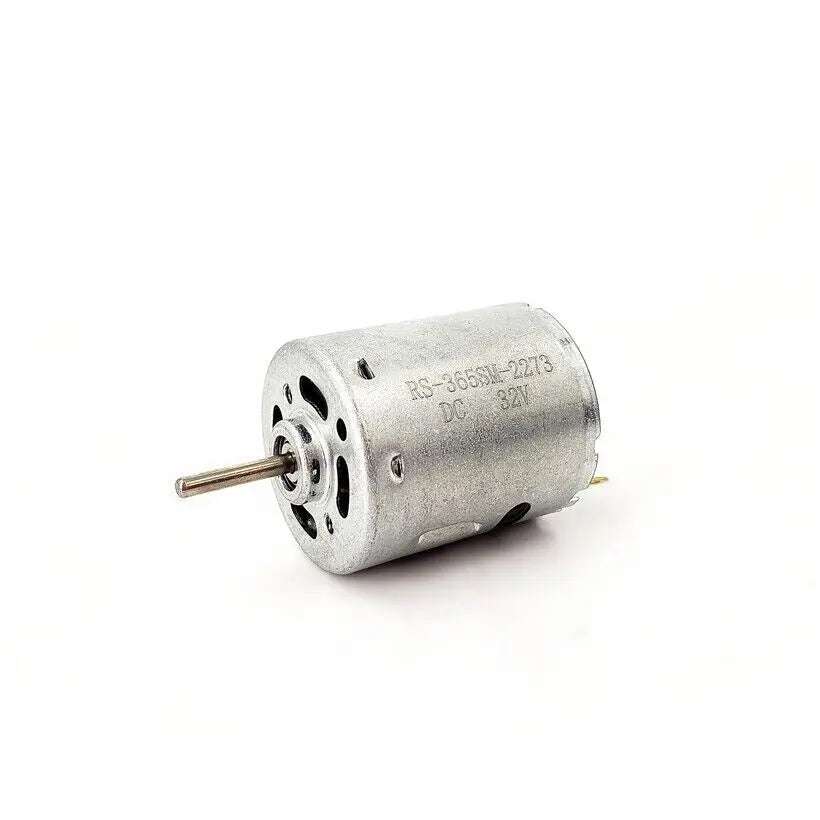

Custom Micro 28mm RS-365SM-2273 Electric Motor DC 12V-32V 15V 18V 24V High Speed Heat Gun Hair blow drier Ball Bearing RS-365SH Motor Manufacturer

Specification:

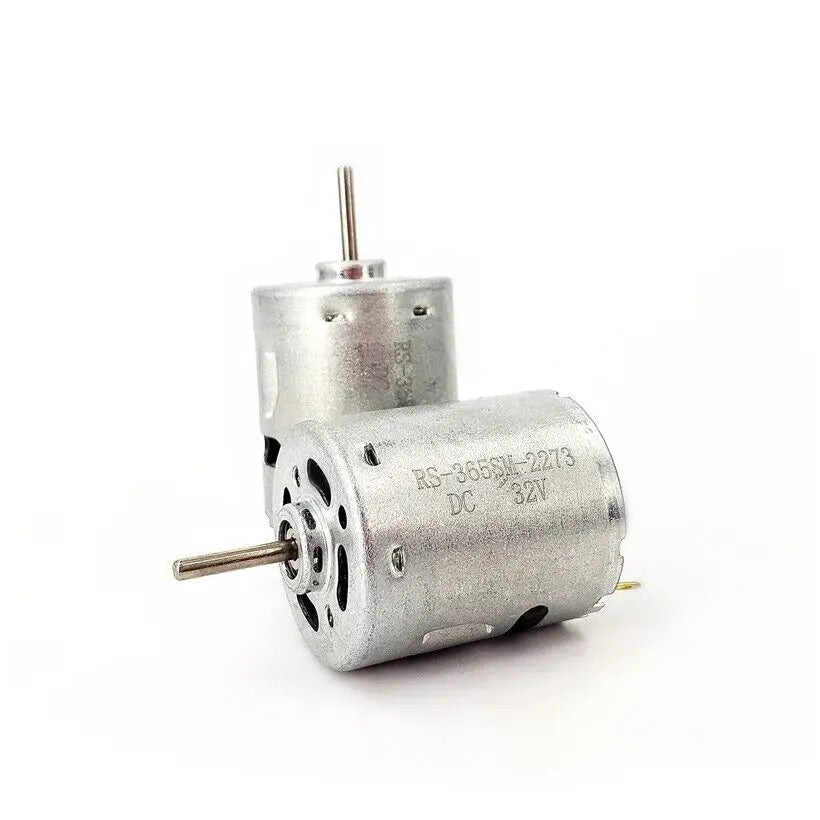

This motor has a laser-engraved DC32V on the body, which we don't think is suitable for high-load operation,

and this model still has to be 18V the most suitable.



The motor is very exquisite, and the boss who needs it can place an order with confidence.

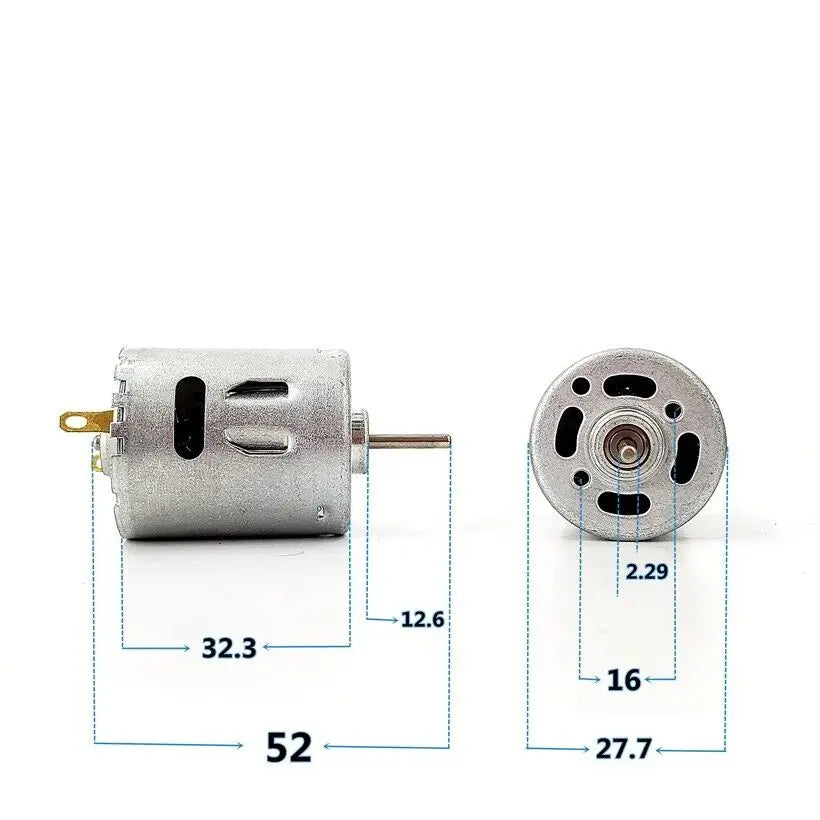

MOTOR OUTER DIAMETER: 27.7 MM

HEIGHT: 32.3MM (EXCLUDING FRONT AND REAR BEARING SLEEVES)

OUTPUT SHAFT: 2.29 MM

SHAFT LENGTH: 12.6MM

Screw hole: M2.5

HOLE DISTANCE: 16MM.

Weight: 55.9g

Applicable voltage: DC6V-24V



Rated voltage: DC18V

(The 32V indicated on the motor body is the limit and is not recommended for long-term use)

The no-load speed and no-load current under different voltages are measured below:

Voltage: 12 V

Speed: 11300 rpm

Current: 0.11 A

Voltage: 15 V

Speed: 14200 rpm

Current: 0.13 A

Voltage: 18V

Speed: 17500 rpm

Current: 0.16 A



Package Include:

Motor x 1pcs

 Welcome Customize Order!
