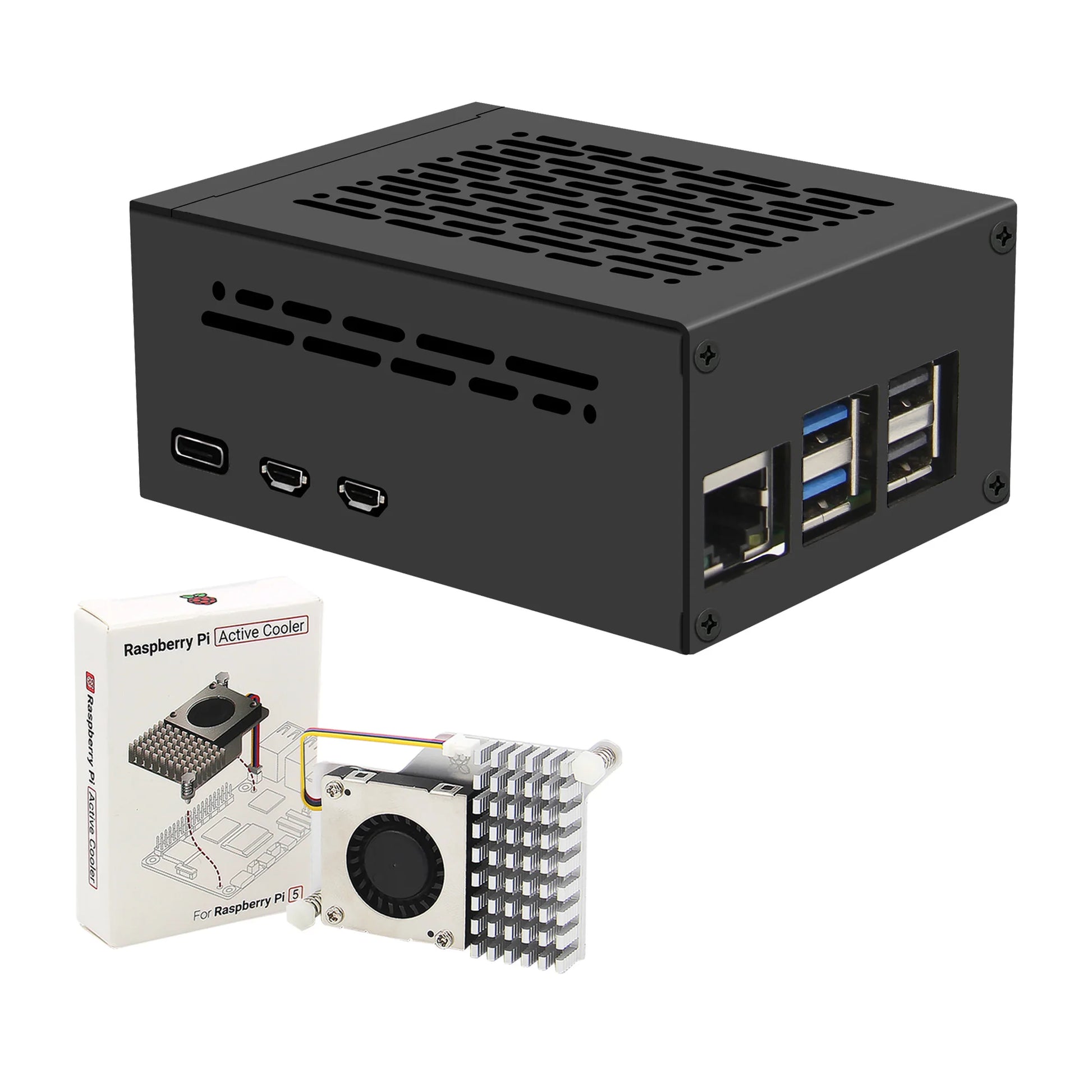

Custom Metal Case P579-V3 with Active Cooler for Pi 5 & X1000 / X1001 / X1003 / X1004 / M901 PCIe HAT

[NOTE]

NOT include Pi5 & X1000/X1001/X1003/X1015 Board & M.2 NVMe SSD.

NOT compatible with X1002 /X1005board!!!

[P579-V3 Metal Case]

• Compatible with Raspberry Pi 5

• Compatible with Raspberry Pi 5 official active cooler

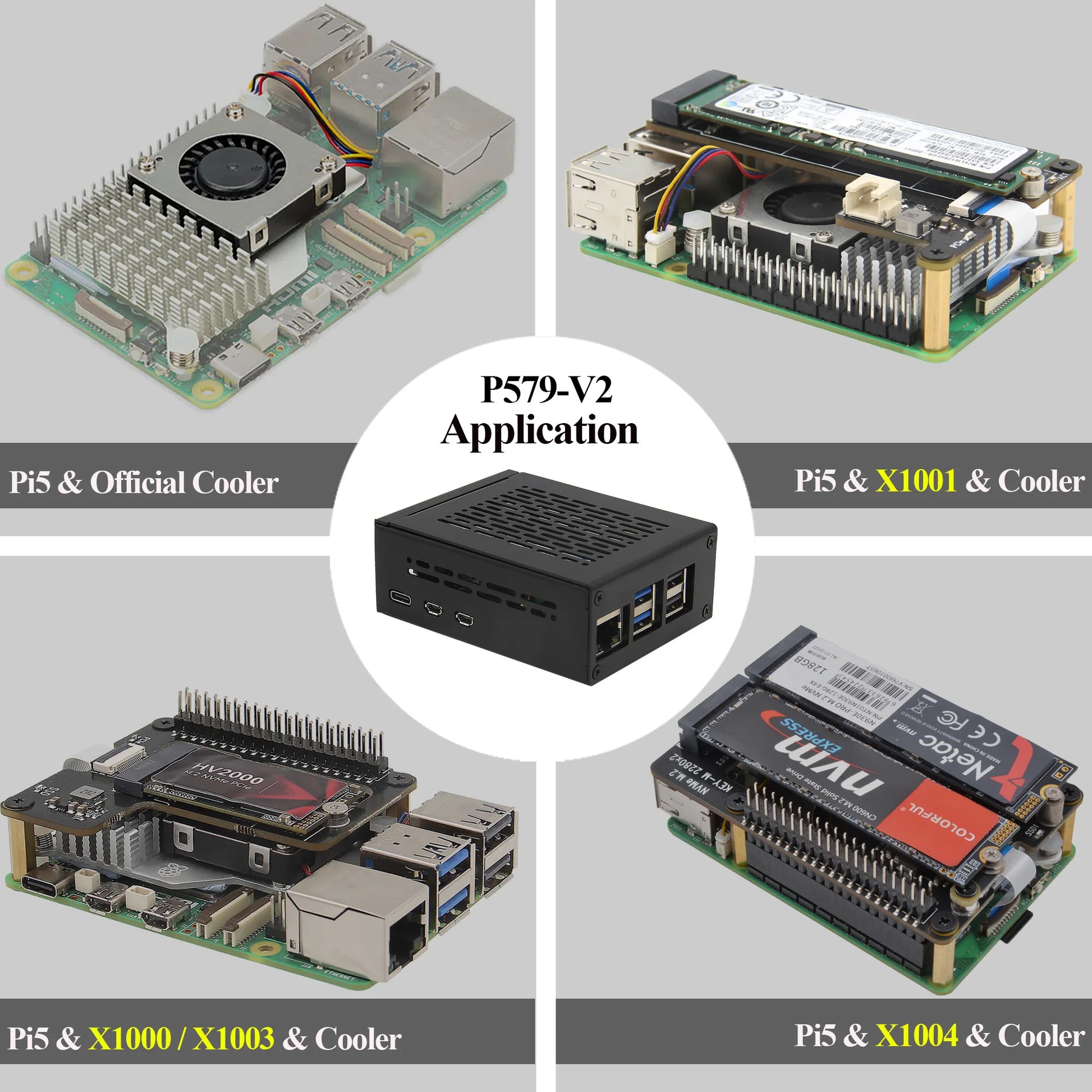

• Compatible with X1000 / X1001/ X1003/ X1004 /X1015/ M901

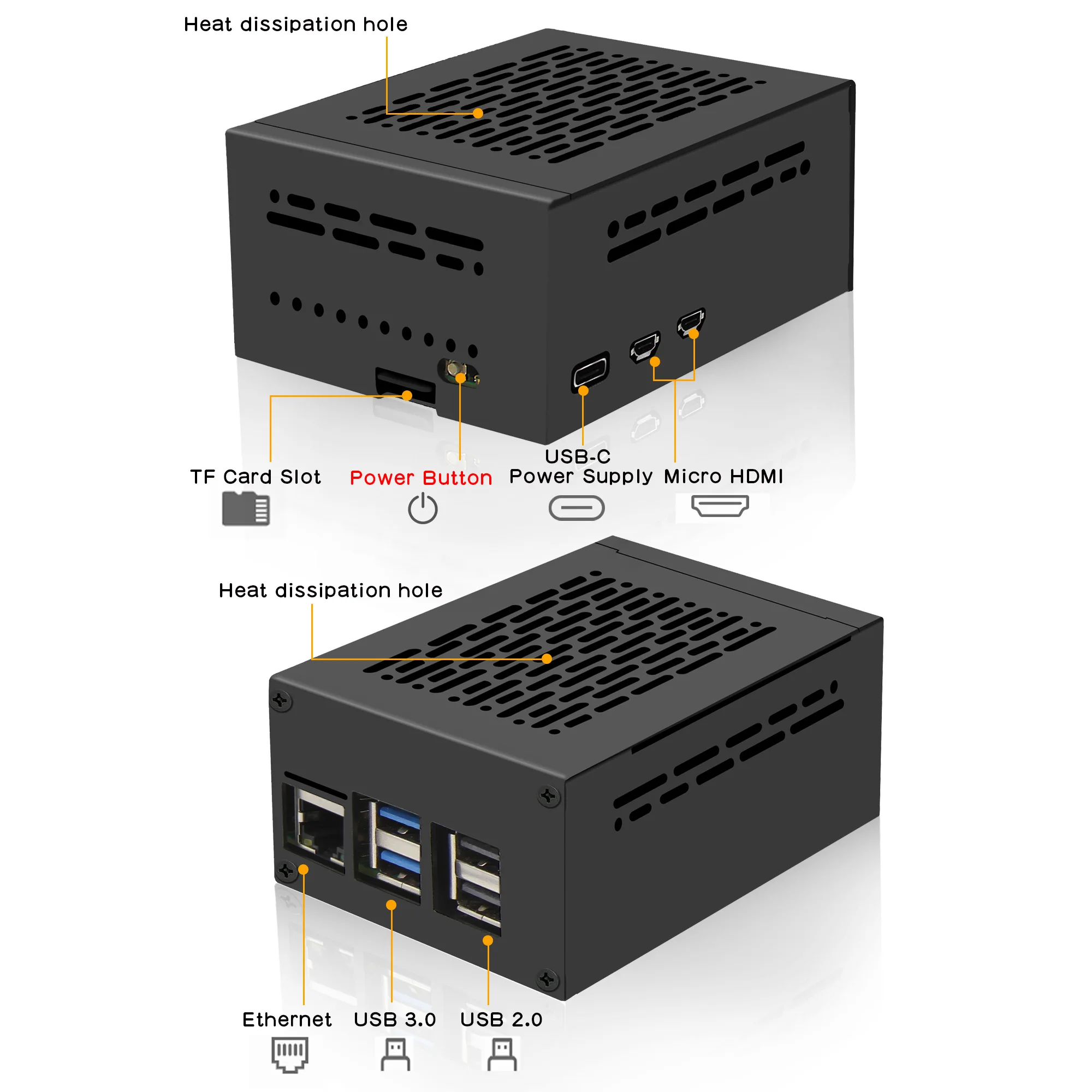

• Easy to install, excellent heat dissipation

[Official Active Cooler]

• Single-piece anodized aluminium heatsink

• Heatsink-mounted temperature-controlled fan

• Spring-loaded push pins for mounting onto Raspberry Pi5

• Pre-applied thermal pads for heat transfer(remove protective paper before application)

• Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5

• Fan speed control: Pulse width modulation control with tachometer

• Maximum airflow: 1.09 CFM

• Maximum fan speed: 8000 RPM +/- 15%

• Product material: Anodised aluminium

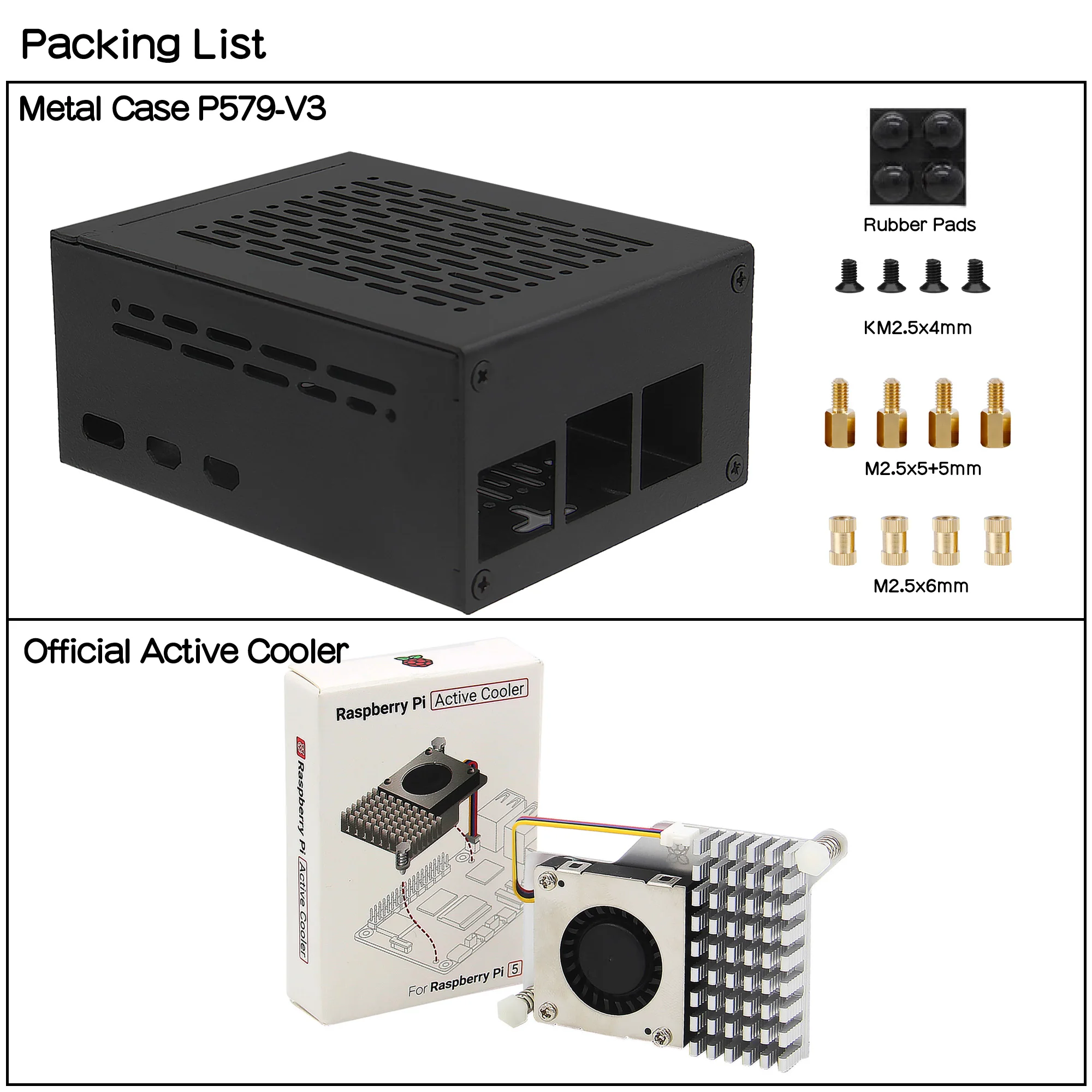

[Packing List]

• 1 x Metal Case (P579-V3)

• 1 x Official Active Cooler

• 1 x Screw Pack
