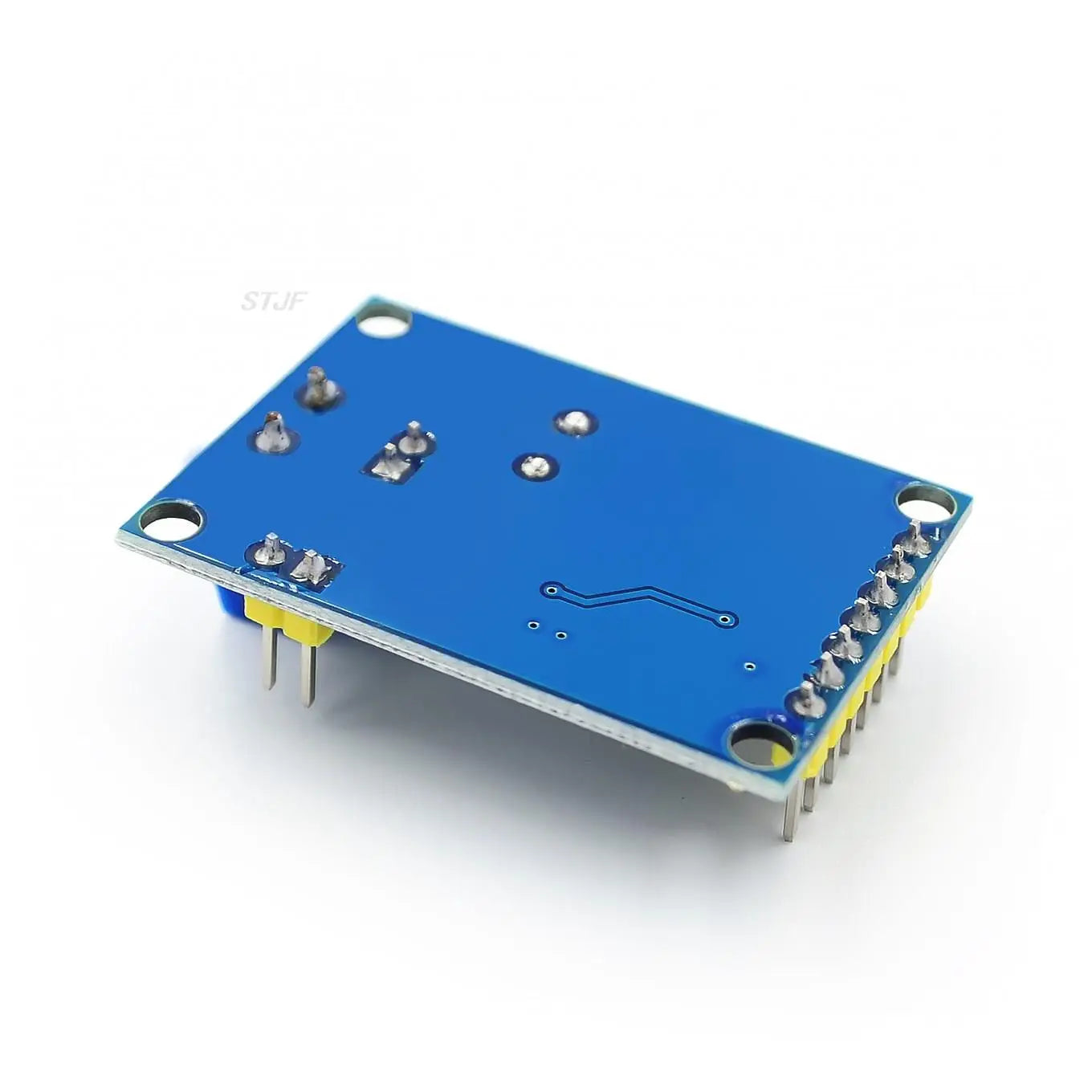

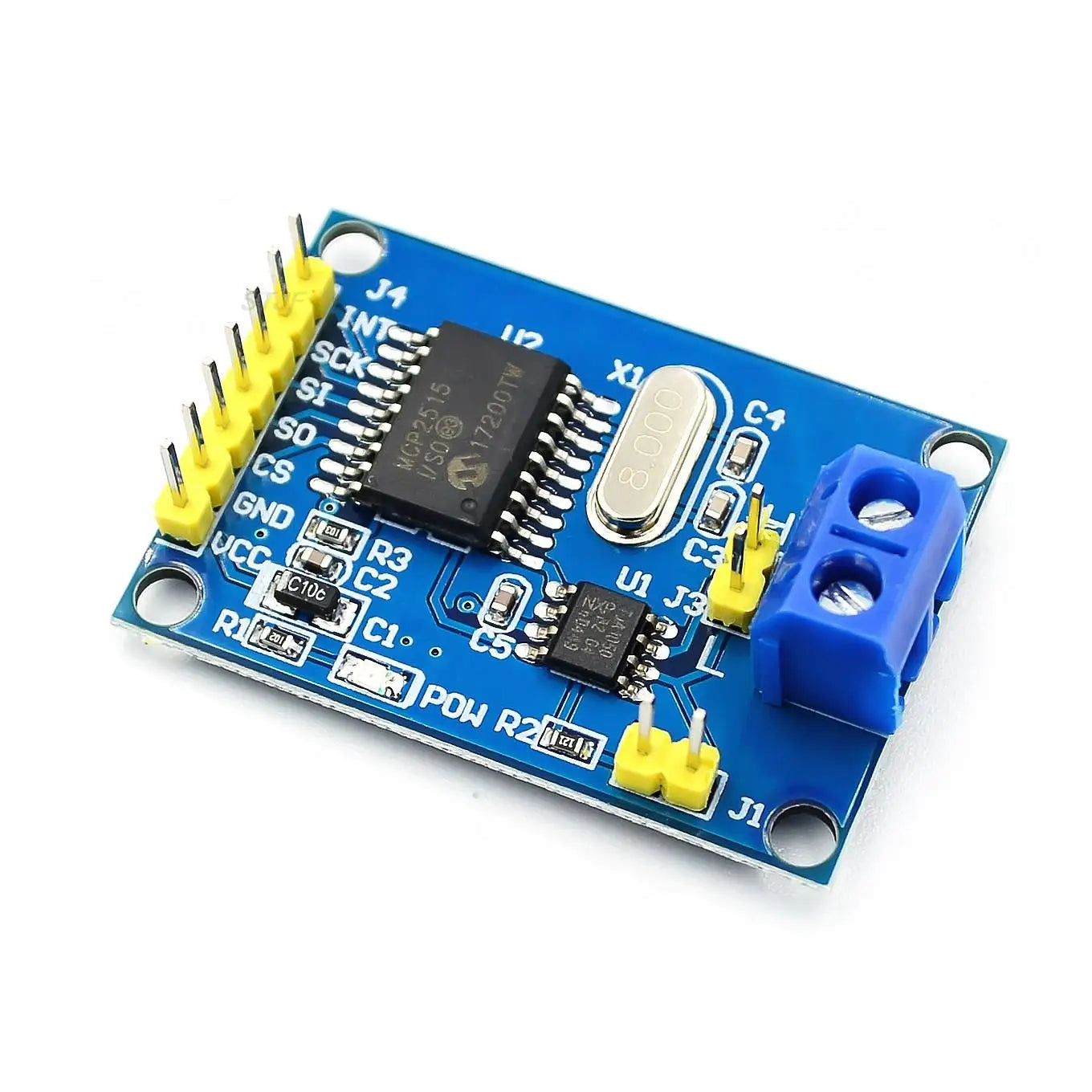

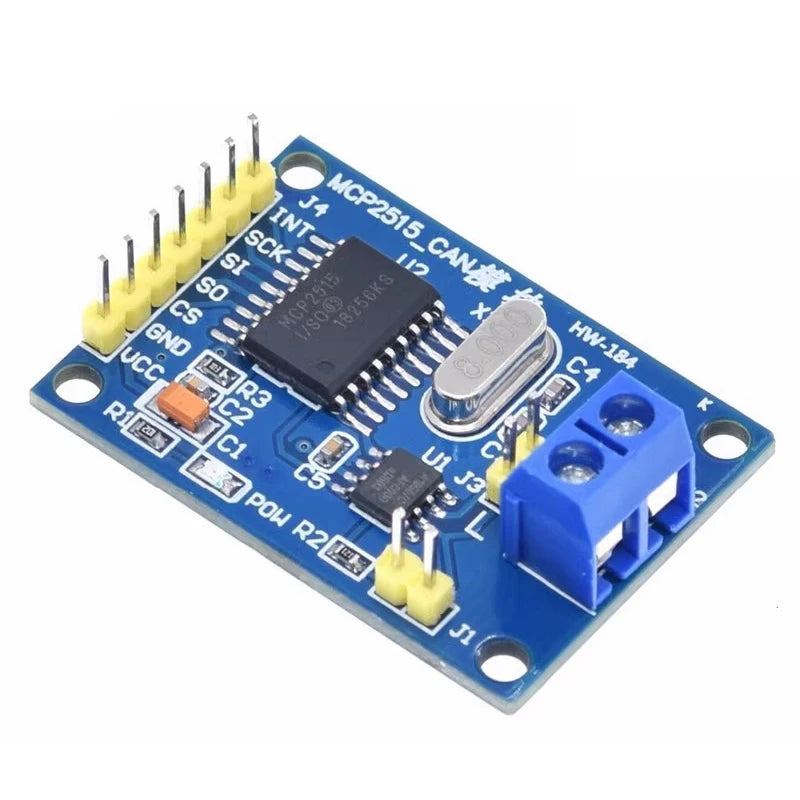

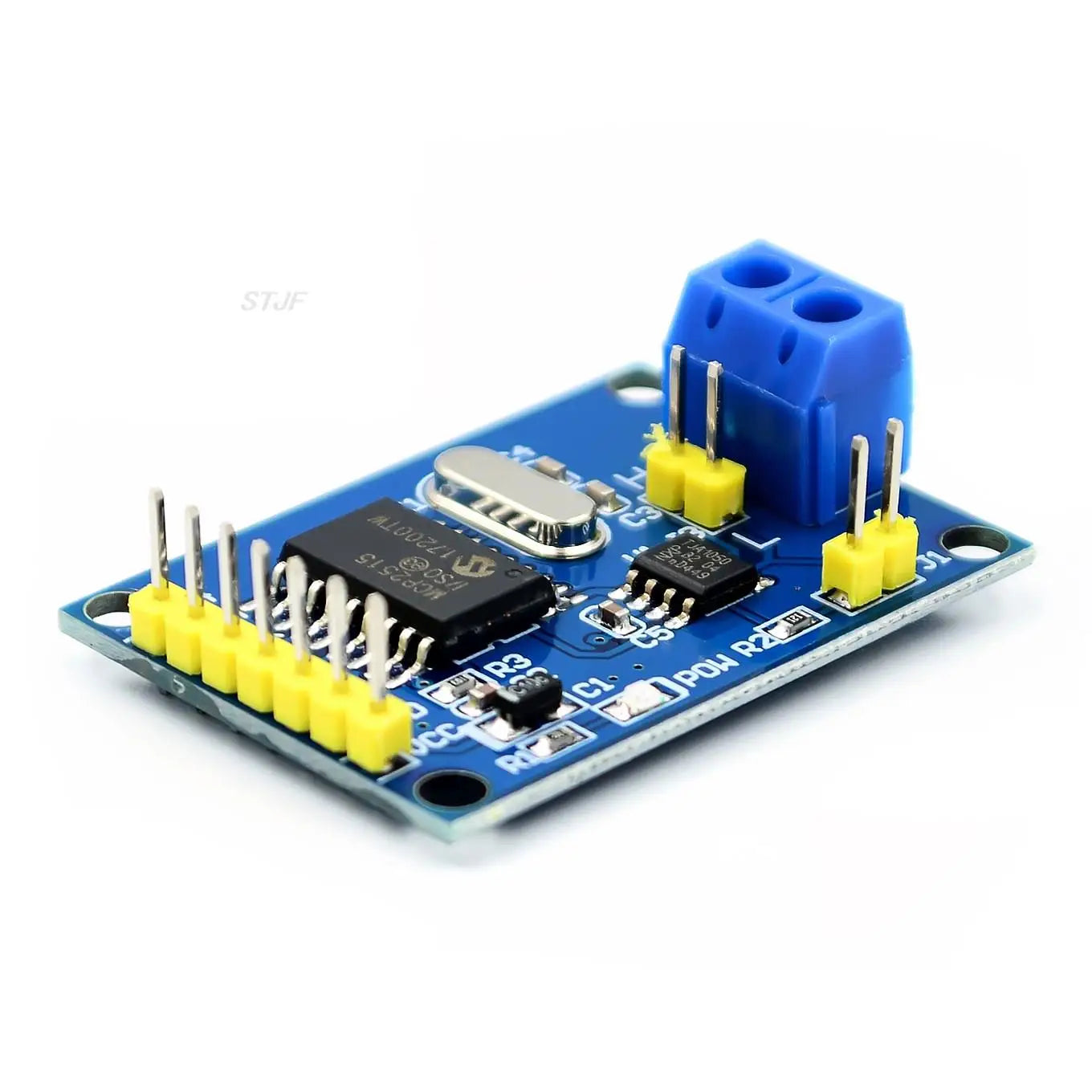

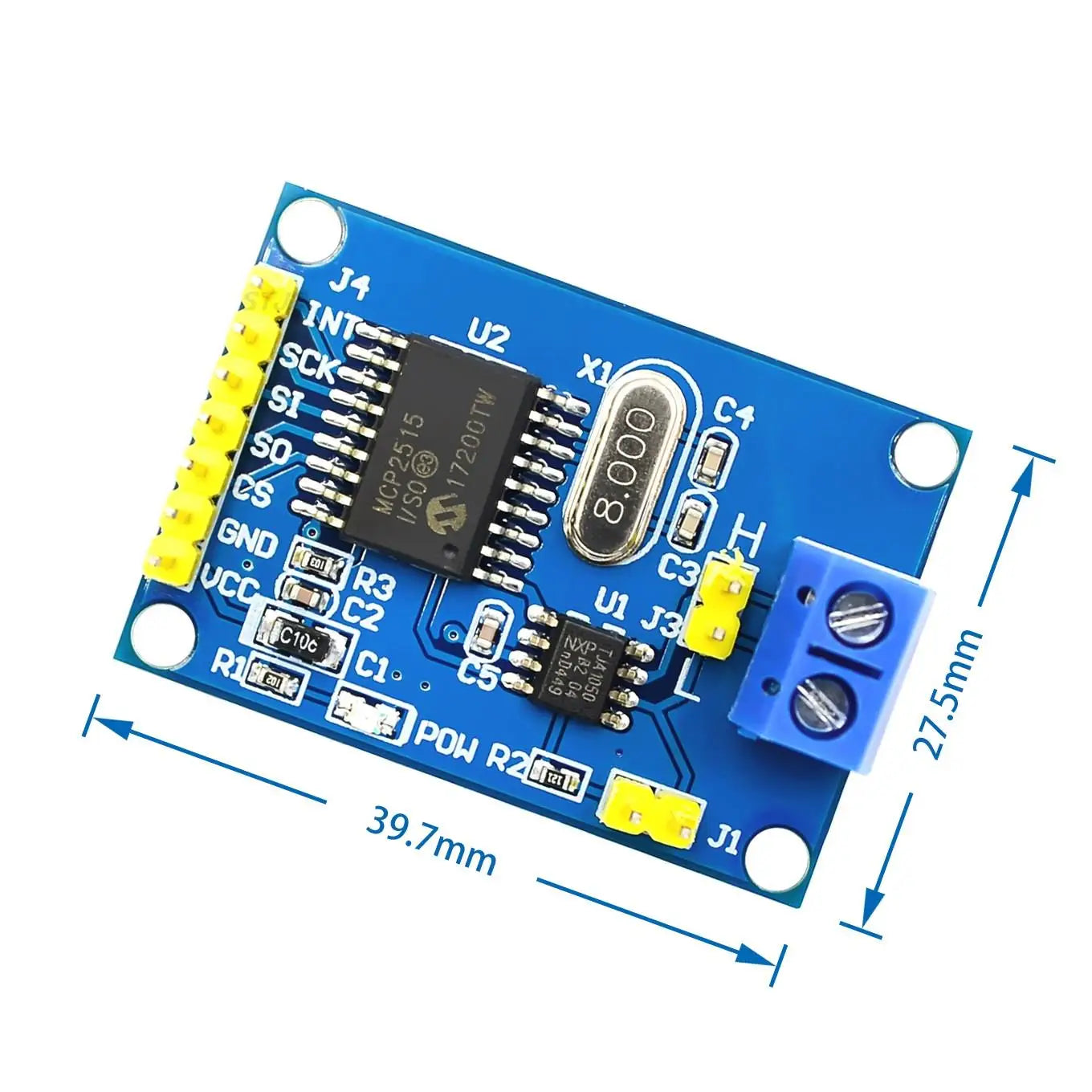

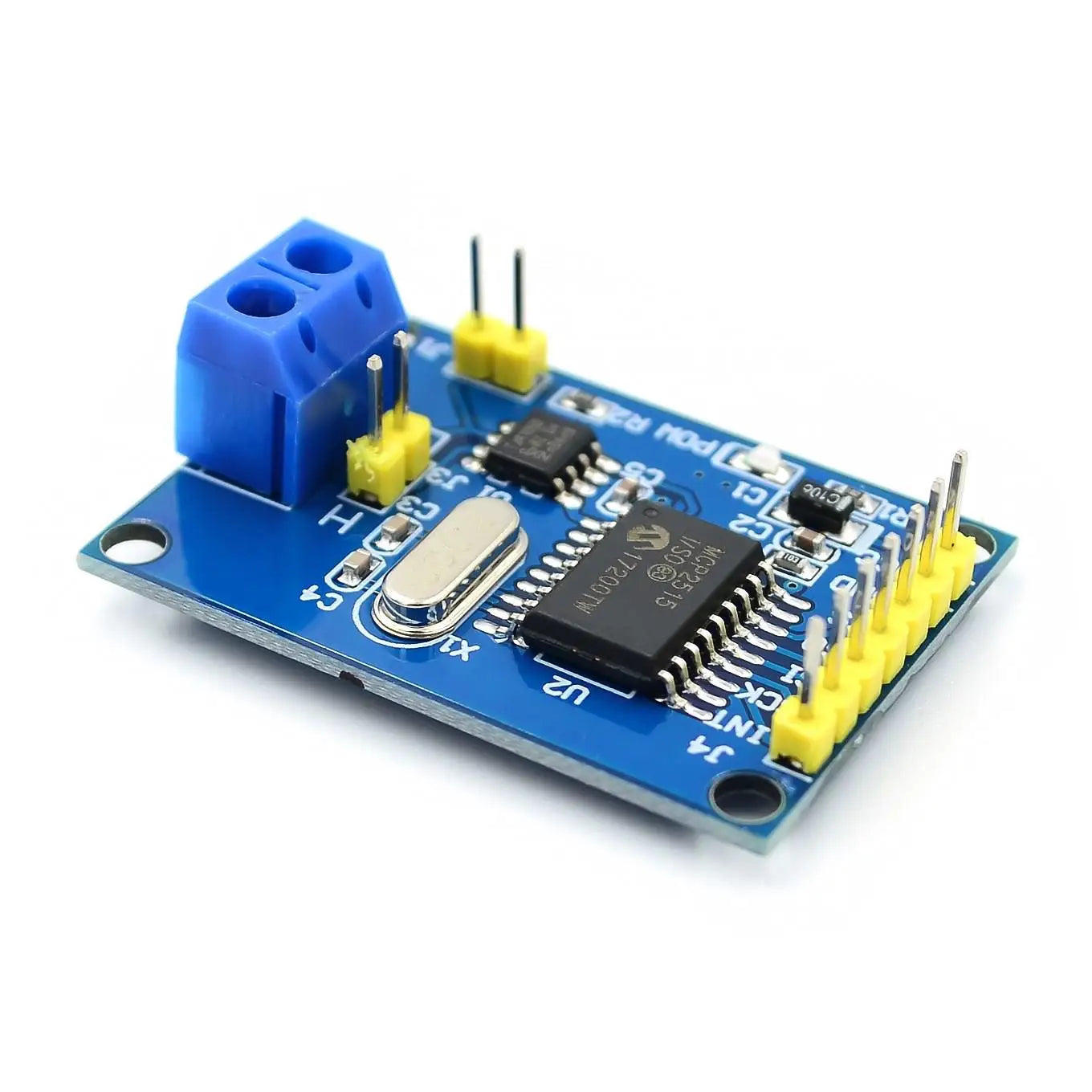

Custom MCP2515 CAN Bus Module TJA1050 receiver SPI For 51 MCU ARM controller

Link: https://pan.baidu.com/s/12Zddpt3rL3C8UN_gejRbww?pwd=b97r extraction code: b97r
Module features:

1, support CAN V2.0B technical specifications, communication rate 1Mb/S

2. Data fields 0 to 8 bytes long

3, standard frame, extended frame and remote frame

4, module 5V DC power supply, SPI interface protocol control

5, 120 ohms terminal resistance. Impedance matching ensures drive capability, long-distance data transmission prevents signal emission

6, working current: typical value 5mA, standby current 1 microamp. Except for the power indicator.

7, working temperature: industrial grade -40℃ to 85℃

8. Please download the data yourself.
