Custom MCP23017 IO Expansion Board I2C Interface Expands 16I/O Pins compatible for Raspberry Pi / micro:bit STM32 Custom PCB Manufacturer

Custom MCP23017 IO Expansion Board I2C Interface Expands 16I/O Pins compatible for Raspberry Pi / micro:bit STM32 Custom PCB Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out


DESCRIPTION

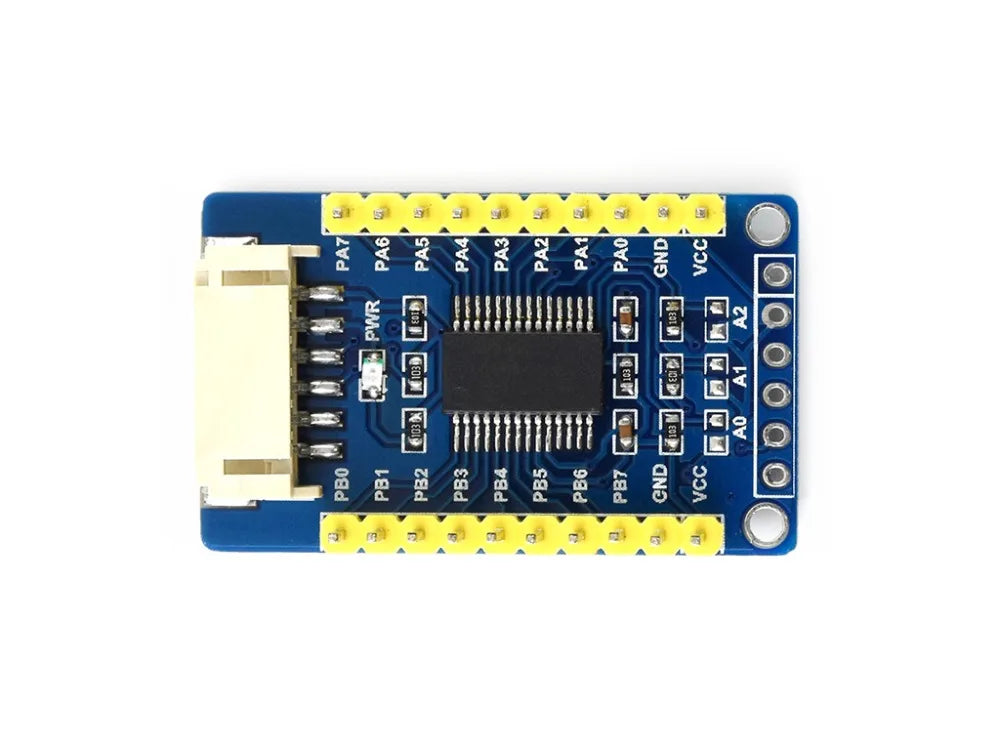

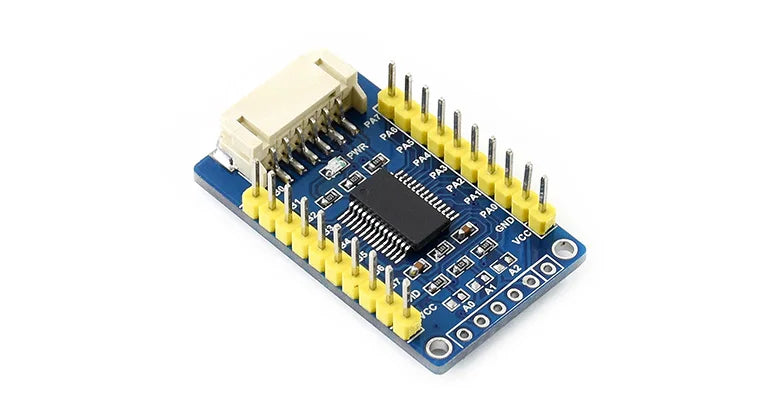

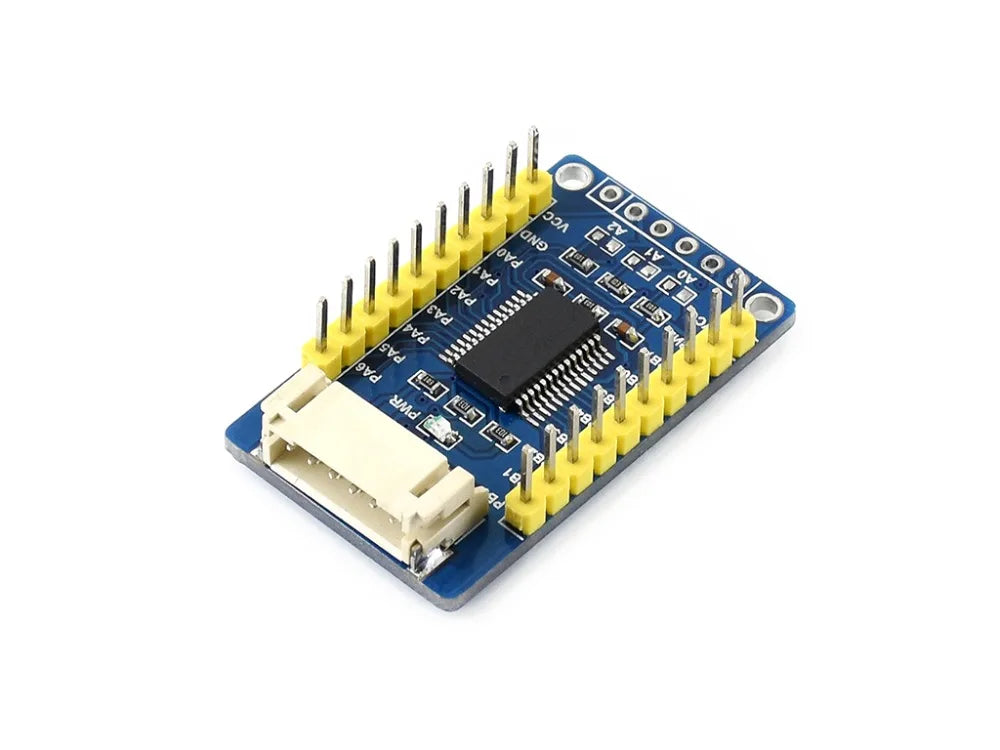

MCP23017 IO Expansion Board, I2C Interface, Expands 16 I/O Pins

Overview

The MCP23017 IO Expansion Board expands 2 signal pins as 16 I/O pins based on the I2C bus, up to 8 MCP23017 IO Expansion Board can be used at the same time, providing up to 128 I/O pins, it is compatible with both 3.3V and 5V levels.

Features

  • I2C controlled, expands 2 signal pins as 16 I/O pins
  • I2C address configurable by shorting the A0/A1/A2 jumpers
  • Provides two connector options: PH2.0 terminal and/or solder pads, allows multi I2C modules to be stacked
  • Onboard voltage translator, compatible with 3.3V/5V level
  • Comes with development resources and manual (examples for Raspberry Pi / micro:bit / Ard / STM32)

Specifications

  • Operating voltage: 5V/3.3V
  • Interface: I2C
  • Interrupt pins: INTA, INTB
  • Expansion I/Os: 16
  • Dimension: 38mm × 23mm
  • Mounting hole size: 2.0mm

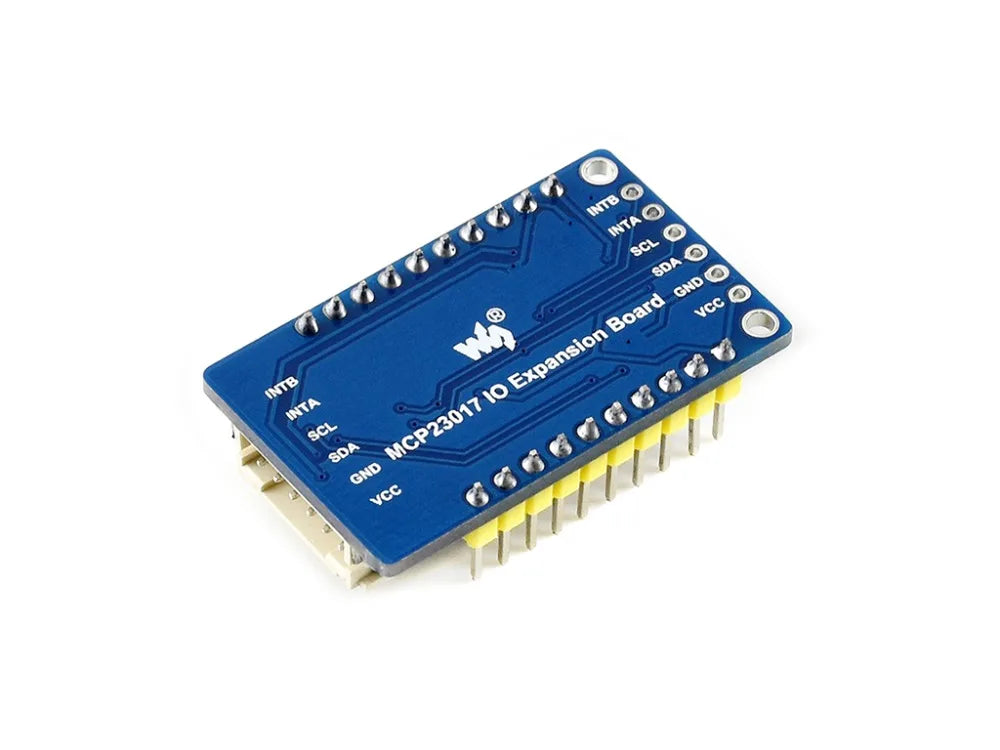

Interface Definition

PIN I2C
VCC Power supply, 3.3V/5V
GND Ground
SDA I2C data line
SCL I2C clock line
INTA PA group interrupt output
INTB PB group interrupt output

Dimensions

MCP23017-IO-Expansion-Board-size





PACKAGE CONTENT

Weight: 0.011 kg

  1. MCP23017 IO Expansion Board x1

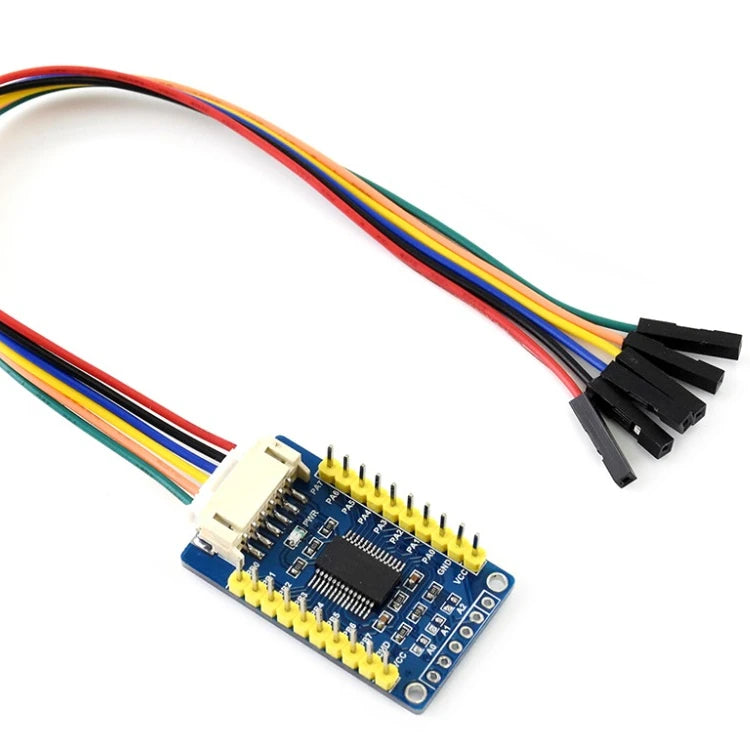

  2. PH2.0 20cm 6Pin x1

QQ20181010171441






 Welcome Customize Order!
