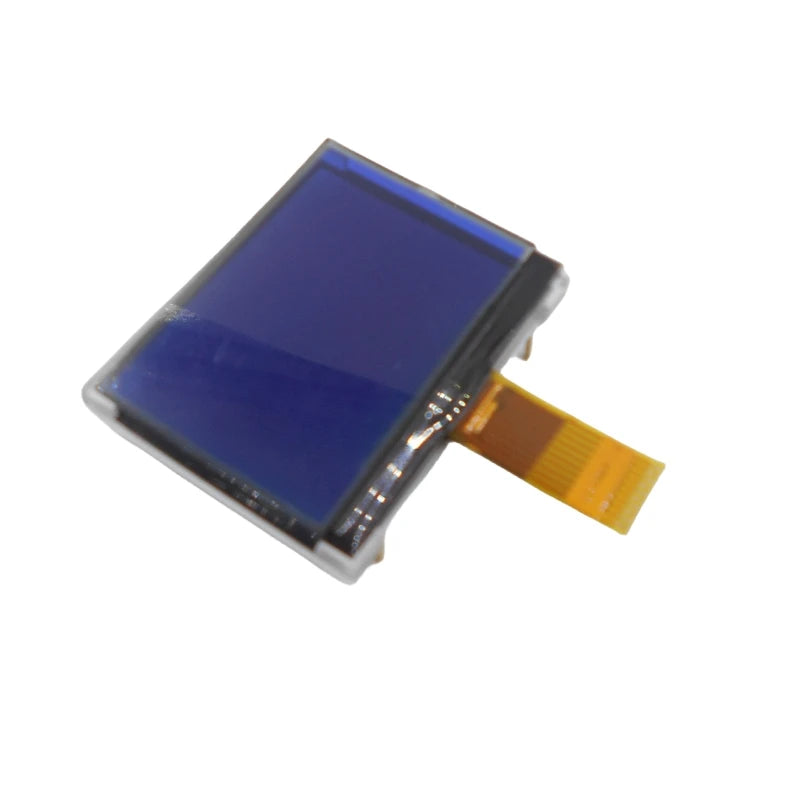

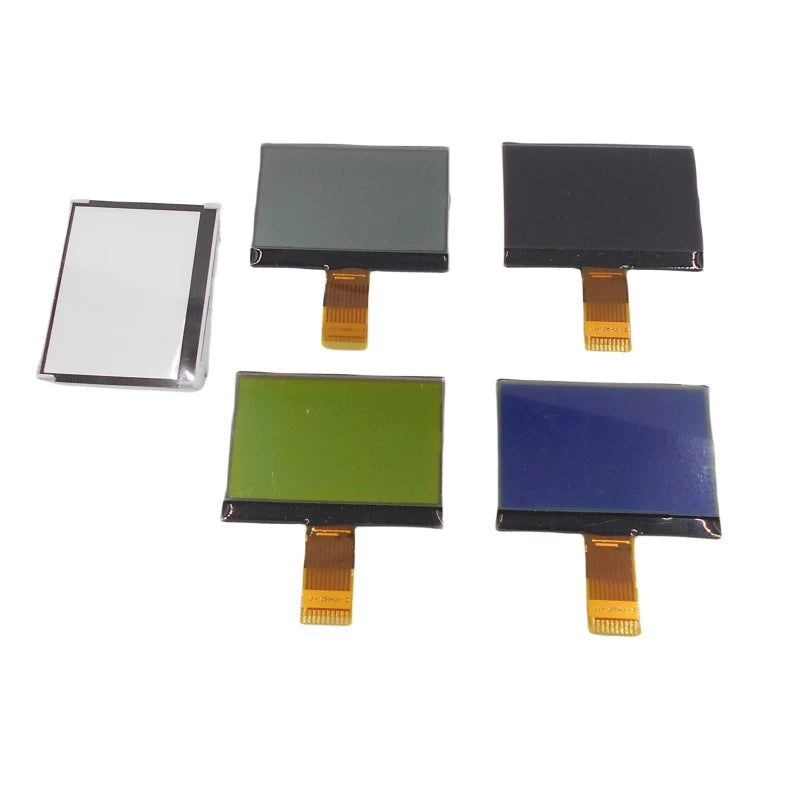

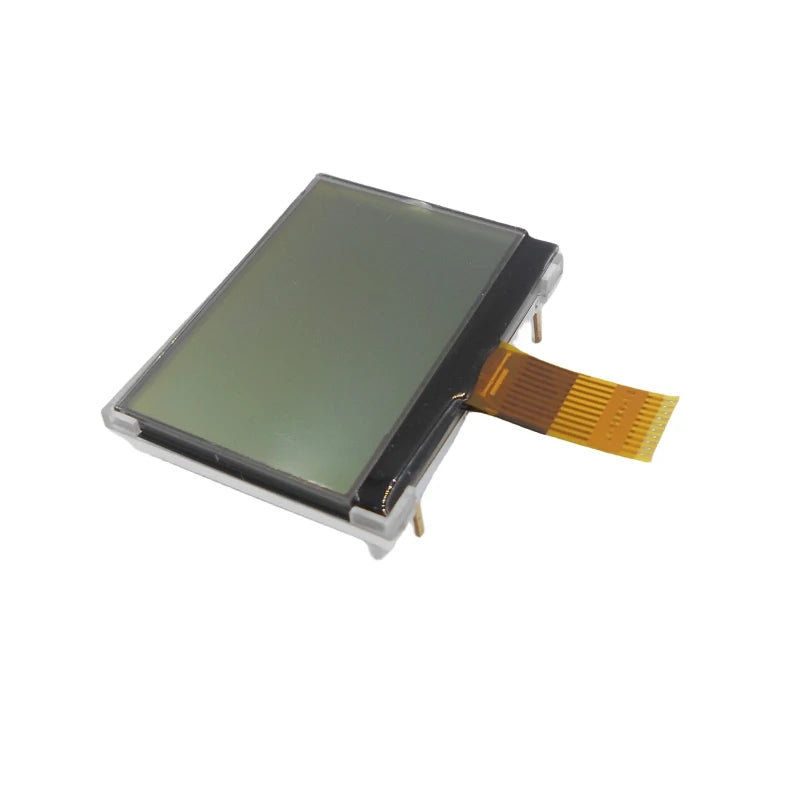

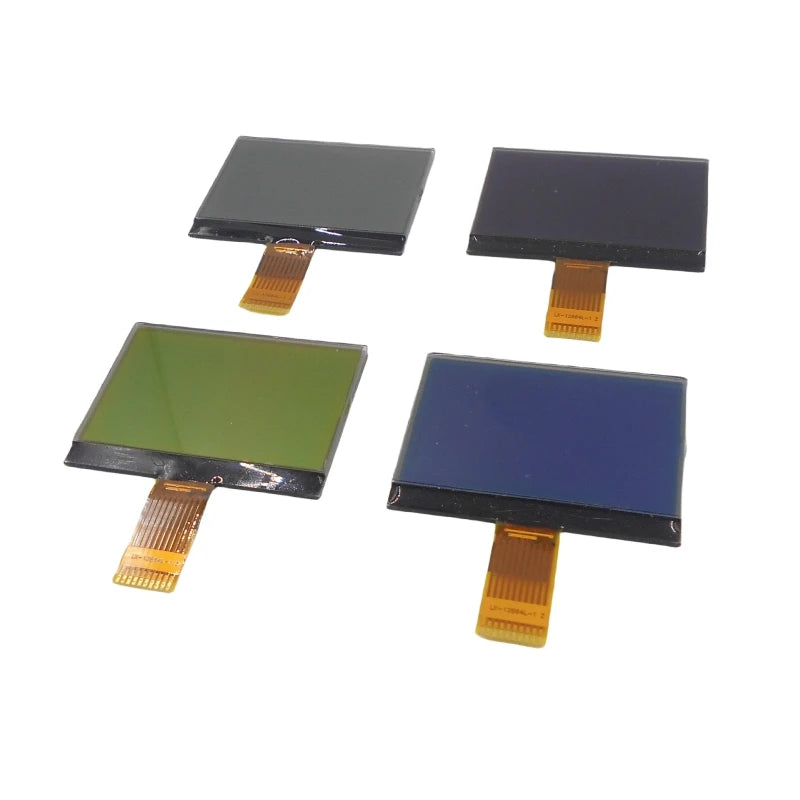

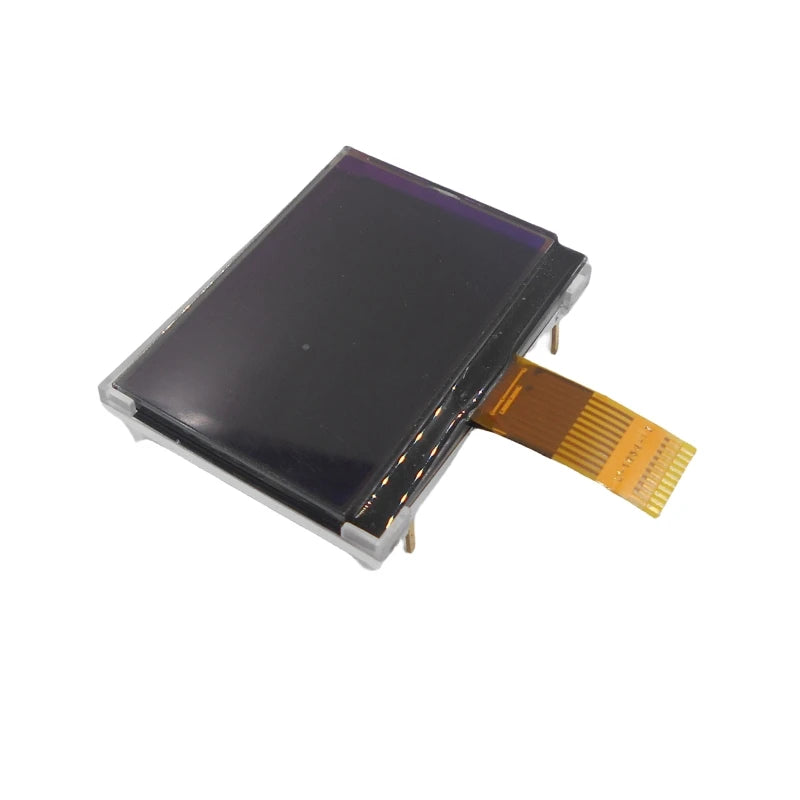

Custom LX-12864L1 handheld tester display screen dot matrix LCD display screen COG3.3V

Product Introduction:

The LX-12864L-1 LCD module produced is widely used in various human-machine communication panels due to its compact, lightweight, convenient use, and clear display. This model can display 128 columns * 64 rows of monochrome images, or display 8 Chinese characters/row * 4 rows of 16 * 16 dots, or display English, numbers, and symbols of 16 Chinese characters/row * 8 rows of 8 * 8 dots. Strong input instructions can be combined into various input, display, and displacement modes to meet different requirements. Low power consumption, with a lifespan of up to 50000 hours (25 ℃). It can be widely used in various instruments, PM2.5 detectors, car driving recorders, POS card readers, attendance systems, access control systems, etc.

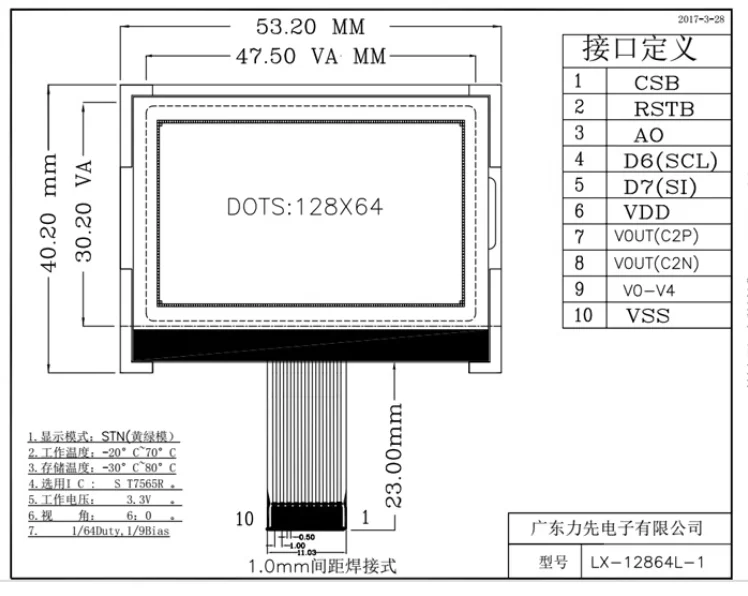

Characteristics of the display screen (belonging to a 2.4 inch screen):

01. Firm structure: It can be equipped with backlight (with a retaining wall and a fixed column at the bottom).

02. Low power consumption: 5-100mW (5mW without backlight, no more than 100mW with backlight);

03. Display content:

● COG process, welded connection;

128 * 64 dot matrix monochrome images;

It can display Chinese characters, numbers, English characters, characters, images, etc.

You can choose 16 * 16 dot matrix or other dot matrix images to edit Chinese characters. According to the calculation of 16 * 16 dot matrix Chinese characters, 8 characters/line * 400 lines can be displayed. Calculated based on 12 * 12 dot matrix Chinese characters, it can display 10 characters/line * 4 lines.

04. Strong command function: can form various input and display screens with 180 degree rotation and left and right shift modes to meet different requirements;

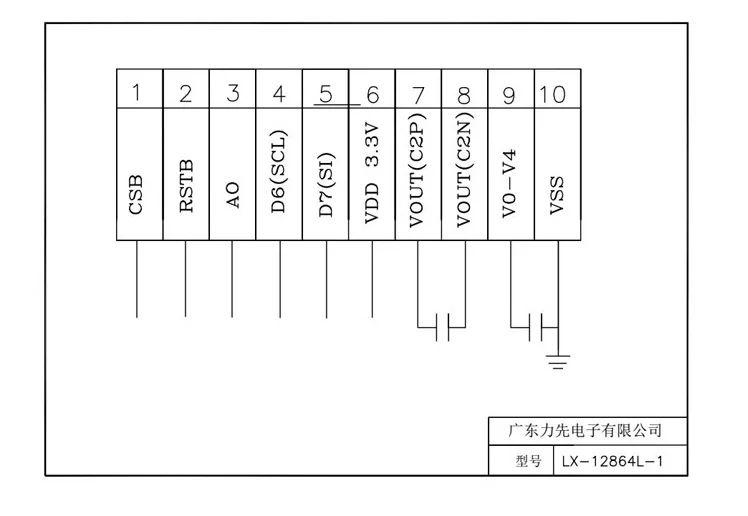

05. Simple and convenient interface: 4-wire SPI serial interface can be used

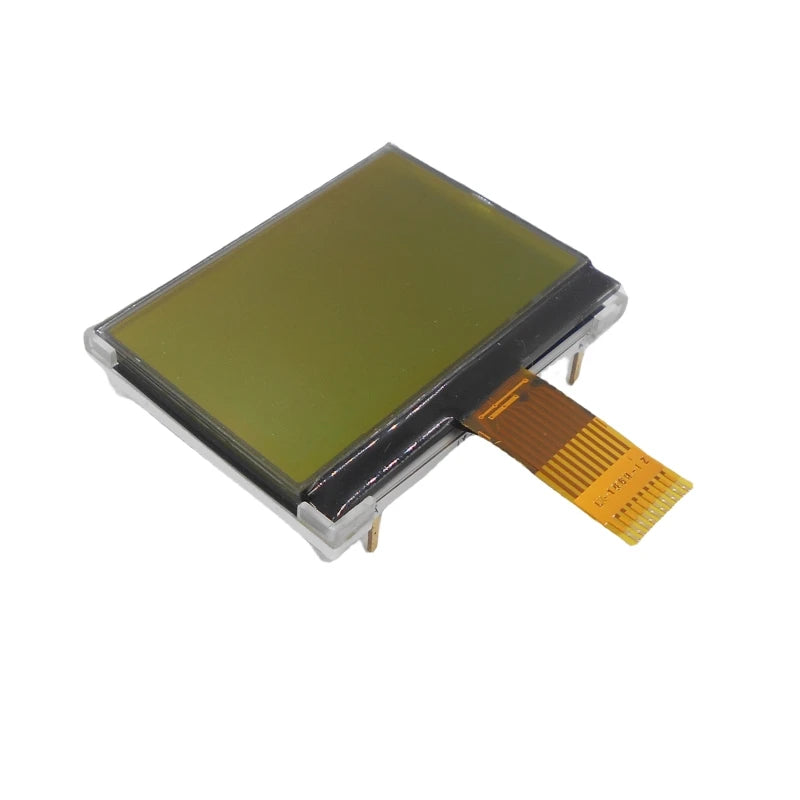

06. Display mode: STN, positive display with semi transparent yellow green film (clear font)

07. LCD screen working voltage: DC 3.3 V

08. If a backlight is selected, the backlight working voltage is DC 3.0 V

09. Wide working temperature range: -20 ℃~+70 ℃;

10. High reliability: with a lifespan of 50000 hours (25 ℃).
