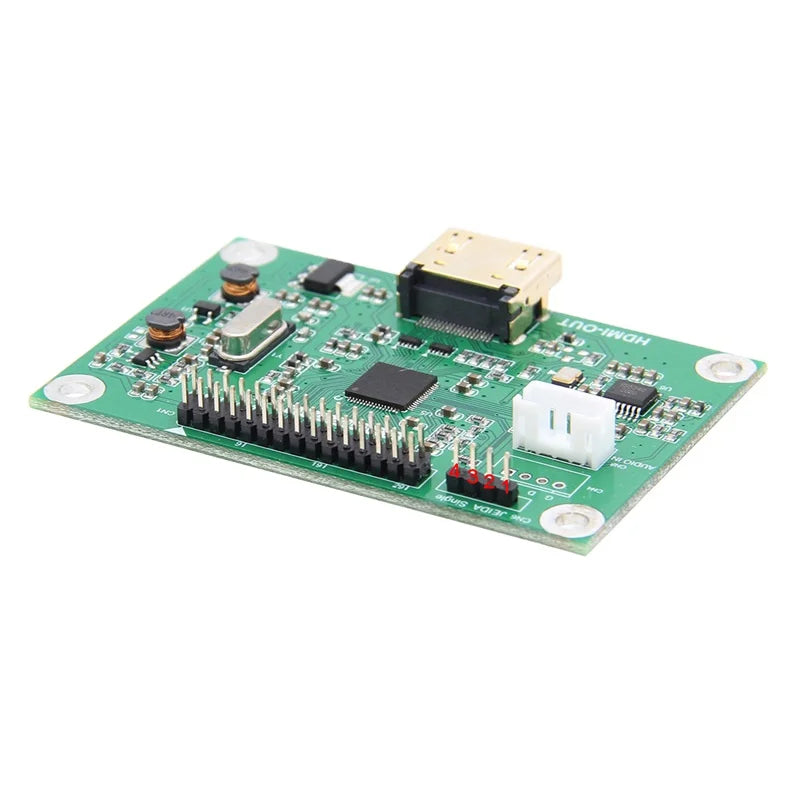

Custom LVDS To HD-Compatible Adapter Board Converter Compatible with 1080P 720P Resolution Support Raspberry Pi Manufacturer

Custom LVDS To HD-Compatible Adapter Board Converter Compatible with 1080P 720P Resolution Support Raspberry Pi Manufacturer

Regular price $29.00 USD
Regular price $29.00 USD Sale price $29.00 USD
Sale Sold out




Overview
  • This board is limited to LVDS output, the resolution must be the VESA standard, and the driver board should be at least V59 grade, or the driver board is not available.

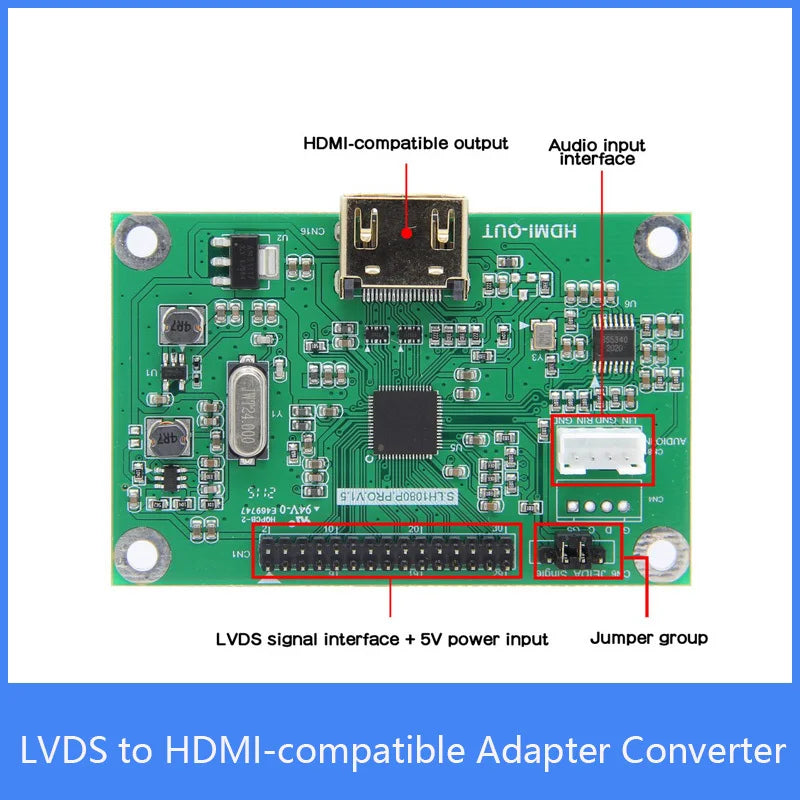

  • Pin Connection: 2 x 40Pin

  • Because it is the DIY product, so sometimes there may be the compatibility problem. When it shows no signal or no sound, it may be the compability problem.

  • It is not recommend to use with 4K TV as it may have some compability problem.


There are two kinds of LVDS input
  • Double 8, Support 1080P (1920*1080P)

  • Single 8, Support 720P/768P/960P etc.

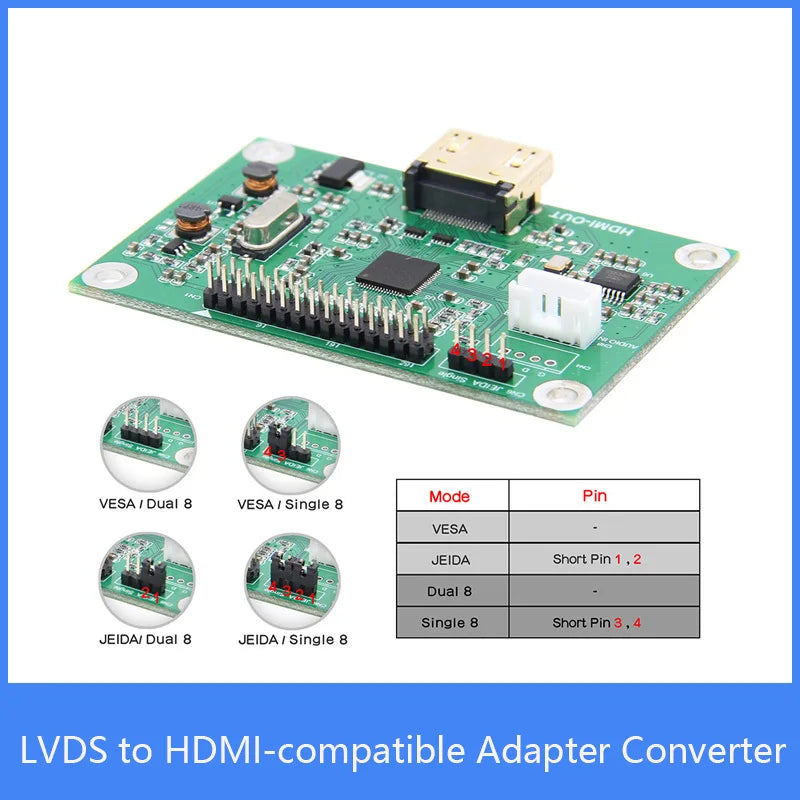

  • Note:  The default is Dual 8 mode, can switch to Single 8 mode by short GND and S1.


Packing List:
Bundle1:
  • 1 x LVDS To HDMI-compatible Adapter Board

    Bundle2:
  • 1 x LVDS To HDMI-compatible Adapter Board

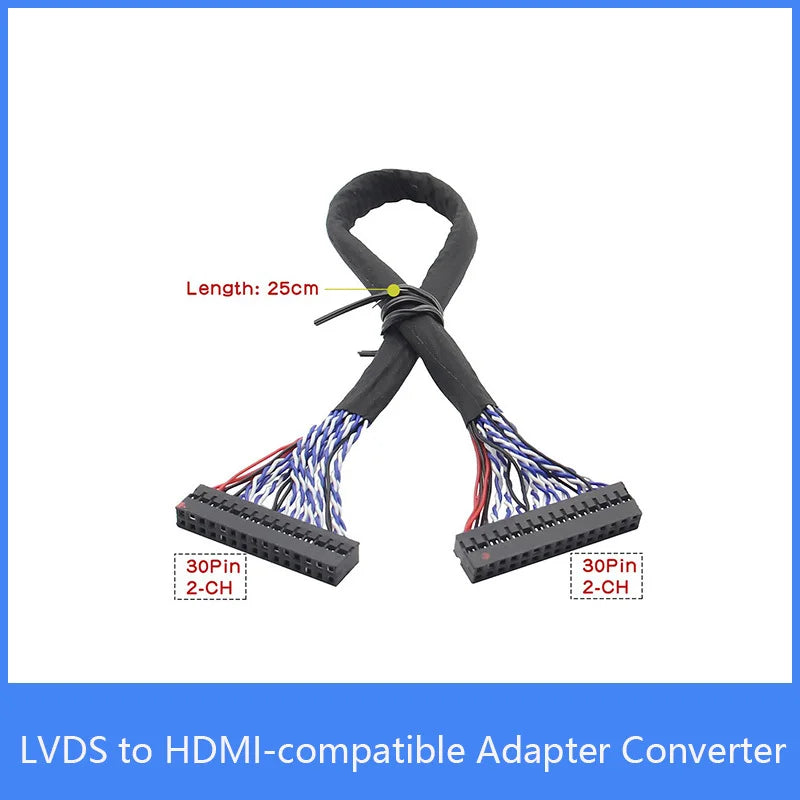

  • 1 x LVDS To HDMI-compatible Cable(cable length:25cm)

  •

WIKI for Reference:
  •



 Welcome Customize Order!
