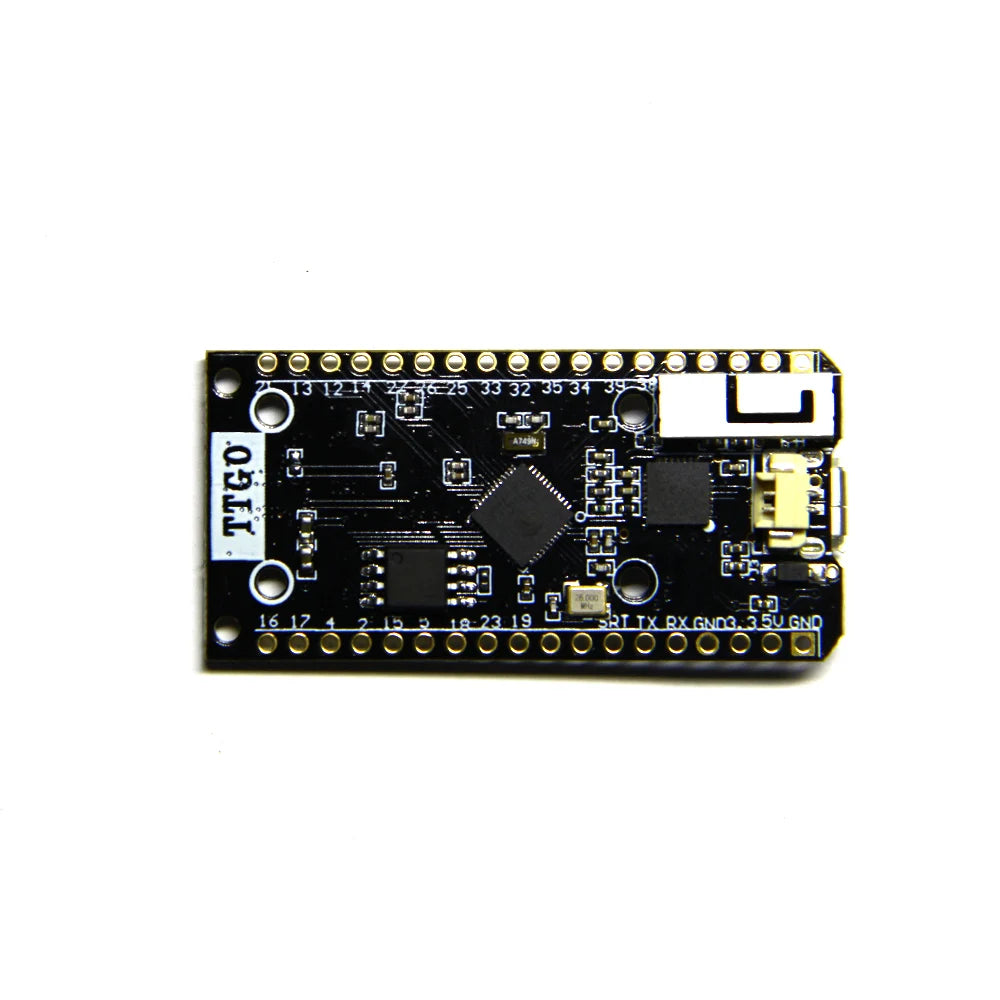

Custom LoRa V1.0 ESP32 SX1276 868/915Mhz BT WIFI Wireless Module Internet Antenna Development Circuit Board for Arduin0 Manufacturer

• The main chip using ESPRESSIF ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode BT(traditional BT and BLE low power BT).

• This product is based on the WI-FI 32 added SX1276 chip, that is, LoRa ™ remote modem, 868/915MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability.

• Onboard4M byte(32M Bit)Flash, Wi-Fi antenna,  lithium battery charging circuit and interface, CH9102X USB to serial chip, support for Arduino development environment perfectly, can be very simple and fast for program verification and product development.

Describe

• Operating voltage: 3.3V to 7V

• Operating temperature range: -40 ° C to + 90 ° C

• Supports Sniffer, Station, softAP and Wi-Fi Direct modes

• Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b

• Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n

• Receiver sensitivity up to - 98 dBm

• UDP continues to throughput by 135 Mbps

LoRa V1.0 ESP32 SX1276 Option (868/915Mhz)

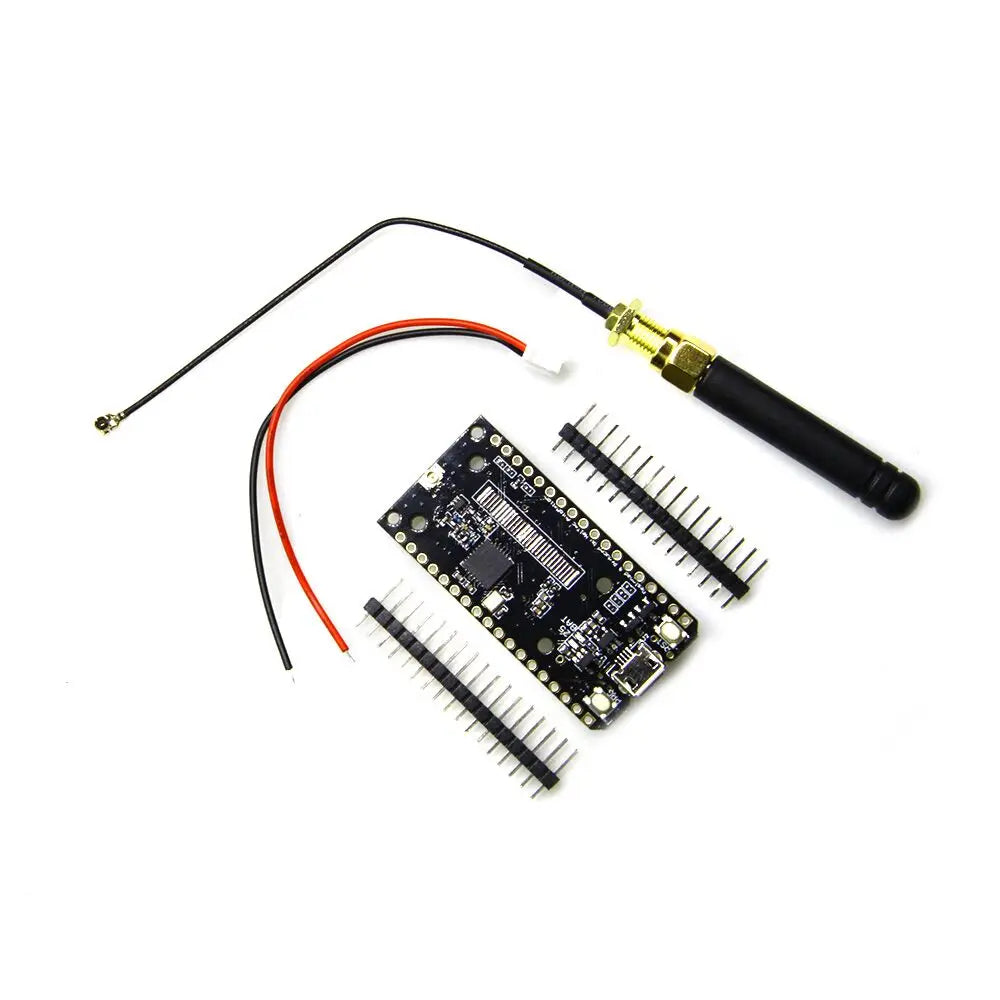

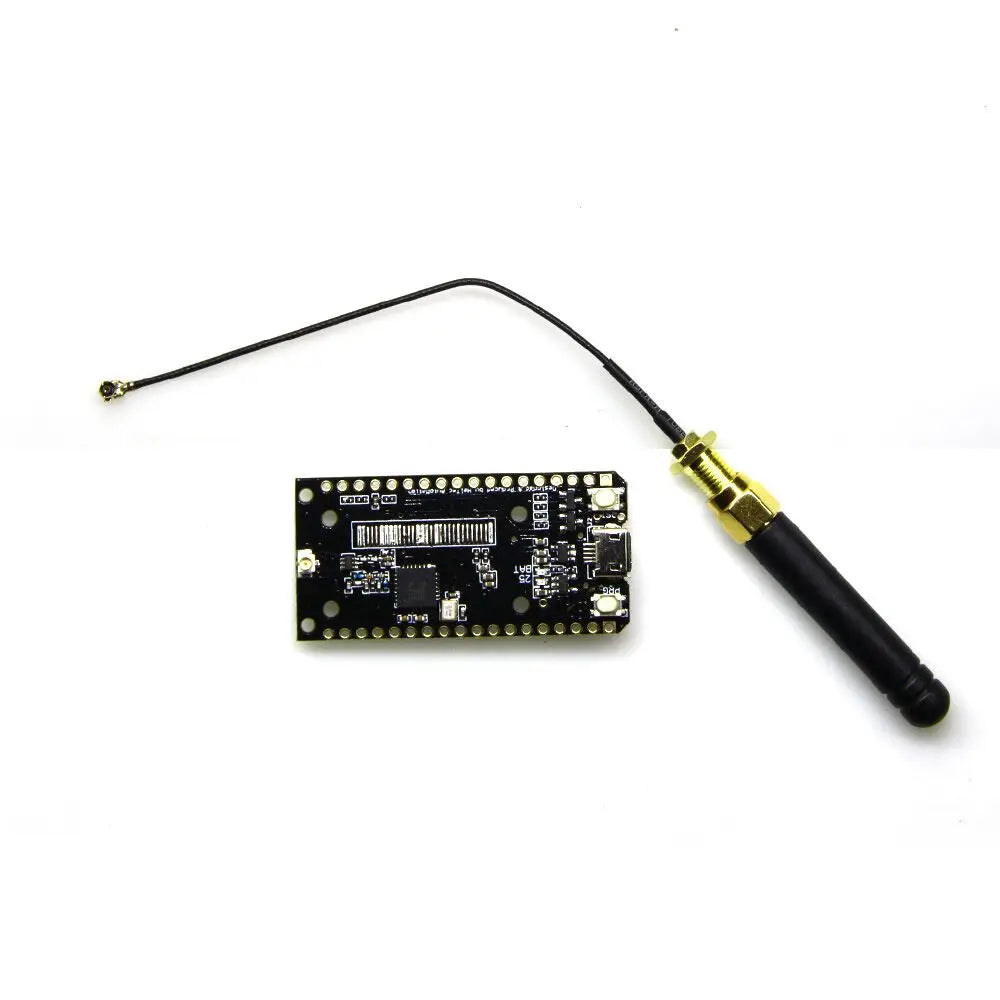

• 1 X LoRa V1.0 ESP32 SX1276 868/915MHz

• 1 X Antenna

• 1 X Line

• 2 X Pin
