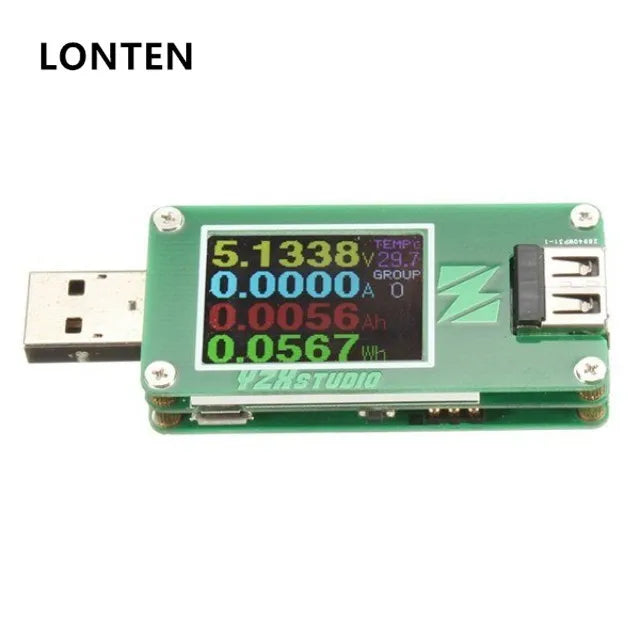

Custom Lonten ZY1270 Bluetooth Colorful TFT USB Power Tester Capacity Table QC2.0 QC3.0 Manufacturer

ZY1270 Bluetooth Colour TFT USB Power Tester Capacity Table QC2.0 QC3.0

Specifications:

Type: With bluetooth
Input voltage: DC 4V-24V
Input current: 3A
Voltage resolution: 0.0001V (0.1mV)
Current resolution: 0.0001A
Cumulative capacity: 0-99999Ah; 0-99999Wh
Capacity resolution: 0.0001Ah; 0.0001Wh
Accuracy: Voltage 0.2%+2d; Current 0.1%+2d; Ah capacity 0.5%; Wh capacity 0.5%

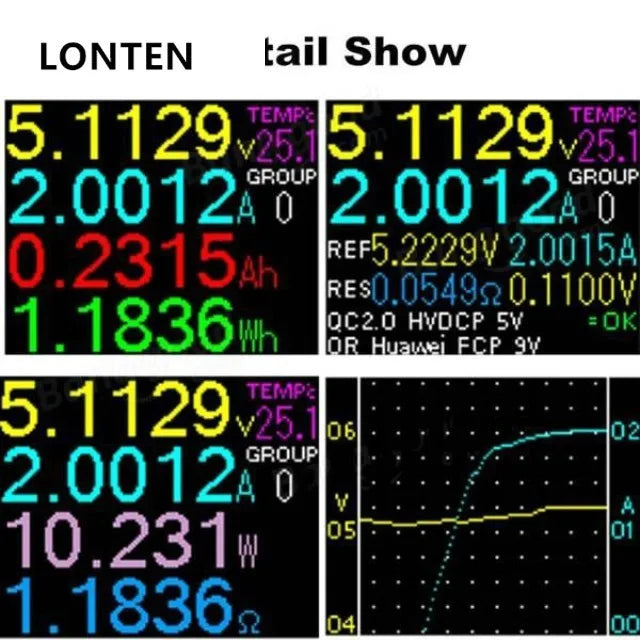

Display: 1.3" 128x104 pixel Colour TFT
Update rate: Every 0.36s
Idle current consumption: ~8mA / 6mA (with display dimmed / off)
Current shunt resistance: 10mOhm
Overall circuit resistive loss: ~42mOhm (including contact resistance on USB connectors)
Memory: FRAM, good for 10 billion write cycles
Memory operation mode: write on every update in cumulative capacity + load balancing technique

Package includes:

1 x TFT USB Power Tester
