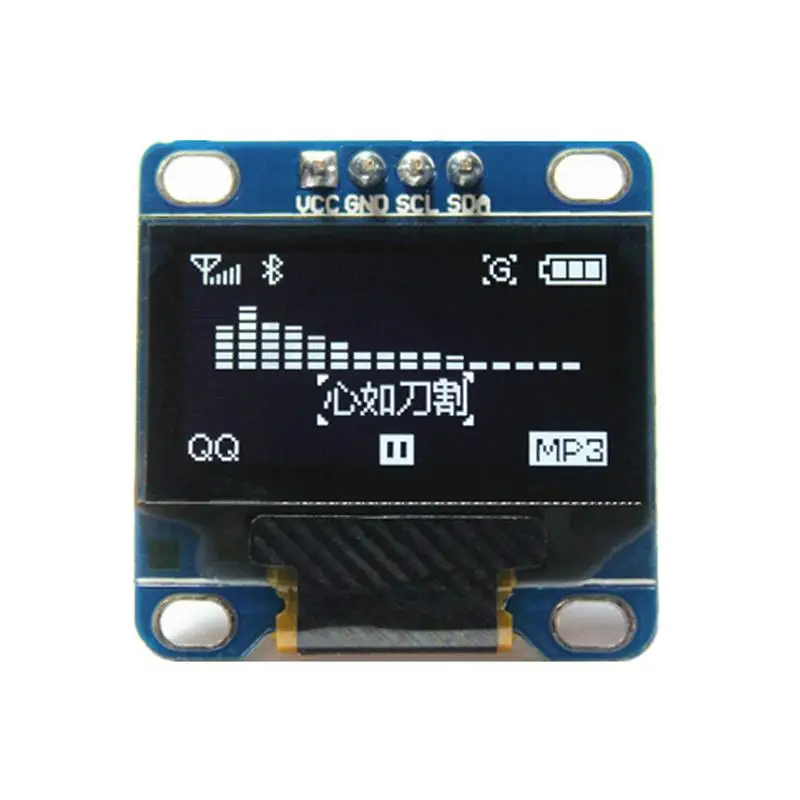

Custom Lonten Yellow- blue double color white 128X64 OLED LCD LED Display Module For arduino 0.96" I2C IIC Communicate Manufacturer

NEW

128*64 LED display module for Arduino, supports many control chip.

Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.

Ultra-low power consumption: full screen lit 0.08W

Super high brightness and contrast are adjustable

With embedded driver/controller

Interface type is IIC

I2C/IIC Interface, need 2 IO only.

Resolution: 128X64

Drive Duty: 1/64 Duty

Viewing angle: greater than 160 degrees

Pins: 4 pins

Pin Definition: VCC,GND,SCL, SDA

1:VCC (OLED 3.3~5V)

2:GND(OLED power supply)

3:SCL(OLED IIC Clock line)

4:SDA(OLED IIC Cable)

Voltage: 3V ~ 5V DC

Working Temperature: -30 �� ~ 70 ��

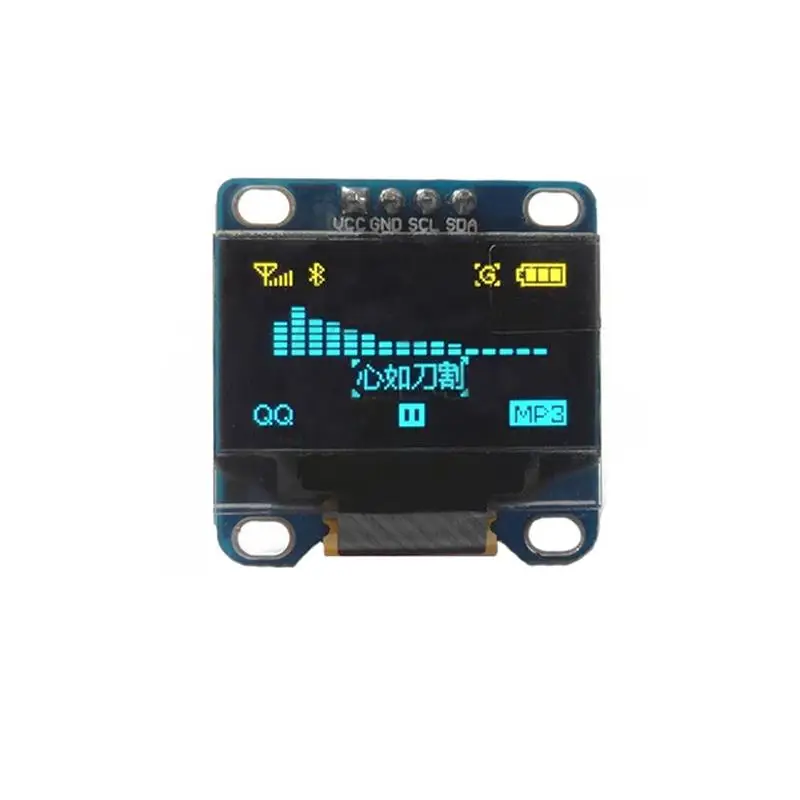

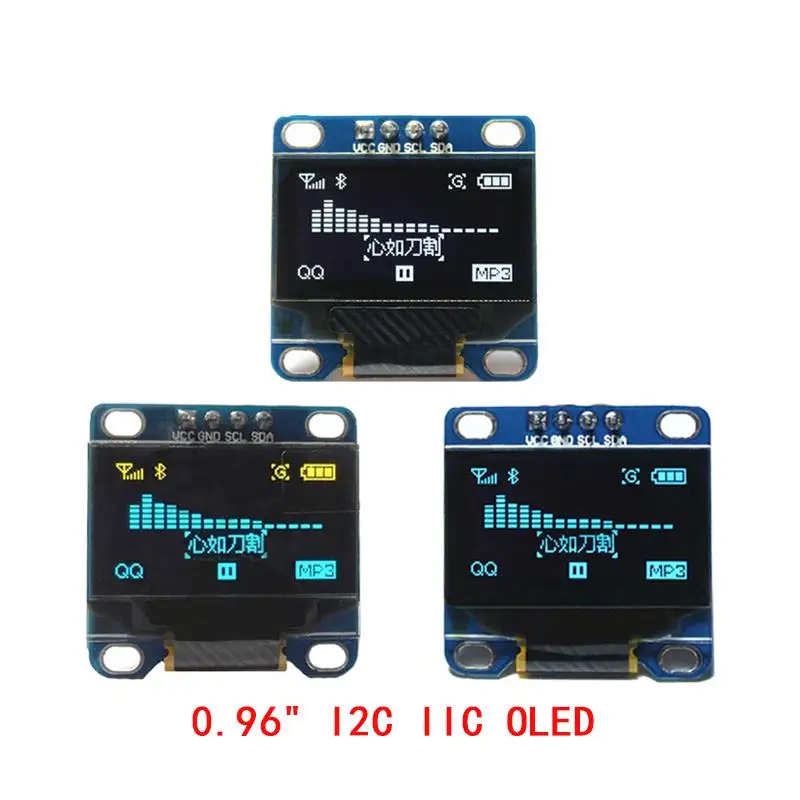

Character Colors: Yellow Blue(as pictures show)

Drive Duty: 1/64 Duty

High resolution: 128 * 64

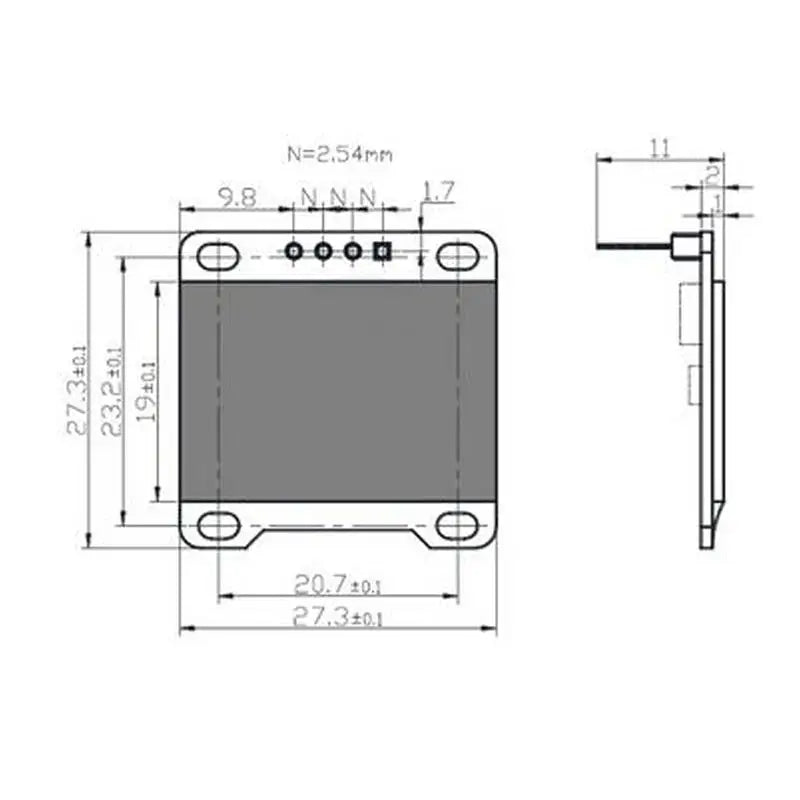

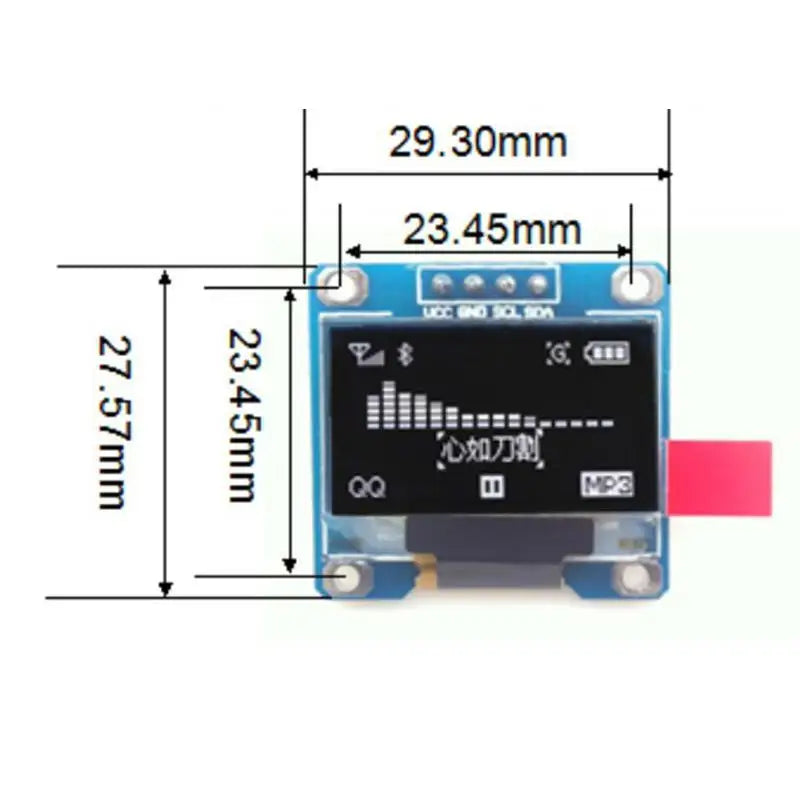

Panel Dimensions: 29.30*27.57* 1.85mm/1.15*1.08*0.07 inch(approx)

Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)

Driver IC: SSD1306
