Custom Lonten WiFi RC Smart Robot Tank Chassis with Dual DC Motor ESPduino Development Board Motor Driver Board for DIY Project T100 Manufacturer

Parameters:

• Name: Mini T100 Tracked Tank Chassis
• Material: Aluminum Alloy
• Surface treent: sandblasting oxidation
• Color: Golden yellow,silver,black (for optional)
• Track: Engineering plastic
• Size: About 185*200*60mm(Length*width*Height)
• Weight: 0.65kg
• Design load: 5kg


Motor parameters(25mm 9V 150rpm DC Motor)

• Name: 25mm gear motor
• Output speed: 150±10%rpm
• No_load Current: 200mA (Max)
• Stall current: 4500mA(max)
• Stall torque: 9.5kgNaN
• Rated speed: 100±10%rpm
• Rated torque: 3000gNaN
• Rated Current: 1200mA (Max)
• Noise: 56dB
• Working voltage: 9V
• Outside Shaft Length: 14.5mm
• Shaft End Play: 0.05-0.50mm
• Screw Size: M3.0
• Dia. Of Shaft phi4mm, D3.5
• encoder: 2 pulses/circle

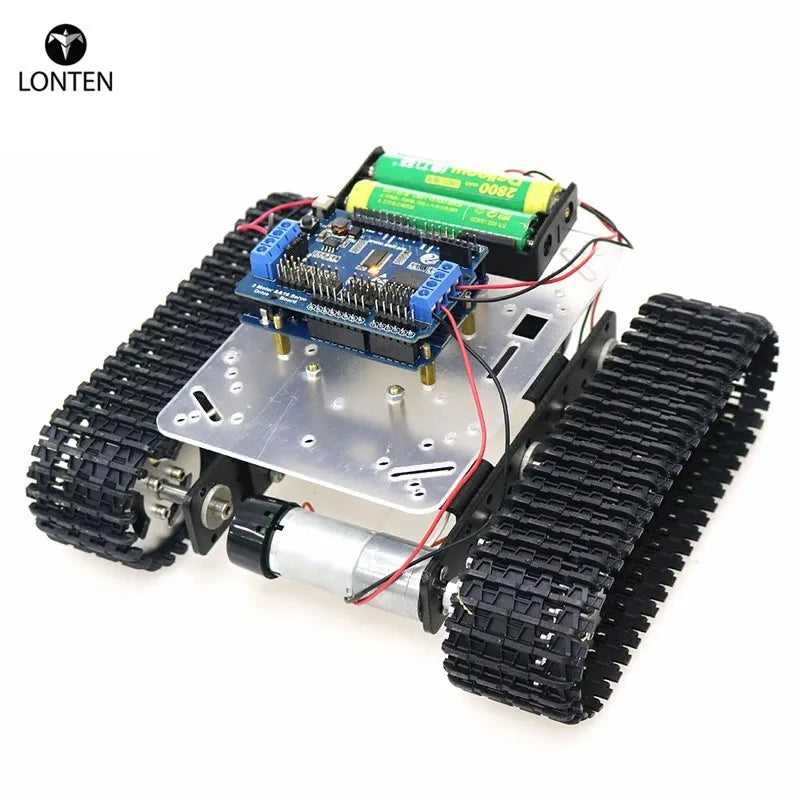

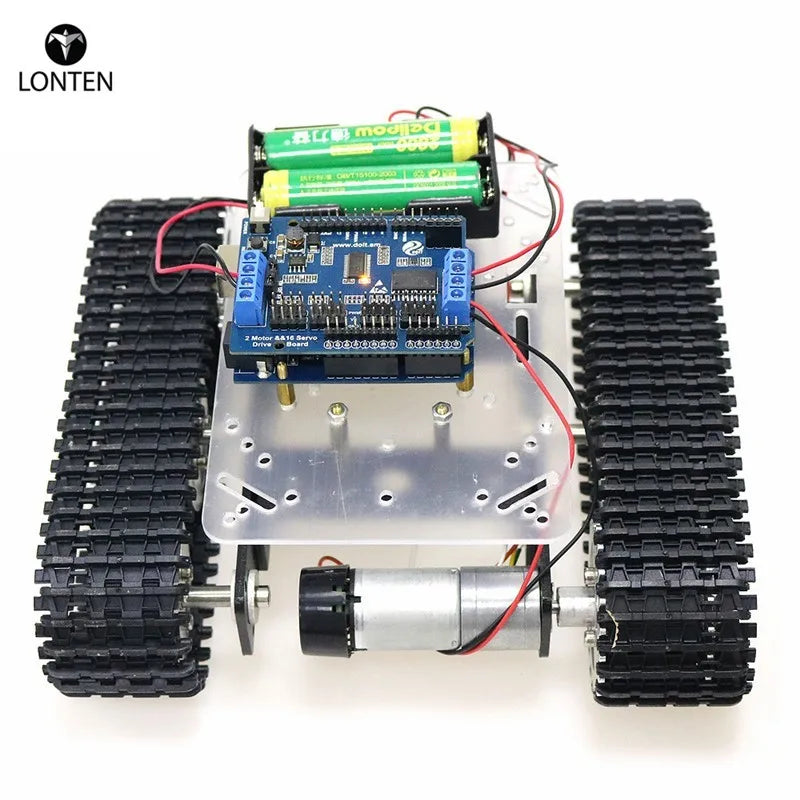

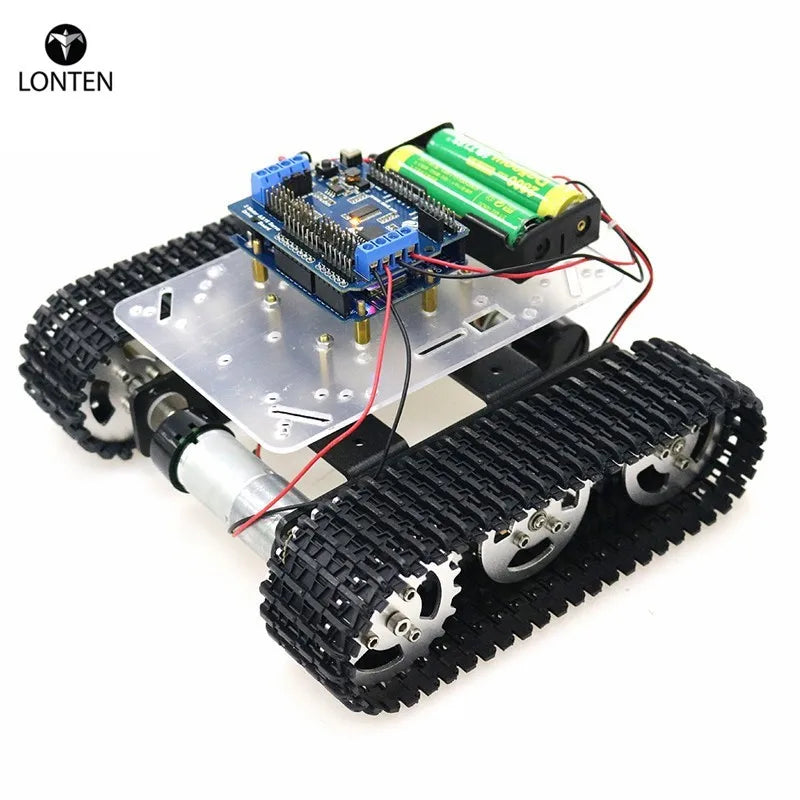

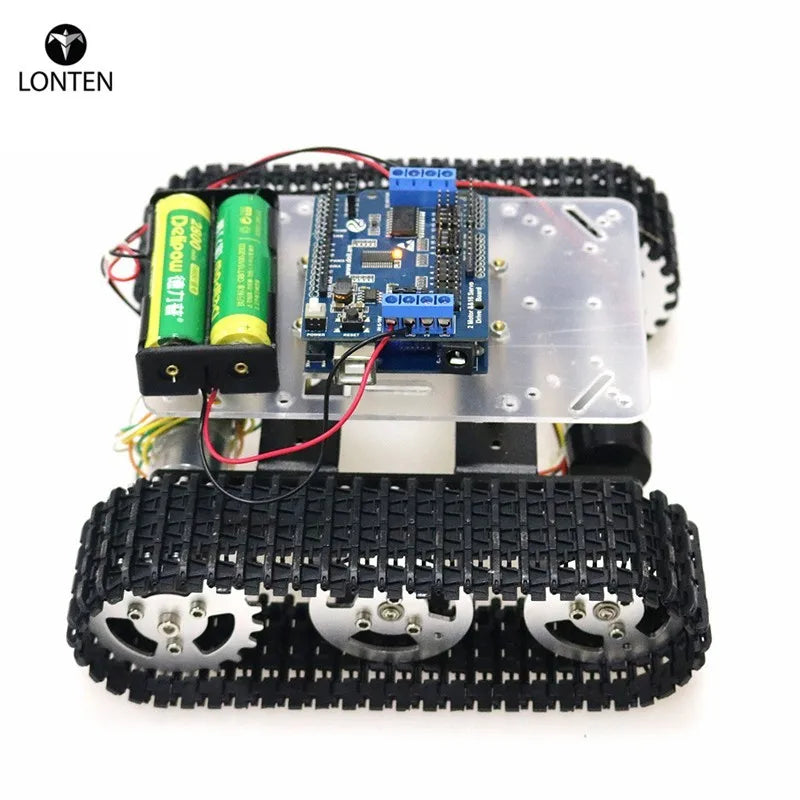

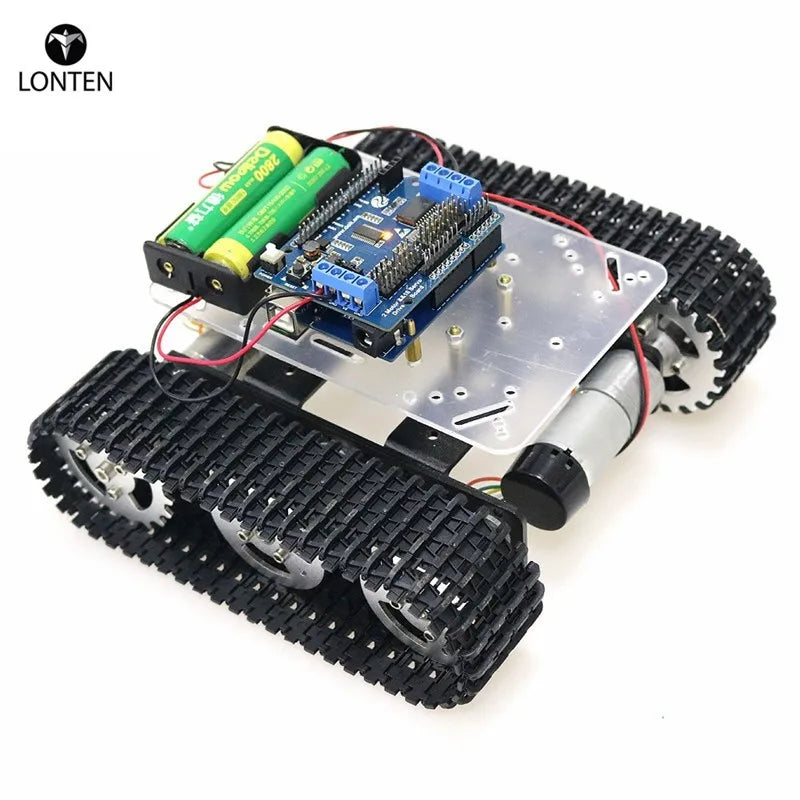

Images:

ESPduino control kit:

Package Included:

• ESPduino control kit= 1pcs ESPduino development board+1pcs Motor Driver board+ 1pcs USB cable
• 9V Black Tank= Black T100 Tank chassis(Including 9V 150rpm motor)+ Get Acrylic Plate+ Couplings+ 18650 battery box
• Full set= ESPduino control kit+ 9V Black Tank

Note:

• Not including battery because of prohibition of shipping.
• For the convenience of transport, the products is unassembled. Please contact us to get the installation manual or visit our official.
