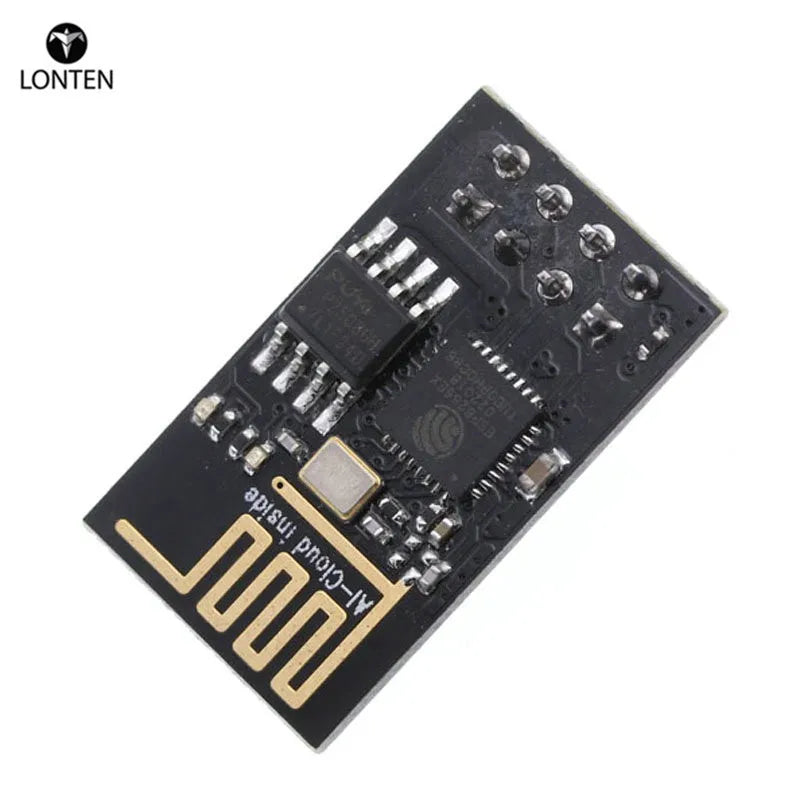

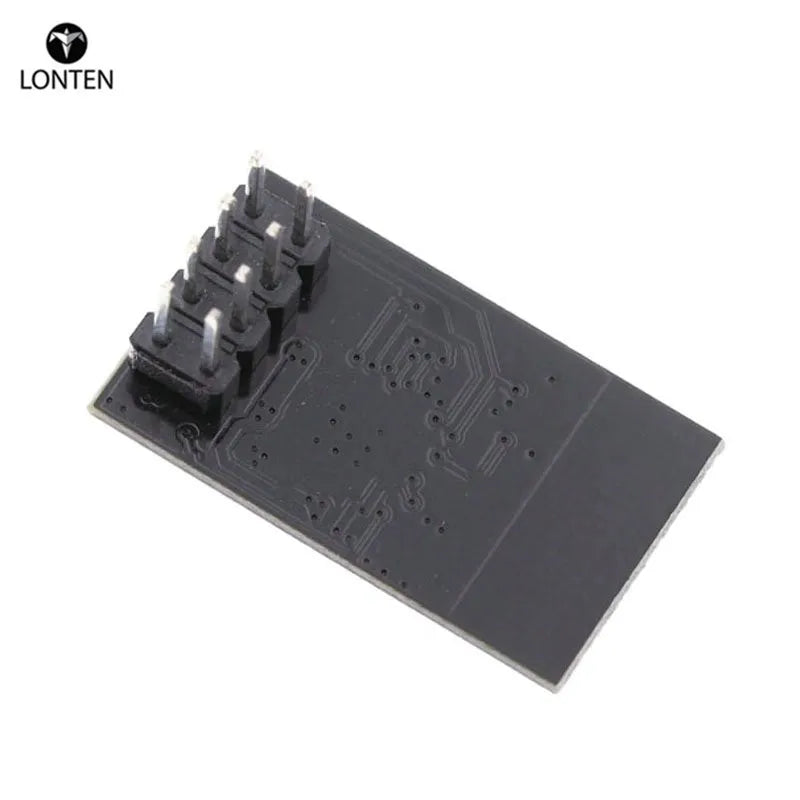

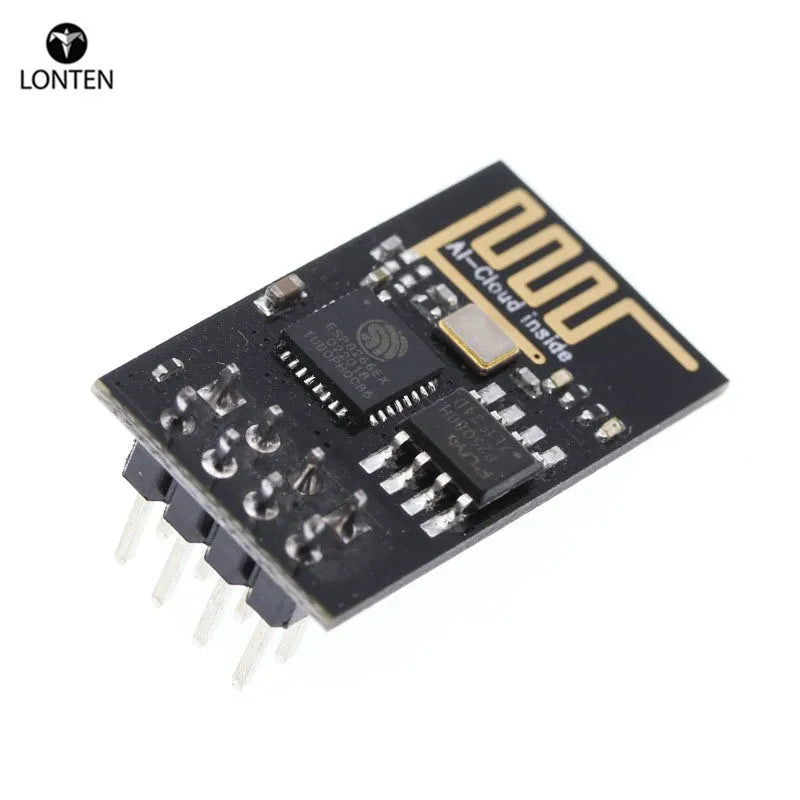

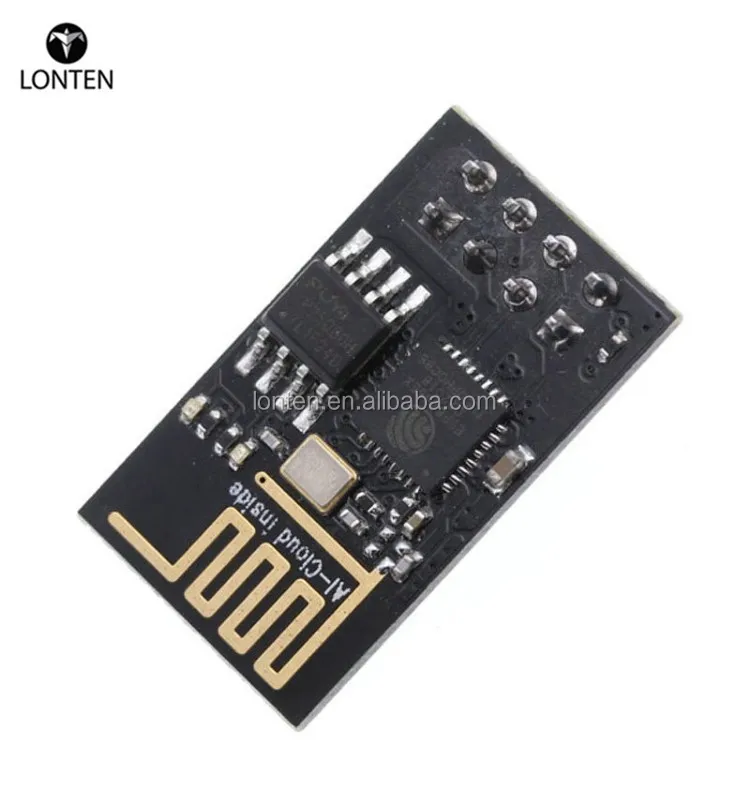

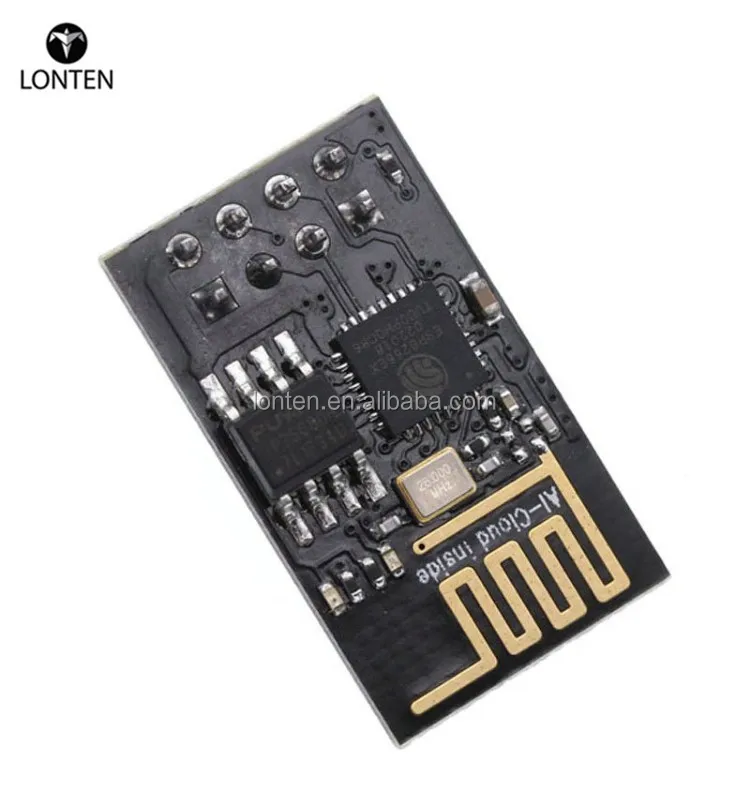

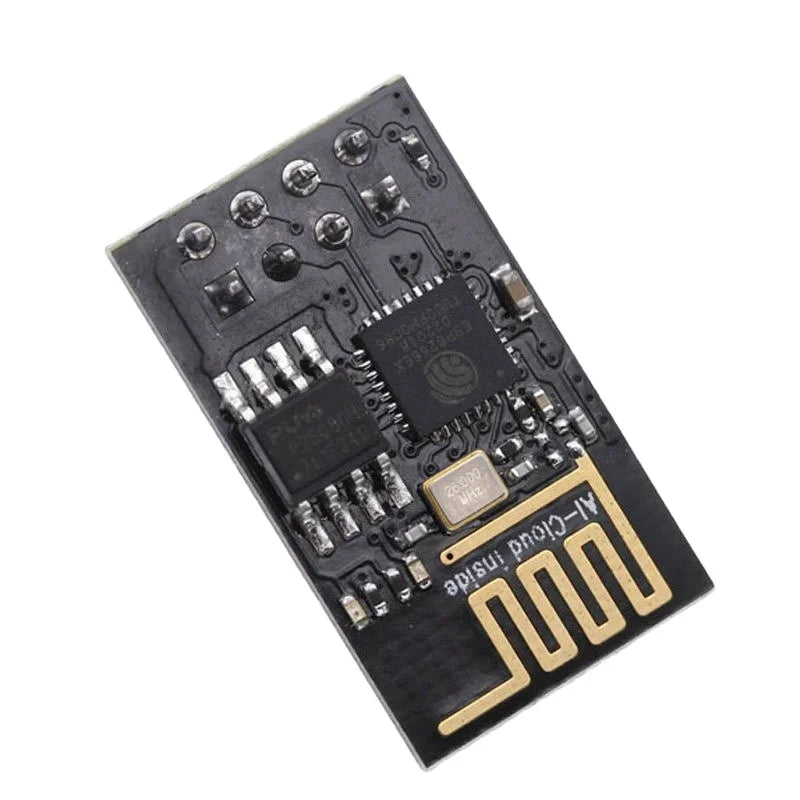

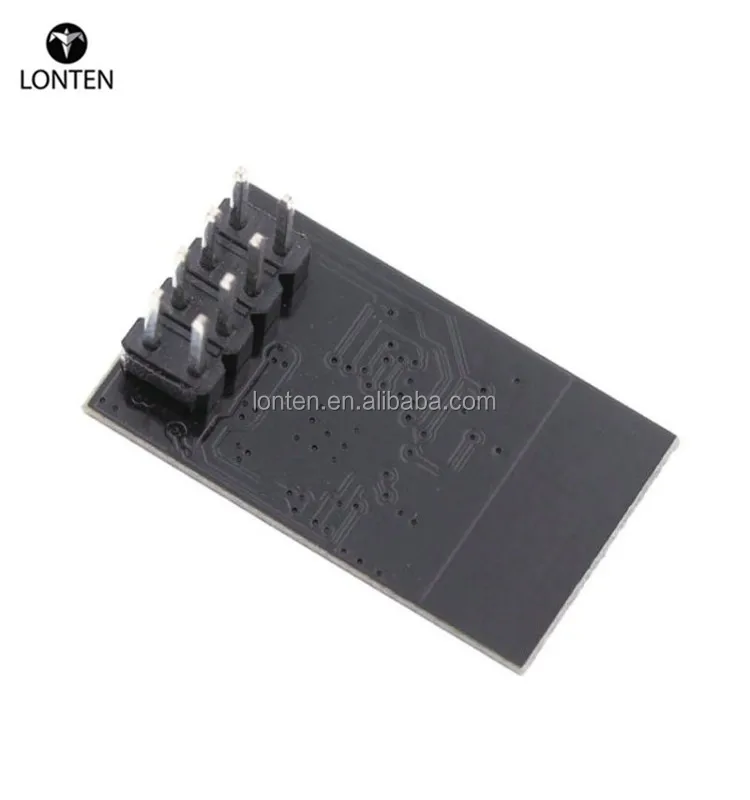

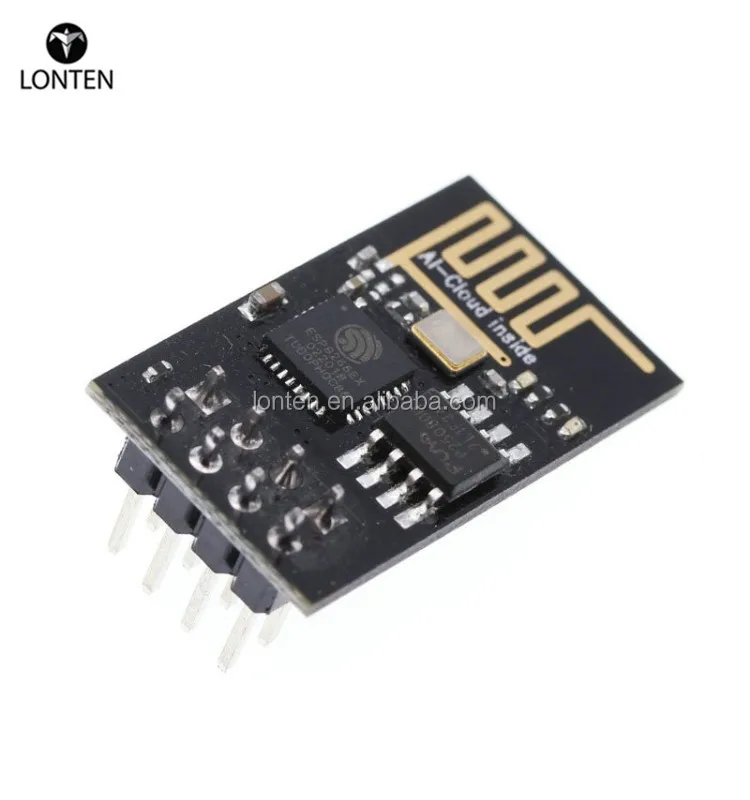

Custom Lonten upgraded version ESP-01 ESP01 ESP8266 serial WIFI wireless mode wireless transceiver for arduinos Manufacturer

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allog it to either host the application or to offload all Wi-Fi networking functions from another application procor.

ESP8266 has powerf on-board procing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its s with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end mode, is designed to occupy minimal PCB area.

Features

SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC procor, on-chip memory and external memory interfaces
Integrated MAC/baseband procors
Quality of Service management
I2S interface for high fidelity o applications
On-chip low-dropout linear regators for all internal supplies
Proprietary spurious- clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines
Solutions

Supports APSD for optimal VoIP applications
Patented spurious noise cancellation algorithm for integration in SOC applications
Supports co-existence interface
Self-calibrated RF to ensure optimal performance under all operating conditions
Zero factory tuning
No external RF components
Specifications

802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU cod be used as application procor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)

Help your development more easy.
ESP8266 Serial WIFI Mode Communite Forum>> Detail about ESP8266


1. High quality & low price
2. LWIP agreement
3. Support 3 modes: AP, STA, AP+STA
4. Perfect and simple AT commands
