Dual Channel AS30 Binaural 30 Segment LED DIY Kit Music Spectrum VU Meter

This version SMD is unsolder!!!! please note about this before you order it. SMD soldered

This is a DIY kit, you need to have some knowledge of electronics and ability.

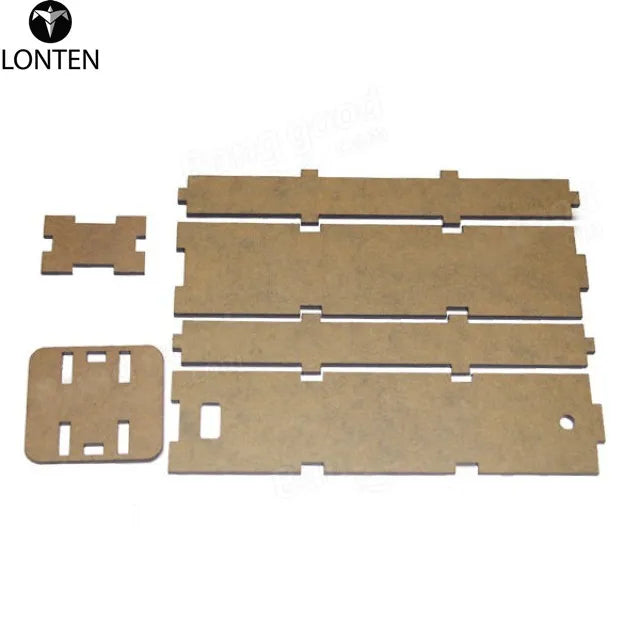

With housing and without housing two versions for your to choose, please select the one you need.

Product Size:

Without housing: 2.5 x 12 x 1.3cm (L x W x H)
With housing: 3.1 x 12.6 x 1.9cm (L x W x H)
LED projection display section dimensions: 7.6 x 2.0cm (H x W)
Input voltage: DC 5V dual-channel o input

AS30 there are six kinds of classic display mode, key settings, settings with memory function.

Mode 1: Columnar Mode
Mode 2: Columnar with floating point mode
Mode 3: Columnar with floating point, floating point up out of the mode
Mode 4: Single point mode
Mode 5: Single point with floating point up out of the mode
Mode 6: single floating point mode

Instructions:

1, Connect the USB cable into the computer USB port and 3.5mm headphone
2, Please adjust the input volume, gain adjustment will be displayed with the amplitude control to the appropriate range, the gain in addition to special under special circumstances of small volume, set to 1 level is the best;

Software upgrade instructions: (New version will be sent from 2015-11-01)

AS30 software upgrade V2 version, upgrade content:
1, an increase of 10 level speed adjustment function, you can adjust according to their own preferences to the speed of their own, it can be suitable for all kinds of music.(3 level) in the video.
2, 3 increase in the level of gain adjustment, high school three.

Key use method:(Adjust to bring out the memory of the memory
Click: mode adjustment
Long by 1 second: 10 speed adjustment, the left top of the LED will correspond to show that the more 1-10 the more slowly
Long press 3 seconds: 3 gain adjustment, the right side of the top LED will correspond to display, 1, 2, 3, respectively, on behalf of low, medium and high gain
