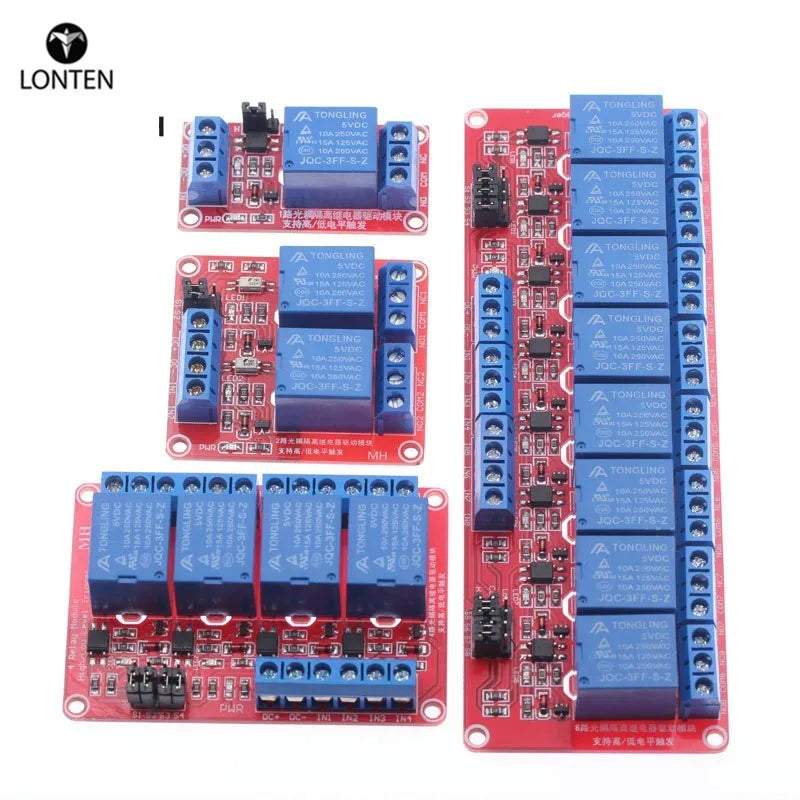

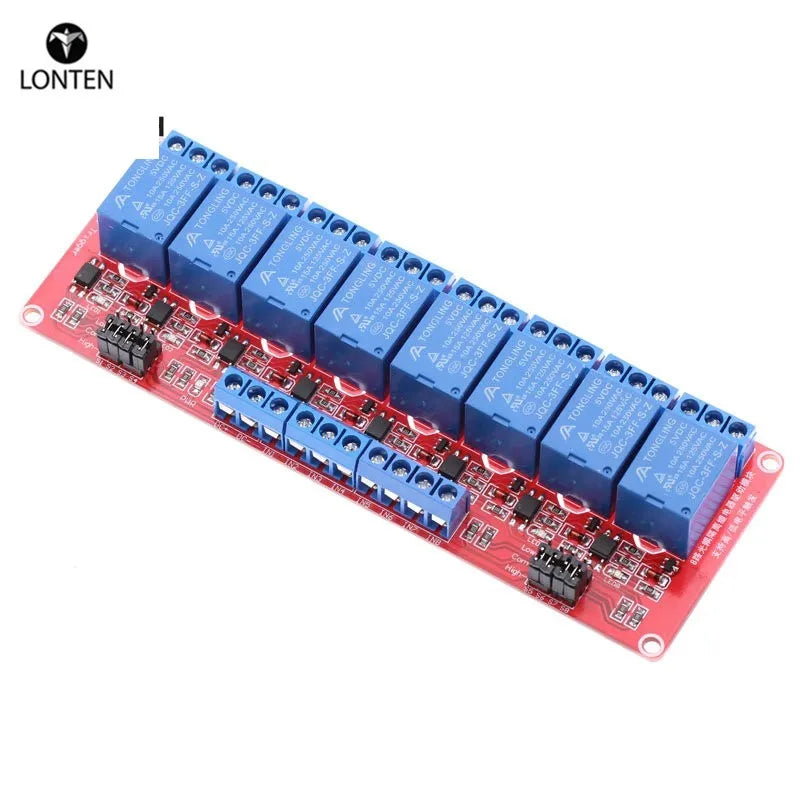

Custom Lonten Relay Module Board Shield 1 2 4 8 Channel 5V 12V AC 250V/10A, DC 30V/10A -40-+85 5W Manufacturer
Custom Lonten Relay Module Board Shield 1 2 4 8 Channel 5V 12V AC 250V/10A, DC 30V/10A -40-+85 5W Manufacturer
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten provide electronic component for robotics,welcome OEM ,ODM,for more please contact.
- Condition:New
- Supply Voltage:AC 250V/10A, DC 30V/10A
- Dissipation Power:5W
- Operating Temperature:-40-+85
- Model Number:Relay Module H/L level
- is_customized:Yes
- Type:relay module
- Application:relay module
- Package:Module
1 Channel Low level trigger:
The module uses genuine quality relay, normally open interfaces
Using SMD optocoupler isolation, driving ability, stable performance
The module can be high or low by a jumper setting trigger
Fault-tolerant design, even if the control line is broken, the relay will not operate
The power indicator (green), the relay status indicator (red)
The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
- Maximum load: AC 250V/10A, DC 30V/10A
- Trigger current: 5mA
- Working voltage: 5V OR 12V
- Module size: 50 x 26 x 18.5mm (L x W x H)
- Four mounting bolts holes, diameter 3.1mm
- DC+: positive power supply (VCC)
- DC-: negative power supply (GND)
- IN: can be high or low level control relay
- NO: normally open relay interface
- COM: Common Interface Relays
- NC: normally closed relay interface
- It is low level trigger when jumper connect to LOW pin
- It is high level trigger when jumper connect to HIGH pin

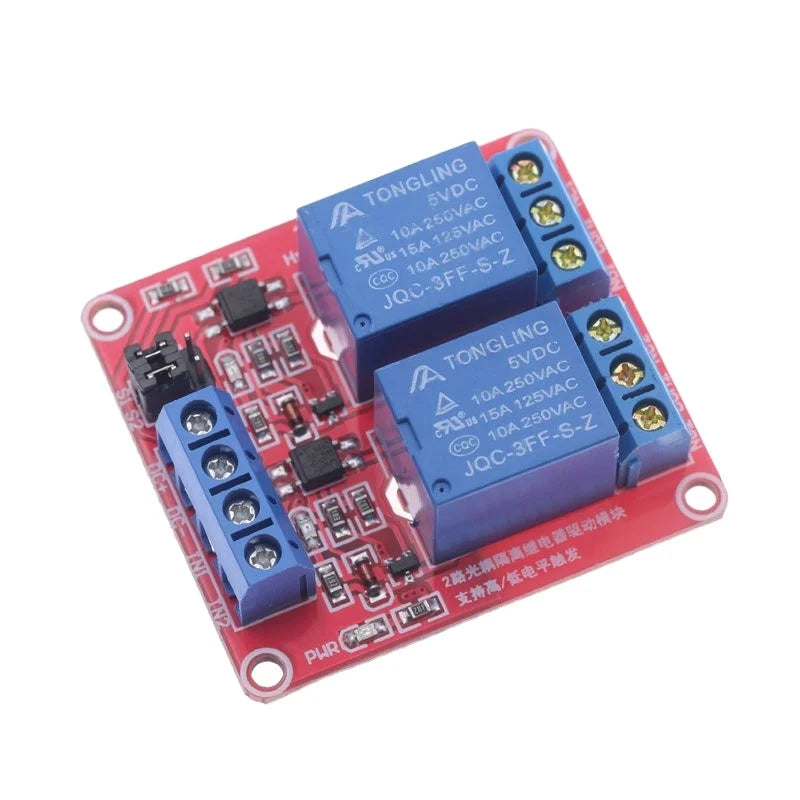

2 Channel :
5V OR 12V Relay Module
Can be used as microcontroller development board module can be used as home appliance control
5 V-12V to TTL control signal
The control signal DC or AC, 220V AC load can be controlled.
There is a normally open and one normally closed contact
A power indicator light
A control indicator, pull off, disconnect does not shine
Transistor drive to increase the relay coil control pins high impedance.
The control pin has a pull-down circuit to prevent malfunction relay vacant

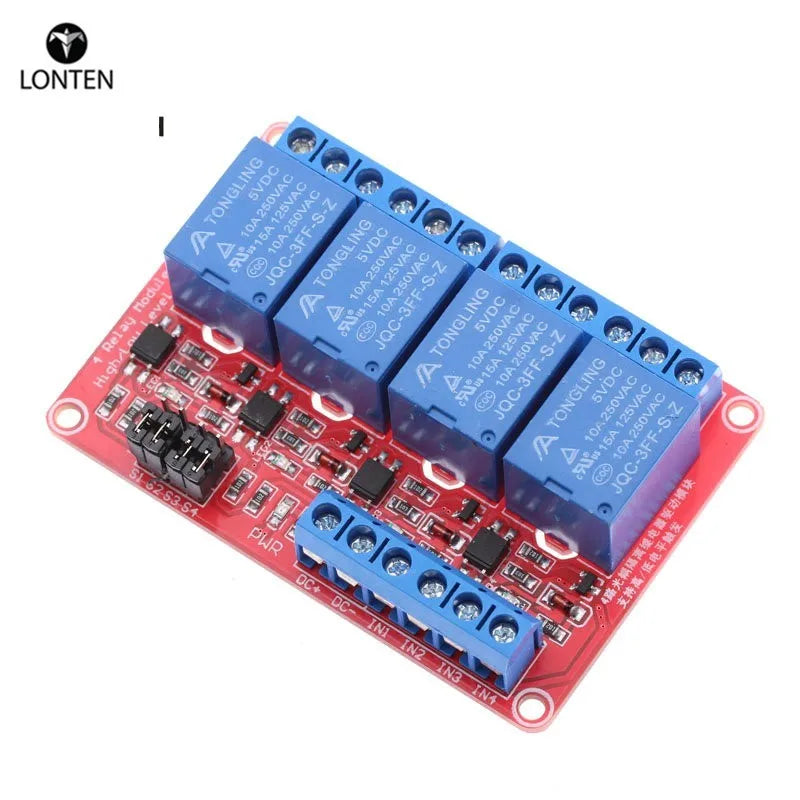

4 Channel :
5V OR 12V Relay Module
Can be used as microcontroller development board module can be used as home appliance control
5 V-12V to TTL control signal
The control signal DC or AC, 220V AC load can be controlled.
There is a normally open and one normally closed contact
A power indicator light
A control indicator, pull off, disconnect does not shine
