Custom Lonten Raspberry Pi HIFI DAC Expansion Board o Module + Acrylic Case Transparent Shell Set for DAC Expansion Board and Raspberry Manufacturer
Custom Lonten Raspberry Pi HIFI DAC Expansion Board o Module + Acrylic Case Transparent Shell Set for DAC Expansion Board and Raspberry Manufacturer
Regular price
$26.59 USD
Regular price
$26.59 USD
Sale price
$26.59 USD
Unit price
per
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten provide electronic component for tics,welcome OEM ,ODM,for more please contact.
Welcome Customize Order!
Item specifics
- :
- Accory Type: Extension Board
- Compatible With: Raspberry Pi DAC Expansion Board/ Raspberry Pi
Product Description
Packing List:
Bundle 1:

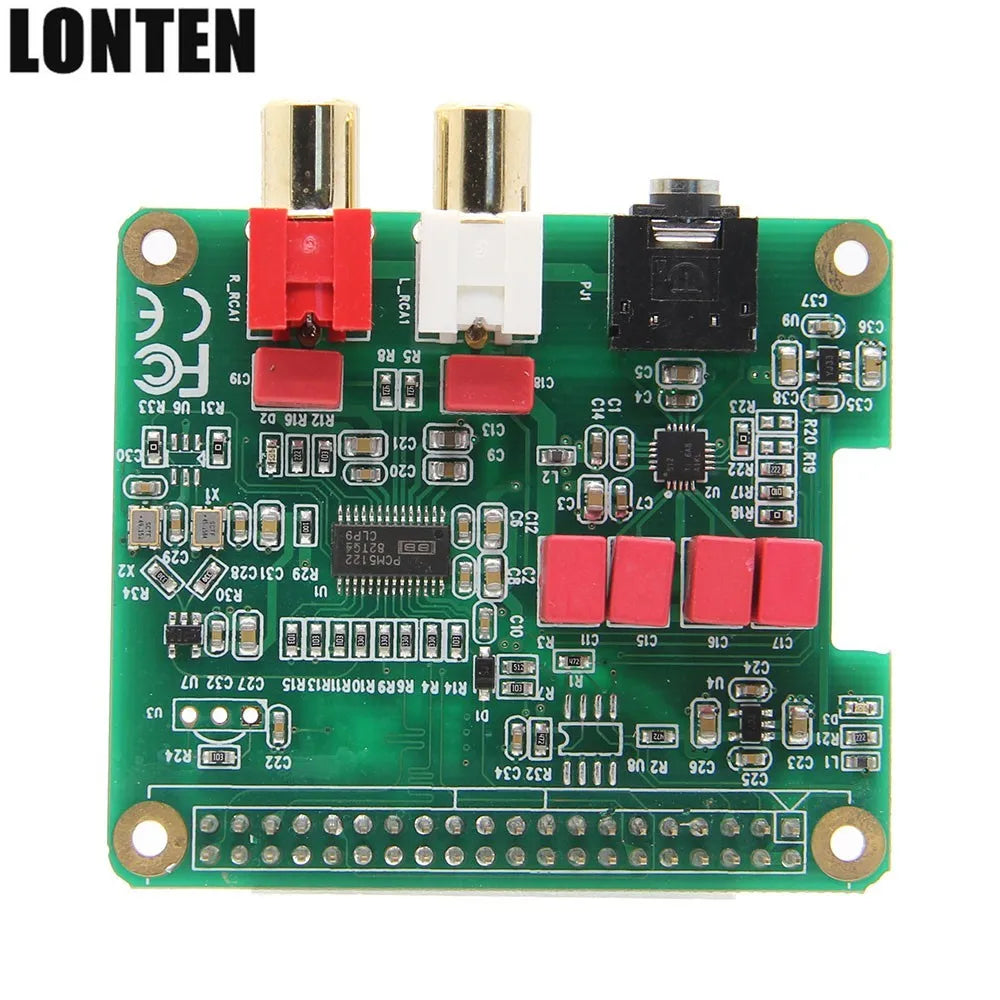

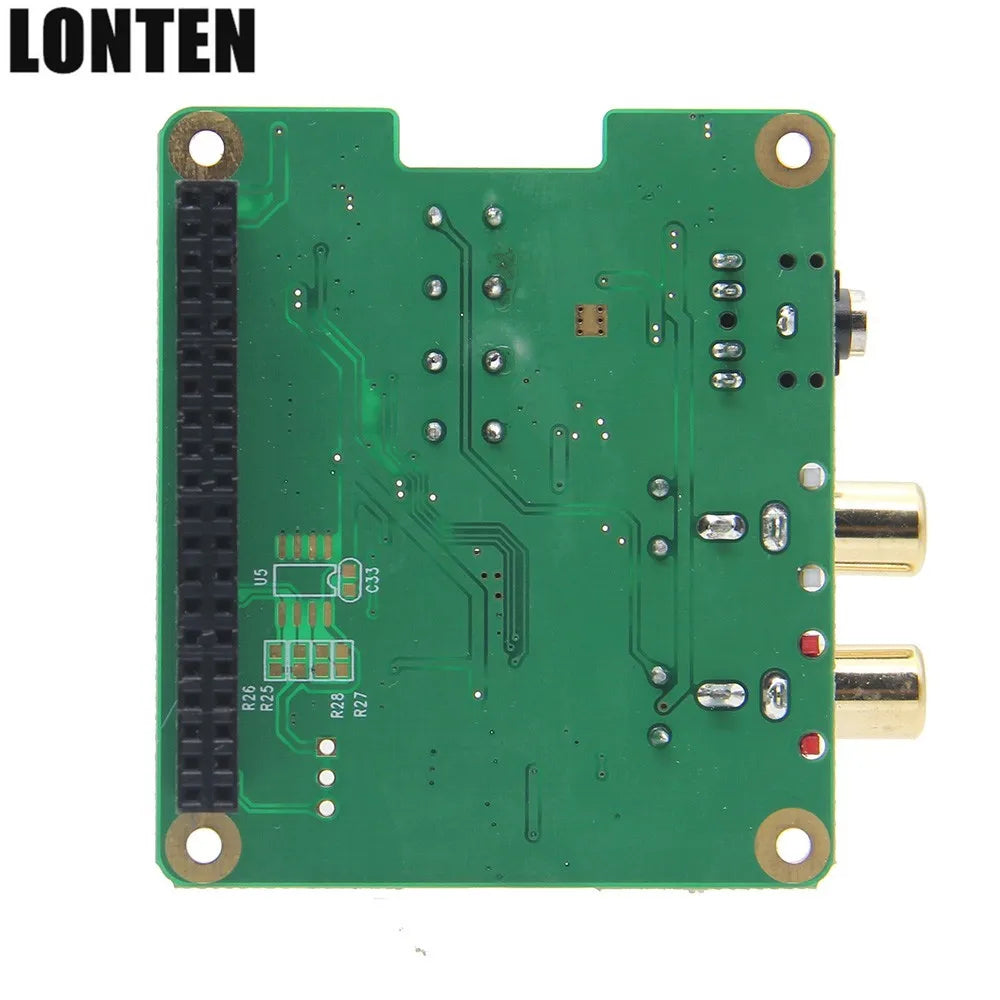

- HIFI DAC Expansion Board
Bundle 2:

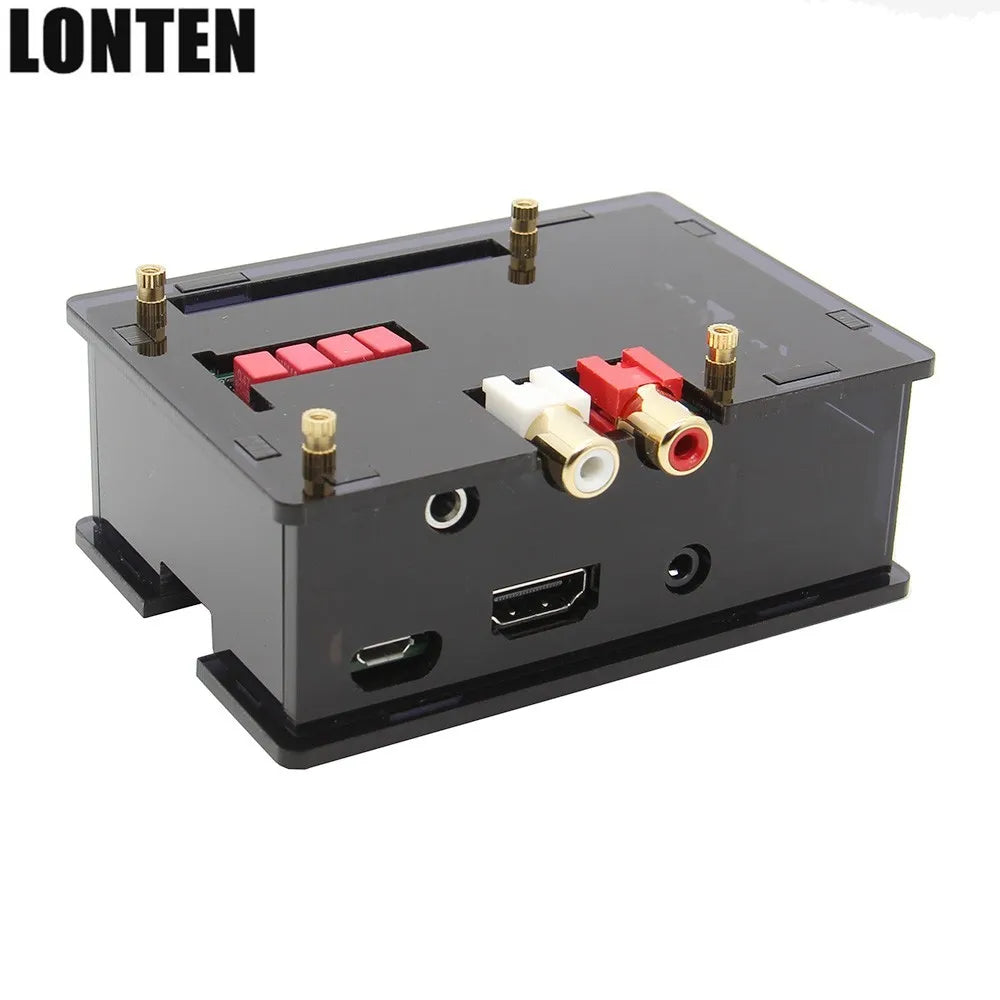

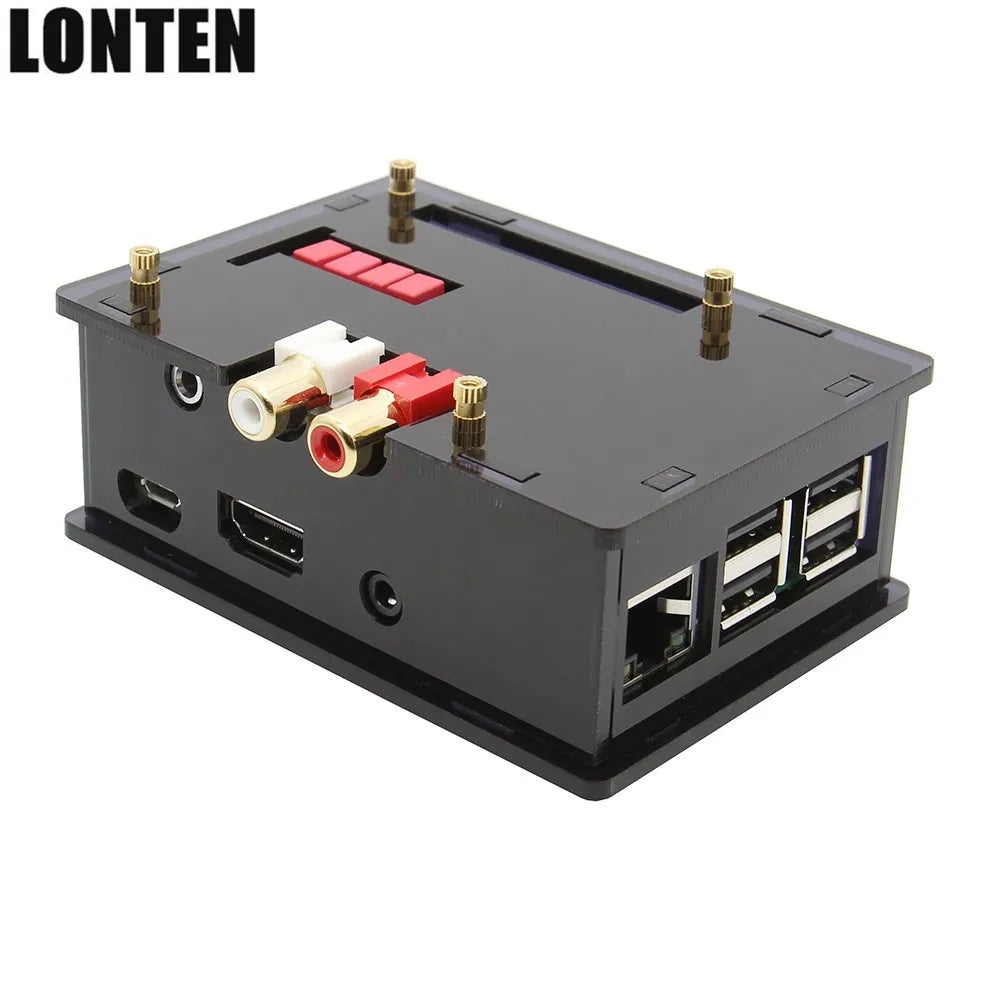

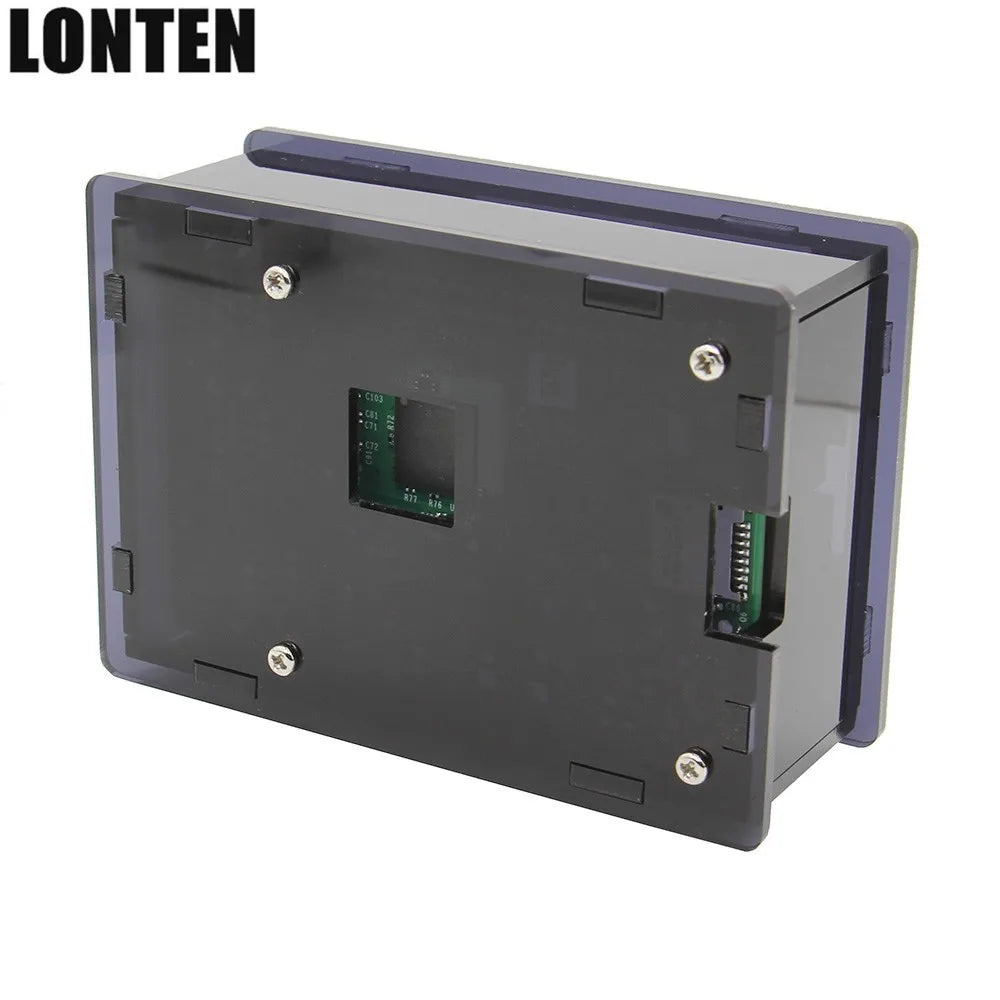

- 1 x Acrylic Case
- 1 x Screw Package
Bundle 3:
- HIFI DAC Expansion Board + Acrylic Case
Note:
- The raspberry pi board is not included.
- In Bundle 2 the DAC Expansion Board is not included.
- There is a protective film on the case, please tear it off before using it, thank you.
Overview:
- The Raspberry pi mother board has one major problem with i2s o interface. The clocks coming from CPU can only output one frequency clock perfect, resulting in major problems with o files sampled at 44khz and multiple. Too much jitter on i2s clocks. So we enter the master mode for i2s. Instead of the RPI giving the clock on the line, the DAC itself sends the clocks and RPI sends the data (file tobe played). Since we used 2 clocks the problem above solved.
- RPI-HIFI-DAC is unique, because of the way we have implemented the design. First we separated the power on 3 channels and filter it: one for the digital side, the second for analog and third for the clocks themselves. We use some of the good LDOs on the market. In addition, we used two oscillators with very low jitter for clock units. Finally, on the analog stage we are using a film capacitor (not ceramic) for a quiet DC to feed the TI IC to reduce signal distortion.
Features:

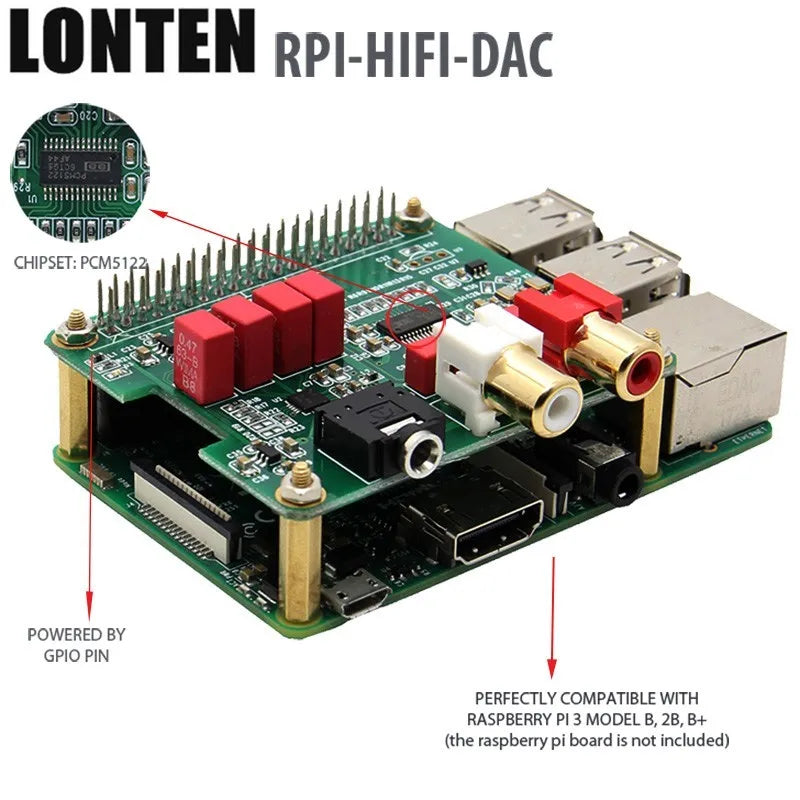

- Dedicated 384kHz/32bit high-quality DAC PCM5122 for best sound quality.
- o output connectors: 2x RCA (LEFT &Right) &3.5mm head phone Jack.
- With 138mw headphone Amplifier can directly drive headphone.
- Work status indicators facilitate the understanding of the system working status.
- HAT size.
- DAC SNR is 112Db .
- DAC THD+N @ -1 dBFS -78dB.
- Full Scale Output of DAC is 2.1ms.
- Dynamic Range of DAC is 112dB
- Sampling Frequency ranges from 8kHz to 384kHz
- Ultra-low noise voltage regulators for optimal o performance.
- Integrated EEPROM for automatic configuration(Option).
- Automatically switching frequencies according to the input I2S signals.
- Dual low jitter crystal oscillators for Master Clock generation.
- Infrared remote control connector (using 26).
- DAC output coupled with Film capacitor
Coupon: US $1.00 OFF US $40.00
Discount1: US $1.00 off on orders over US $40.00
Discount2: US $3.00 off on orders over US $110.00
1. 100% real shooting! If the product you receive is not as described or low quality, we promises that you can return it before order completion (when you click ‘Confirm Order Received’ or exceed confirmation timeframe) and receive a full refund.
2. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with us.
1.All the orders will be shipped with tracking number!
2.If you do not receive your purchase within 35 days, you can ask for a full refund before order completion (when you click ‘Confirm Order Received’ or exceed confirmation timeframe).
1.Full Refund if you don't receive your order: you will a full refund if your order does not arrive within the delivery time promised.
2.Full or Partial Refund, if the item is not as described: If your item is significantly different from the product description, you can A: Return it and a full refund, or B: a partial refund and keep the item.
Wish you a happy shopping.
Packaging Details
- Unit Type: piece
- Package Weight: 0.24kg (0.53lb.)
- Package Size: 10cm x 7cm x 5cm (3.94in x 2.76in x 1.97in)
