Custom Lonten Raspberry Pi 3B+ 5MP Megapixel Night Vision Camera OV5647 Sensor Fisheye Wide-angle Camera Module for Raspberry Pi 3 Mode Manufacturer

Custom Lonten Raspberry Pi 3B+ 5MP Megapixel Night Vision Camera OV5647 Sensor Fisheye Wide-angle Camera Module for Raspberry Pi 3 Mode Manufacturer

$8.82 USD
$8.82 USD $8.82 USD
Sale Sold out

Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provider of electronic component ,for more please contact.


Item specifics
  • :
  • Accory Type:Camera Module
  • Compatible With:Raspberry Pi 3B+/3/2
  • is_customized:Yes
  • Condition:New
  • Wide Angle:130 degree
  • Pixel :5 Million
  • Night Vision:Yes
  • Resolution:1080P
Product Description

Related product, you may like








Raspberry Pi 3B+ 5MP Megapixel Night Vision Camera OV5647 Sensor Fisheye Wide-angle Camera Module for Raspberry Pi 3 Model B/2

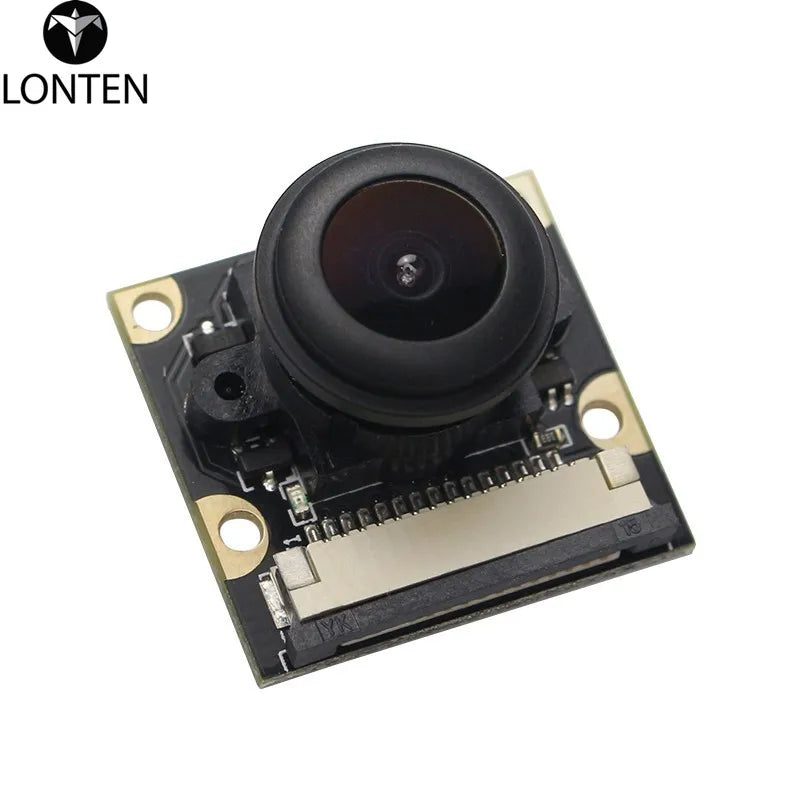

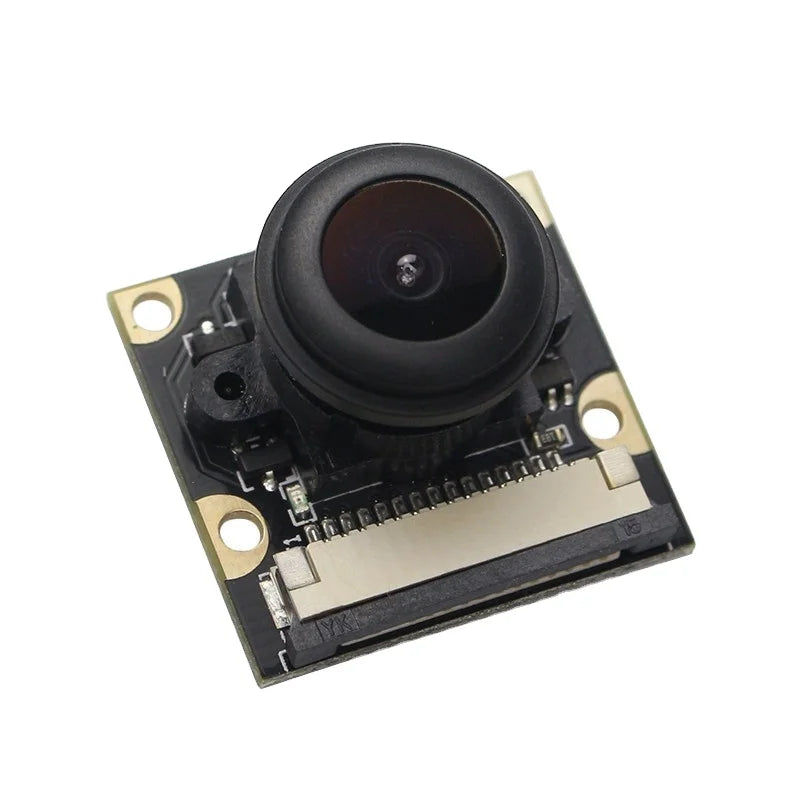

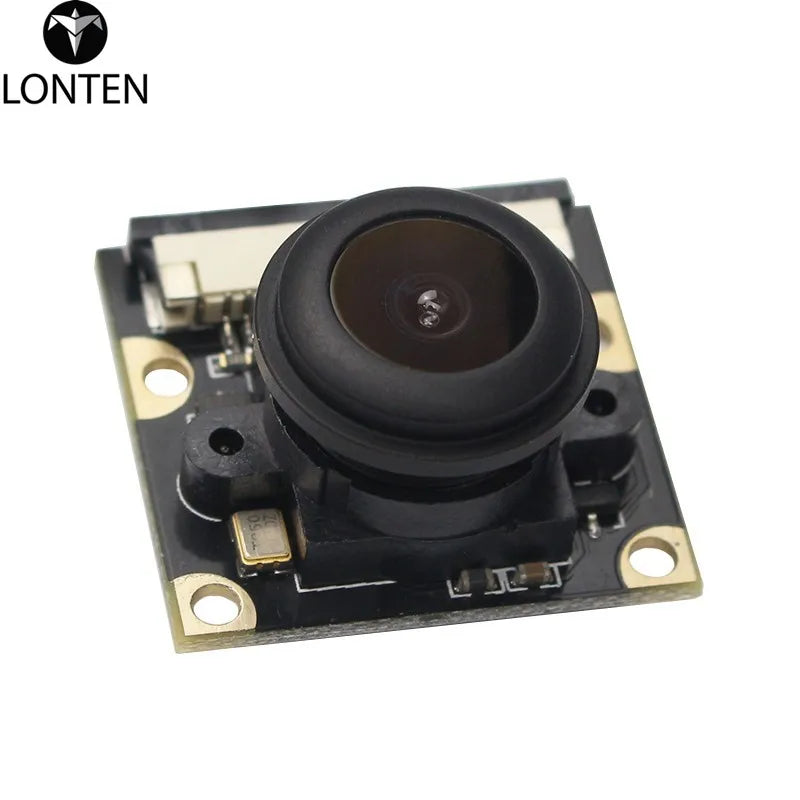

Introduction:

This is a fish eye ( wide angle ) night vision camera for raspberry pi, if you want to use the night vision function , it must be installed 2 infrared LED lights on the camera .

If you want to buy IR lights, please click the picture.





Features:

1. Fish eye wide angle lens

2. Night vision camera ( must use with the infrared lights )

3. 5 MP pixel

4. Support 1080P resolution



Camera specifications:

CCD size : 1/4inch

Sensor best resolution : 1080p

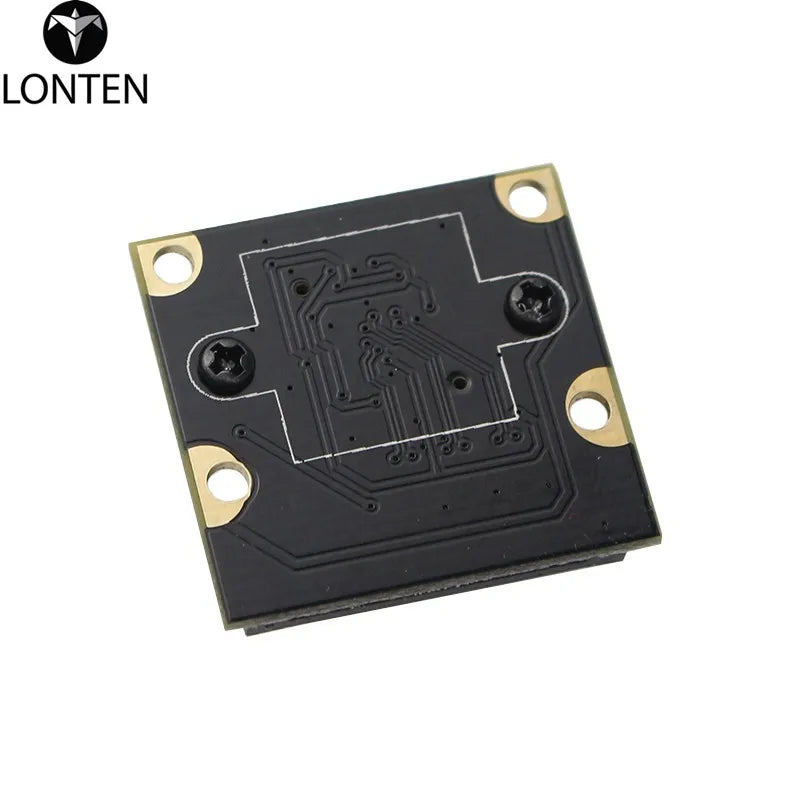

4 screw holes

Used for attachment

Focal Length : 2.1

Diagonal angle : 130 degree

Provides 3.3V power output

Dimension: 25mm x 24mm



We recommend a new fisheye 175 degree camera to you, if you're interested, please click the picture to view.





Package included :

1X camera

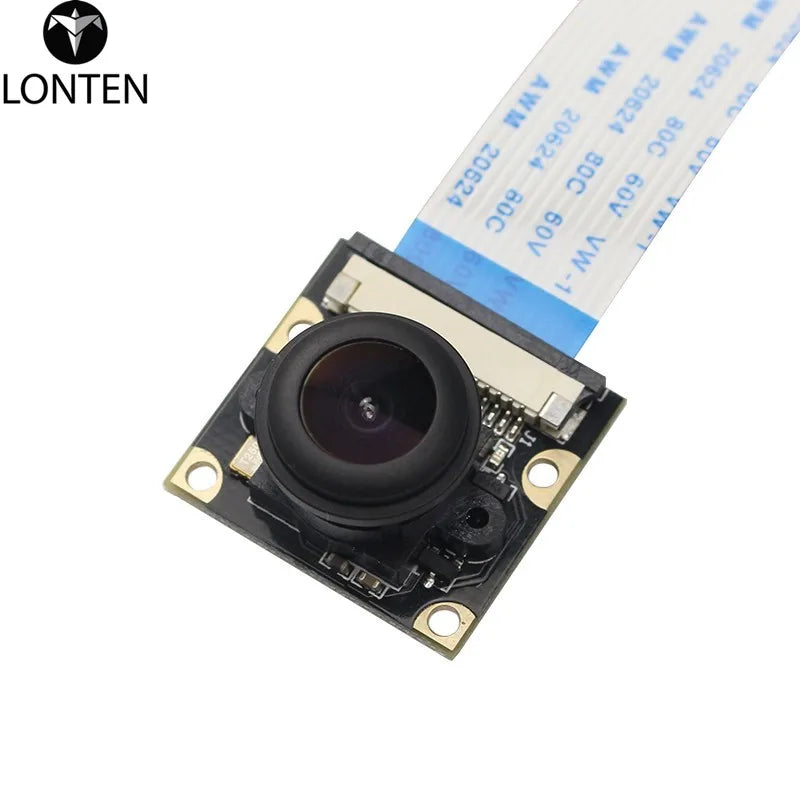

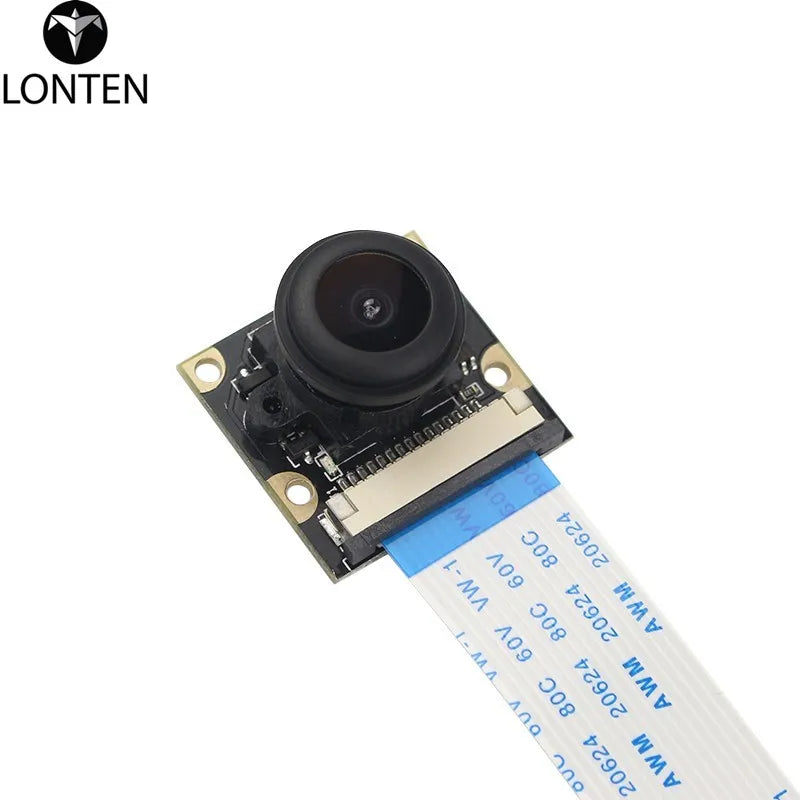

1X15cm FPC cable



Using steps:
1.Please ensure the raspberry Pi system is the newer version, and open the camera function.Type the command: sudo raspi - config and check the camera function of the fifth.The picture below:



2. Then select: Enable



3. Then the system return to the interface itself. Choose the “Finish “ , it will restart , If it doesn't restart itself , please restart it manual  ( by yourself )



4. After the raspberry pi system restart , you can use raspberry pi camera now.

If you want to take photo, you can run the command : raspistill

For example,input: raspistill –t 2000  -o 1.jpg
-t: ( the time of waiting to take the photo ,5000 is five seconds). – o 1.jpg (1.jpg is command of file)

Tip:

Hardware connection:
1. Soft cable, 90-degree vertical connector, port next to it. When connecting the contact side facing the interface.
2. Remove the protective film before using the lens
3. bare boards, pay attention to ESD damage, guard against static electricity!
