Custom Custom Lonten Raspberry Pi 3 Night Vision Camera 5MP Adjustable-focus OV5647 Sensor Camera + 30CM FFC for Raspberry Pi 3 Model B Plus Manufacturer

Name: Custom Custom Lonten Raspberry Pi 3 Night Vision Camera 5MP Adjustable-focus OV5647 Sensor Camera + 30CM FFC for Raspberry Pi 3 Model B Plus Manufacturer
Brand: Lonten Tech
Price: 9.13 USD
Availability: InStock

$9.13 USD

~~$9.13 USD~~ $9.13 USD

Sale Sold out

Quantity

Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provider of electronic component ,for more please contact.

Item specifics

:
Accory Type:Camera Module
Compatible With:Raspberry Pi 3B+/3/2
Use For :Raspberry Pi 2 / 3 / 3B+
Night Version:Yes
Focal Adjustable:Yes
Pixel:5MP
Diagonal Angle:60 degree

Product Description

Related products, you may like:

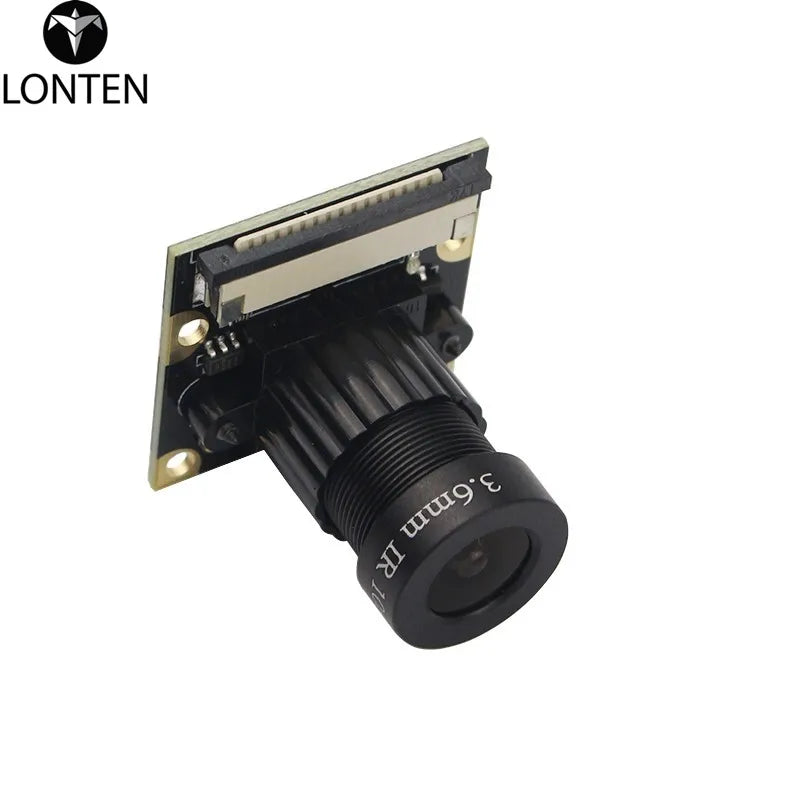

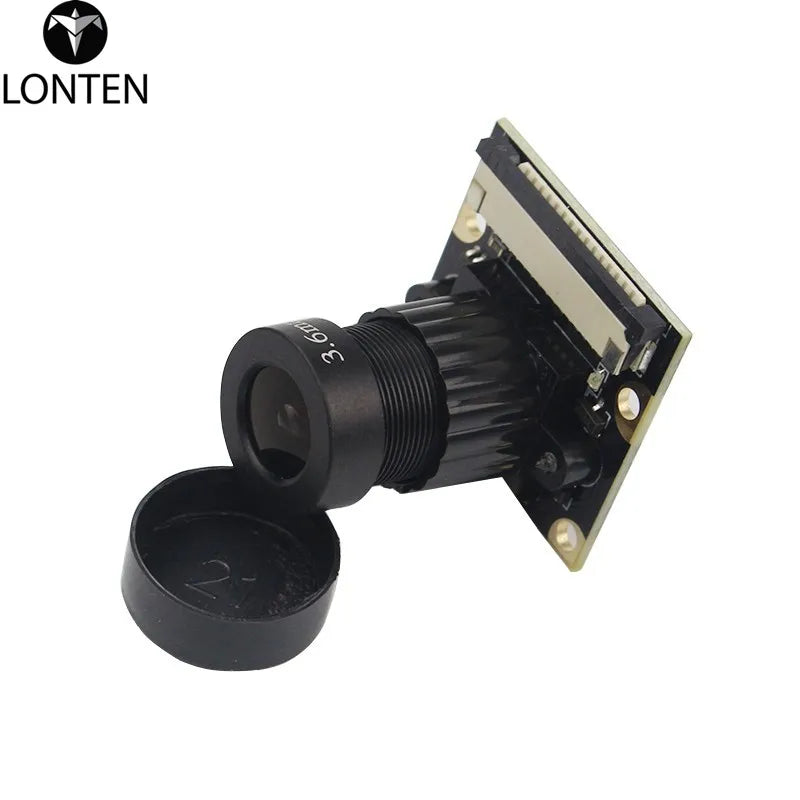

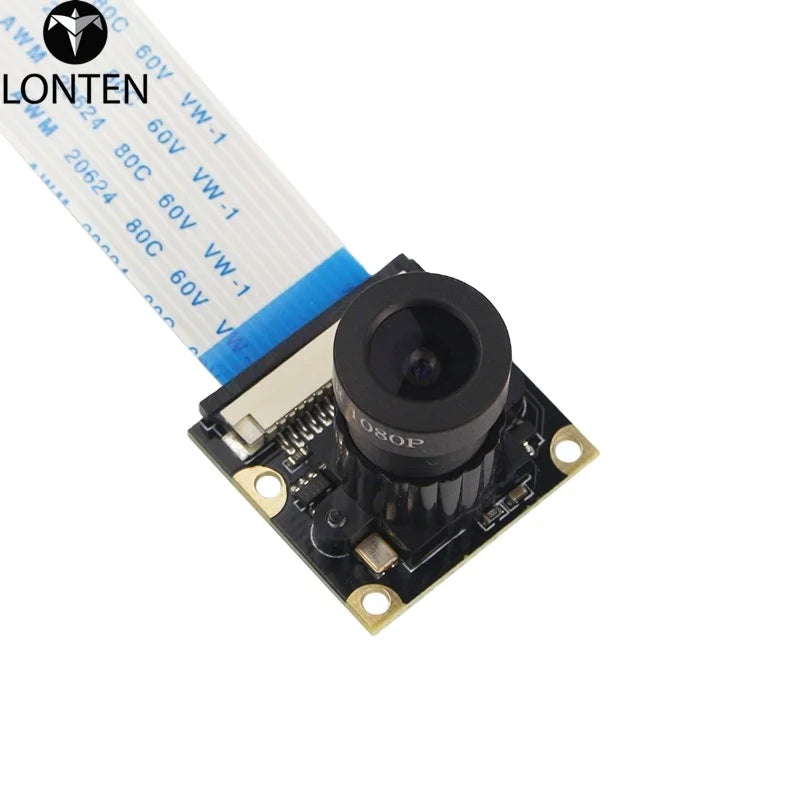

Raspberry Pi 3 Model B+ Night Vision Camera 5 Megapixel OV5647 Sensor Adjustable-focus Raspberry Pi 3 camera + 30CM FFC for RPI 2

Features:

1. Raspberry Pi Camera, supports all revisions of the Pi

2. 5 megapixel OV5647 sensor

3. Camera specifications

4. CCD size : 1/4inch

5. Aperture (F) : 1.8

6. Focal Length : 3.6mm adjustable

7. Diagonal angle : 60 degree

8. Sensor best resolution : 1080p

9. 4 screw holes

10. Used for attachment

11. Provides 3.3V power output

12. Dimension: 25mm x 24mm

We recommend a new fisheye 175 degree camera to you, if you're interested, please click the picture to view.

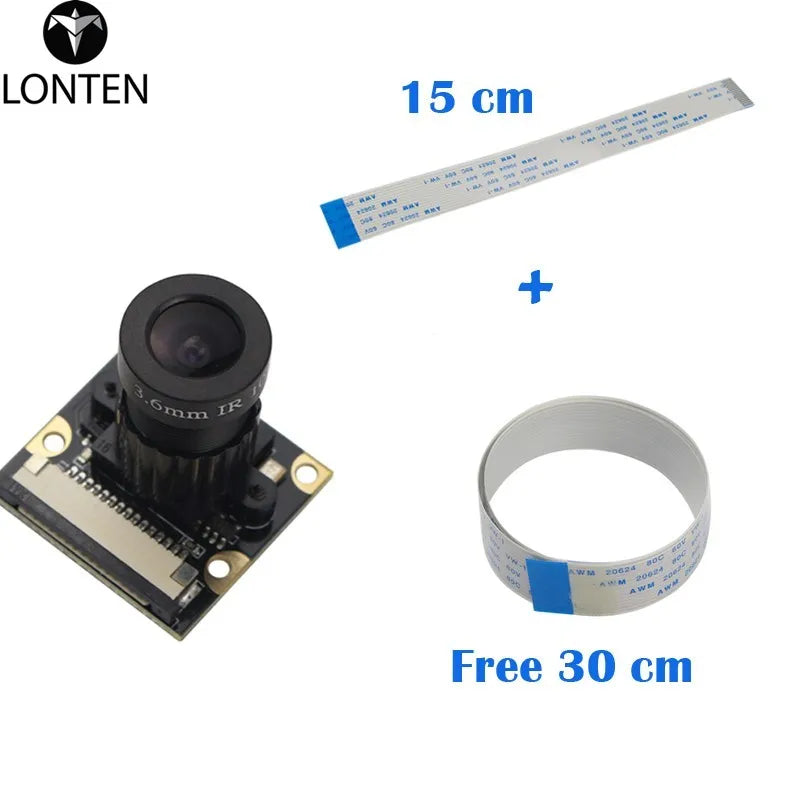

Package list:

1 X Raspberry Pi camera

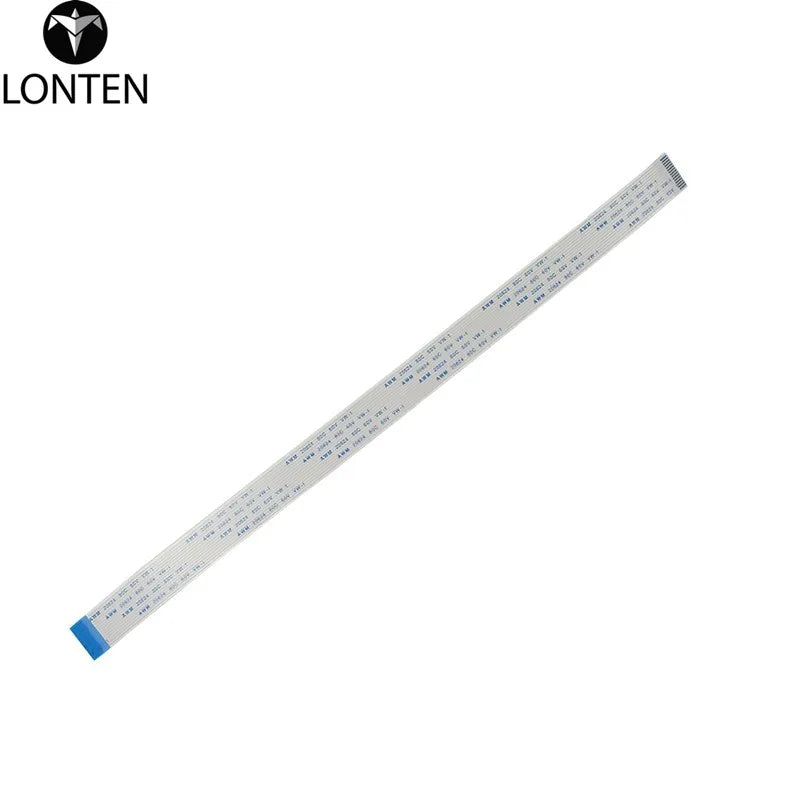

1 X 15cm FPC cable

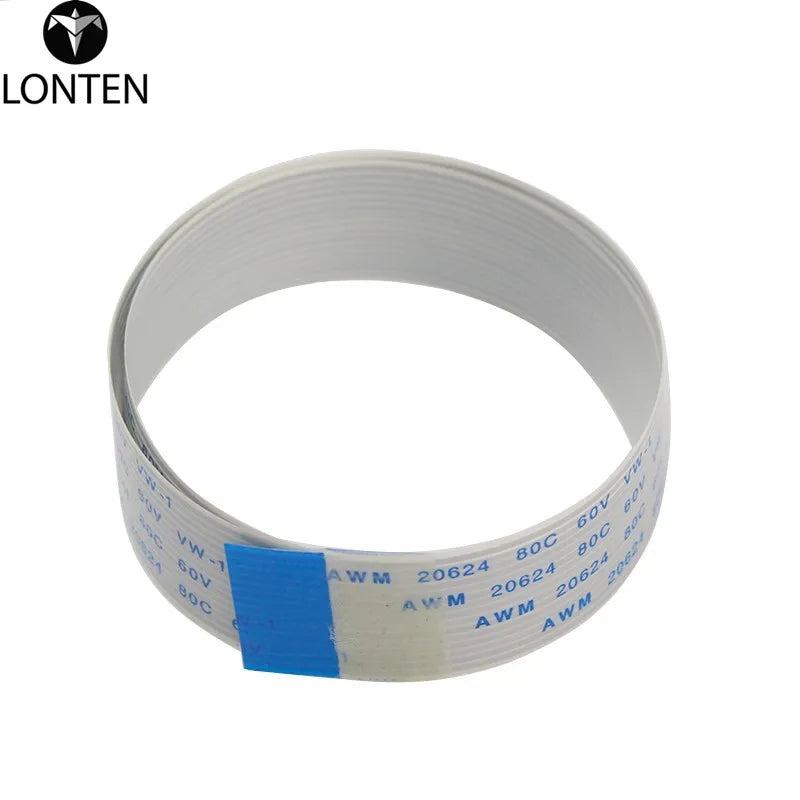

1 X 30cm FPC cable

Using steps:

1. Please ensure the raspberry Pi system is the newer version, and open the camera function.Type the command: sudo raspi - config and check the camera function of the fifth.The picture below:

2. Then select: Enable

3. Then the system return to the interface itself. Choose the “Finish “ , it will restart , If it doesn't restart itself , please restart it manual ( by yourself )

4. After the raspberry pi system restart , you can use raspberry pi camera now.

If you want to take photo, you can run the command : raspistill

For example,input: raspistill –t 2000 -o 1.jpg
-t: ( the time of waiting to take the photo ,5000 is five seconds). – o 1.jpg (1.jpg is command of file)

Tip:

Hardware connection:

1. Soft cable, 90-degree vertical connector, port next to it. When connecting the contact side facing the interface.

2. Remove the protective film before using the lens

3. bare boards, pay attention to ESD damage, guard against static electricity!

Software:

1. RPi firmware and raspi-config has been updated to the camera, do a apt-get update; apt-get upgrade;

2. raspi-config, select the camera, start RPi firmware in the camera driver, then reboot

3. Use the command-line program raspivid and raspistill operating camera to capture video clips or images

4. The captured video clip needs to play with mplayer
