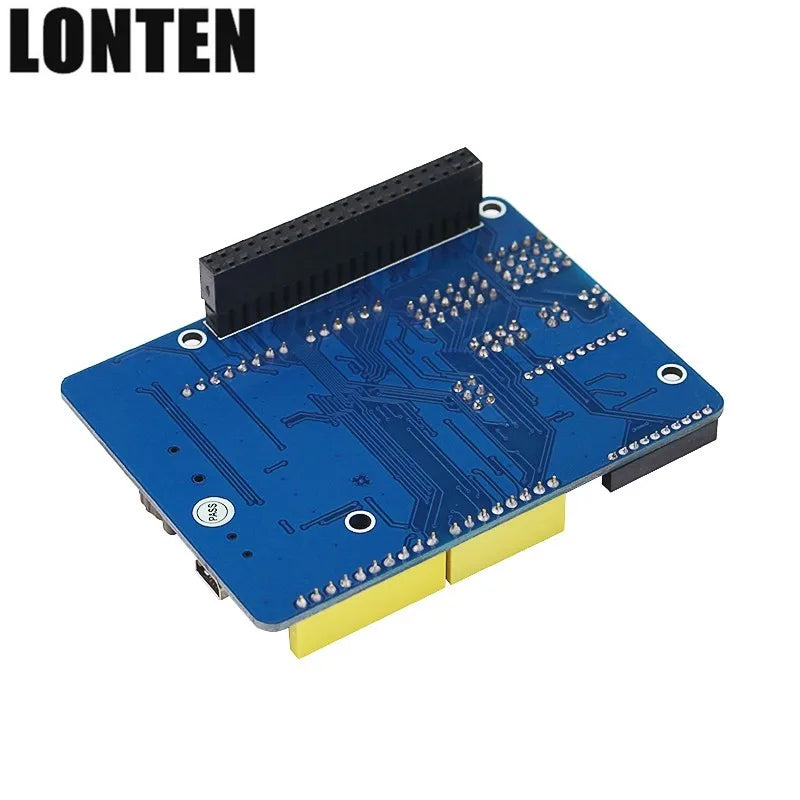

Custom Lonten Raspberry Pi 3 Model B+ Expansion Board ARPI600 SupportsXBEE GSM/GPRS/Motor Control Shield for Development Board DIY Manufacturer

Custom Lonten Raspberry Pi 3 Model B+ Expansion Board ARPI600 SupportsXBEE GSM/GPRS/Motor Control Shield for Development Board DIY Manufacturer

$17.40 USD
$17.40 USD $17.40 USD
Sale Sold out
Note: The price is Bundle(optiona)1,Lonten provide electronic component for robotics,welcome OEM ,ODM,for more please contact.
Item specifics
< ="">
  • :
  • Accory Type: Extension Board
  • Compatible With: for Raspberry Pi
    • Product Description

    The customer who buy this product also pay attention to these products:

    Breadboard Kit 170 400 830 Tie Points Solderl Breadboard Self-adhesive PCB Test Board +130 Jumper Wire Line for
    2.4G Wirel Mini Keyboard Spanish Russian German version Mouse Toucad Remote Control Backlight Keyboard for TV Box




    Raspberry Pi 3 A + B + 2 Expansion Board ARPI600 SupportsXBEE GSM/GPRS/Motor Control Shield for



    Overview

    is a massive ecosystem, if there's a way for the Raspberry Pi interface to adapt to pinouts, it is possible to use the Pi toher with vast shields and hardware/software resources. The ARPI600 is just intended for this.

    What's more, the ARPI600 also support XBee modes, make it easy to add wirel feature to your great project.



    Supported Pi

    Raspberry Pi 1 Model A+

    Raspberry Pi 1 Model B+

    Raspberry Pi 2 Model B

    Raspberry Pi 3 Model



    ARPI600 Features

    1. Compatible with UNO, Leonardo, easy to connect with various shields

    2. XBee connector for connecting various XBee modes

    3. Sensor interface for connecting various sensors

    4. Onboard USB TO UART for serial port deging, also can be configured as XBee USB adapter

    5. Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for interface, 5 channels for sensors)

    6. Onboard RTC

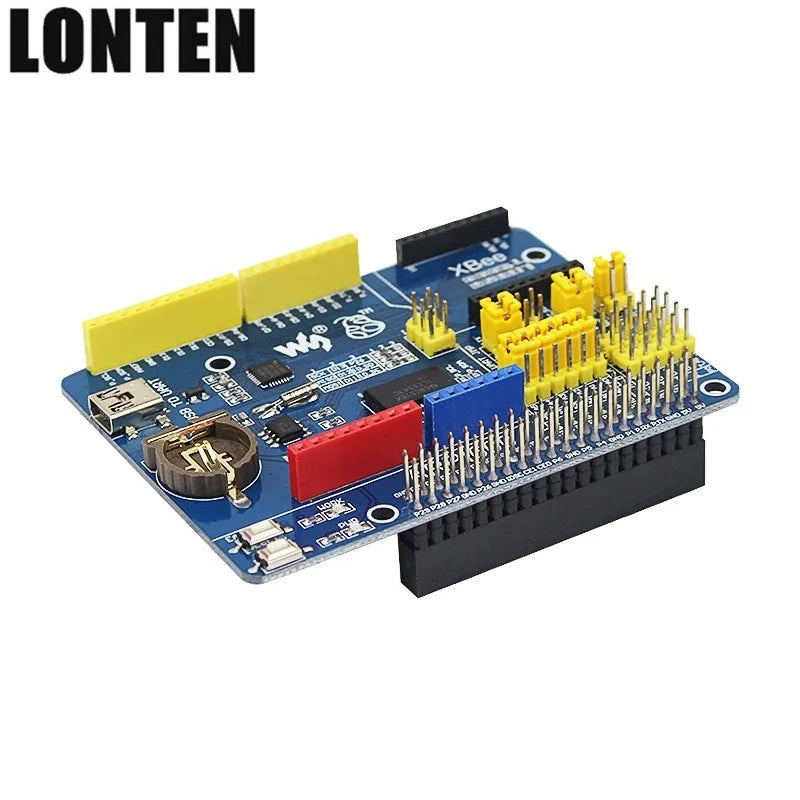

    What's on the ARPI600



    1.   connector : for connecting shields



    2.   ICSP interface :  ICSP



    3.   XBee connector : for connecting XBee communication modes



    4.   Sensor interface : for connecting sensors

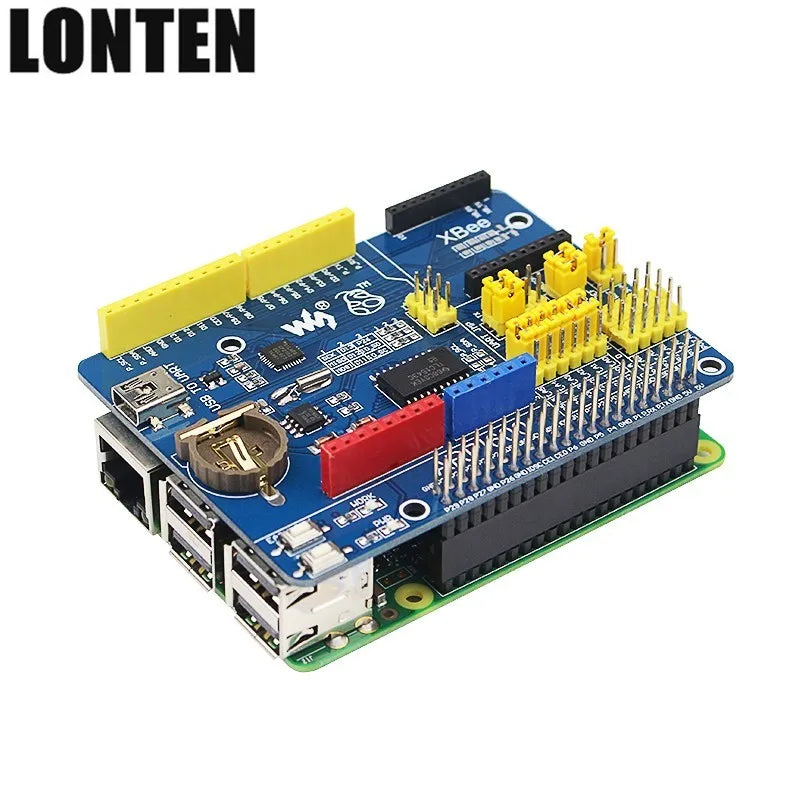

    5.   Raspberry Pi connector : for connecting Raspberry Pi



    6.   USB TO UART



    7.   TLC1543 : AD converter



    8.   PCF8563 : RTC



    9.   CP2102



    10.  32.768KHz crystal : for RTC



    11.  Power indicator



    12.  XBee state LED



    13.  XBee and interface RESET button



    14.  XBee EASYLINK button



    15.  RTC battery holder : for CR1220 button battery



    16.  TLC1543 reference voltage configuration jumper



    17.  RTC jumper



    18.  UART jumper

    1). when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port

    2). when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port

    3).  when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port



    19.  AD selection jumper

    1). short 2 and 3 : A0-A5 as AD input

    2). short 1 and 2 : A0-A5 as digital control



    20.  I2C selection jumper

    short the jumper : A4-A5 as I2C control (the A4-A5 of AD selection jumper shod be opened)



    21.  SPI selection jumper

    1). short 1 and 2 : D11-D13 as SPI control (defat)

    2). short 2 and 3 : D11-D13 as digital control







    Package list:





    1 x ARPI600 ( not include raspberry pi )



    1 x USB type A plug to mini-B plug cable



    1 x RPi screws pack (2pcs)
