Custom Lonten Raspberry Pi 3 Model B+ Camera Kit 5MP Focal Adjustable Night Vision Camera+Holder +IR Lights+FFC Cable for Raspberry Pi Manufacturer

Custom Lonten Raspberry Pi 3 Model B+ Camera Kit 5MP Focal Adjustable Night Vision Camera+Holder +IR Lights+FFC Cable for Raspberry Pi Manufacturer

$13.56 USD
$13.56 USD $13.56 USD
Sale Sold out
Note: The price is Bundle(optiona)1,Lonten provide electronic component for robotics,welcome OEM ,ODM,for more please contact.
Item specifics
< ="">
  • :
  • Compatible With: Raspberry Pi 3 Model B+ / 3B / 2B / Zero
  • Accory Type: Camera Mode
  • Camera : Focal Adjustable ,Night Vsion , 5MP
  • Cable: 50 cm,15cm
  • Holder: Acrylic
  • Camera Cable for Raspberry Pi 3 : 15 cm x 1 , 50 cm x 1
  • Camera Cable for Raspberry Pi Zero: 30 cm x 1
  • Infrared LED Lights: 2 pieces
    • Product Description

    The customer who buy this product also pay attention to these products :





    Raspberry Pi 3 Model B+ Camera Kit 5MP Focal Adjustable Night Vision Camera+Holder +IR Lights+FFC Cable for Raspberry Pi Zero W/1.3





    Introduction :

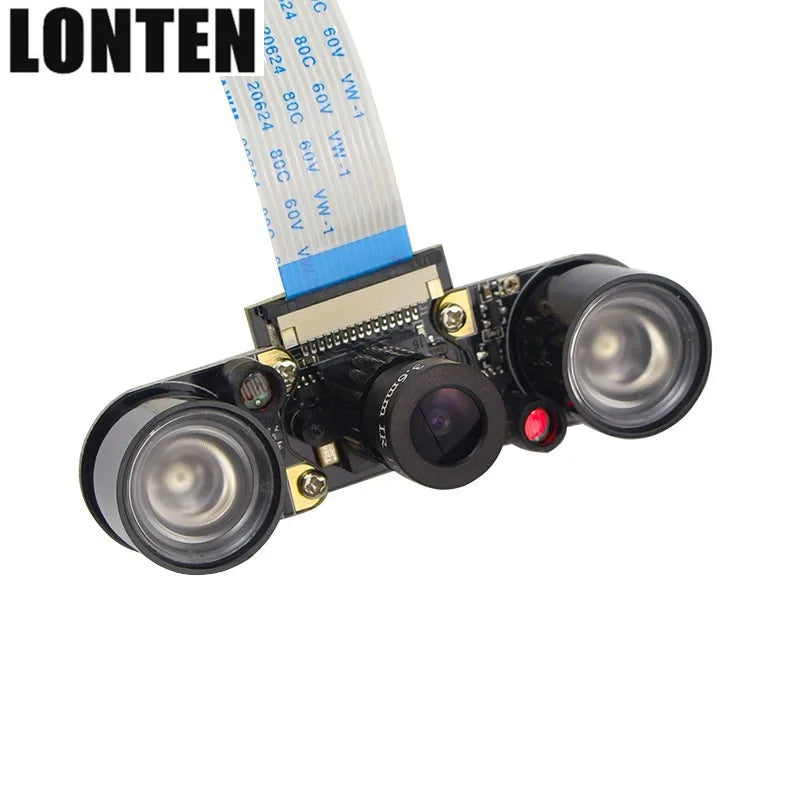

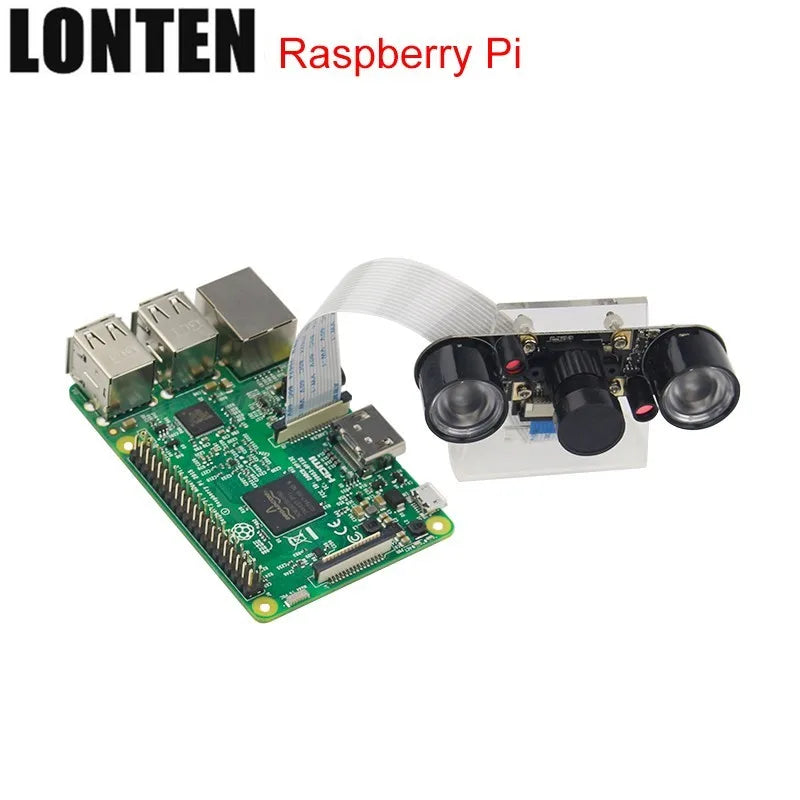

    This is a raspberry pi camera kit , include night vision focal adjustable camera , IR sensor lights , acrylic holder , camera cable for both Raspberry Pi 3 Model B+ / 3 / 2 and Raspberry Pi Zero , you can use it to Raspberry Pi 3 Model B+ / 3 / 2 or Raspberry Pi Zero W/1.3 just by change the camera cable . And we prepare the small screw driver for you to install the camera more conveniently . The acrylic holder is specially for this camera , which is small but usef .







    Features :

    1. Supports all revisions of the Raspberry Pi

    2. Night vision camera. If you want the night vision function , must install the 2 infrared led lights .

    3. Can acc sensitive lights . Four screw holes can be installed sensitive infrared light or other fill light , you can switch ly , no longer worried about the light is too weak, underexposed sensitive infrared light

    4. Focal adjustable (manually)

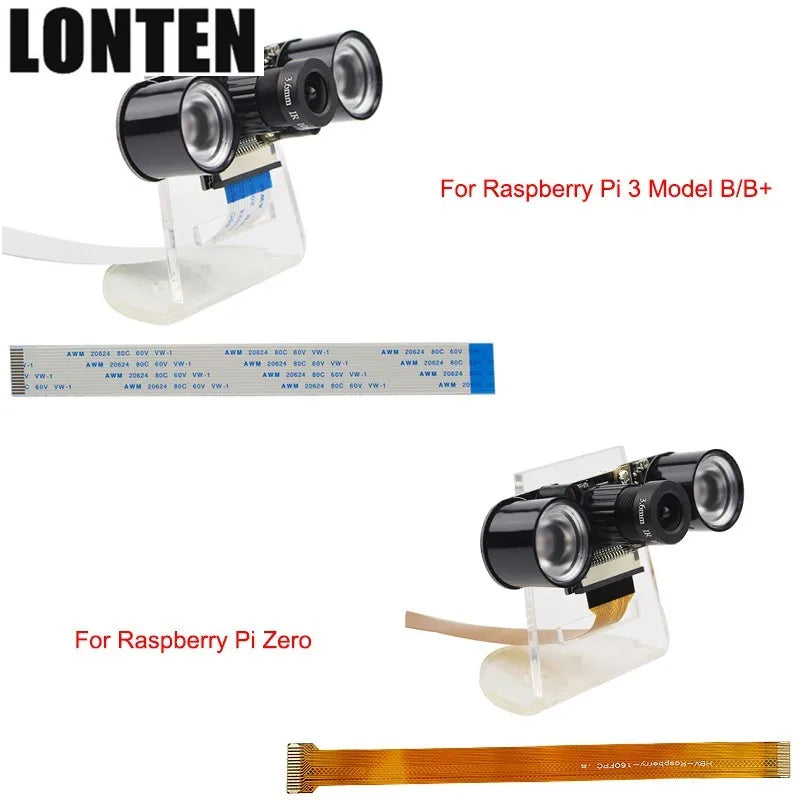

    5. Use for both Raspberry Pi 3 Model B+ / 3 / 2 and Raspberry Pi Zero W

    ​6. When use in daylight , to a better effect , you can use the camera without IR light .





    Specification :



    1. OV5647 sensor

    2. Pixel 5 megapixel

    3. Lens : 1/4 5M

    4. CCD size: 1 / 4inch

    5. Aperture (F): 1.8

    6. Focal Length: 3.6mm adjustable

    7. Diagonal angle: 60 degree

    8. Sensor best resolution: 1080p

    9. 4 screw holes : used for attachment and connect power ( 3.3V output )

    10. Dimension: 25mm x 24mm

    11. Metal frame

    12. 3.3V power supply interface can be acced sensitive infrared lamp or other device

    13. Transparent lights for 1W high power infrared light photoreceptor 850

    14. Photoresistor : detecting ambient light intensity

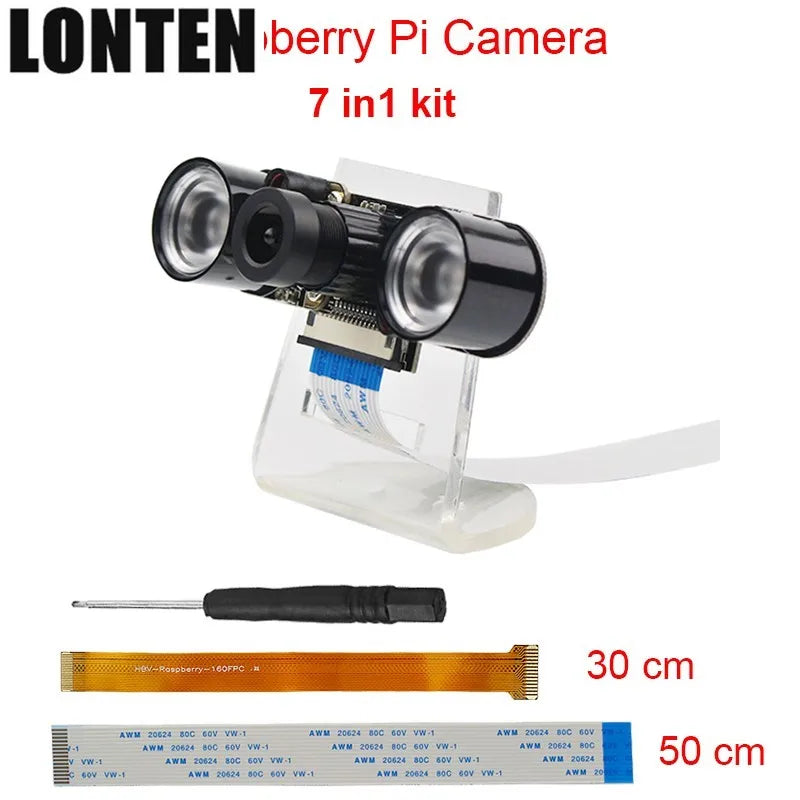

    Package Included :

    1 x Night Vision Camera

    2 x IR Lights

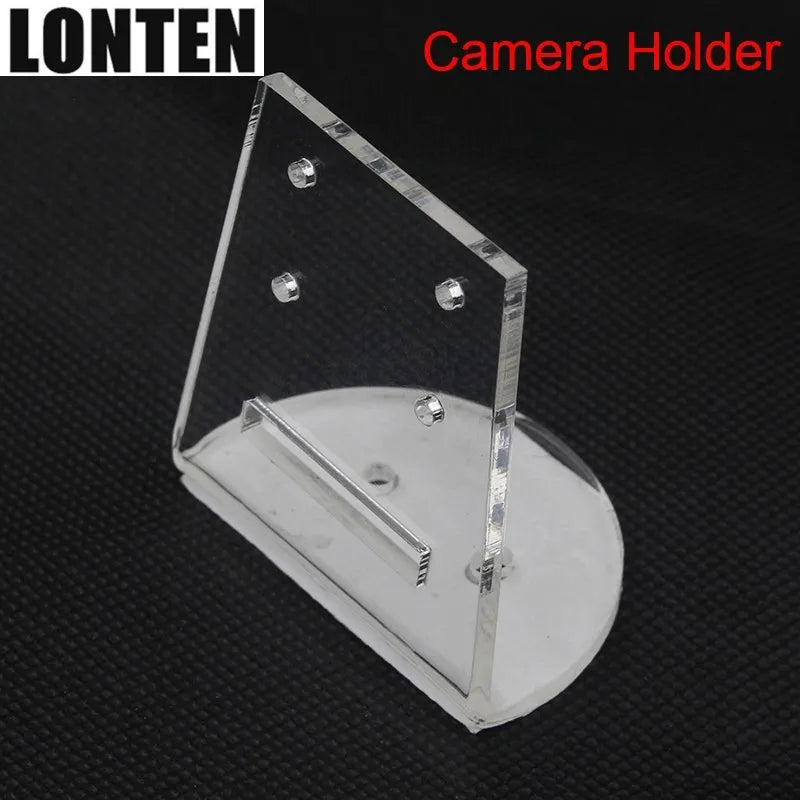

    1 x Acrylic Holder

    1 x 15 cm Raspberry Pi 3 Camera Cable

    1 x 50 cm Raspberry Pi 3 Camera Cable

    1 x 30 cm Raspberry Pi Zero Camera Cable

    1 x Screw Driver

    ( not include Raspberry Pi )










    Effect Picture:

    Using steps:

    1.Please ensure the raspberry Pi system is the newer version, and open the camera function.Type the command: sudo raspi - config and check the camera function of the fifth.The picture below:

    2. Then select: Enable





    3. Then the system return to the interface itself. Choose the “Finish “ , it will restart , If it doesn't restart itself , please restart it manual  ( by yourself )

    4. After the raspberry pi system restart , you can use raspberry pi camera now.

    If you want to take photo, you can run the command : raspistill

    For example,input: raspistill –t 2000  -o 1.jpg
    -t: ( the time of waiting to take the photo ,5000 is five seconds). – o 1.jpg (1.jpg is command of file)

    Tip:

    Hardware connection:
    1. Soft cable, 90-degree vertical connector, port next to it. When connecting the contact side facing the interface.
    2. Remove the protective film before using the lens
    3. bare boards, pay attention to ESD damage, guard against static electricity!

    Software:
    1. RPi firmware and raspi-config has been updated to the camera, do a apt- update; apt- upgrade;
    2. raspi-config, select the camera, start RPi firmware in the camera driver, then reboot
    3. Use the command-line program raspivid and raspistill operating camera to capture video clips or images
    4. The captured video clip needs to play with mplayer



    We accept Trade Assurance .You cod use Visa and Mastercard,T/T,Western Union,Moneybookers through Trade Assurance,etc.

    1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

    2. Orders proced timely after the payment verification.
    3. We only ship to confirmed order addres. Your order addr MUST MATCH your Shipping addr.
    4. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particarly during the holiday season.
    5. If you have not received your shipment within estimated days from payment, please contact us. We will track the shipment and back to you as soon as possible with a reply. Our goal is customer satisfaction!
    6. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
    7. Delivery Time: Please contact us for more details.
    1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possion more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.
    2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return.
    3. We will refund YOUR FL NING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accories included, AFTER BOTH Buyer and Seller cancel the transaction from . OR, you may choose to have a replacement.

    4.  We will bear all the shipping cost if the produt(s) is (are) not as advertised.

    Since your feedback is very important to our busin development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. If you dissatisfied with it, please kindly contact us before leaving any negative and neutral feedback. We will try our best to solve the problem and satisfy you. Thank you very much!





    Packaging Details
    < ="">
  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
    •  Welcome Customize Order!
