Support Russian and DVB-T2/S2/C
QT526C V1.3 Support Digital Signal DVB-S2 DVB-C DVB-T2 ATV Universal LCD Driver Board Dual usb play media Russian
We will send the firmwares to you after you order.
Support Country
Germany, Great Britain, France, Italy, Poland, Spain, Belgium, Netherlands, Switzerland, Portugal, Sweden, Finland, Czech Republic, Hungary, Slovenia, Greece.
Russia, Turkey, Denmark, Norway, Taiwan, Ireland, Austria, Slovakia, Croatia, Serbia, Ghana, Vietnam, Belarus, Thailand, Iran, Dubai, Burundi, Afghanistan, Malaysia, Pakistan, Kazakhstan, Bangladesh, Myanmar, Azerbaijan, Uganda , Ukraine, Georgia, Yemen, Macao, others.
Support Digital Signal T2 S2
Description:
Model: T.S215.69
Support TV Signal: DVB-C/T/T2/S2/ATV
Support Language: Russian, English, Chinese, French, Espanol, Deutsch, Nederlands, Portugues, German, Thai, Vietnem, Arabe, Persian.
Scheme of the chip:
o output power: 2x8W
Consumption: operating mode -> = 6W
simple - <0.3W
Video input: TV: DVB-T / T2 / S2, DVB-C, ANALOG TV (ATV)
VGA
AV IN
Input Interface: PC / / TV / USB multimedia playing
Voltage: DC 12V 4A
Screen interface: LVDS Single 6 / 8 , Double 6 / 8
Screen voltage: 3.3V / 5V / 12V
Resolution: Support high screen 1920 * 1080, 15-42 inch LVDS screen
Additional inputs outputs: o mini jack 3.5mm USB
USB slot can be used for updating software and playing multi-media, such as Movie, MP3 and JPEG.text.

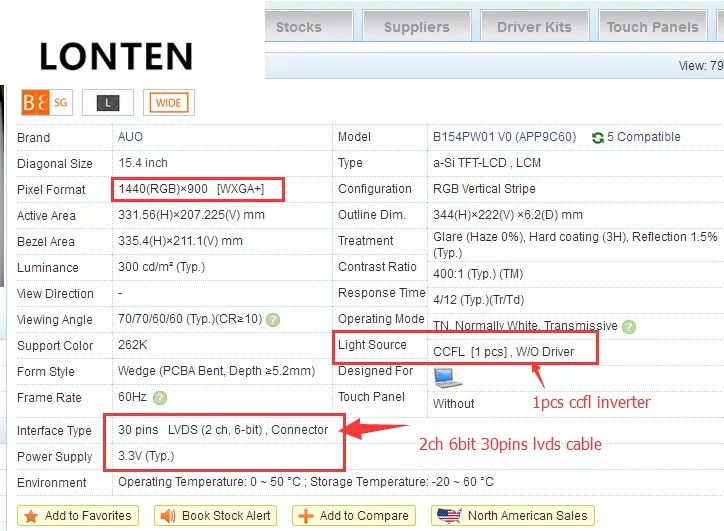

How to know if your panel suitable for this board?
Step 2: Leave a message when you order ,so we can send the firmware to you.
Supported resolutions:
Step of USB upgrade :
1.Put the firmware of "S2_EU.code.bin" in formatted USB flash disk ,then insert the USB disk and the 7KEY-Button to the board
2.After turn on the power ,the light of the 7key button will be Red then flash red and blue.after about 1 minute, the light stop flashing and be red then blue. it means upgrade has finished.(Note that write programs do not power outages, crashing won't be able to use)
How to into Factory setting?
Press"MENU" button then press"1 1 4 7"

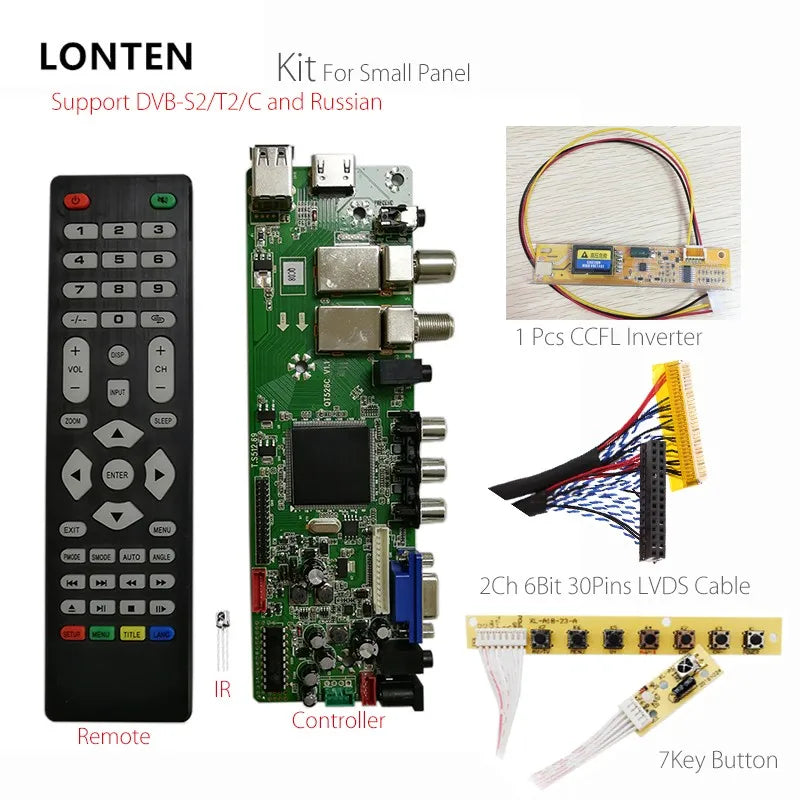

Package included:
1x Controller board

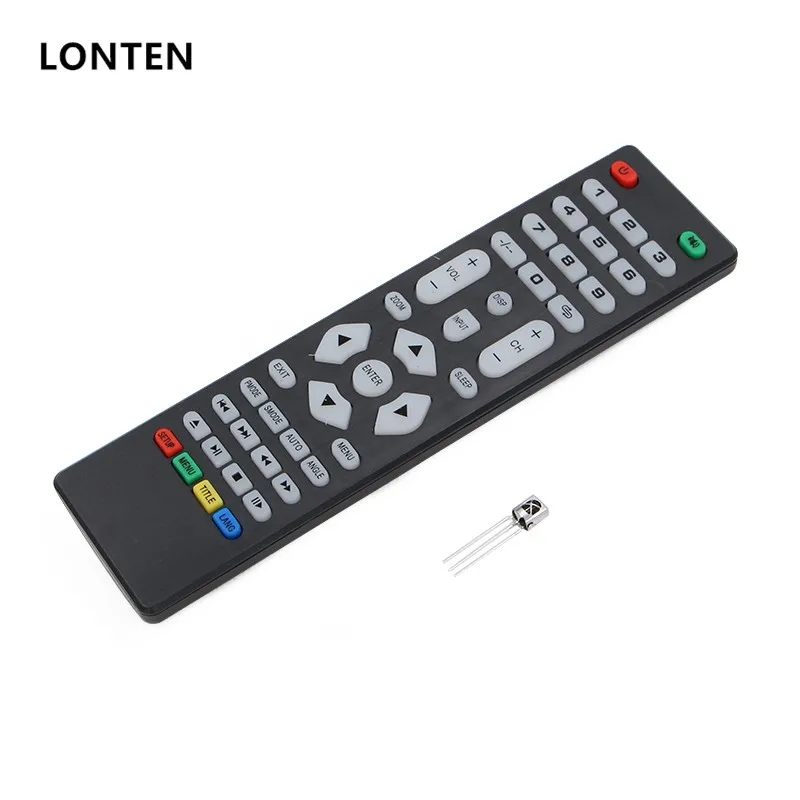

1x Remote
1x IR

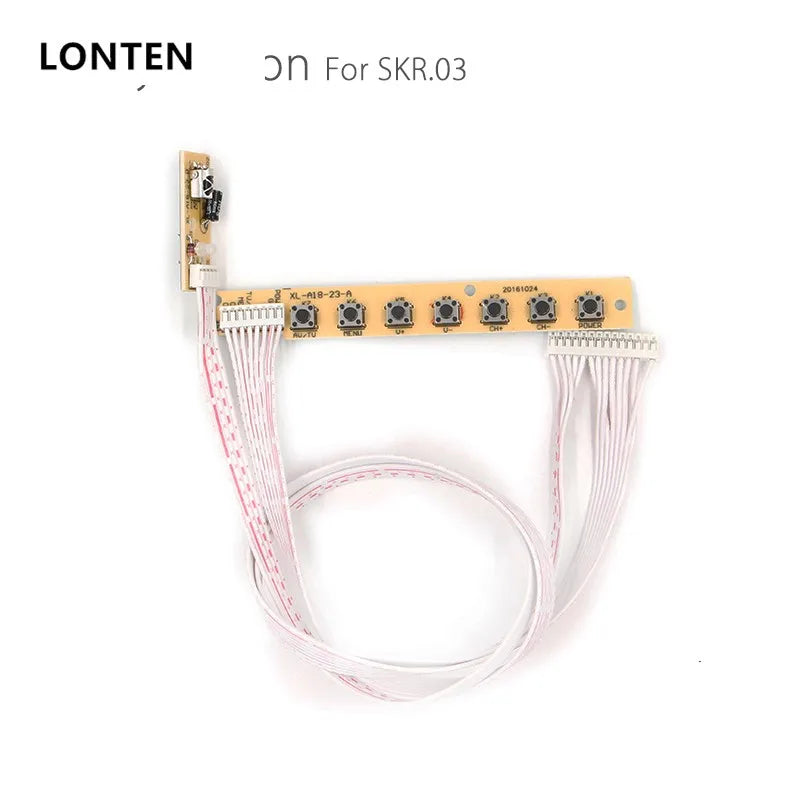

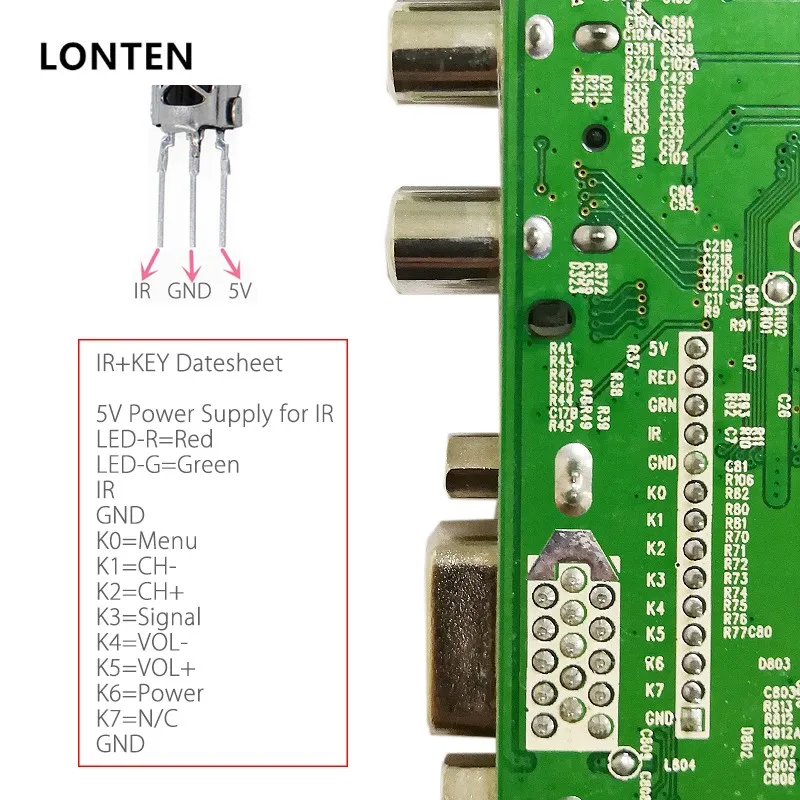

1x 7Key button

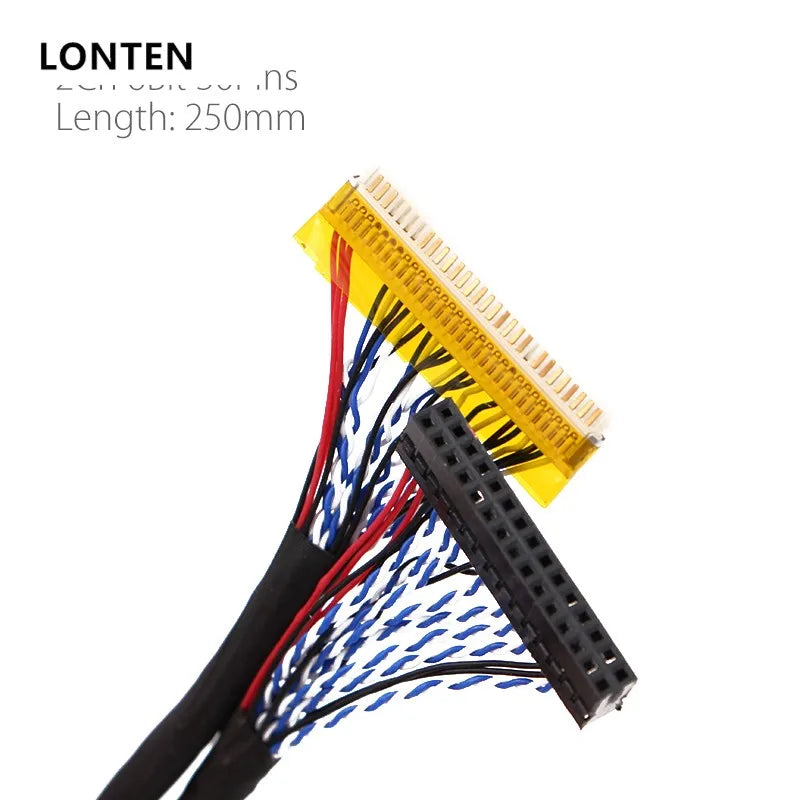

1x 2ch 6bit 30Pins LVDS Cable

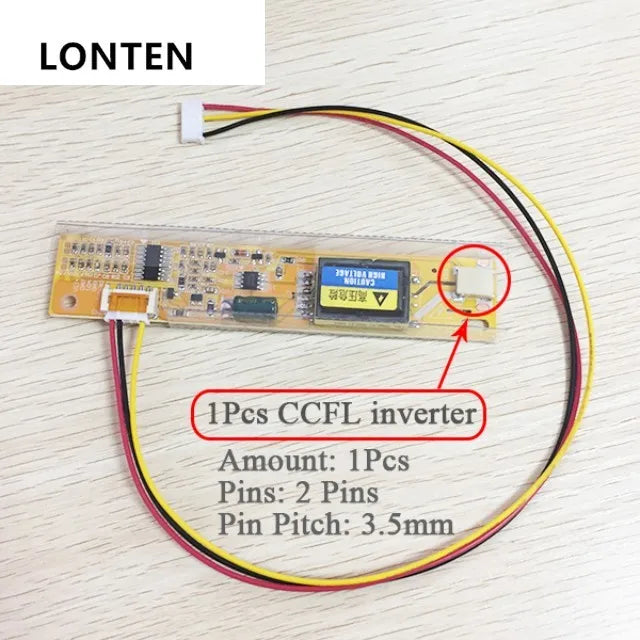

1x 1PCS CCFL inverter
NOT INCLUDE LVDS CABLE
This kit is for backlight is 1pcs ccfl inverter and lvds cable is 2ch 6bit 30pins. if the lvds cable and inverter are different, pls buy another kit or contact us we will help you to pick.
check the photo below

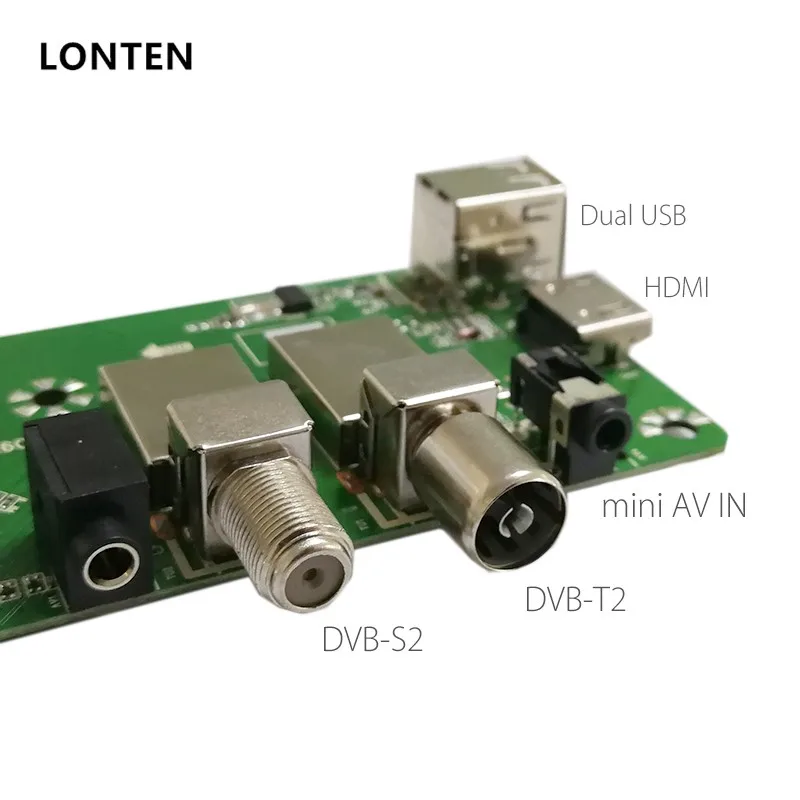

Support TV signal

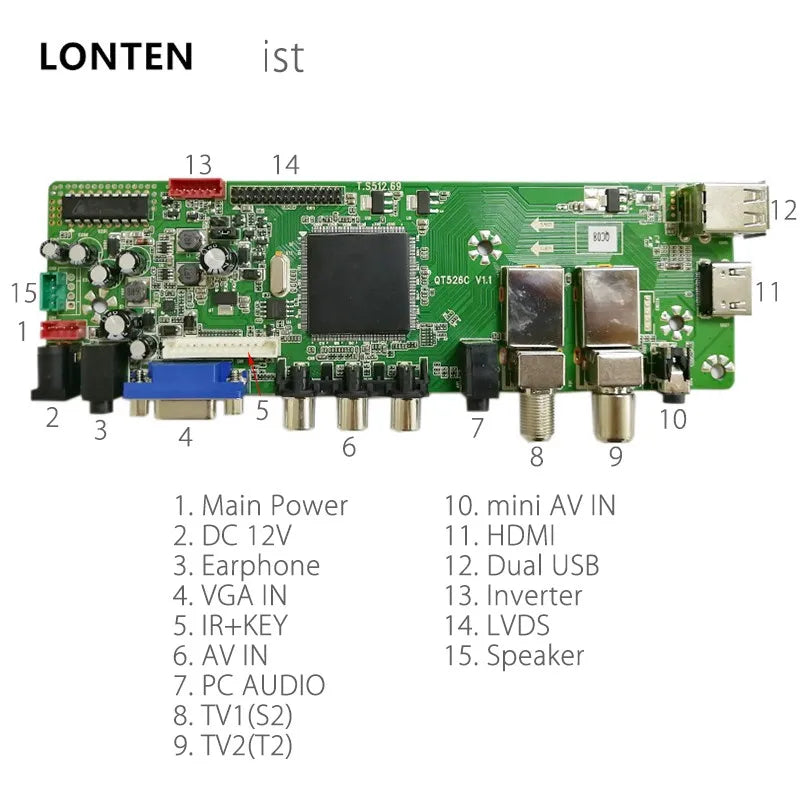

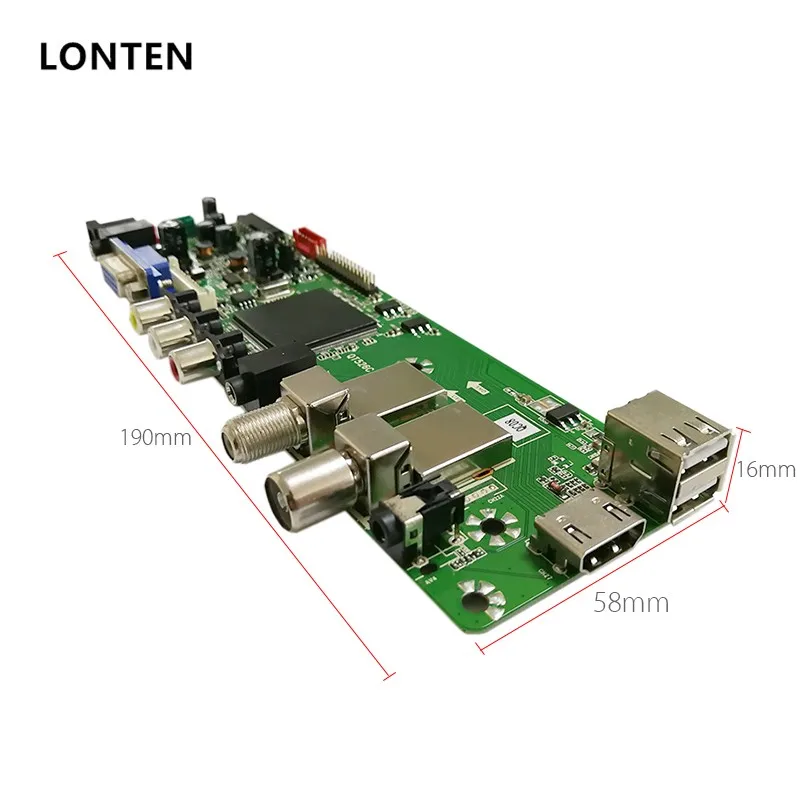

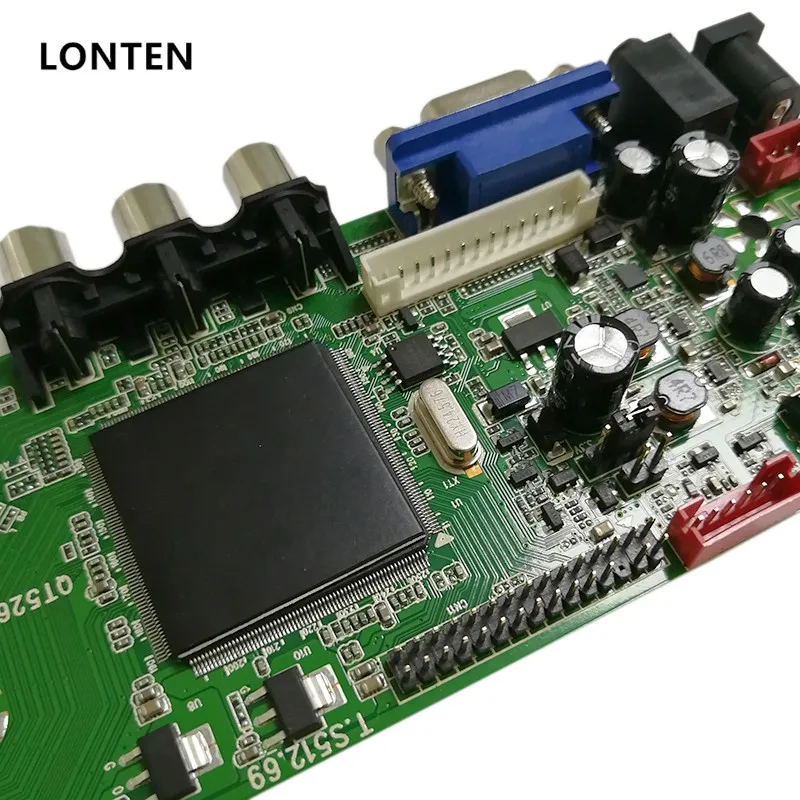

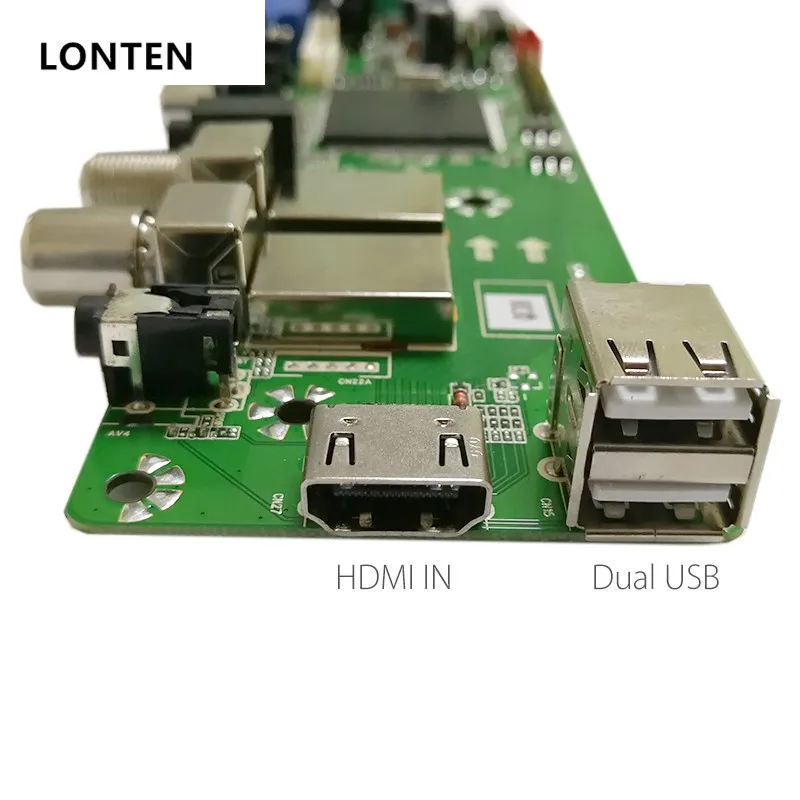

Product Photos
Connection just for reference (For Panel needs inverter)
Below are the test Photos (take by us, Pls don't alter the pics)
Press Menu will see as below
1. CHANNEL
2. PICTURE
3. SOUND
4. FEATURE
5. Set up

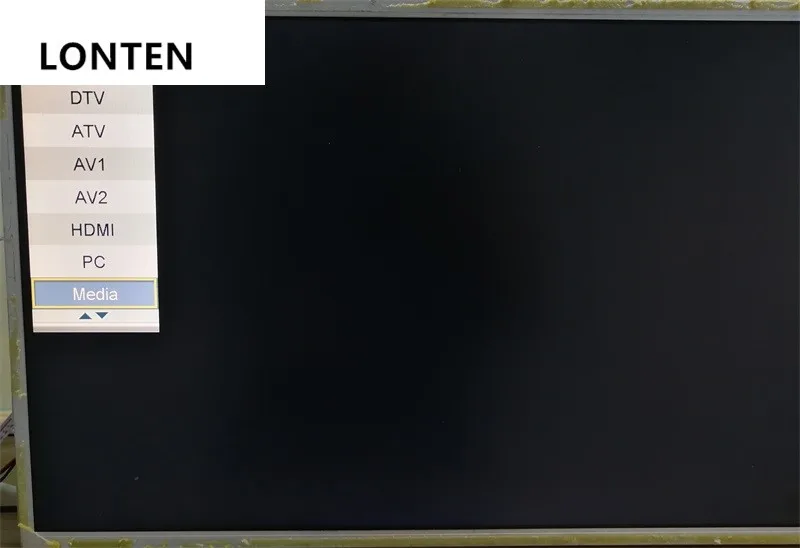

PRESS "INPUT" will see as below
Then Choose"USB" into USB2.0, you can play photo/music/movie/text
1. PHOTO
2. MUSIC
3. MOVIE
4. e-book
Notice:
High compression ratio files like MKV AVI may appear the situation like no sound or no display
you can transform them to RMVB/MP4 or other low compression ratio files.
Press"MENU 1147" into "FACTORY SETTING"
If the lcd panel display is bad, you can adjust the LVDS parameter.
You can set the OSD language
You can also capture LOGO or Mirror display.
Thanks for choosing us. We are professional on LCD controller board.
That will be very pleausre if you choose us.
Any question about the LCD just let us know.
We will help you and beside you. :)
