Custom Custom Lonten NEW DC12V 2 Channel Relay IOT Smart Home APP Remote Control Switch Module Manufacturer
Custom Custom Lonten NEW DC12V 2 Channel Relay IOT Smart Home APP Remote Control Switch Module Manufacturer
Regular price
$7.13 USD
Regular price
$7.13 USD
Sale price
$7.13 USD
Unit price
per
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provider of electronic component ,for more please contact.
Item specifics
- :
- Type:Voltage Regulator
- Condition:New
- Supply Voltage:DC12V
Product Description

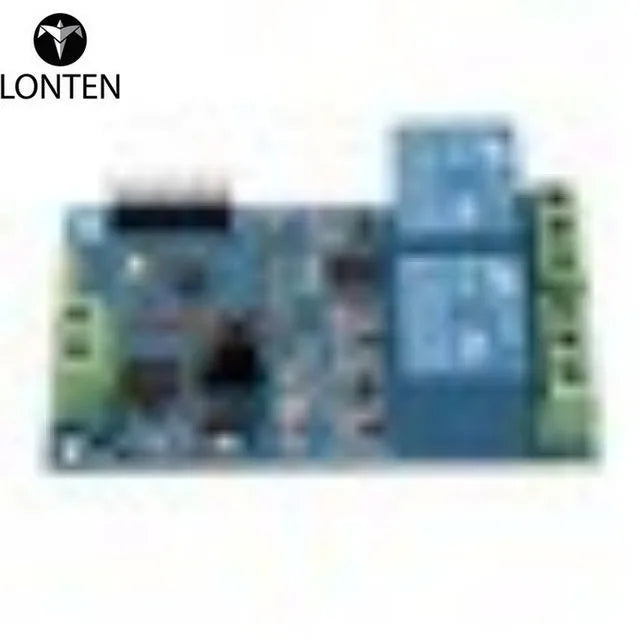

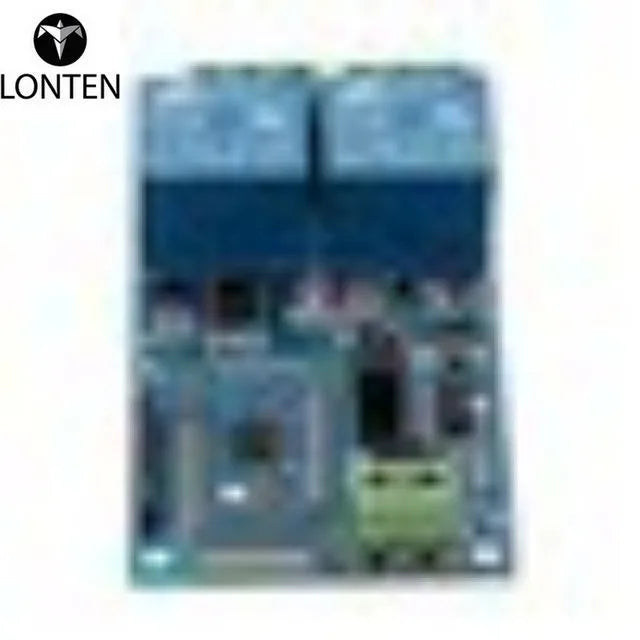

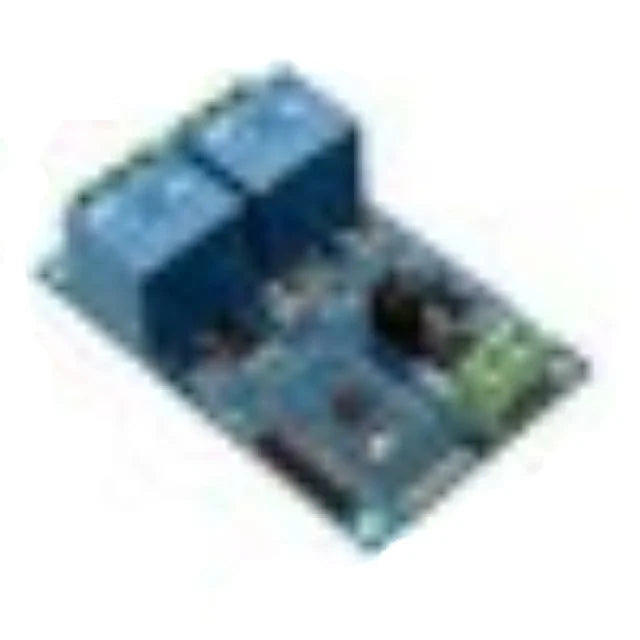

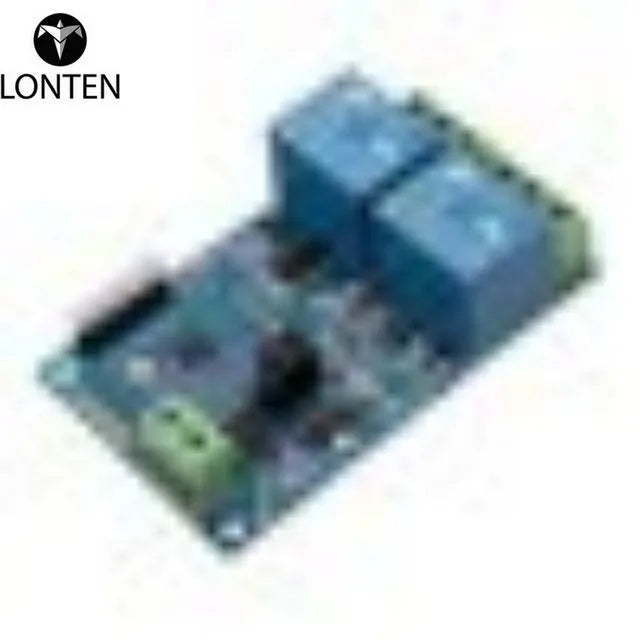

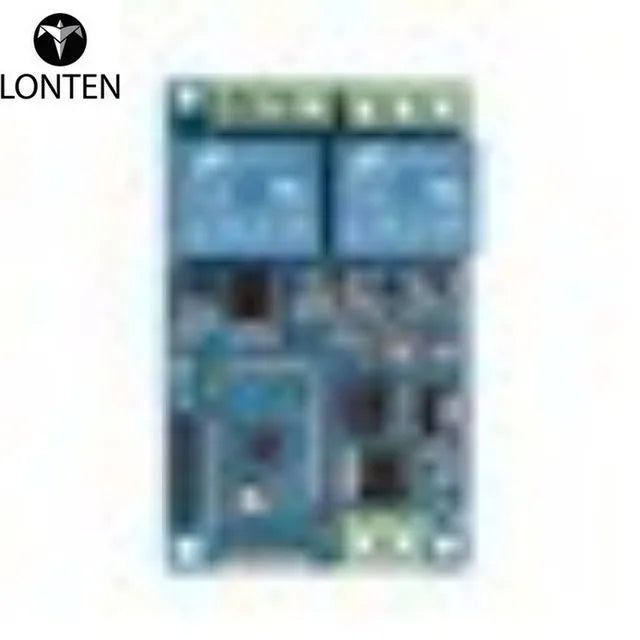

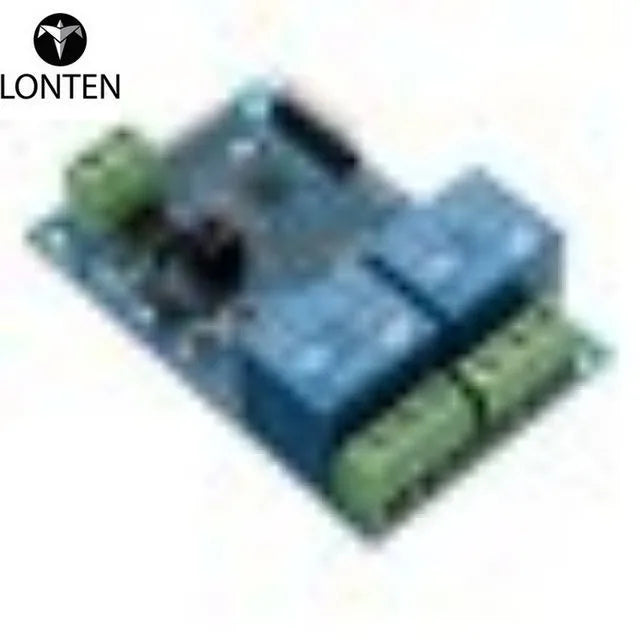

| Features: 1. On-board loaded 8bit high performance MCU and spp-c 2.1 slave module 2. provide relay control app 3. Distance control: 10M (without obstacle ) 4. Working voltage: DC12V 5. On board 2 way 12V, 10A/250V AC 10A/30V DC relay, can be used continuously for 100 thousand times, with diode discharge protection within short time. 6. With status indicator and relay indicator. 7. Reserved UART deging interface and MCU program download port. 8. Board size: 40*64.5mm Interface introduction: IN+, IN-: 12V voltage input TX, RX: UART serial port PIN 5V, GND, SWIM, NRST: program download port LED D2/D4(red): working indicator, turn on when relay is on. LED D1(blue): status indicator, exact function as follows: (1)Slow flash means waiting for a connection to the phone. (2)When it is always bright, it connects phone already Two reserved jumper cap: normal use,insert to the right side (that is ,RX connects with RX1, TX connects with TX1).Independently use,turn USB to TTL serial module ,de SPP - C module,plug into the left side (To avoid interference) COM1:common terminal NC1:Normal close NO1:Normal open COM2:common terminal NC2:Normal close NO2:Normal open Relay control command (hex form) Turn on first relay: A0 01 01 A2 Turn off first relay: A0 01 00 A1 Turn on second relay: A0 02 01 A3 Turn off second relay: A0 02 00 A2 1.power supply connection: IN+ to positive ,IN- to negative of 12 V power supply 2.app controls 2 way relay 2 app is optional : one is developed by LC company ,another is general APP downloaded from the 2.1Instruction for LC app 2.1.1 Install mobile terminal "LCBS test procedure" APP, serial transmission tool, open the APP, click "search" , mobile phones connected to the module, input password and click confirm, after the connection is succful, blue light turns slow flash into always on, and then click on the square to control relay switch Package included: 1 x DC12V 2 Channel Relay |
| Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments. |
| / About service / | |
| On- Time Delivery | |
| Full refund if product isn't received in guaranteed delivery time | |
| Longer Protection | |
| 15 day more protection after order completion | |
| Returns Extra | |
| Return any product,only those in perfect condition | |
| Guaranteed Quality | |
| Guaranteed Quality or Full refund | |
| If you have any problems with our items or services, please feel to contact us first before you leave negative feedback. We will do our best to solve any problem and provide you with the best customer services. |
Packaging Details
- Unit Type:piece
- Package Weight:0.03kg (0.07lb.)
- Package Size:6cm x 4cm x 2cm (2.36in x 1.57in x 0.79in)
