Custom Lonten New Arrival 1PC 5V 3D Light Cube Kit Infrared Remote Control Function Blue Misty LED Version Electronic DIY Module Manufacturer
Custom Lonten New Arrival 1PC 5V 3D Light Cube Kit Infrared Remote Control Function Blue Misty LED Version Electronic DIY Module Manufacturer
Regular price
$30.39 USD
Regular price
$30.39 USD
Sale price
$30.39 USD
Unit price
per
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provider of electronic component ,for more please contact.
Item specifics
- :
- Dissipation Power:3W
- Condition:New
- Model Number:other
- Supply Voltage:5V
- Operating Temperature:other
- Type:other
- Application:MUSIC PLAYER
Product Description
This product does not includes housing!!
Feature:
1. Built-in 3W amplifier + 3W high-quality speaker
2. Can be inserted TF memory card to play music
3. Can be inserted U disk to play music
4. Through the o line input and output music
5. Built-in MP3 music, the volume can be adjusted
6. Built-in music can be controlled by a button on the next song
7. Built-in 42 kinds of off-line stunning animation (plug in the electricity can run animation)
8. Built-in 14 kinds of offline dynamic o animation (dance with music)
9. 3D8 on the machine mode (control animation)
10. 3D8 on the machine music mode
11. Infrared remote control function
12. Night, daytime control mode
13. PWM breathing light mode
14. Switch on the mainboard automatic detection mode
15. Photoresistor automatic dimming function (need to expand by yourself)
16. Shell size: 233 * 161 * 161mm
17. PCB board: 150 * 150mm
18. Input voltage: 5V / 5V charger
19. Current: 1A-2A (2A better)
Four key functions:
K1 key: Enter the mode selection, day, night mode control
K2 key: Enter the 3D8 PC mode (pr the K1 key to be effective after power on)
K3 key: Enter 42 kinds of offline animation mode (pr the K1 key to be effective after power on)
K4 key: Enter 14 kinds of off-line o mode (pr the K1 key to be effective after power on)
Three music keys features:
S1 key: Enter the music playback / stop control
S2 key: Enter the previous song / volume decrease control
S3 key: Enter the next song / volume increase control

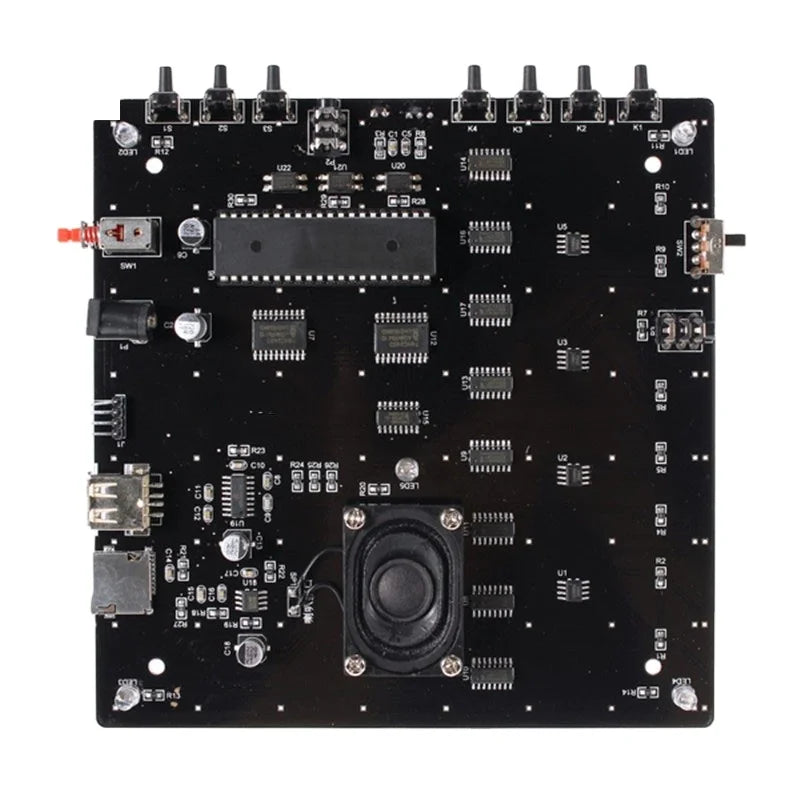

Circuit design:
STC12C5A60S2 + 74HC245 + 74HC138 + 74HC595N
1. Integrated STC12C5A60S2 high-speed 1T microcontroller
2. 74HC245 buffer driver (cascade connection)
3. 5A high-current MOS tube driver chip (to solve the uneven brightn)
4. High-speed scanning chip and serial control cascade chip
5. Use profional MP3 music chip
6. Use profional power amplifier chip 8002B
There are two ways to modify the pattern:
1. Modify the program (difficult, you need to understand programming)
2. PC computer software direct manipulation of the light cubic
8x8x8 Blue misty LED version.
File download: Click to open

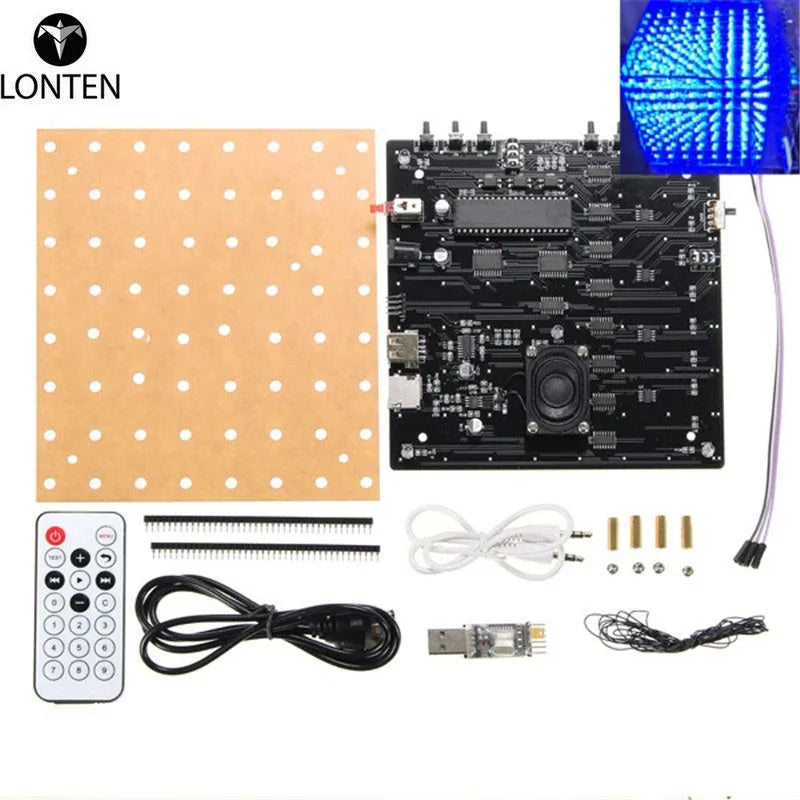

Package includes:
1 x 3D Light Cube Kit
Feature:
1. Built-in 3W amplifier + 3W high-quality speaker
2. Can be inserted TF memory card to play music
3. Can be inserted U disk to play music
4. Through the o line input and output music
5. Built-in MP3 music, the volume can be adjusted
6. Built-in music can be controlled by a button on the next song
7. Built-in 42 kinds of off-line stunning animation (plug in the electricity can run animation)
8. Built-in 14 kinds of offline dynamic o animation (dance with music)
9. 3D8 on the machine mode (control animation)
10. 3D8 on the machine music mode
11. Infrared remote control function
12. Night, daytime control mode
13. PWM breathing light mode
14. Switch on the mainboard automatic detection mode
15. Photoresistor automatic dimming function (need to expand by yourself)
16. Shell size: 233 * 161 * 161mm
17. PCB board: 150 * 150mm
18. Input voltage: 5V / 5V charger
19. Current: 1A-2A (2A better)
Four key functions:
K1 key: Enter the mode selection, day, night mode control
K2 key: Enter the 3D8 PC mode (pr the K1 key to be effective after power on)
K3 key: Enter 42 kinds of offline animation mode (pr the K1 key to be effective after power on)
K4 key: Enter 14 kinds of off-line o mode (pr the K1 key to be effective after power on)
Three music keys features:
S1 key: Enter the music playback / stop control
S2 key: Enter the previous song / volume decrease control
S3 key: Enter the next song / volume increase control
Circuit design:
STC12C5A60S2 + 74HC245 + 74HC138 + 74HC595N
1. Integrated STC12C5A60S2 high-speed 1T microcontroller
2. 74HC245 buffer driver (cascade connection)
3. 5A high-current MOS tube driver chip (to solve the uneven brightn)
4. High-speed scanning chip and serial control cascade chip
5. Use profional MP3 music chip
6. Use profional power amplifier chip 8002B
There are two ways to modify the pattern:
1. Modify the program (difficult, you need to understand programming)
2. PC computer software direct manipulation of the light cubic
8x8x8 Blue misty LED version.
File download: Click to open
Package includes:
1 x 3D Light Cube Kit
Packaging Details
- Unit Type:piece
- Package Weight:0.383kg (0.84lb.)
- Package Size:20cm x 20cm x 5cm (7.87in x 7.87in x 1.97in)
