Custom Lonten NB-11 IV-11 fluorescent tube clock Kit VFD fluorescent tube clock VFD vacuum fluorescent display DS18B20 GPS TIMESYN RGB Manufacturer
Custom Lonten NB-11 IV-11 fluorescent tube clock Kit VFD fluorescent tube clock VFD vacuum fluorescent display DS18B20 GPS TIMESYN RGB Manufacturer
Regular price
$61.17 USD
Regular price
$61.17 USD
Sale price
$61.17 USD
Unit price
per
Couldn't load pickup availability
Welcome OEM ,ODM,for more please contact. Make your DIY KIT!
Description:
We have DIY kit, (need to assemble it yourself) and finished Kit, please choose the kit you need.
Type: IV-11
1. The use of high precision clock chip display time (upgrade: support 12/24 hours display);
2. The use of high precision clock chip display date (Upgrade: Support year, month, day/month, day, year/day, month, year format);
3. Automatic switch setting;
4. With a timing alarm clock that can be switched off and adjusted;
5. Using interrupt mode to read the DS18B20 temperature code, read the temperature value is accurate, does not beat. Unlike regular reading of the DS18B20 code, the code handles things a little more and is not normal;
6. Can be switched automatically alternately display time, date, temperature (Duration can be set);
7. Two breathing lamps in the center, the color can be adjusted by remote control;
8. Under the electronic tube withRGBled, the effect can be closed. Display mode controllable (Breath 5 times, Automatic color switching).
IV11 Fluorescent Tube Clock List:
We have DIY kit, (need to assemble it yourself) and finished Kit, please choose the kit you need.
Type: IV-11
RGB full-color background lamp
Using a 5V DC power supply
>>Soldering Manual : Click to open <<
Function:1. The use of high precision clock chip display time (upgrade: support 12/24 hours display);
2. The use of high precision clock chip display date (Upgrade: Support year, month, day/month, day, year/day, month, year format);
3. Automatic switch setting;
4. With a timing alarm clock that can be switched off and adjusted;
5. Using interrupt mode to read the DS18B20 temperature code, read the temperature value is accurate, does not beat. Unlike regular reading of the DS18B20 code, the code handles things a little more and is not normal;
6. Can be switched automatically alternately display time, date, temperature (Duration can be set);
7. Two breathing lamps in the center, the color can be adjusted by remote control;
8. Under the electronic tube withRGBled, the effect can be closed. Display mode controllable (Breath 5 times, Automatic color switching).
| IV11 fluorescent tube clock infrared remote control button protocol | ||
| Button marking | Function | |
| Power button | Turn on/off the automatic switch function | |
| Back button | Display time mode | 12/24 hour switching |
| Display date mode | Year Month Day/Day Month Year/Month Day Mode Switch | |
| Display temperature mode | Celsius °C / Fahrenheit F mode switching | |
| Time switch mode | 3 kinds time period switching | |
| Switching time mode | Turn automatic display on/off | |
| - button | In adjustable mode (when the tube value is flashing), the value is reduced | |
| + button | In adjustable mode (when the tube value is flashing), the value is increased. | |
| C button | In the automatic on/off mode, the modification time is confirmed (It can't modify when the format does not match) | |
| Rewind button | The rgbLED under the tube is in the breathing state, the last color | |
| Fast forward button | The rgbLED under the tube is in the breathing state, the next color | |
| Pause button | Alarm mode | Turn the alarm on/off |
| Timing turn on/off mode | Start/end time period switching | |
| Except the above two modes | The last LED (week) is turned off/on | |
| TEST button | In adjustable mode (such as time mode), adjust the position to switch back and forth | |
| MENU button | On/off (automatic switching color of rgbLED under the tube) | |
| 1 | Time mode | |
| 2 | Date mode | |
| 3 | Alarm setting mode | |
| 4 | Temperature mode | |
| 5 | Test mode | |
| 6 | Auto power on/off setting mode | |
| 7 | Time, date, temperature switching time setting, whether to start automatic switching setting | |
| 8 | The 6 LEDs under the tube are turned off/blinking/constantly lit, and the three states are switched back and forth. | |
| 9 | Color switching of 2 breathing rgbLEDs in the mle of the tube | |
| 0 | 2 breath rgbLED in the mle of the tube is turned off/on | |
IV11 Fluorescent Tube Clock List:
| NO. | Name | Corresponding component silk screen | Quantity |

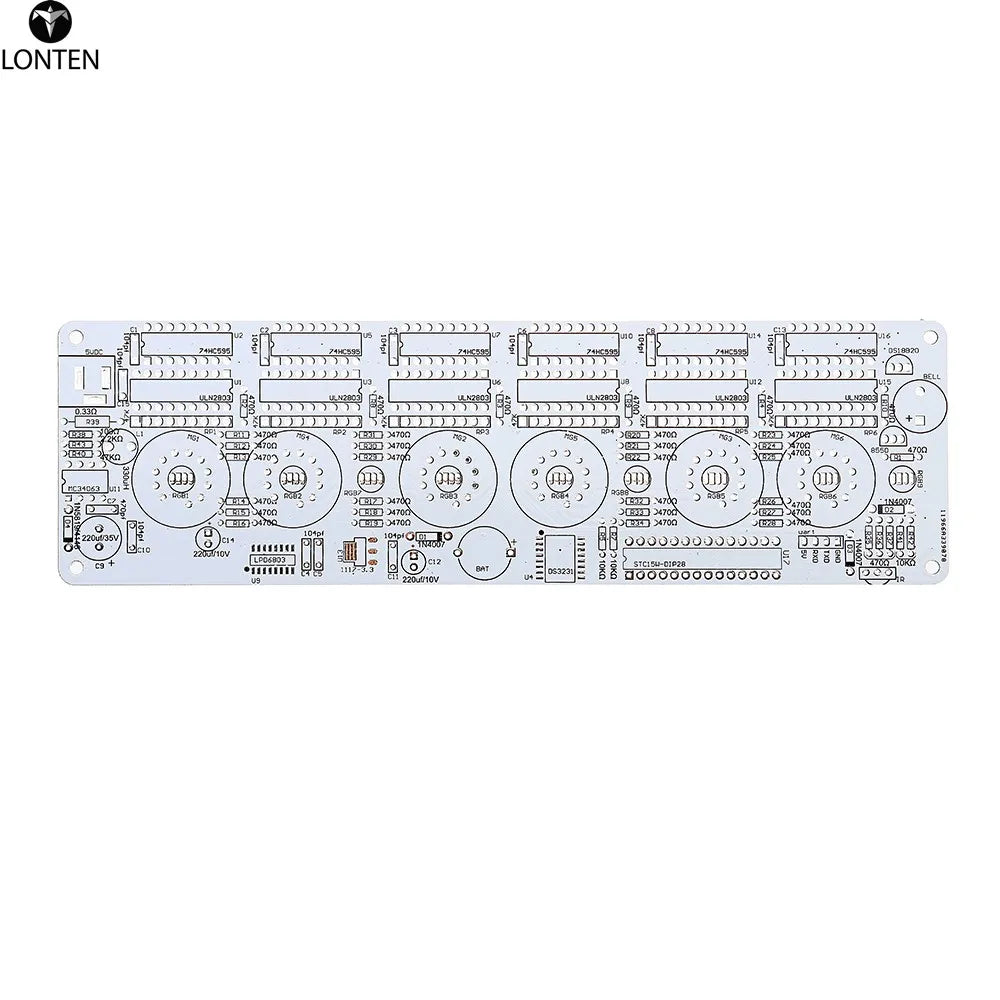

| 1 | 6cm*20cm Circuit board | 1 | |
| 2 | DS3231 DIP clock chip | U4 | 1 |
| 3 | 6803 SMD chip | U9 | 1 |
| 4 | 1117-3.3 SMD chip | U13 | 1 |
| 5 | 5.5*2.1 DC socket | 5VDC | 1 |
| 6 | 8550 DIP Transistor | 8550 | 1 |
| 7 | BAT batter 1220 With solder seat | BAT | 1 |
| 8 | 104pf DIP monolithic capacitor | C1~C6,C8,C10,C11,C13,C15 | 11 |
| 9 | 470pf DIP monolithic capacitor | C7 | 1 |
| 10 | 220uf/35V/50V DIP capacitor | C9 | 1 |
| 11 | 220uf/10V DIP capacitor | C12, C14 | 2 |
| 12 | 1N4007 DIP diode | D1,D2,D3 | 3 |
| 13 | 1N5819 DIP diode | D4 | 1 |
| 14 | DS18B20 DIP Temperature Sensor | DS18B20 | 1 |
| 15 | Infrared integrated receiver | HS0038 | 1 |
| 16 | 220uH/330uH DIP inductor | L1 | 1 |
| 17 | 470Ω DIP resistor | R1, R2, R3, R4, R8~R37, | 34 |
| 18 | 10K DIP resistor | R5,R7,R41,R42 | 4 |
| 19 | 100Ω DIP resistor | R38 | 1 |
| 20 | 0.33Ω1W DIP resistor | R39 | 1 |
| 21 | 2.2K DIP resistor | R43 | 1 |
| 22 | 47K DIP resistor | R40 | 1 |
| 23 | 5mm DIP Common anode rgbledlamp | RGB1,RGB2,RGB3,RGB4,RGB5,RGB6 | 6 |
| 24 | 47K/22K DIP 9-foot exclusion | RP1,RP2,RP3,RP4,RP5,RP6 | 6 |
| 25 | Buzzer | BELL | 1 |
| 26 | STC15F2K-DIP28 SCM | U17 | 1 |
| 27 | ULN2803 DIP chip | U1,U3,U6,U8,U12,U15 | 6 |
| 28 | 74HC595 DIP chip | U2,U5,U7,U10,U14,U16 | 6 |
| 29 | MC34063 DIP chip | U11 | 1 |
| 30 | DIP28+DIP8+DIP18+DIP16 | (DIP28 base narrow body) each set of base | 1set |

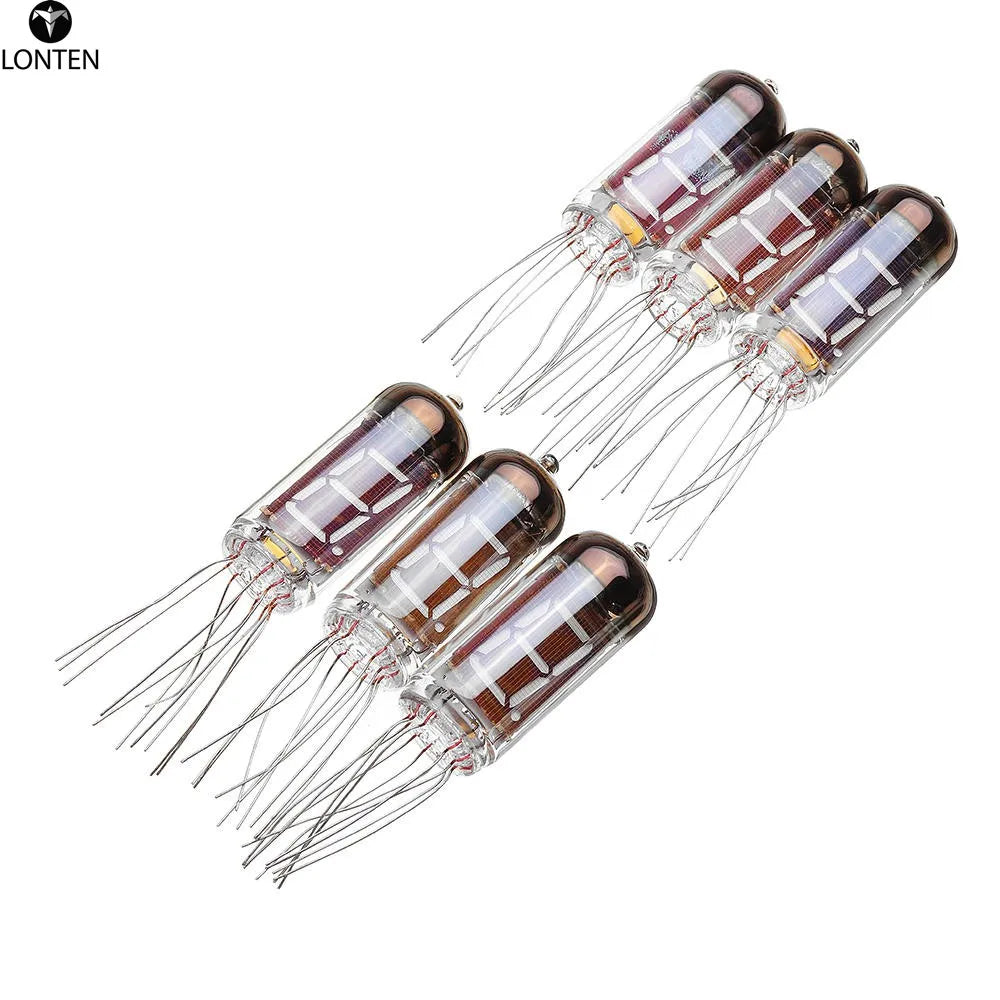

| 31 | NB11(IV11)Electronic tube | MG1,MG2,MG3,MG4,MG5,MG6 | 6 |
| 32 | A set of acrylic shells and accessories | 1 | |
| 33 | 51 universal remote control | 1 | |
| 34 | 5VDC 2A adapter | 1 |
Package included:

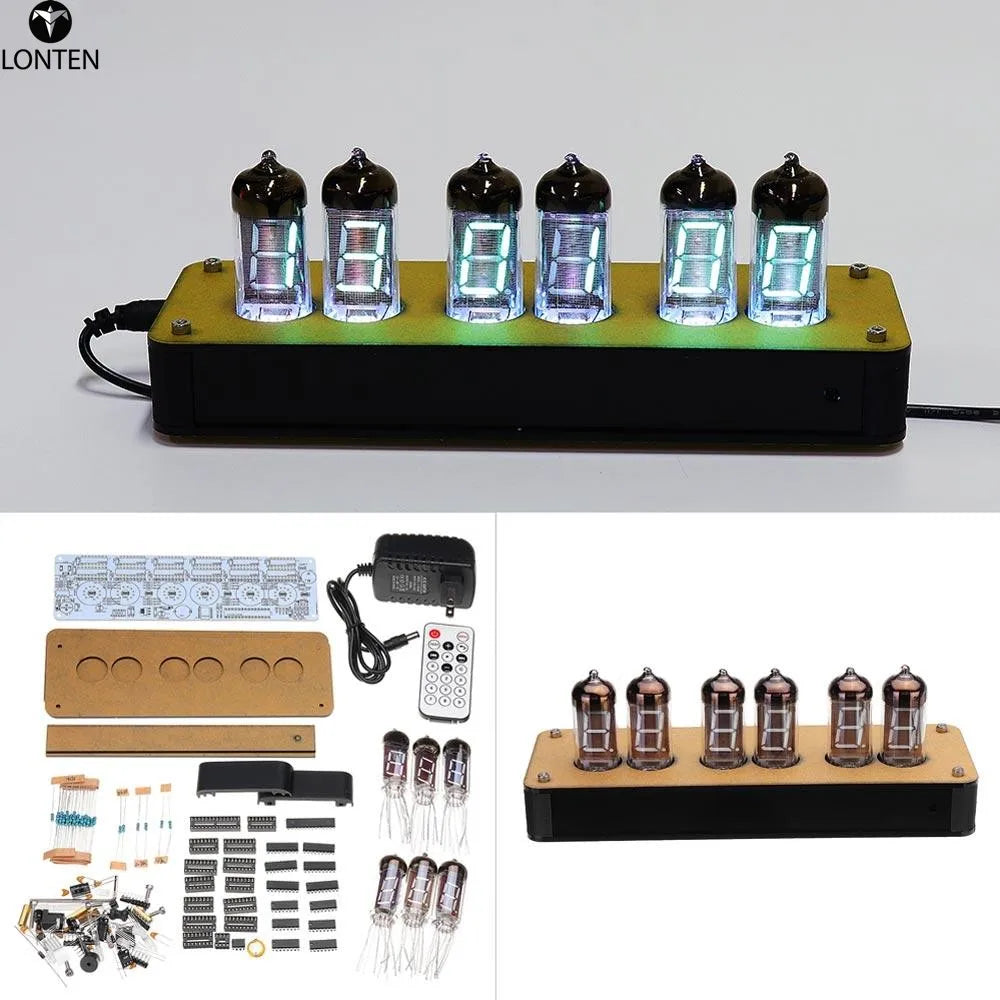

1 x IV-11 NB-11 Fluorescent Tube Clock ( DIY or soldered Kit for choose)
1 x Remote control
1 x US Power plug
Product Display

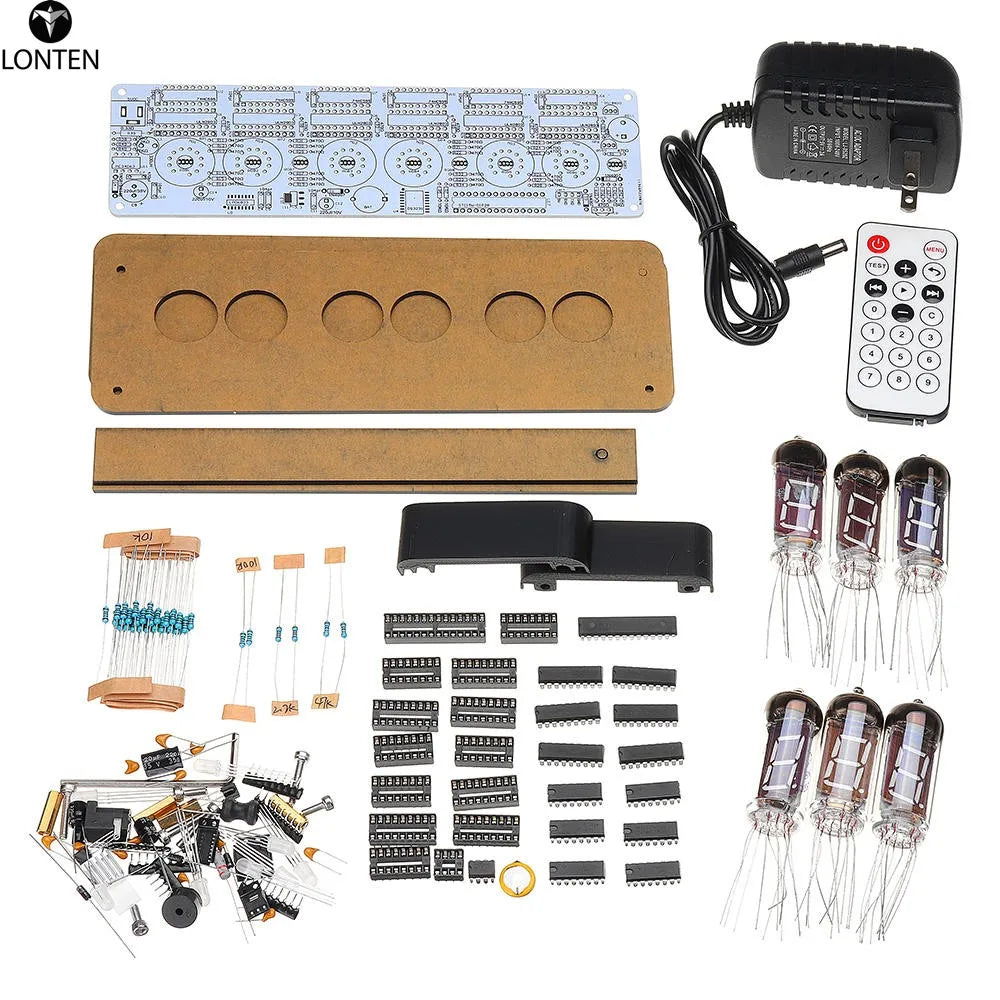

DIY KIT

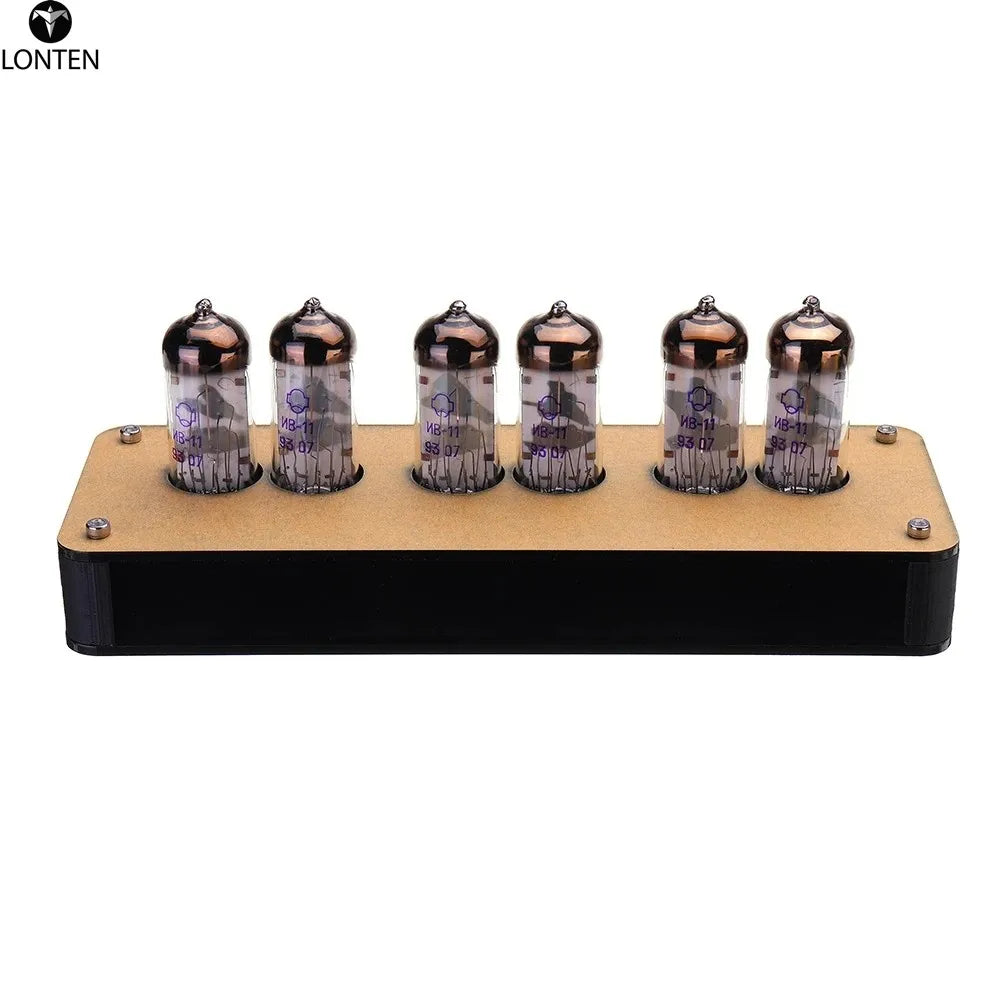

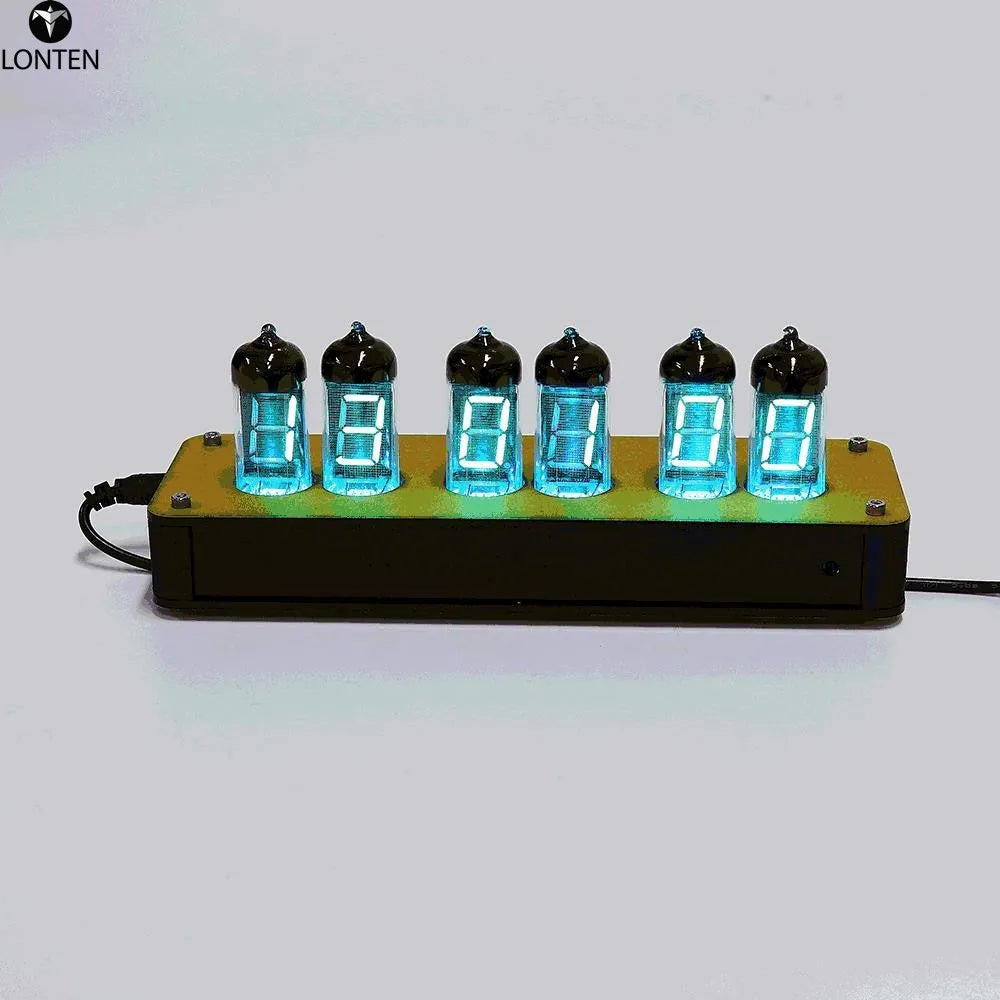

Full soldered kit ( you can use directly, no need to solder)
