Custom Lonten MMDVM hotspot Support P25 DMR YSF DSTAR + raspberry Pi-Zero w +OLED +Antenna + Case + TF card READY TO QSO jumbospot Manufacturer

Best version  :

1.Latest version  V1.7, and the firmware is latest

2. original cystal :  Original ECS-TXO-3225-147.4-TR from USA

3. With white on-board antenna



PLS note: the RXofffset is : -475(minus 475)





- Jumbo-SPOT-RTQ is a completely self-contained digital hotspot supporting DMR,Dstar,P25 and System Fusion communications.Fully assembled and tested in a ruggedized aluminum enclosure.All that's required for operation is a micro usb (android phone's cable)power source and a WiFi based internet connection.

- Pi-Star Digital Voice Software pre-loaded and easily upgraded via software.





- Supports PI-STAR's web based digital voice dashboard and configuration tool

- Supports all four digital amateur modes DMR,D-Star,P25 and System Fusion

- Built-in WiFi: 802.11b/g/n

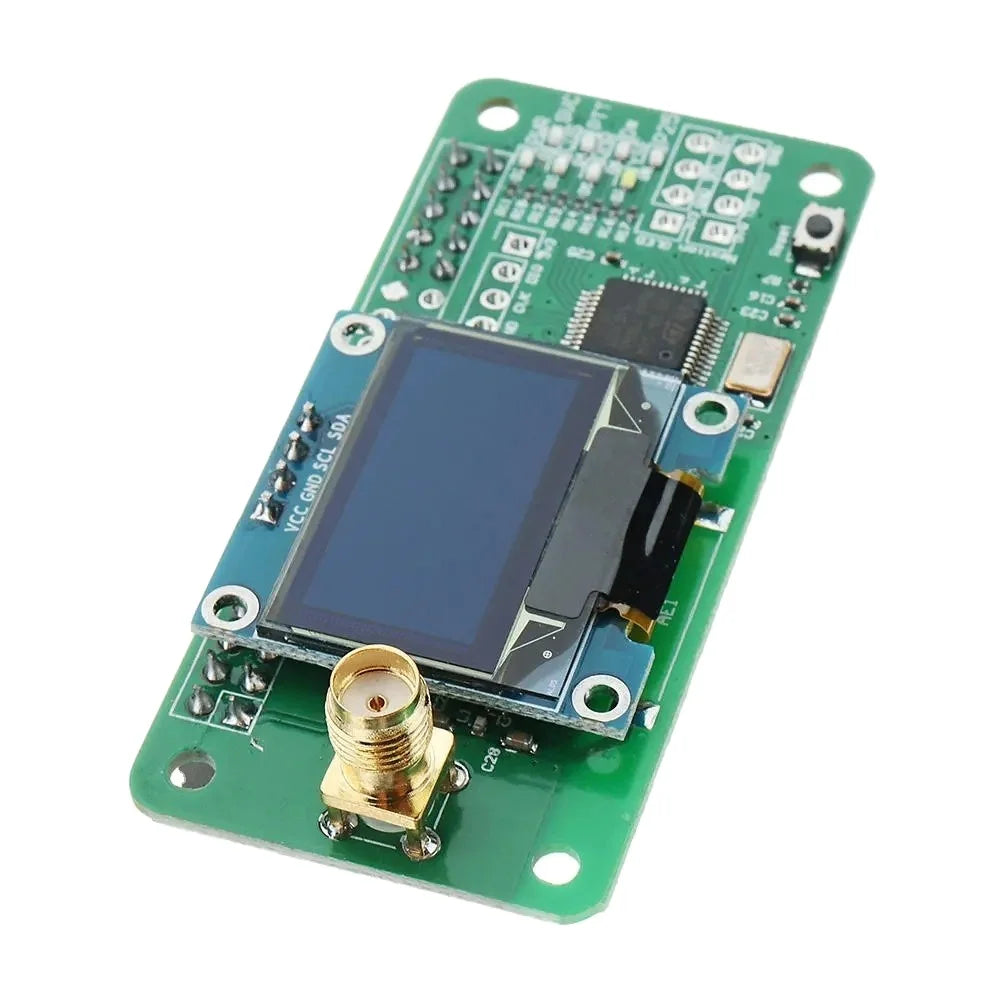

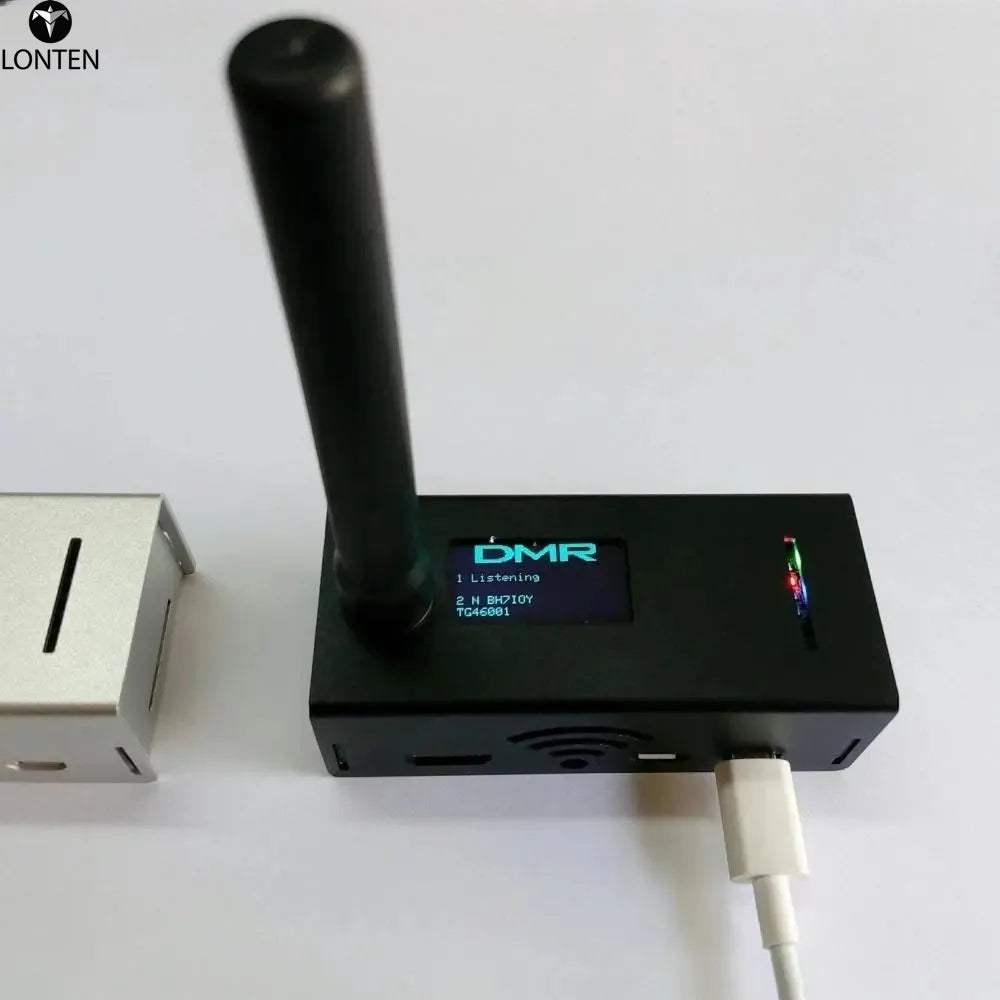

- Built-in OLED system status display indicating Mode,Talk Group and Call Sign

- Built-in LED indicators for status of Power,PTT,COS and Mode

- Console port SSH 22 for root level access to the operating system

- Quad Core A7 1.2GHz Processor,512mb DDR3 RAM and 8gb TF Card

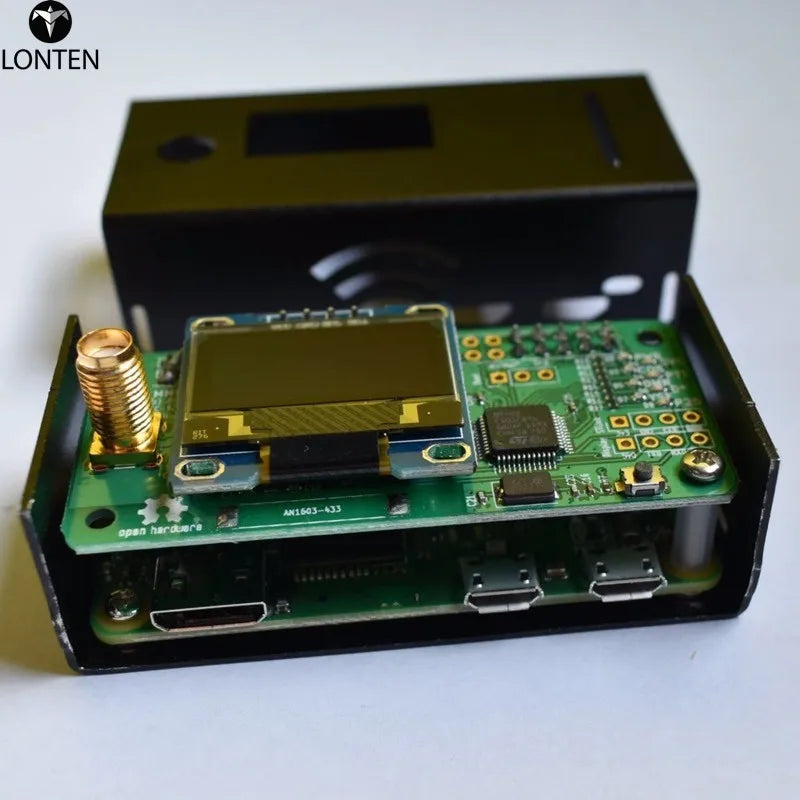

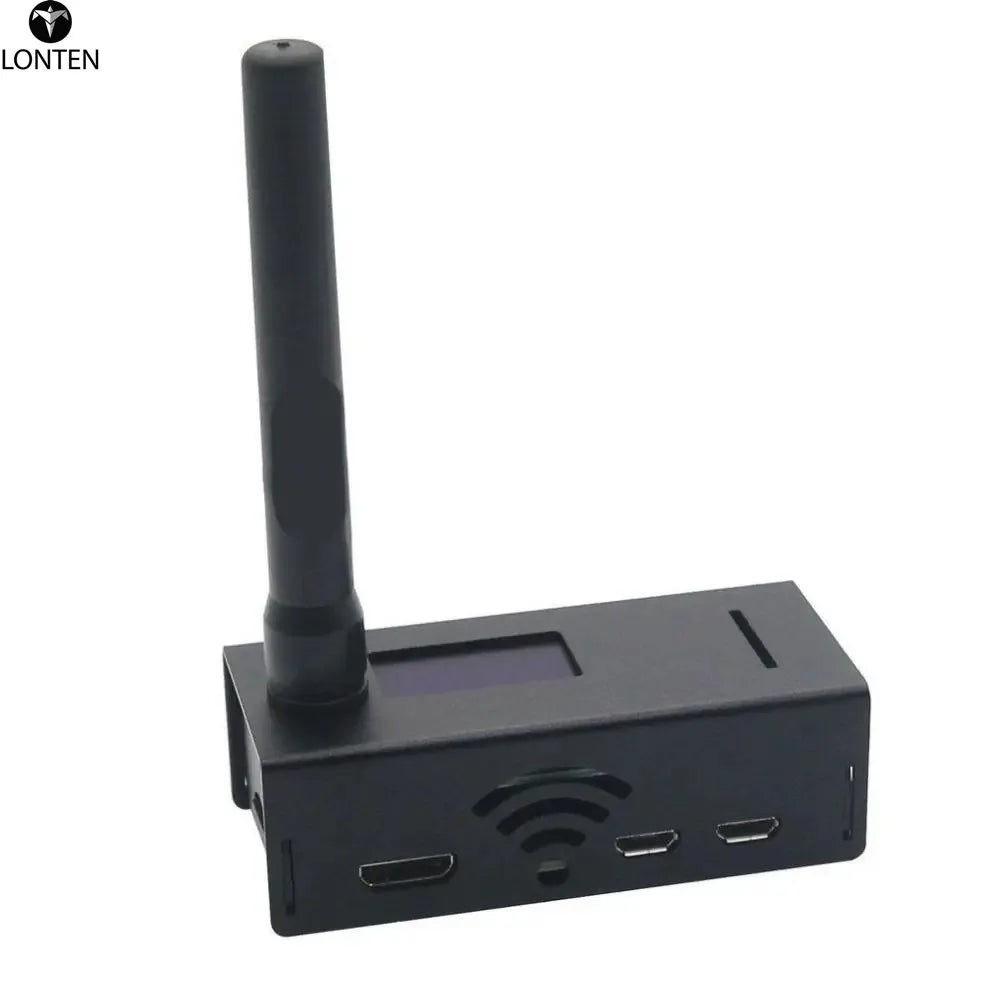

- Pocket size aluminum enclosure





· High performance 32-bit ARM processor

· Fully tested

· Supports DMR, P-25, D-Star and System Fusion

· Onboard LEDs to show status (Tx, Rx, PTT, Mode)

· Up to 10mW RF power



SMA antenna connector, UHF antenna included

· Mounts cleanly on all current  Raspberry Pis including the Pi Zero

· The firmware is pre-loaded and is easily upgraded via software.

Please do not upgrade the firmware by yourself

· Open source 3D printable case available

Support and tested with  PI-STAR



UHF420-450MHz

VHF 144-146MHZ

Test ID 460xxxx, test frequency 439.600MHZ, test mode DMR, test WIFI: TZB/13902982913

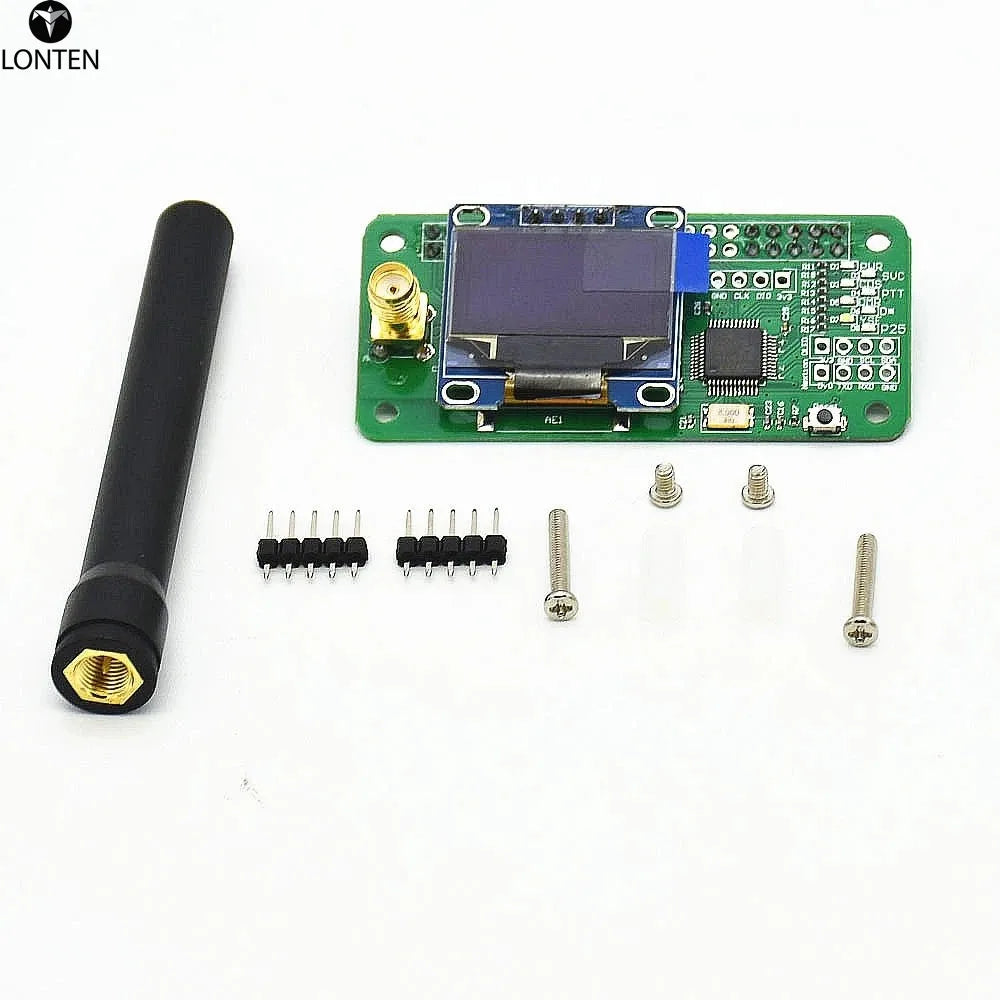

Fully assembled and tested Jumbo-Spot-RTQ



1.  OLED display x1

2.  raspberry pi zero  x1

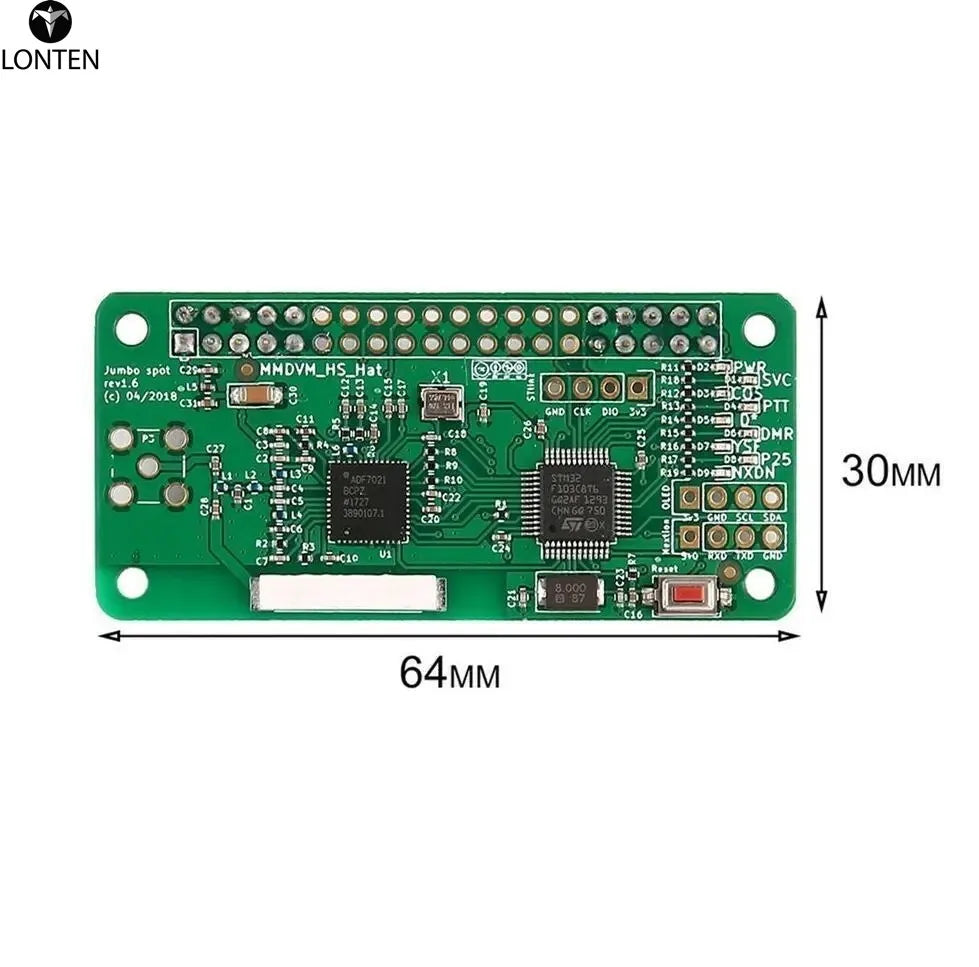

3.  MMDVM hotspot  board  x1

4.  16G TFT card x1

5. case x1

6. 433Mhz antenna x1



there are 2 points you need to confirm:
1. your WIFI is configured SSID/PASSWORD rightly, MMDVM connected and get an IP address.
2. Do you selected the OLED in WEB GUI
OLED have a rare rate of broken, or wiring error. we do this basic OLED test at every package sending.

Details Pictures:
