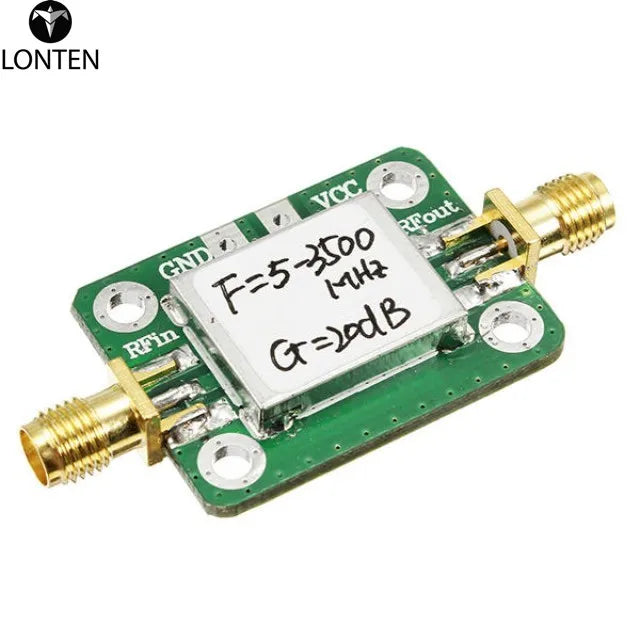

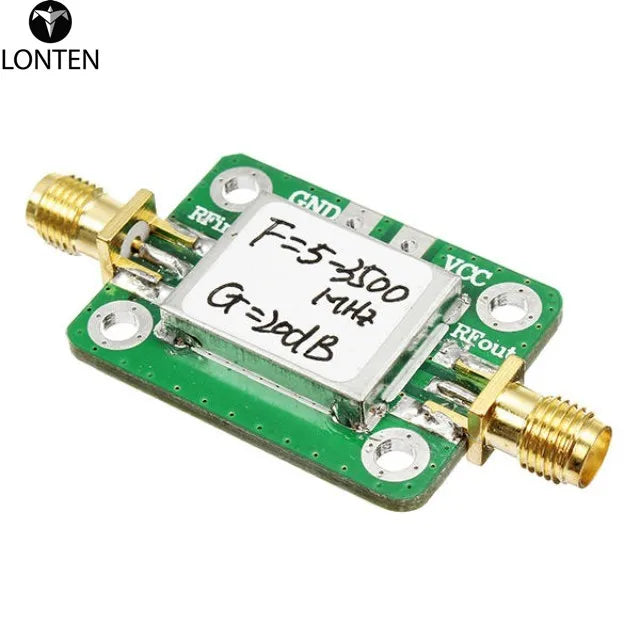

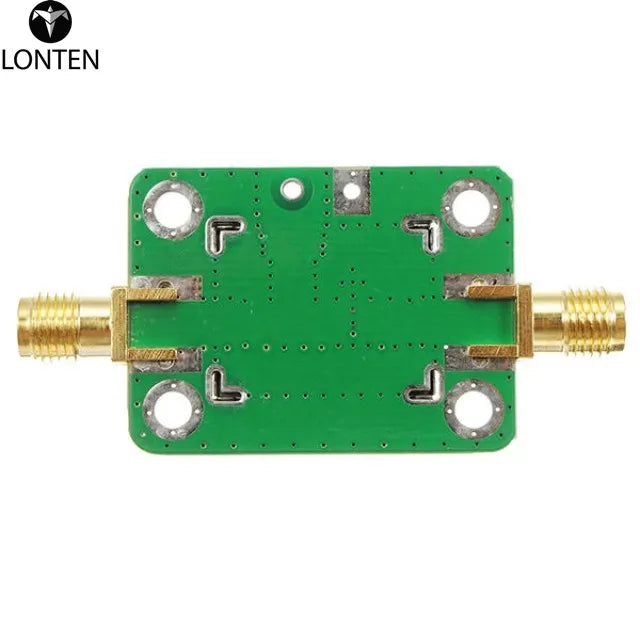

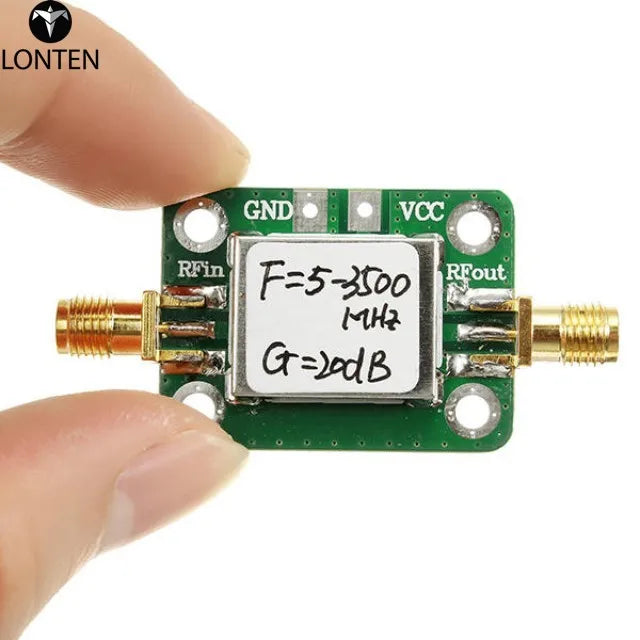

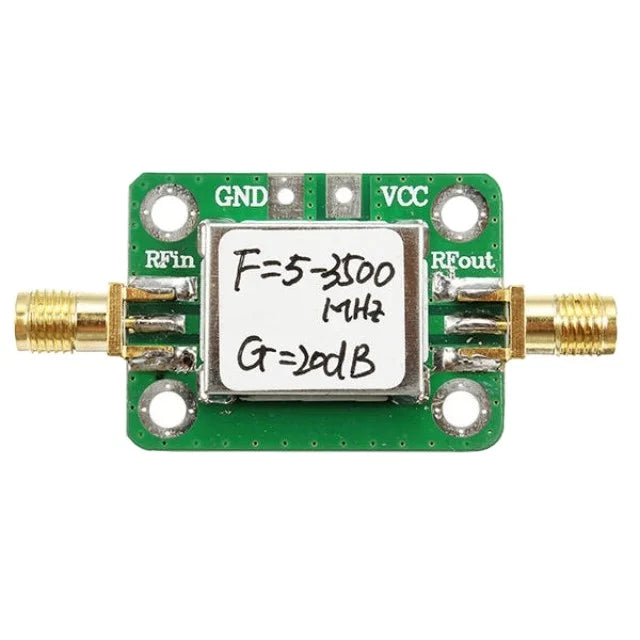

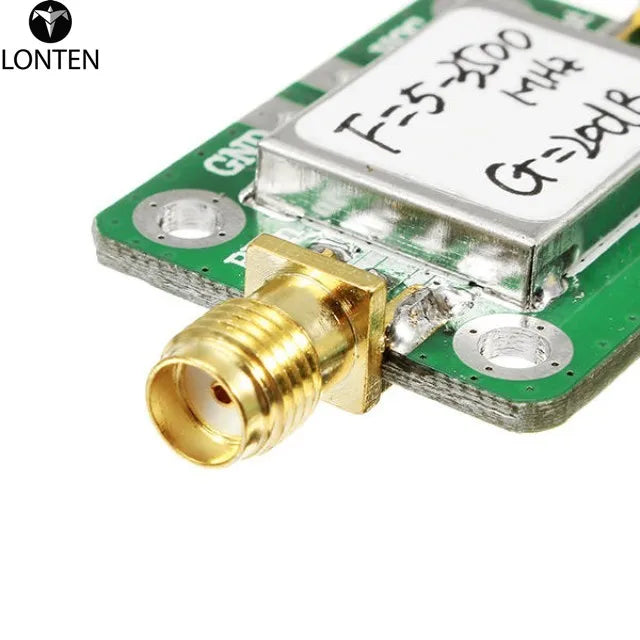

Custom Lonten LNA 5-3500MHz 20dB Gain Broadband Low Noise RF Amplifier With Shielding Shell Manufacturer

Application:

This amplifier has a wide frequency range, gain stability, low noise figure, dynamic range + 20dBm @ 1dBP), etc. Advantage,
especially for a variety of RF receiver front-end circuit, increase the communication distance! Widely used in shortwave, FM radio,
remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G bluetooth,
WIFI receiver RF front end need low noise small signal radio frequency amplification place!

Amplifier parameters indicators:


Operating frequency: 5-3500MHz
Amplification gain: 20dB (typical)
Noise figure: 1.3 (typical)
Maximum output power: + 20dBm (100mW) @ 1dB compression point
Operating current: 80mA (5V)
Supply voltage: 3.3-6VDC
System impedance: 50 ohms

Package included:

1 x LNA 5-3500MHz 20dB Gain Broadband Low Noise RF Amplifier With Shielding Shell
