Custom Lonten HM-10 CC2541 CC41 wireless 4.0 UART Transceiver Serial Module Manufacturer
Custom Lonten HM-10 CC2541 CC41 wireless 4.0 UART Transceiver Serial Module Manufacturer
Regular price
$5.52 USD
Regular price
$5.52 USD
Sale price
$5.52 USD
Unit price
per
Couldn't load pickup availability
The price is only for Bundle(optiona)1, Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.

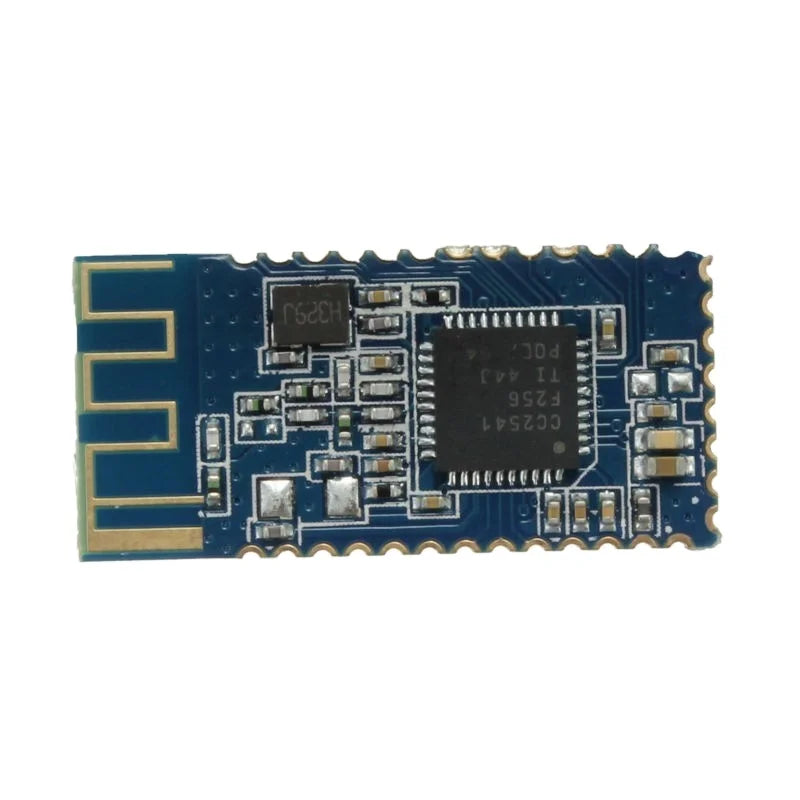

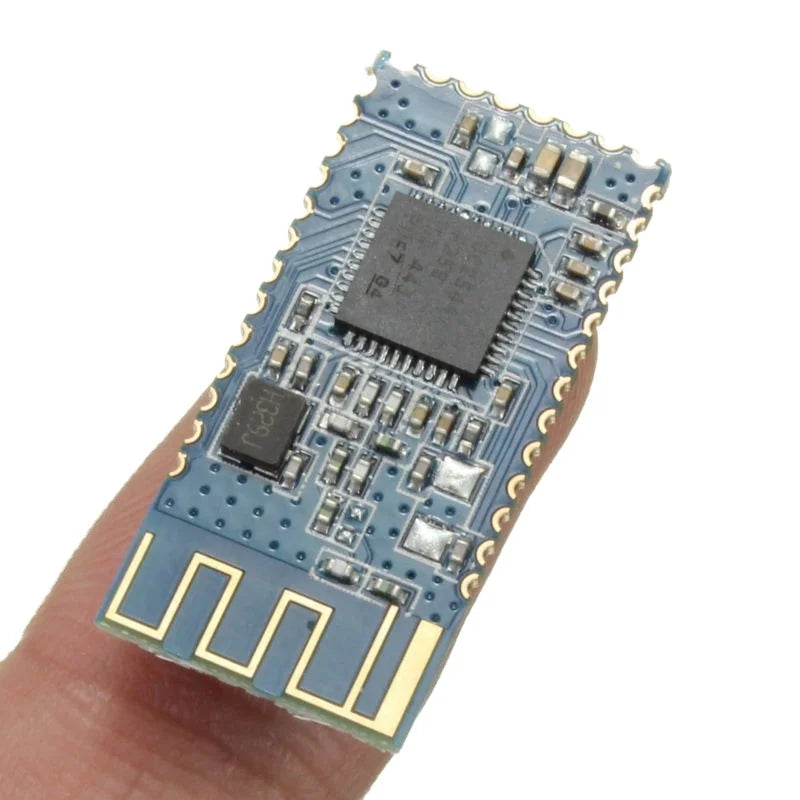

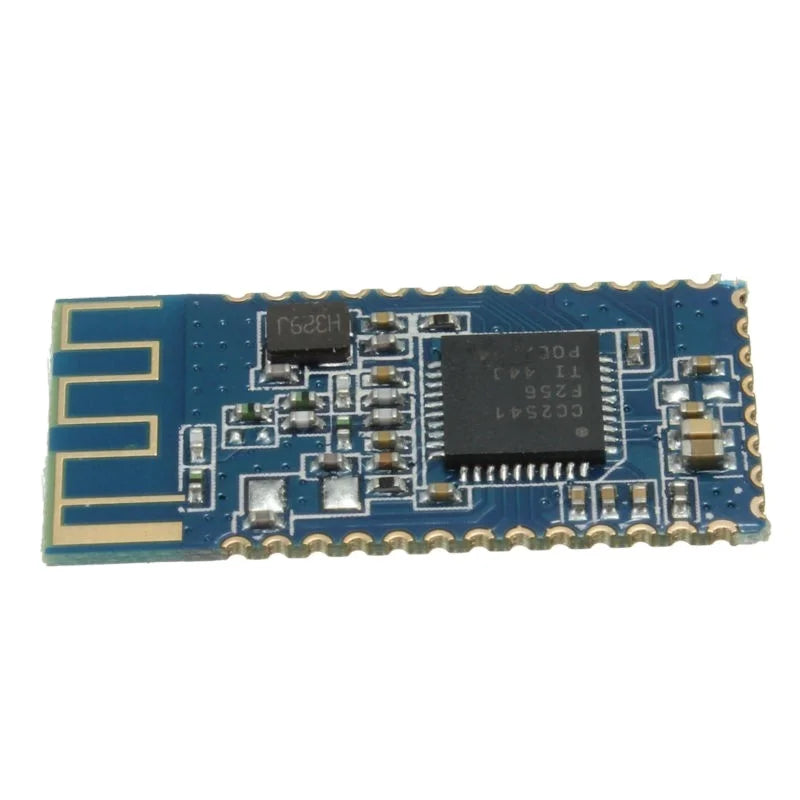

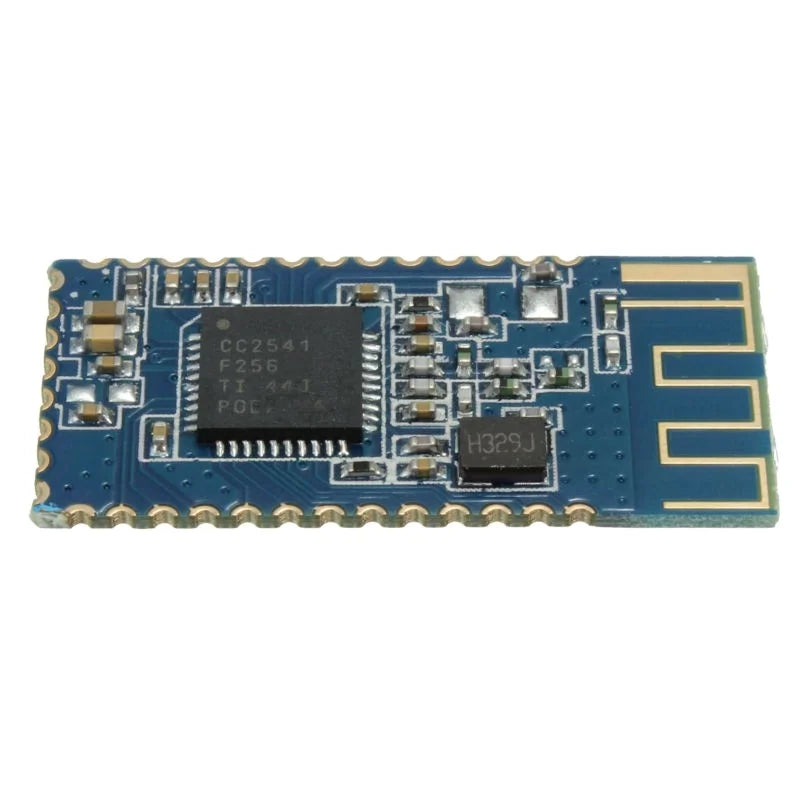

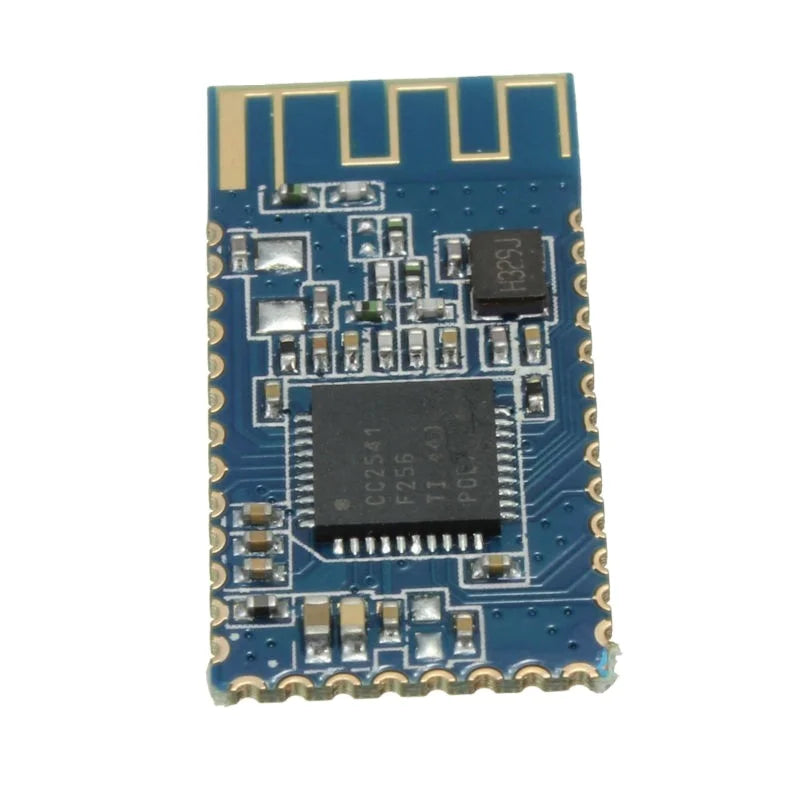

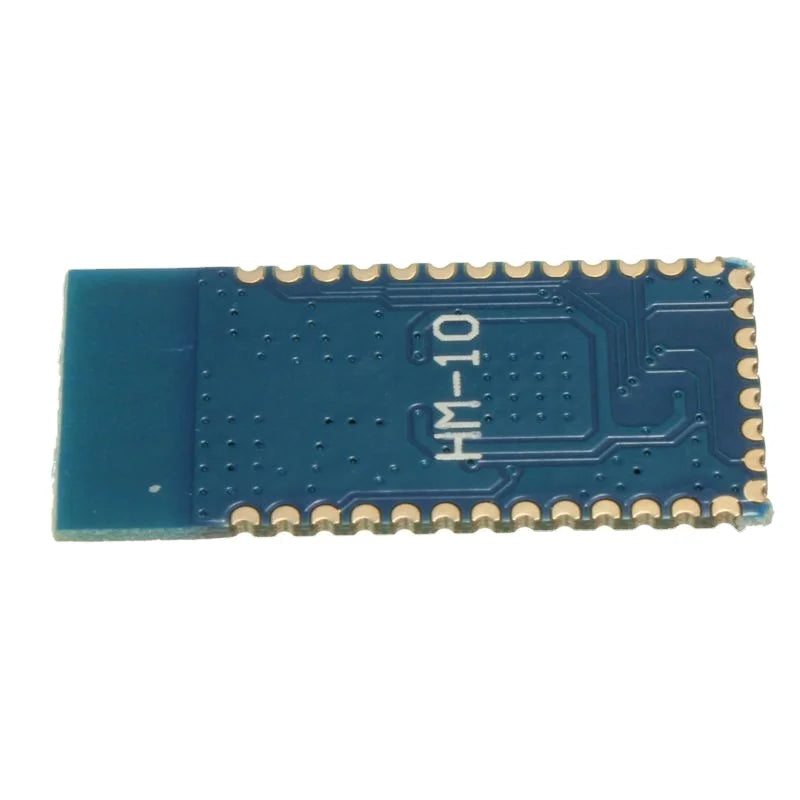

HM-10 CC2541 CC41 Bluetooth 4.0 UART Transceiver Serial Module For Android Data Passthrough
Description:
Low-power dissipation
HM-10 CC2541 CC41 Bluetooth 4.0 UART Transceiver Serial Module, used by the U.S. TI's CC2541 chip configuration 256Kb space, follow the Bluetooth specification V4.0 BLE.
Supports AT commands, the user can modify the serial port baud rate, device name, password and other parameters according to the pair.
The module supports UART interface, and supports Bluetooth SPP serial protocol.
Connected with Iphone 4S and Android 4.3 above.
Feature:
The module supports UART interface, and supports Bluetooth SPP serial protocol.
Connected with Iphone 4S and Android 4.3 above.
Feature:
Bluetooth protocol: Bluetooth Specification V4.0 BLE, receive no byte limit, Iphone 4s under open environment and can achieve 110 m long distance communication
Operating frequency: 2.4GHz ISM band
Modulation: GFSK (Gaussian Frequency Shift Keying)
Sensitivity: -84dBm at 0.1% BER
Transfer Rate: Asynchronous: 6 kbps Synchronous: 6 kbps
Safety features: Authentication and encryption
Support Services: Central & Peripheral UUID FFE0, FFE1
Power consumption: automatic sleep mode, standby current 400uA ~ 1.5mA, transmission 8.5mA.
Power supply: +3.3V DC 50mA
Dimensions: 26.9mm x 13mm x 2.2 mm
Bluetooth Certification: ROHS REACH
Application:
This module is mainly used for short-distance wireless transmission of data in the field. And PC can be easily connected Bluetooth devices, also can communicate between two data. cumbersome cable connections, direct serial cable replacement
Bluetooth Car Hands
Bluetooth GPS
Bluetooth wireless data transmission
Remote control and monitoring
POS systems, wireless keyboard and mouse
transportation, underground locating and alarm
automated data acquisition system
Wireless data transmission; banking system
Wireless data collection
Pacakge included:
1 x HM-10 CC2541 CC41 Bluetooth 4.0 UART Transceiver Serial Module For Android Data Passthrough
Pacakge included:
1 x HM-10 CC2541 CC41 Bluetooth 4.0 UART Transceiver Serial Module For Android Data Passthrough
