Custom Lonten DIY WIFI APP 8x8x8 3D Light Cube Kit Red Blue Green LED MP3 Music Spectrum Electronic Kit No Housing Module Manufacturer
Custom Lonten DIY WIFI APP 8x8x8 3D Light Cube Kit Red Blue Green LED MP3 Music Spectrum Electronic Kit No Housing Module Manufacturer
Regular price
$28.49 USD
Regular price
$28.49 USD
Sale price
$28.49 USD
Unit price
per
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provider of electronic component ,for more please contact.
Item specifics
- Type:Voltage Regulator
- Condition:New
Product Description
Note:
1. This product does not includes housing!! if you need the housing, please purchased separately (Product ID: 1247731).
2. This is a DIY kit, you need to have some knowledge of electronics and ability.
3. Need a lot of soldering, you should have enough patience.
4. 8x8x8 Red, Blue and Green three kinds of lights display version, not RGB LEDs, not single color display, please note!!
5. APP function only supports
6. File: Click here to open
Feature:
1. This product does not includes housing!! if you need the housing, please purchased separately (Product ID: 1247731).
2. This is a DIY kit, you need to have some knowledge of electronics and ability.
3. Need a lot of soldering, you should have enough patience.
4. 8x8x8 Red, Blue and Green three kinds of lights display version, not RGB LEDs, not single color display, please note!!
5. APP function only supports
6. File: Click here to open
Feature:

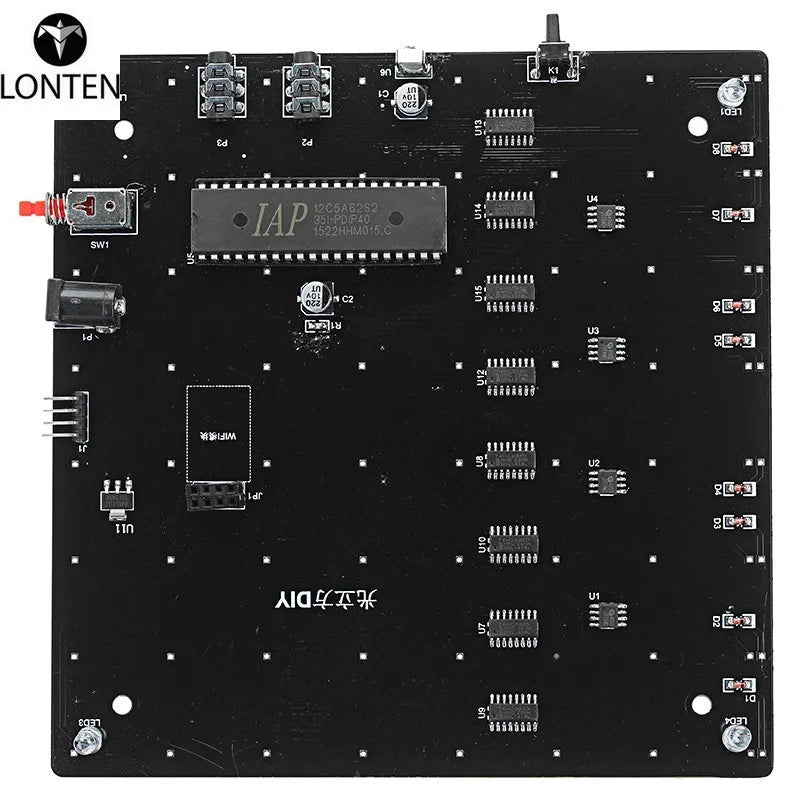

The backplane consists of a circuit board and component parts, which require their own soldering.

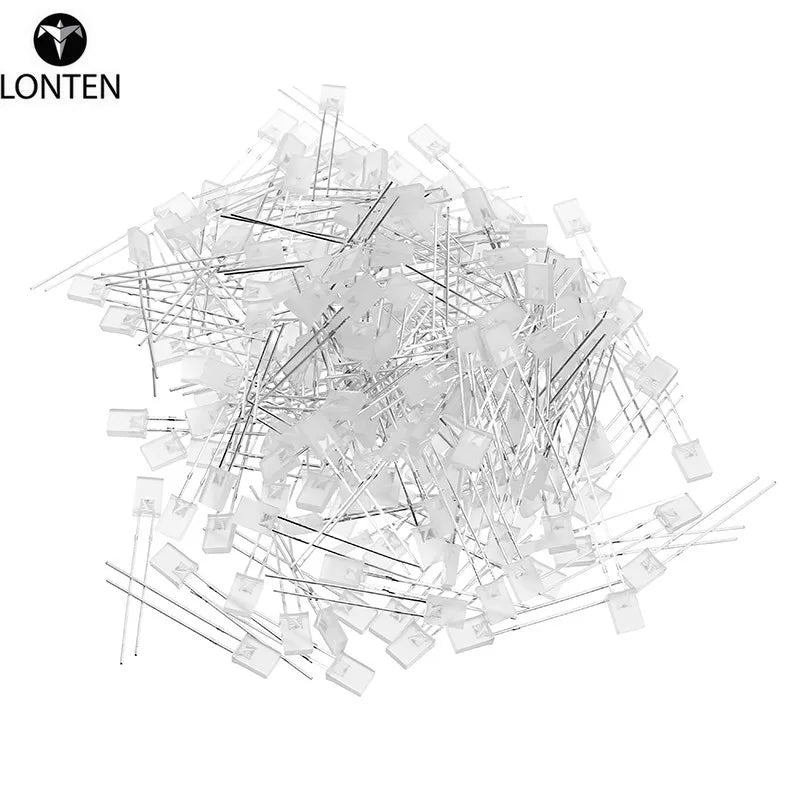

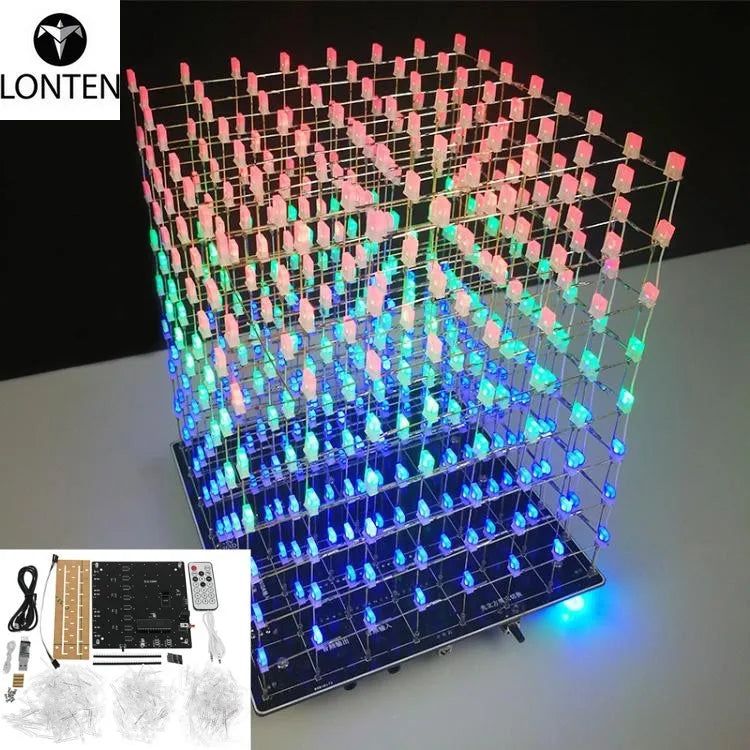

512 pcs RGB LED lights form a square three-dimensional space.
With expand wifi module, cell phone wirel connection the cube, exclusive APP control operation. (Vieg better at night).
Specification:
Input voltage: 5V
Current: 1A-2A (2A effect is better, because the LED driver chip APM4953)
Power: 5V phone charger power supply
Circuit board material 1.6 mm RF-4 plate
PCB board size: 150 x 150mm
APP version functions: (support for only )
1. Through the o cable input and output music.
2. Built-in 45 kinds of offline cool animation (power to run the animation)
3. Built-in 15 kinds of offline dynamic o animation (with music dancing)
4. 3 D8 PC mode (control animation, which can control lights display)
5. 3 D8 PC music mode
6. Infrared remote control (long distance remote control)
7. PWM breathing light mode
8. Boot motherboard test mode
9. 15 level animation speed adjustment
10. Brightn adjustment of 10 level
11. Change word by the phone (32 patterns, 45 letters)
12. Mobile PC
After the phone connected to the product wifi, you can use the exclusive APP (light cube APP) software to operate. The wifi module has been carefully PCB design and deging, straight line transmission distance up to 10-20 meters.
Circuit design:
IAP12C5A60S2 + 74HC595 + APM4953 + WIFI + Infrared remote control
1. Integrated IAP12C5A60S2 high speed 1T microcontroller
2. 5A high current MOS tube driver chip (to solve the uneven brightn)
3. High speed scanning chip and serial control cascade chip
4. Use WIFI APP software control
5. Infrared remote control (Easy to control)

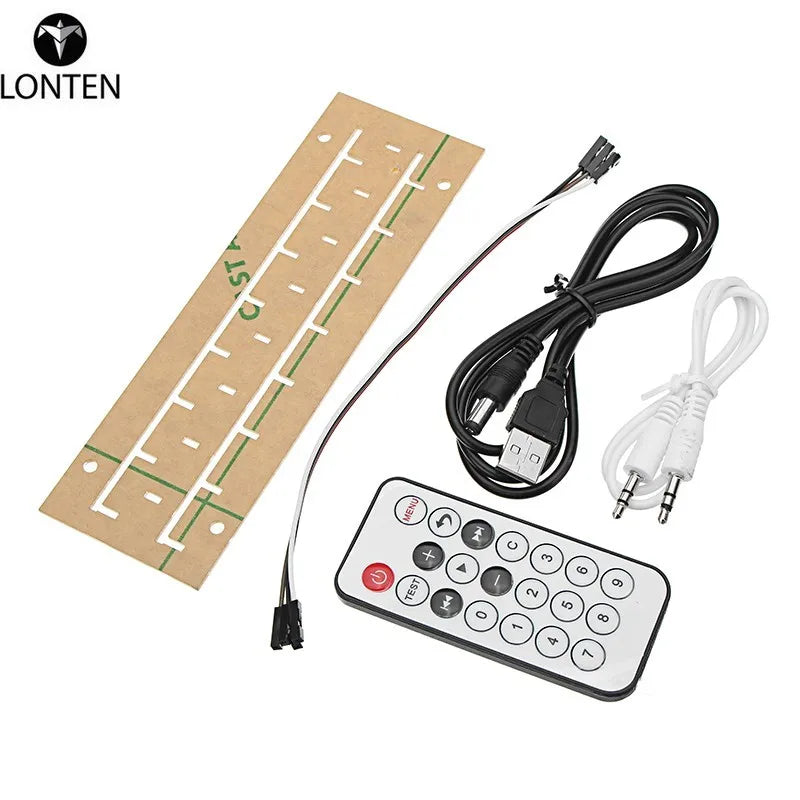

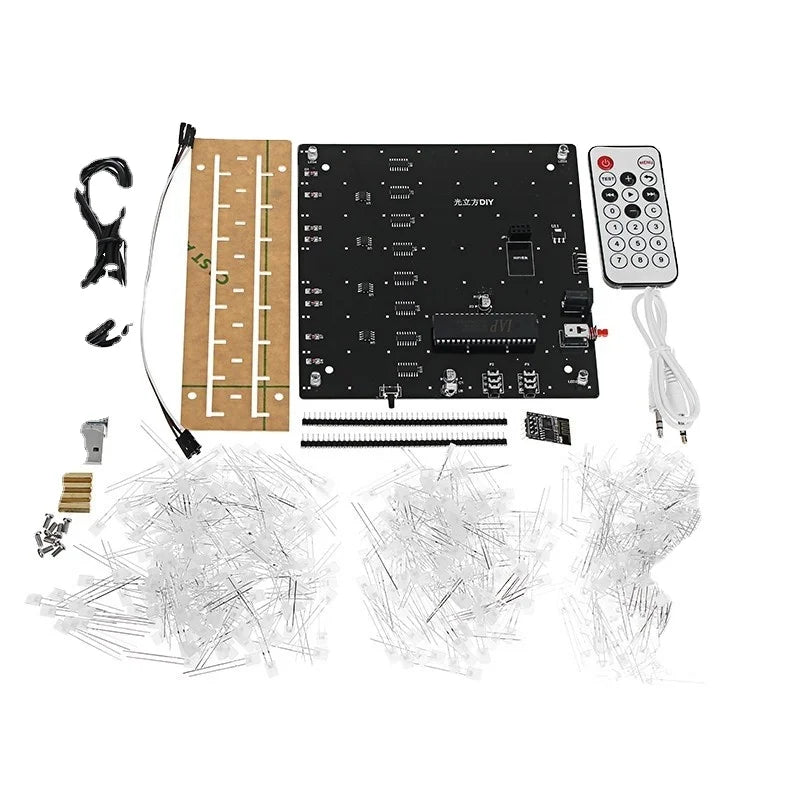

Package Includes:
1 x RGB LED 3D Light Cube Kit
Packaging Details
- Unit Type:piece
- Package Weight:0.36kg (0.79lb.)
- Package Size:18cm x 18cm x 7cm (7.09in x 7.09in x 2.76in)
