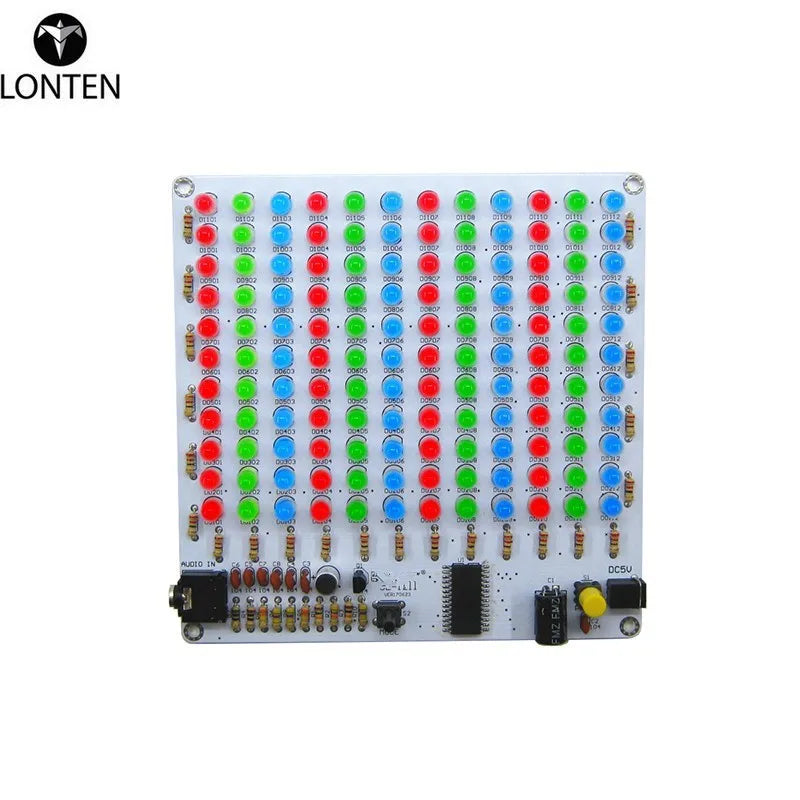

Custom Lonten DIY Kits 12*11 Color Display Music o Spectrum Indicator Amplifier Board Voice Control Level Indicator VU Meter With Case Manufacturer

Feature:

Model: SL-1211

Working voltage: DC5V

Standby current: ≤ 15mA

Working current: ≤ 80mA

Signal input method: 3.5mm o cable, electret microphone

Signal selection method: Microphone priority, insert the o cable o priority

LED color: 5mm mist red, green, blue light

LED arrangement: Line 12, column 11pcs

LED brightn: 2 level adjustable

Sensitivity adjustment: 3 level adjustable

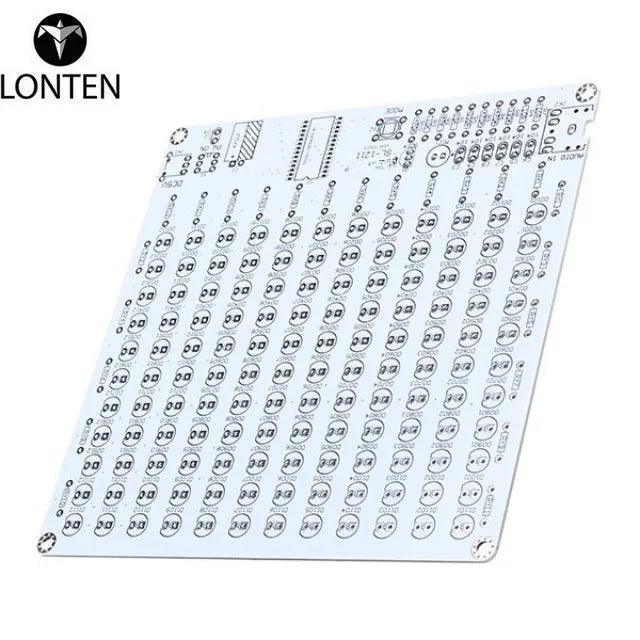

PCB size: 119 x 118.5mm

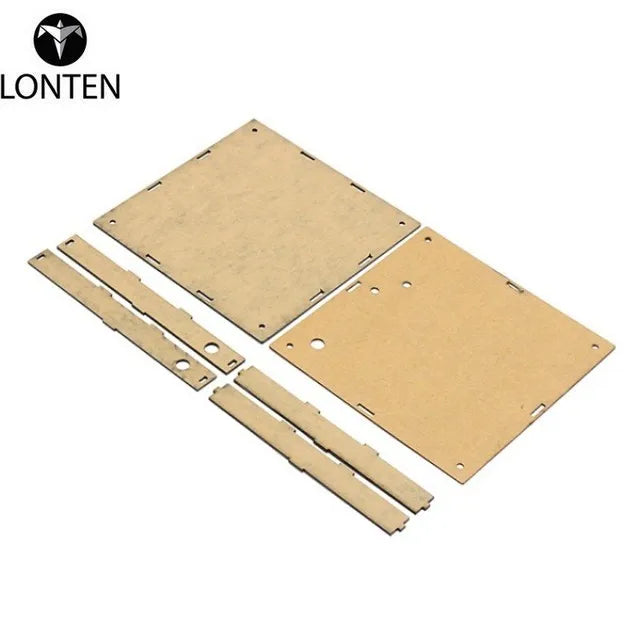

Shell size: 129 x 129 x 17mm

PCB mounting hole: 3mm

PCB mounting hole pitch: 112.7 x 112.3mm

Note: When installing the LED, please keep the three LEDs horizontally in the same color, otherwise, the red light will not appear.

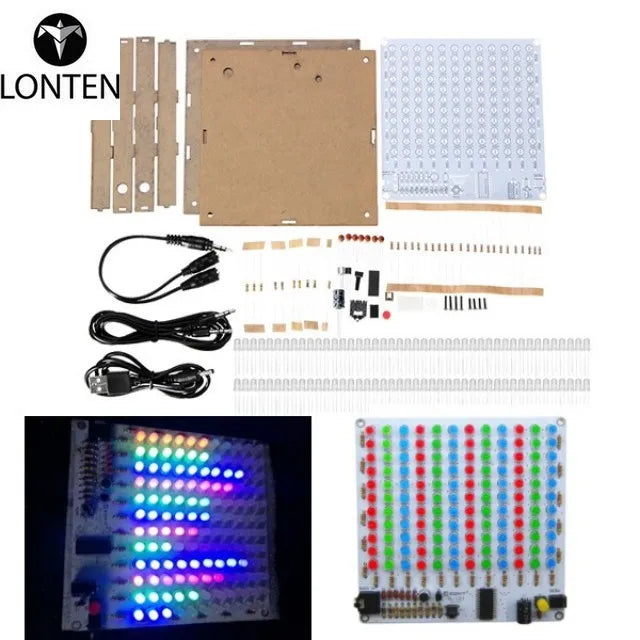

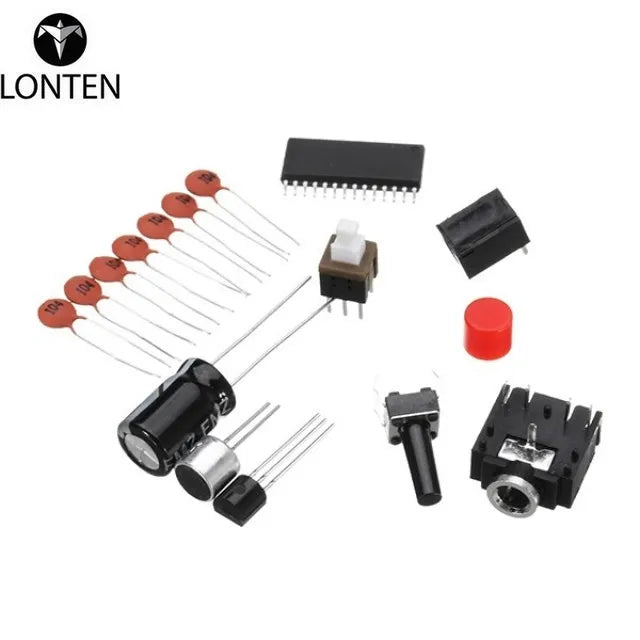

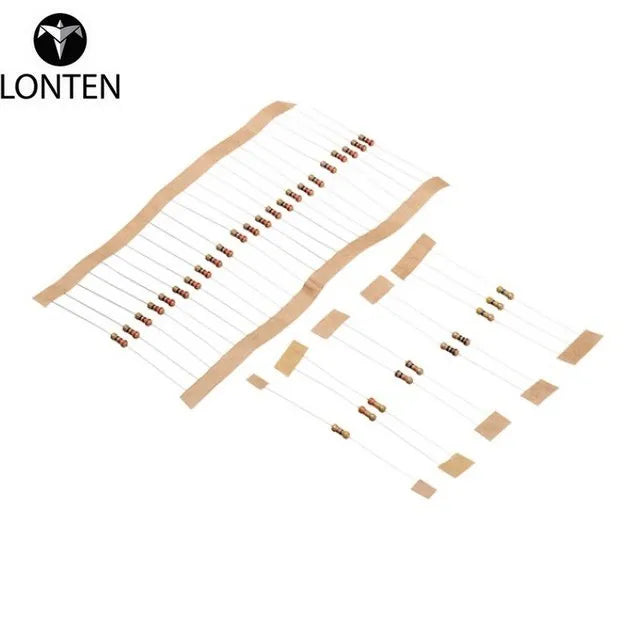

Package includes:

1 x Level Indicator Kit
