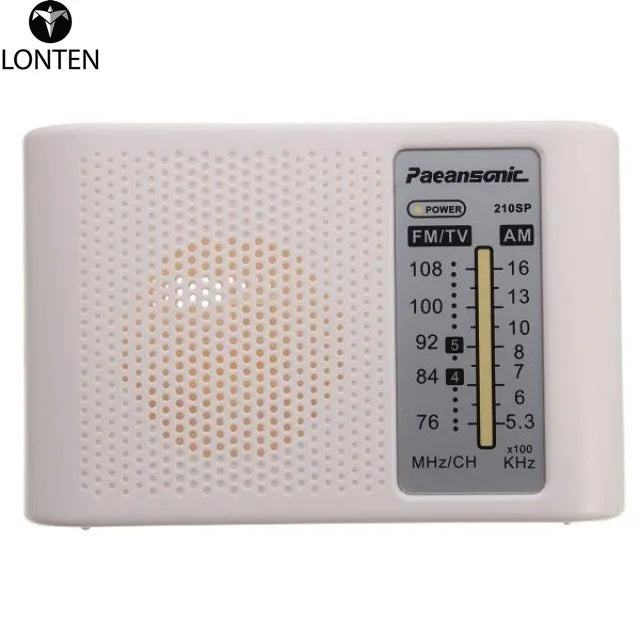

DIY CF210SP AM FM Radio Kit Electronic Assemble Kit For Electronic Learner
Here is the connection diagram !!! https://drive./open?id=0B9RT-Z00GQUANWprMzUyYVIwdm8
Description:
CF210SP is a new type of radio FM, AM two band radio, the FM band using the CD9088 chip, which uses patch element SMT package, the receive frequency range of 76-108HMZ.
Not only to accept the FM radio, can also receive campus radio and part of the o signal of the television stations. AM band using direct IC the TA7642, receive frequency range is 525-1605KHZ circuit is simple, assembly success rate, a better selectivity having a little;. amplifier circuit using TD2822 special function ICs having loud. Sound quality is good.
Circuit works:
1. Frequency Modulation (FM) section
CD9088 is a dedicated single-chip FM radio chip,
Its simple external circuit, the circuit was built frequently 70KHZ phase locked loop system, selectively implemented by active RC filter, mute circuit can be suppressed non-IF signal and the IF signal is too weak.
FM signal input circuit rod antenna C8 / C10 and L1 IC1 11, 12 feet into the mixer circuit, local oscillation circuit uses a variable capacitor CA / L2, etc. vitality can be achieved manually tune.
Circuit R2 / C2 to squelch circuit, 3 feet to the o loop filter capacitor C4. Indirect C13 6,8 feet of the intermediate frequency feedback capacitor, 7 feet is connected to C14 was the low-pass capacitors,
between C17 of 8/9 feet is IF coupling capacitor , 10 feet connected to the C12 is a limiting amplifier low-pass capacitors, 13 feet connected to the C6 of the limiter offset voltage capacitors.
2. Amplitude modulation (AM) section
AM band using Direct IC TA7642, TA7642 IC has 10 transistors internal composition, its appearance uses encapsulation mode a TO-92,1 feet grounded, 2 feet input , 3 feet output. o signal output from 3 feet, through R6 / C18 is coupled to the input of the power amplifier IC TDA2822 the power amplifier, pushing the speaker working.

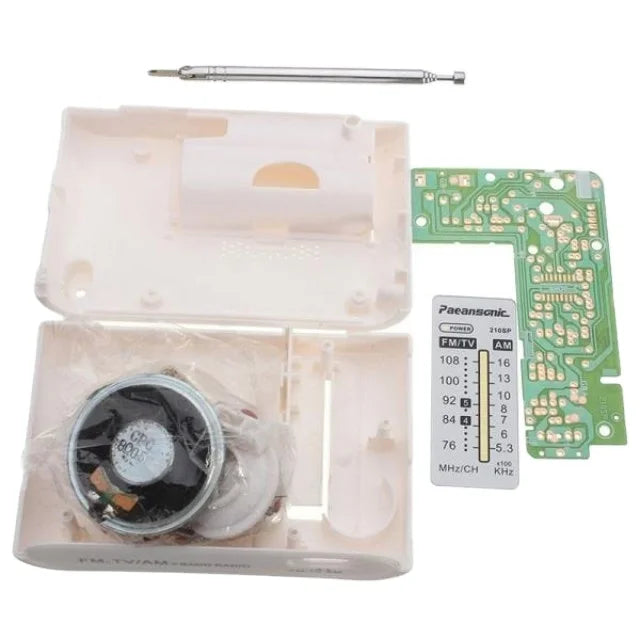

Package included:

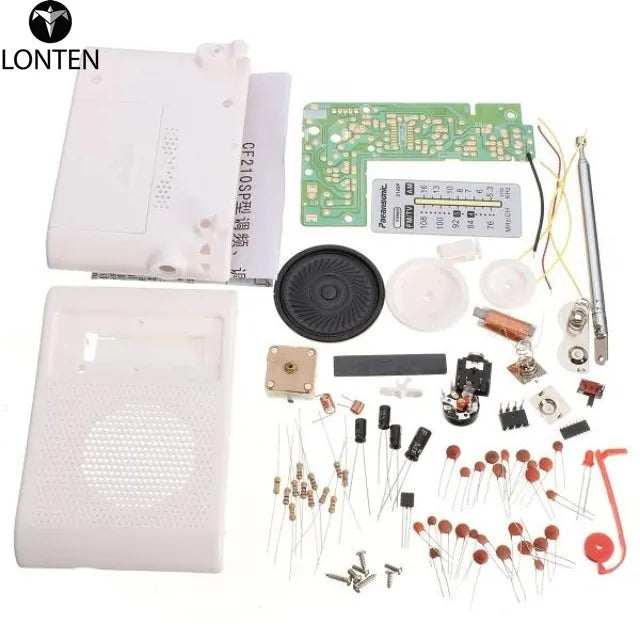

1x DIY CF210SP AM FM Radio Kit
